Model # BARRACUDA SV30 Official Weed Eater power blower

Here are the diagrams and repair parts for Official Weed Eater BARRACUDA-SV30 power blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |

Line Kit 530-069247
#98

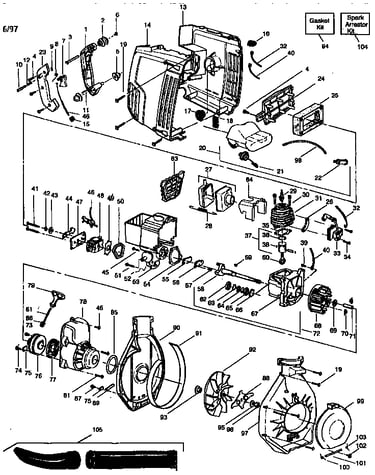

Weed eater diagram

Line kit

Part #530-069247

Replaced by #530069247

?
Manufacturer substitution
This part replaces 530-069247. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.60
13% OFF Phone Price : $7.60
In Stock
Fuel Assembly 530-014362
#22

Weed eater diagram

Fuel assembly

Part #530-014362

Replaced by #530095646

?
Manufacturer substitution
This part replaces 530-014362. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.07
16% OFF Phone Price : $6.07
In Stock
Rope Kit 530-069232
#61

Weed eater diagram

Rope kit

Part #530-069232

Replaced by #530069232

?
Manufacturer substitution
This part replaces 530-069232. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Spark Plug 530-030075
#29

Weed eater diagram

Spark plug

Part #530-030075

Replaced by #503235112

?
Manufacturer substitution
This part replaces 530-030075. Substitute parts can look different from the original.
This item is not returnable
In Stock
Gasket 530-019164
#49

Weed eater diagram

Gasket

Part #530-019164

Replaced by #530019164

?
Manufacturer substitution
This part replaces 530-019164. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 530-015814
#19

Weed eater diagram

Screw

Part #530-015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530-015814. Substitute parts can look different from the original.
This item is not returnable
$2.80
26% OFF Phone Price : $3.80
Back Order
Retainer Ring 530-015162
#38

Weed eater diagram

Retainer ring

Part #530-015162

Replaced by #530015162

?
Manufacturer substitution
This part replaces 530-015162. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 530-016080
#73

Weed eater diagram

Screw

Part #530-016080

Replaced by #530016080

?
Manufacturer substitution
This part replaces 530-016080. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cylinder Gasket 530-019178
#35

Weed eater diagram

Cylinder gasket

Part #530-019178

Replaced by #530019267

?
Manufacturer substitution
This part replaces 530-019178. Substitute parts can look different from the original.
This item is not returnable
$3.00
25% OFF Phone Price : $4.00
In Stock
Cap (gold) 530-038403
#2

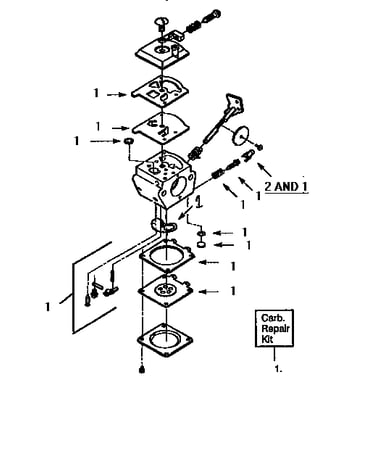

Carburetor assembly diagram

Cap (gold)

Part #530-038403

Replaced by #530038403

?
Manufacturer substitution
This part replaces 530-038403. Substitute parts can look different from the original.
This item is not returnable
In Stock
