Model # ILCE-6000LB Official Sony camera

Here are the diagrams and repair parts for Official Sony ILCE-6000LB camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

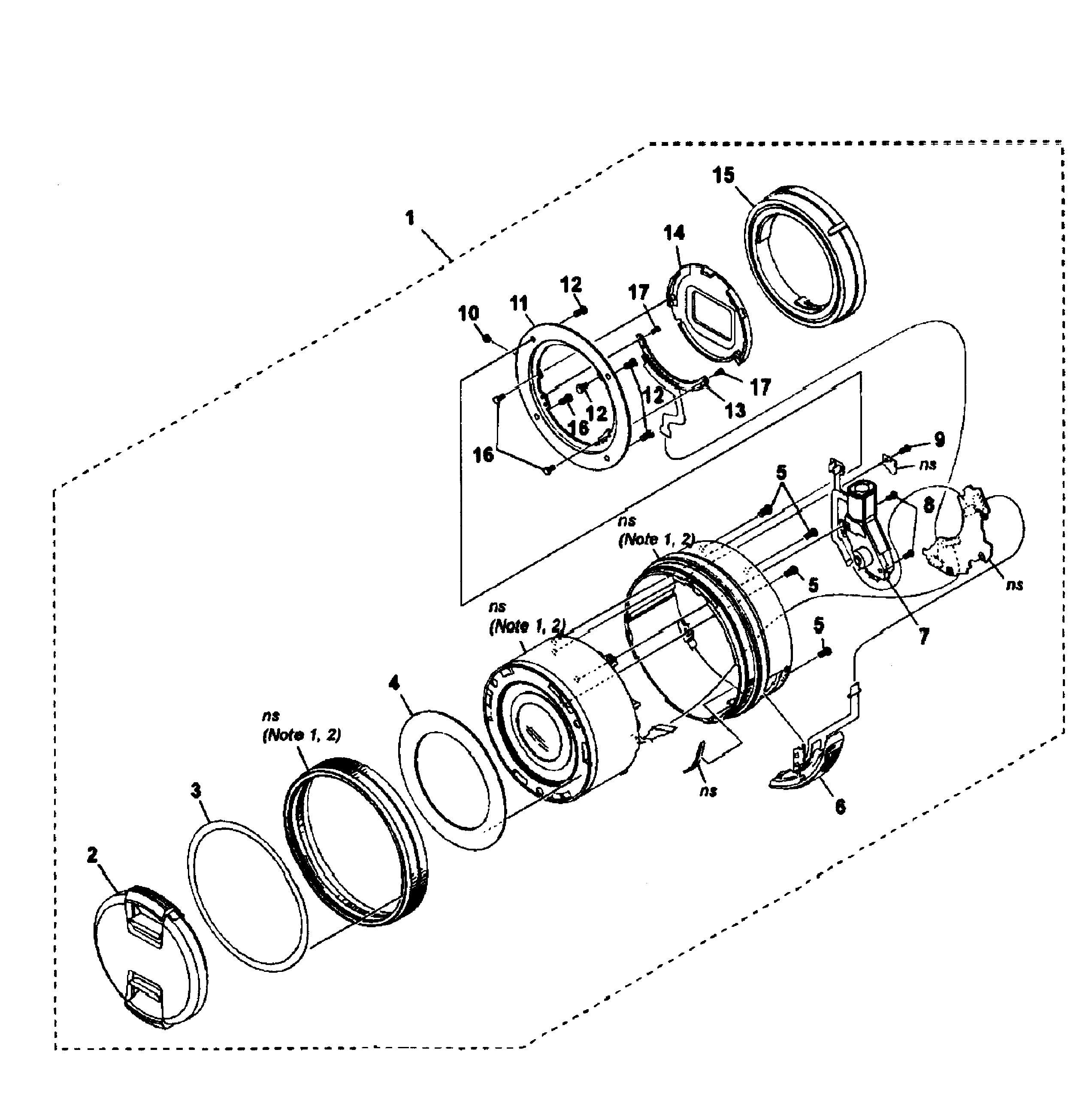

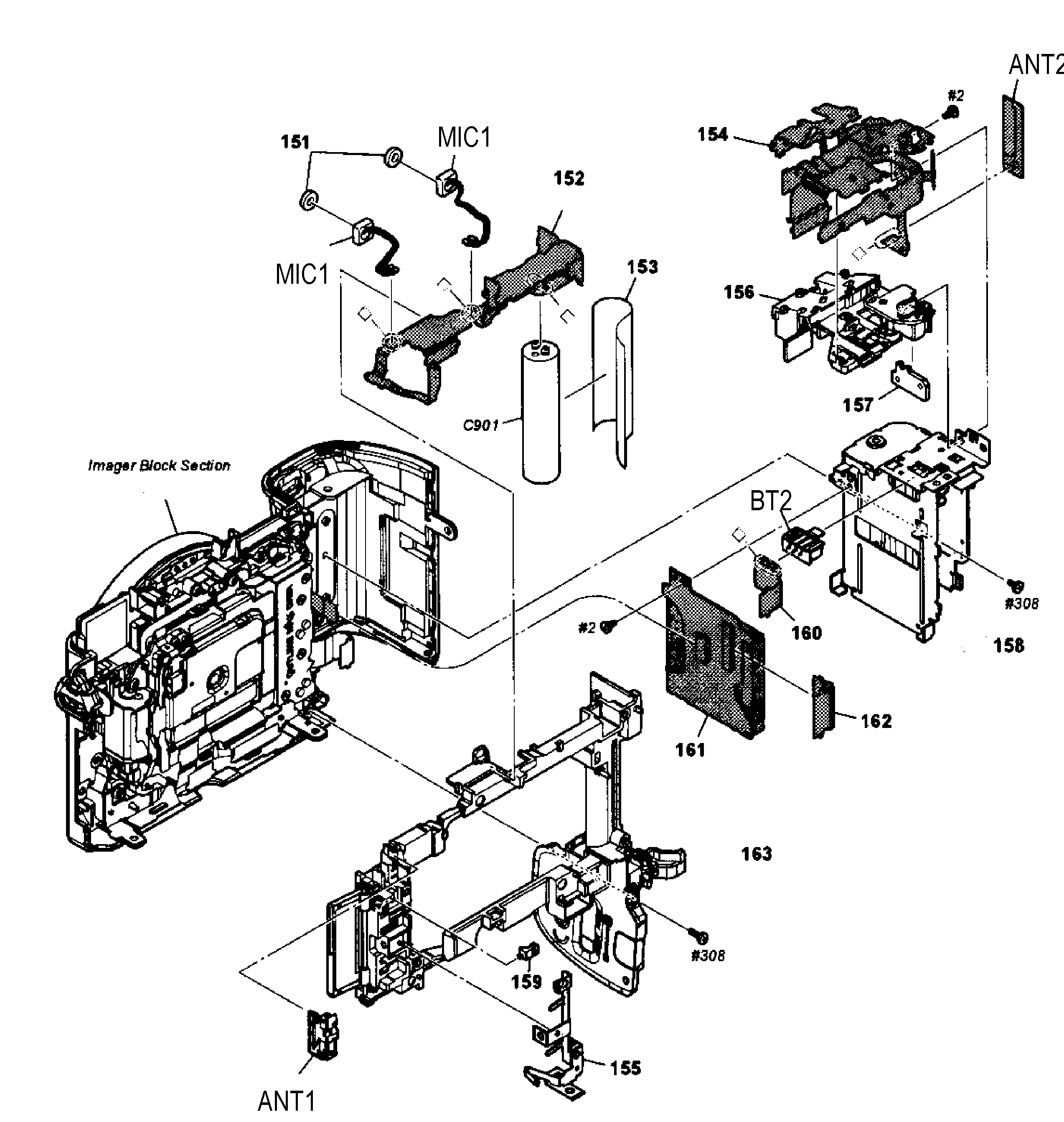

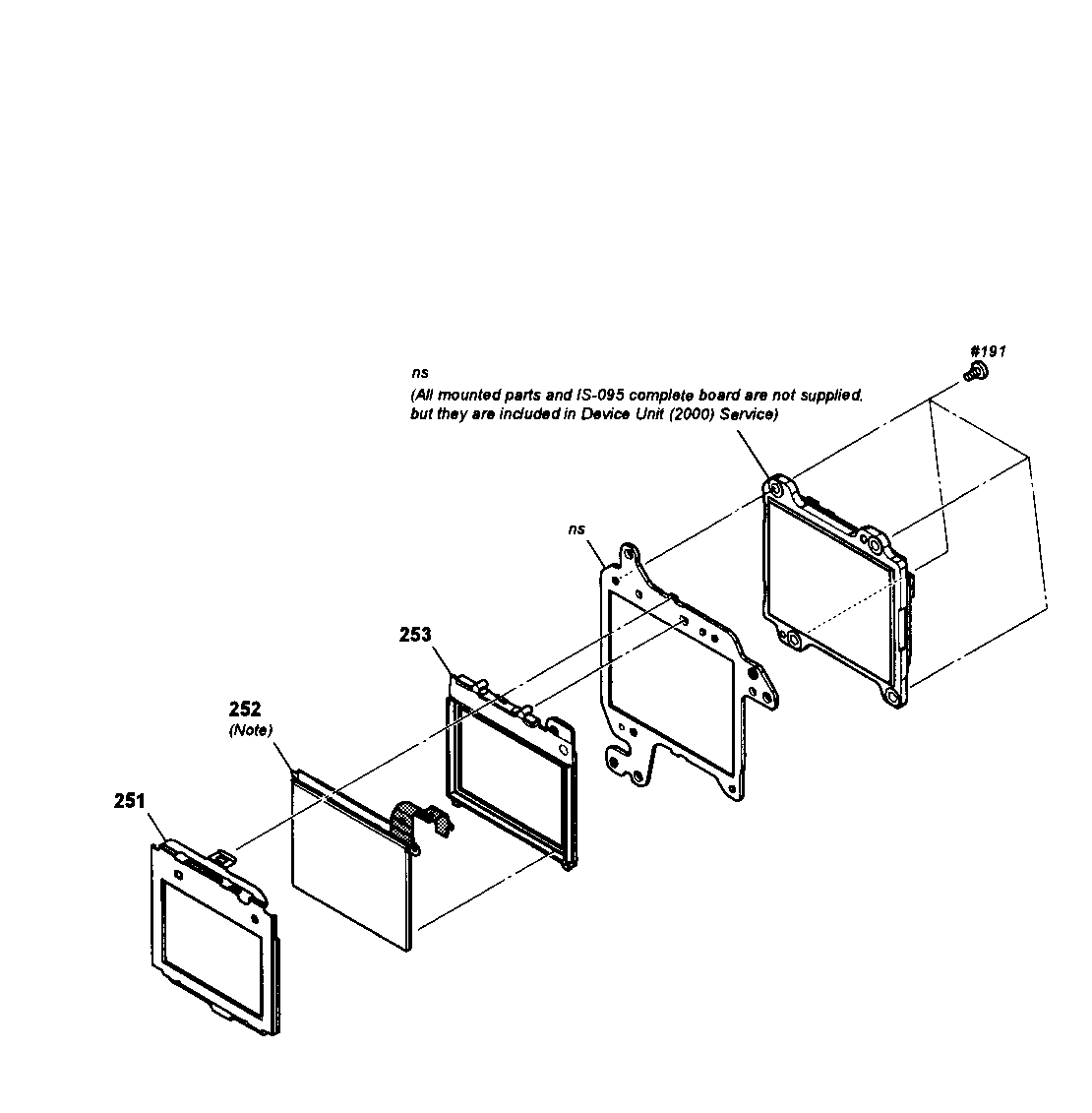

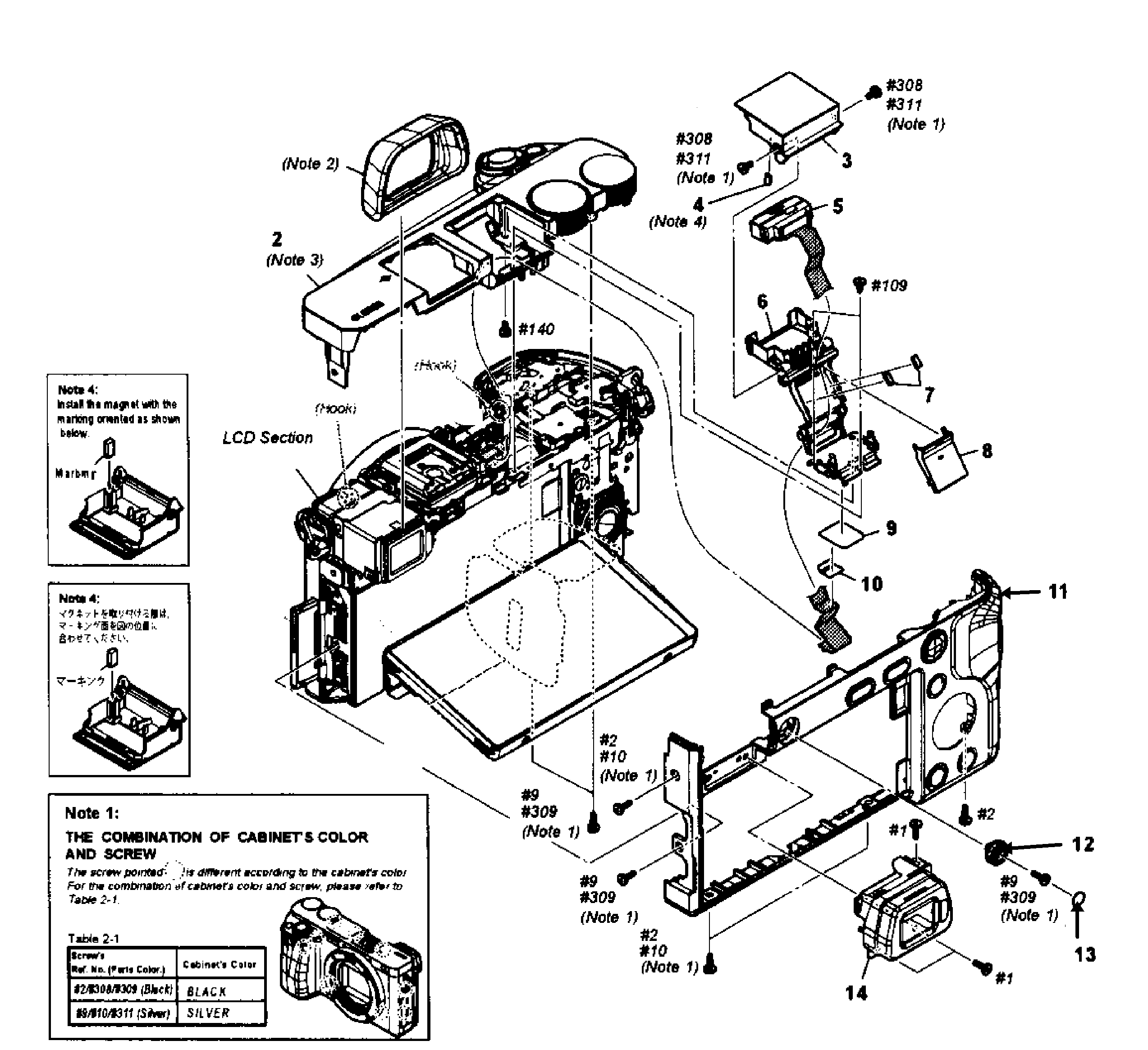

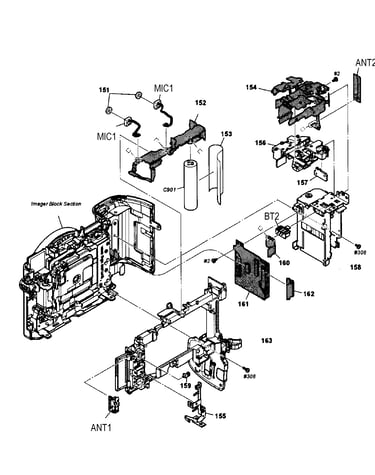

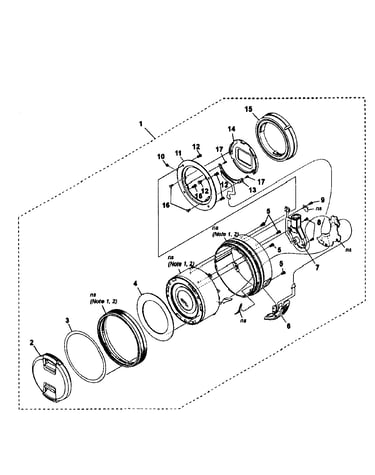

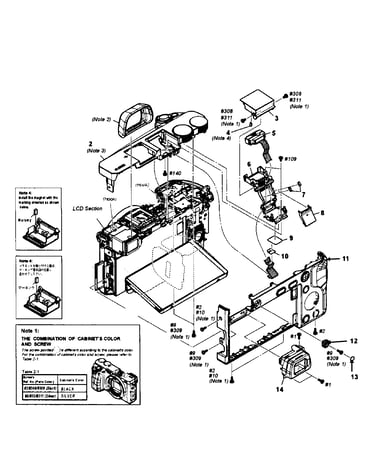

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |

Pcb Sy1028 A2038810A
#108

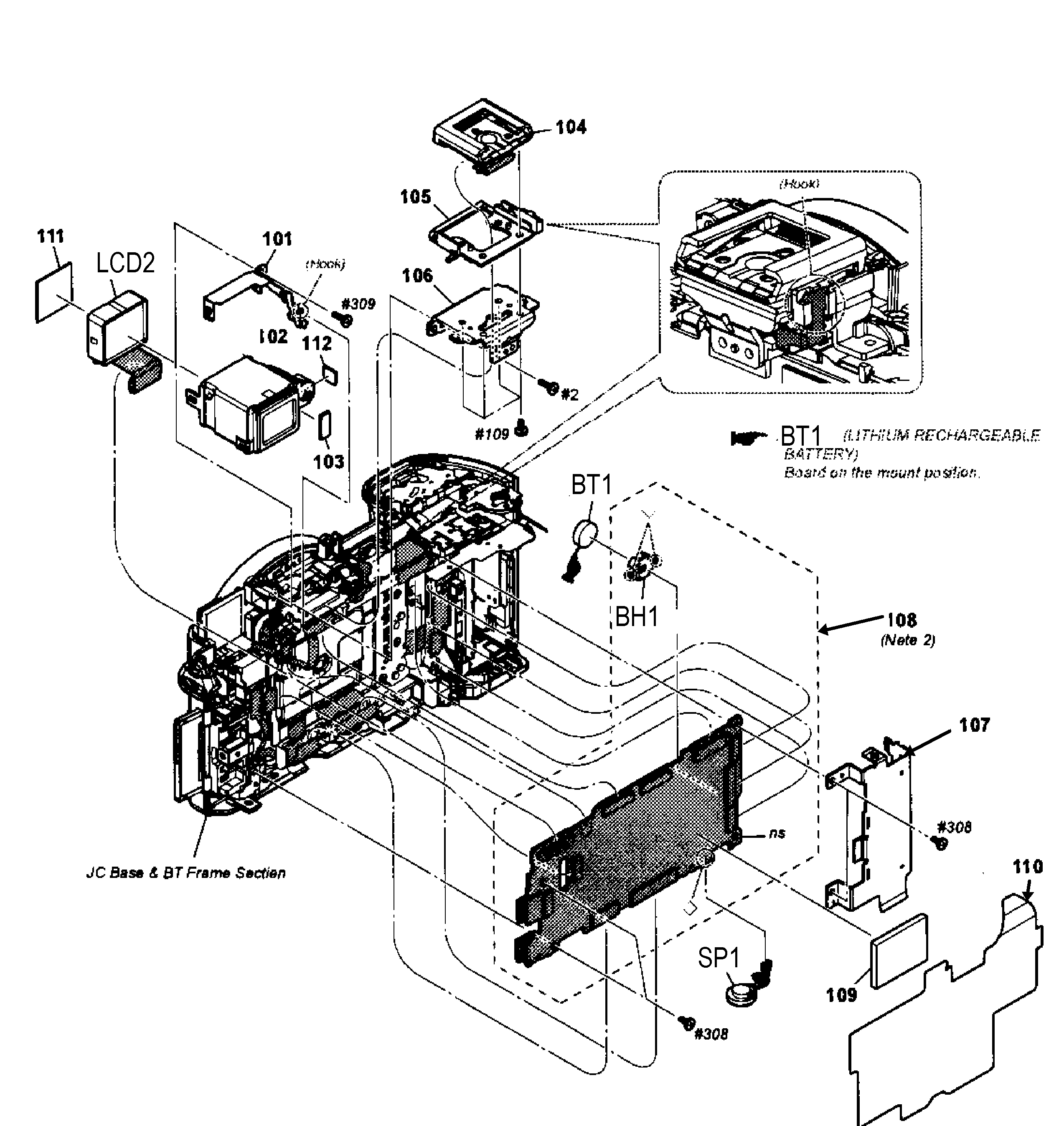

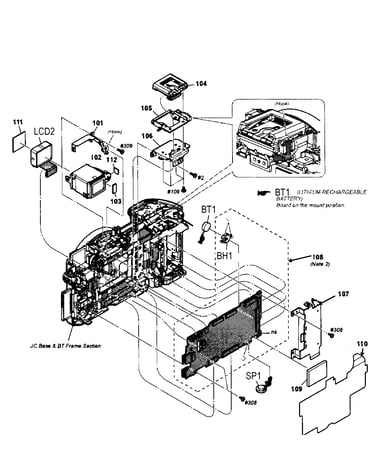

Base diagram

Pcb sy1028

Part #A2038810A

In Stock
Light Sheet 453064701
#60

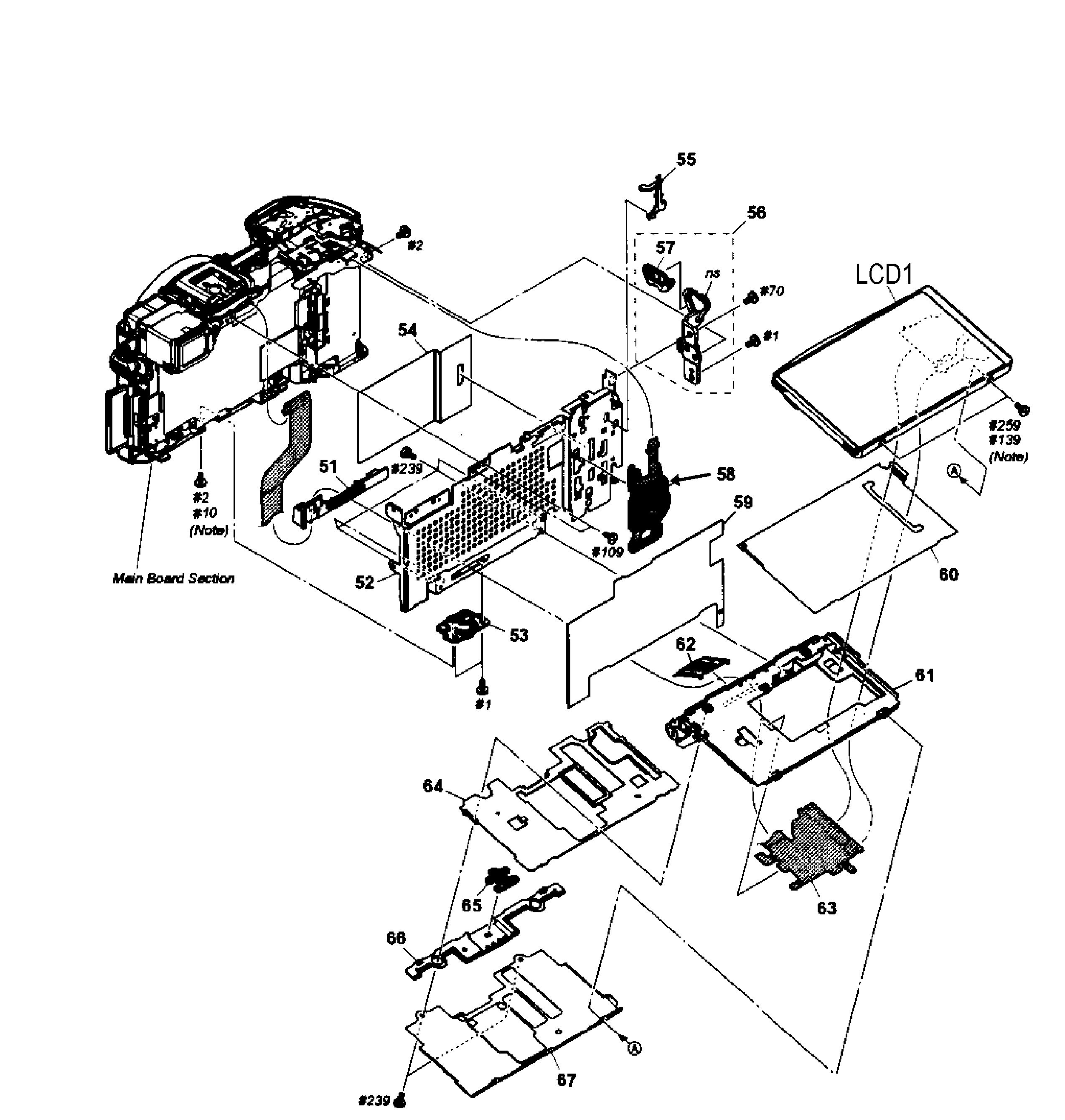

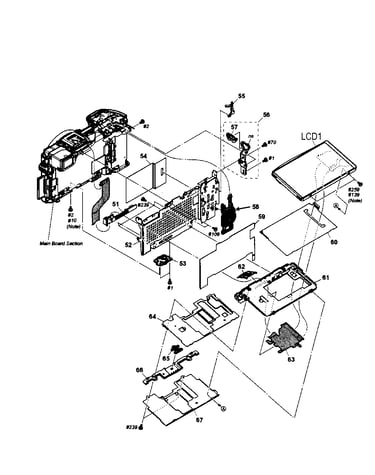

Lcd diagram

Light sheet

Part #453064701

This item is not returnable
In Stock
Wshr,t=.1 418599511
#206A

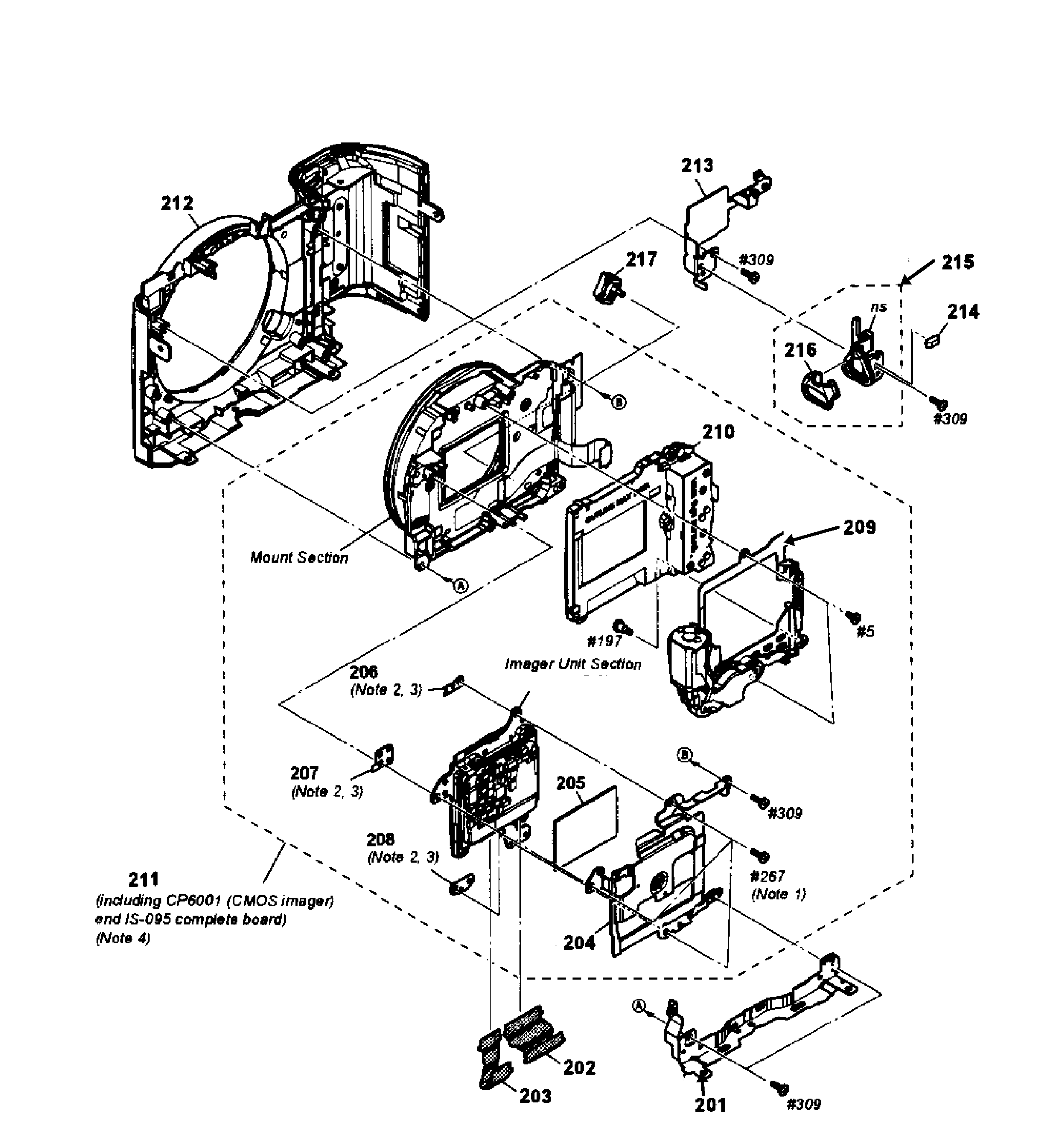

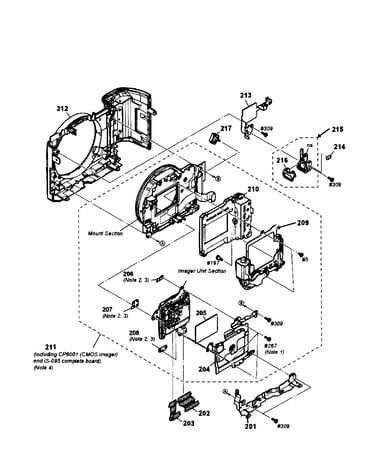

Front frame & cabinet diagram

Wshr,t=.1

Part #418599511

This item is not returnable
In Stock
Wshr,t=.25 418599941
#208D

Front frame & cabinet diagram

Wshr,t=.25

Part #418599941

This item is not returnable
In Stock
Heat Sink 447441201
#204

Front frame & cabinet diagram

Heat sink

Part #447441201

In Stock
Wshr,t=.2 418599931
#208C

Front frame & cabinet diagram

Wshr,t=.2

Part #418599931

This item is not returnable
In Stock
Ther Sheet 453062401
#306

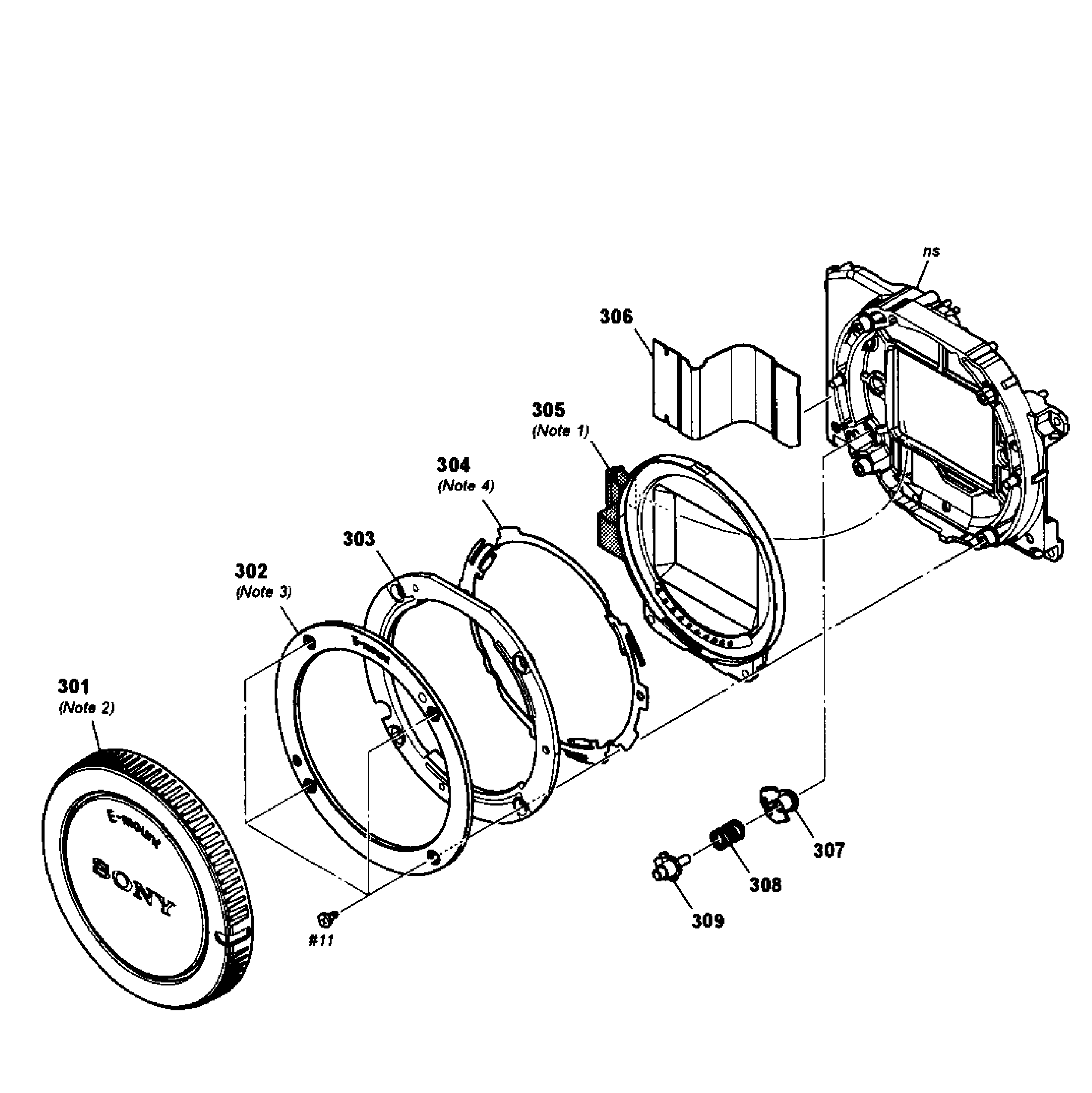

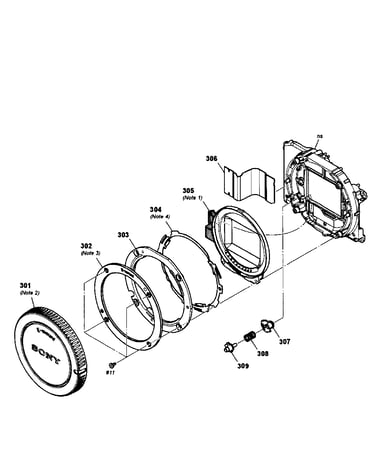

Lens mount diagram

Ther sheet

Part #453062401

This item is not returnable
In Stock
Strap Brck X25891831
#215

Front frame & cabinet diagram

Strap brck

Part #X25891831

In Stock
Base Plate 453062501
#106

Base diagram

Base plate

Part #453062501

This item is not returnable
In Stock
Serv Kit A1987441A
#211

Front frame & cabinet diagram

Serv kit

Part #A1987441A

In Stock
