Model # 72163992303 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72163992303 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

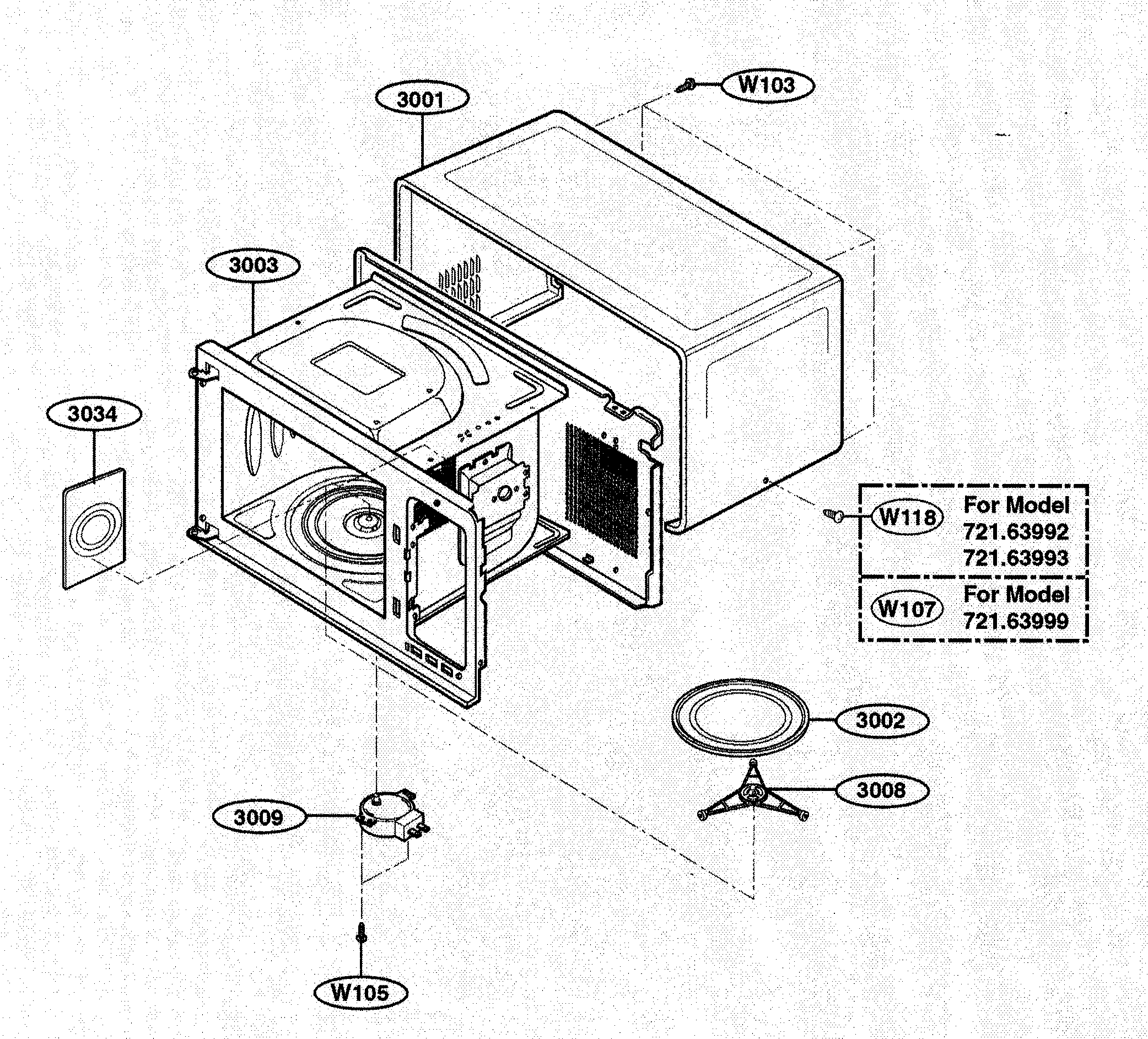

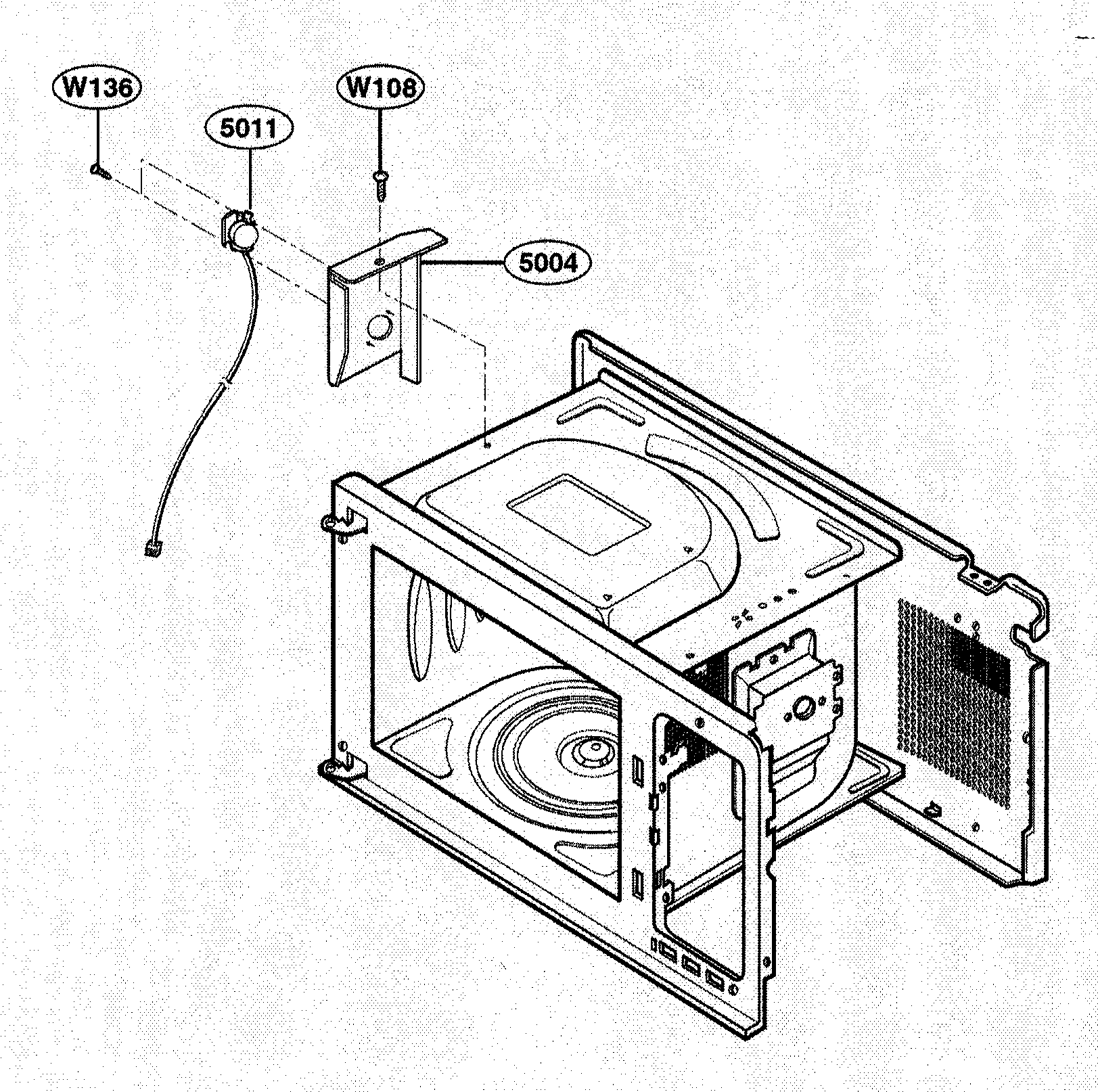

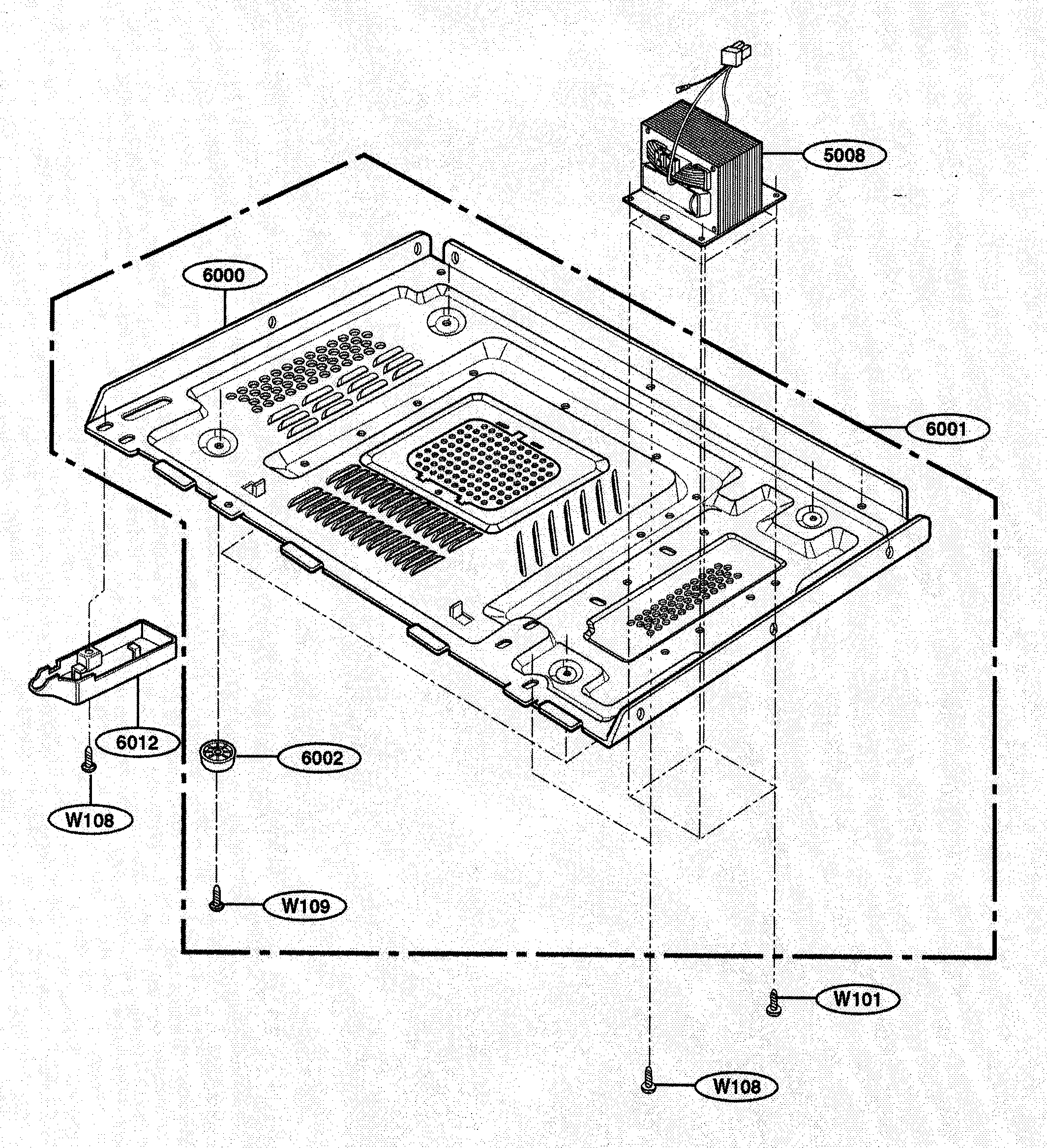

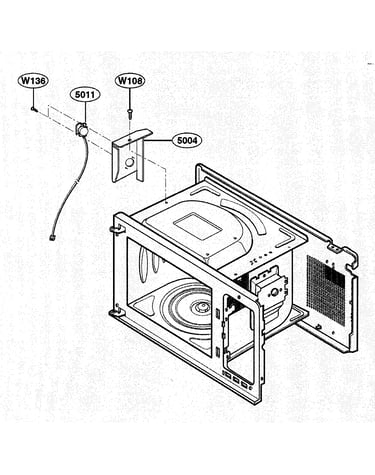

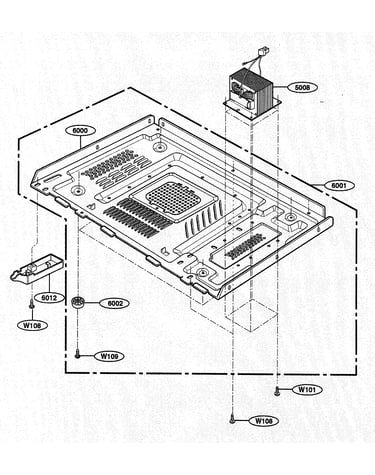

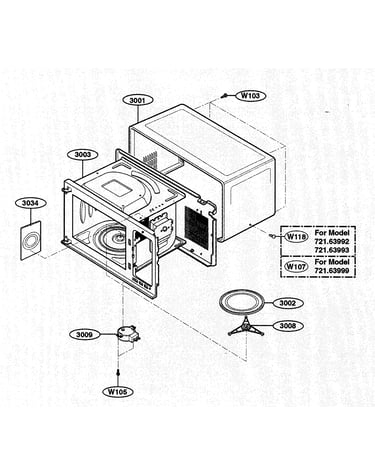

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Microwave Door Interlock Switch 6600W1K003D
#4002

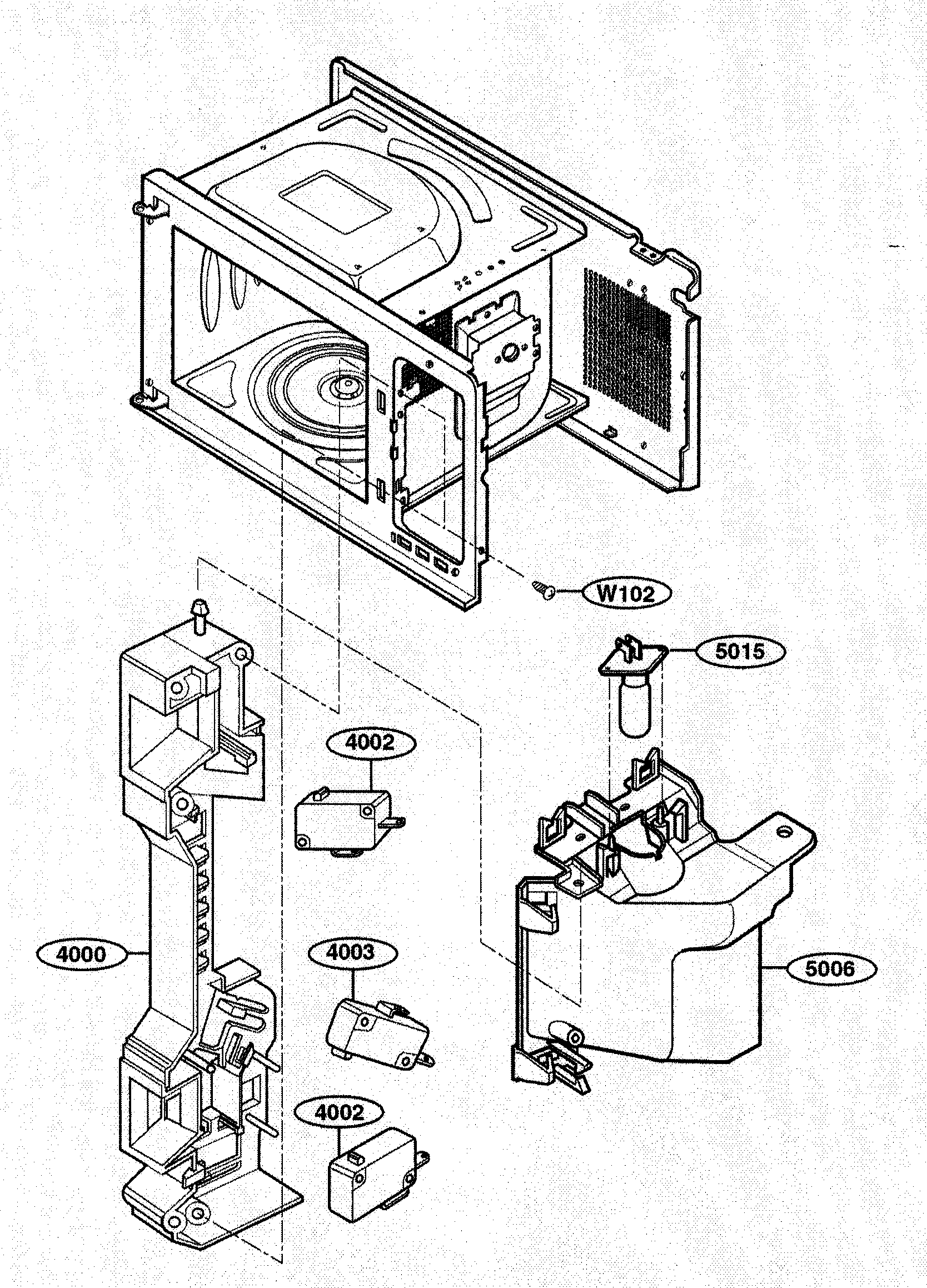

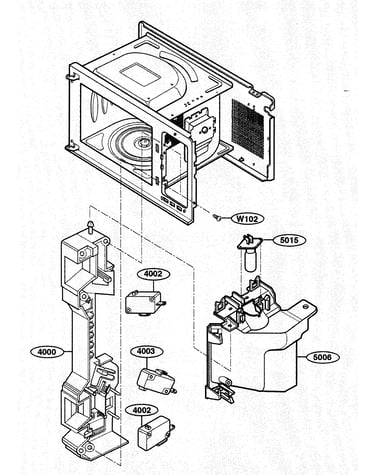

Latch board diagram

Microwave door interlock switch

Part #6600W1K003D

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K003D. Substitute parts can look different from the original.
BEST SELLER
$9.76
9% OFF Phone Price : $10.76
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

Latch board diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5009

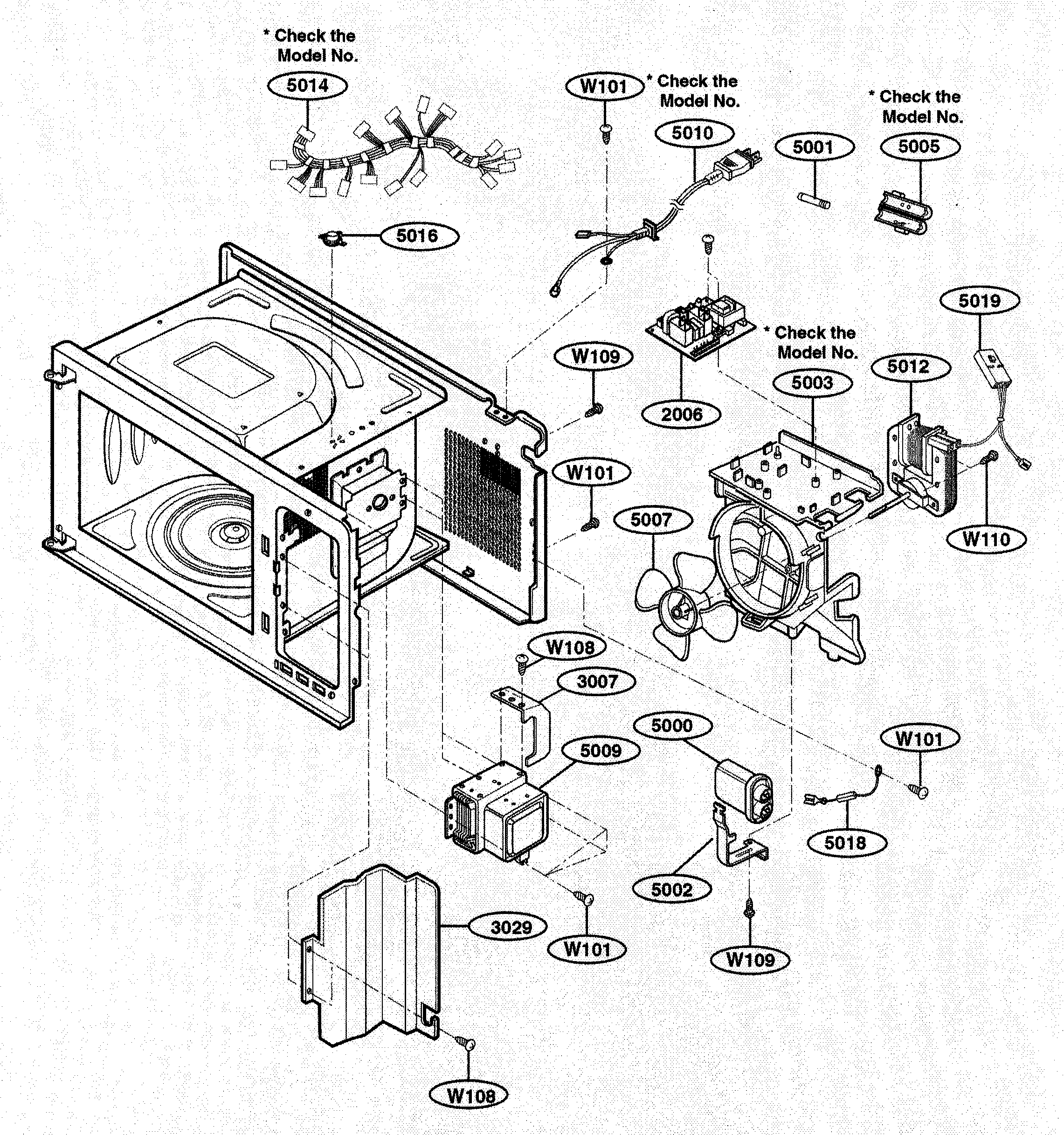

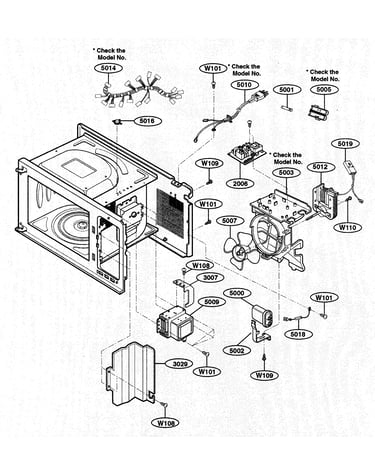

Interior parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94
5% OFF Phone Price : $96.94
In Stock
Microwave High-voltage Diode 6021W3B001R
#5018

Interior parts diagram

Microwave high-voltage diode

Part #6021W3B001R

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
Capacitor 0CZZW1H005A
#5000

Interior parts diagram

Capacitor

Part #0CZZW1H005A

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces 0CZZW1H005A. Substitute parts can look different from the original.
BEST SELLER
$28.54
15% OFF Phone Price : $33.54
In Stock
Microwave Door Latch Spring 4970WRA001E
#1007

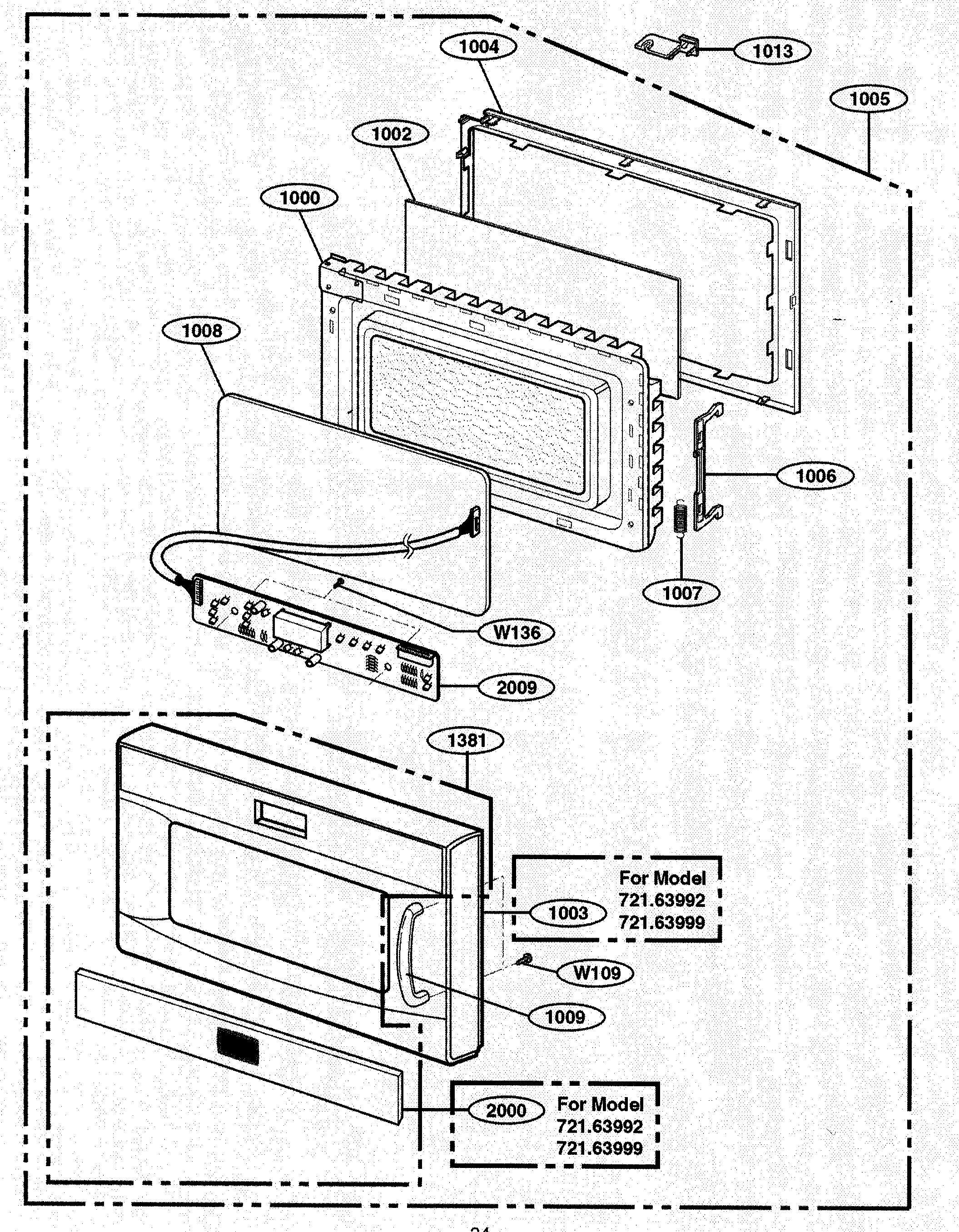

Door/control panels diagram

Microwave door latch spring

Part #4970WRA001E

This item is not returnable
$5.52
15% OFF Phone Price : $6.52
In Stock
Primary Swtc 6600W1K003C
#4003

Latch board diagram

Primary swtc

Part #6600W1K003C

Replaced by #6600W1K001B

?
Manufacturer substitution
This part replaces 6600W1K003C. Substitute parts can look different from the original.
$10.03
17% OFF Phone Price : $12.03
In Stock
Seal Tape 3536W1A004A
#1002

Door/control panels diagram

Seal tape

Part #3536W1A004A

In Stock
Valve 5220W1A001B
#8014

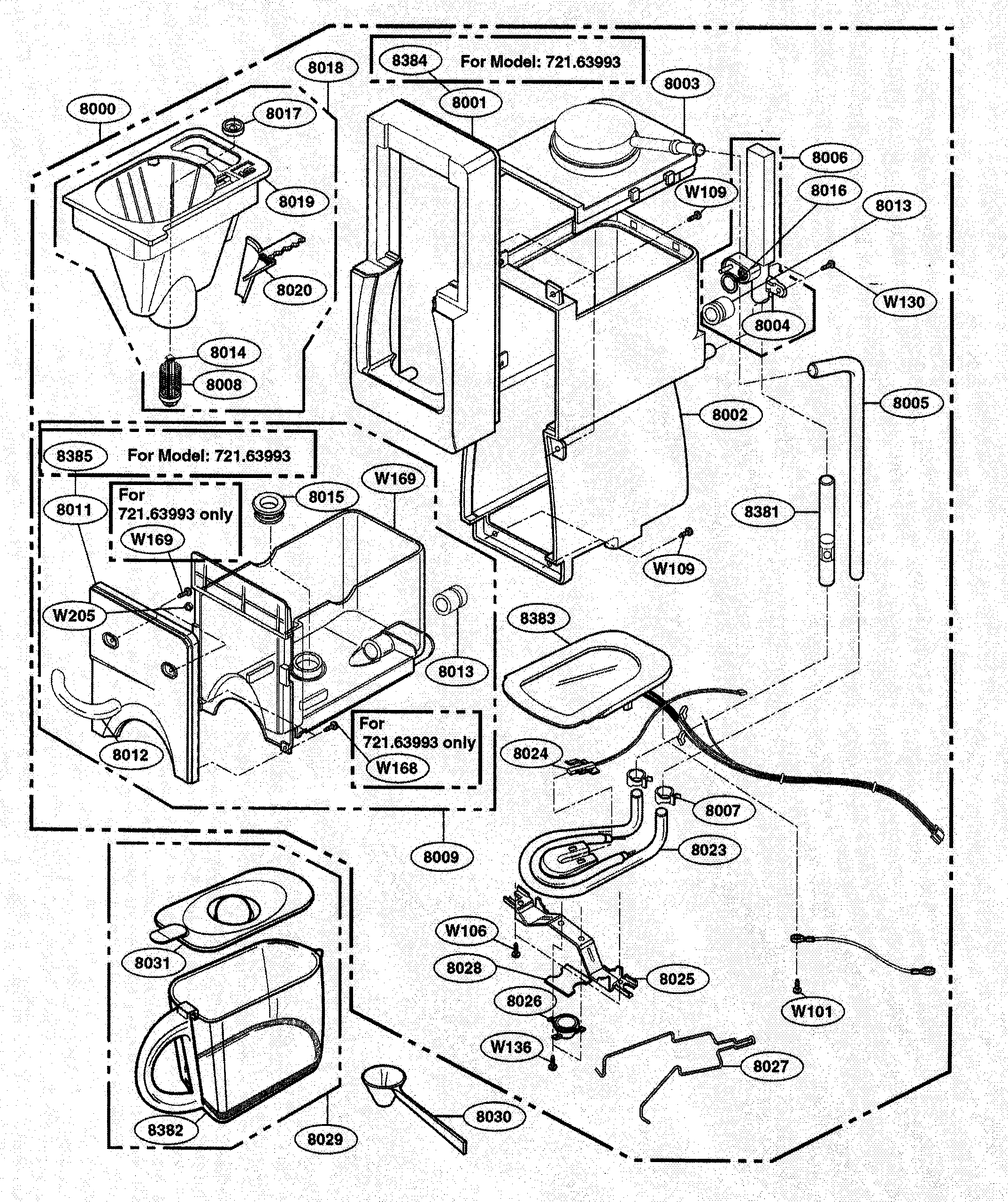

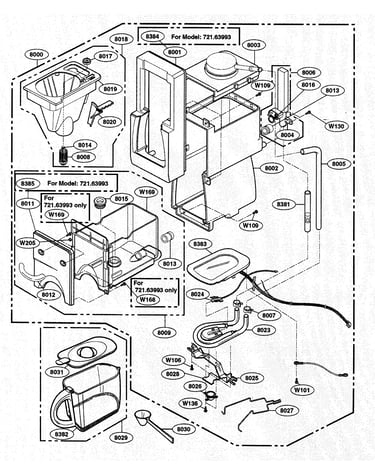

Coffee maker parts diagram

Valve

Part #5220W1A001B

In Stock
Insulator 5012W3A020C
#3007

Interior parts diagram

Insulator

Part #5012W3A020C

This item is not returnable
$6.06
14% OFF Phone Price : $7.06
In Stock
