Model # 200633111 Official Craftsman 2-cycle engine

Here are the diagrams and repair parts for Official Craftsman 200633111 2-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Primer Line 32180B
#67

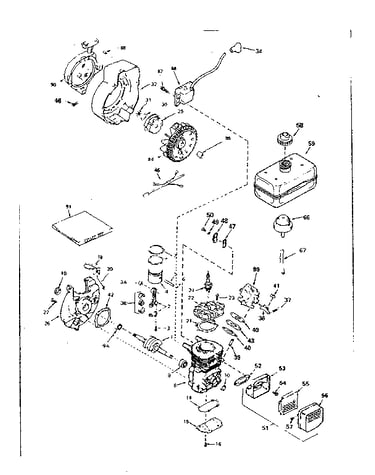

Basic engine diagram

Primer line

Part #32180B

The manufacturer no longer makes this part, and there's no substitute part

Float 632019
#5

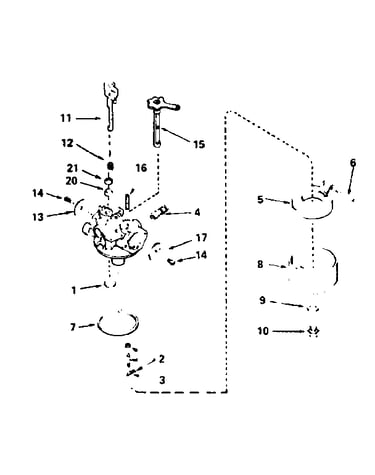

Carburetor number 632278 diagram

Float

Part #632019

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#34

Basic engine diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Starter Rope 590535
#9

Rewind starter number 59537 diagram

Starter rope

Part #590535

This item is not returnable
$7.19
In Stock
Gasket 510230
#52

Basic engine diagram

Gasket

Part #510230

The manufacturer no longer makes this part, and there's no substitute part

Starter Assembly 590537
Starter assembly

Part #590537

The manufacturer no longer makes this part, and there's no substitute part

Screw 650814
#87

Basic engine diagram

Screw

Part #650814

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510274
#21

Basic engine diagram

Gasket

Part #510274

The manufacturer no longer makes this part, and there's no substitute part

Washer 650763
#30

Basic engine diagram

Washer

Part #650763

The manufacturer no longer makes this part, and there's no substitute part

Screw 650506
#14

Carburetor number 632278 diagram

Screw

Part #650506

The manufacturer no longer makes this part, and there's no substitute part
