Model # 21758760 Official Craftsman 15.0-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21758760 15.0-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

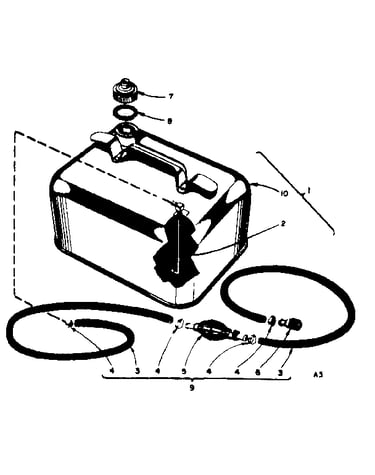

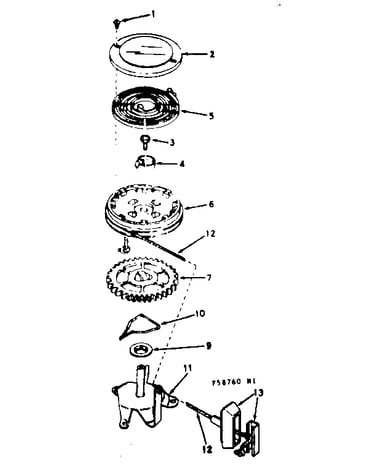

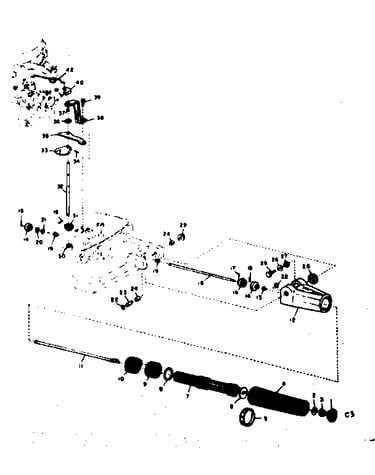

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 355 parts |

#25

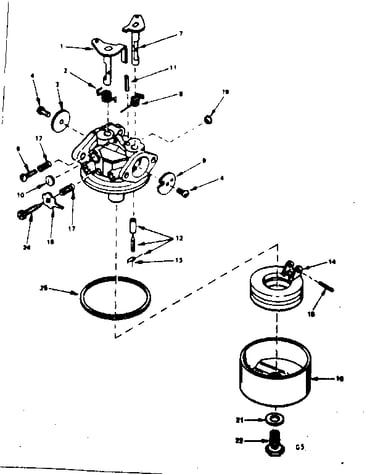

Carburetor assembly no. 631740 diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

#24

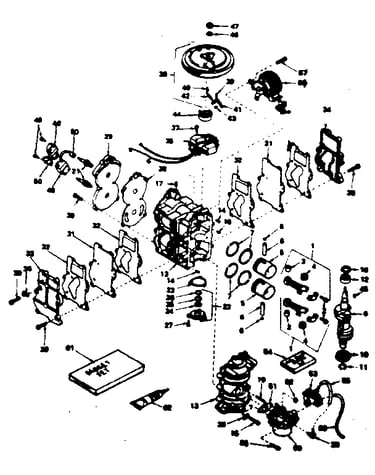

Engine assembly no. 381 diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

#13

Carburetor assembly no. 631740 diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

#63

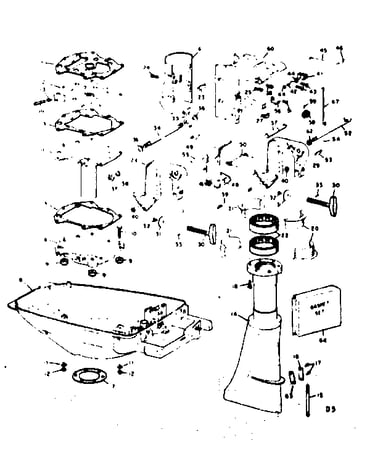

Column assembly diagram

Gasket (gray)

Part #26352

The manufacturer no longer makes this part, and there's no substitute part

#28

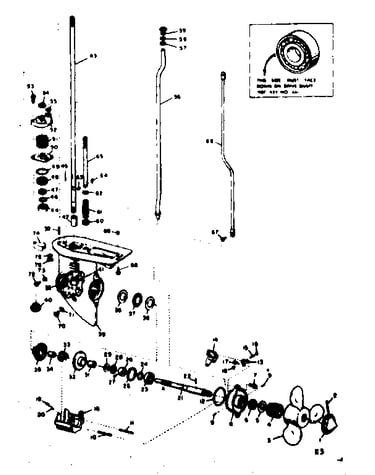

Gear housing assembly diagram

Bearing

Part #26314

The manufacturer no longer makes this part, and there's no substitute part

#56

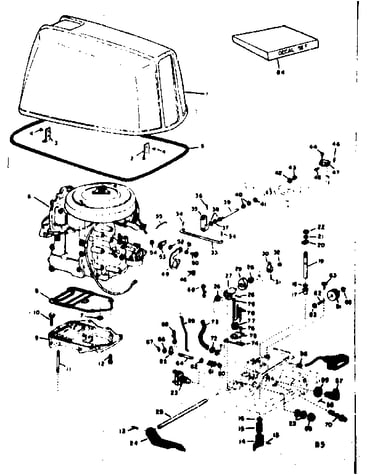

Power head assembly diagram

Bushing

Part #26243

The manufacturer no longer makes this part, and there's no substitute part

Pin (silver)

Part #6415

The manufacturer no longer makes this part, and there's no substitute part

#44

Gear housing assembly diagram

Ball bearing

Part #26290

The manufacturer no longer makes this part, and there's no substitute part

Gear housing assembly diagram

Exercise equipment washer

Part #96687

The manufacturer no longer makes this part, and there's no substitute part
