KitchenAid KMBP107ESS03 built-in microwave Parts

Name: KitchenAid KMBP107ESS03 Parts | Diagrams | Sears PartsDirect
Brand: KitchenAid
SKU: KMBP107ESS03
Availability: InStock

Here are the diagrams and repair parts for KitchenAid KMBP107ESS03 built-in microwave, as well as links to manuals and error code tables, if available.

By Schematic

By Part

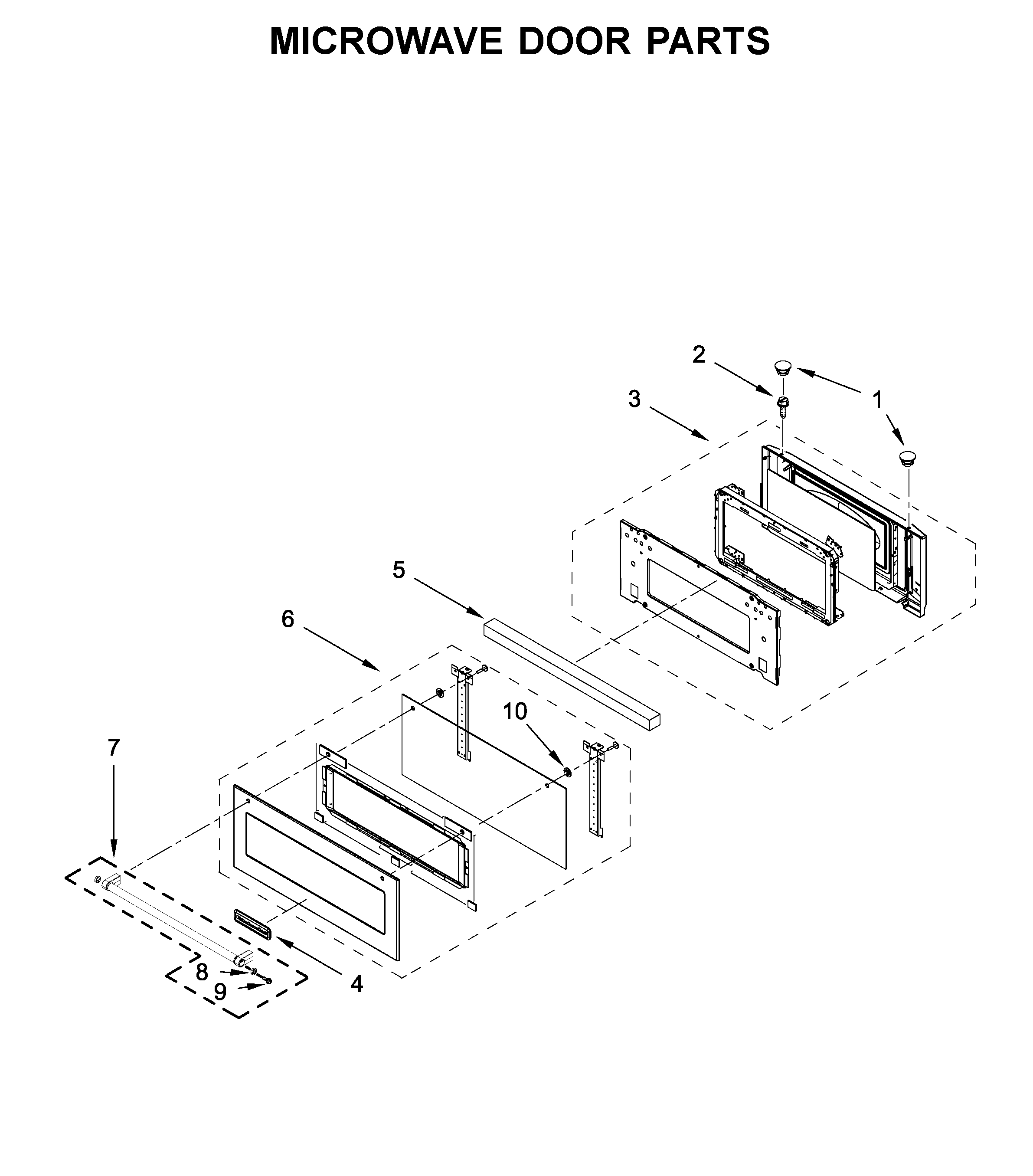

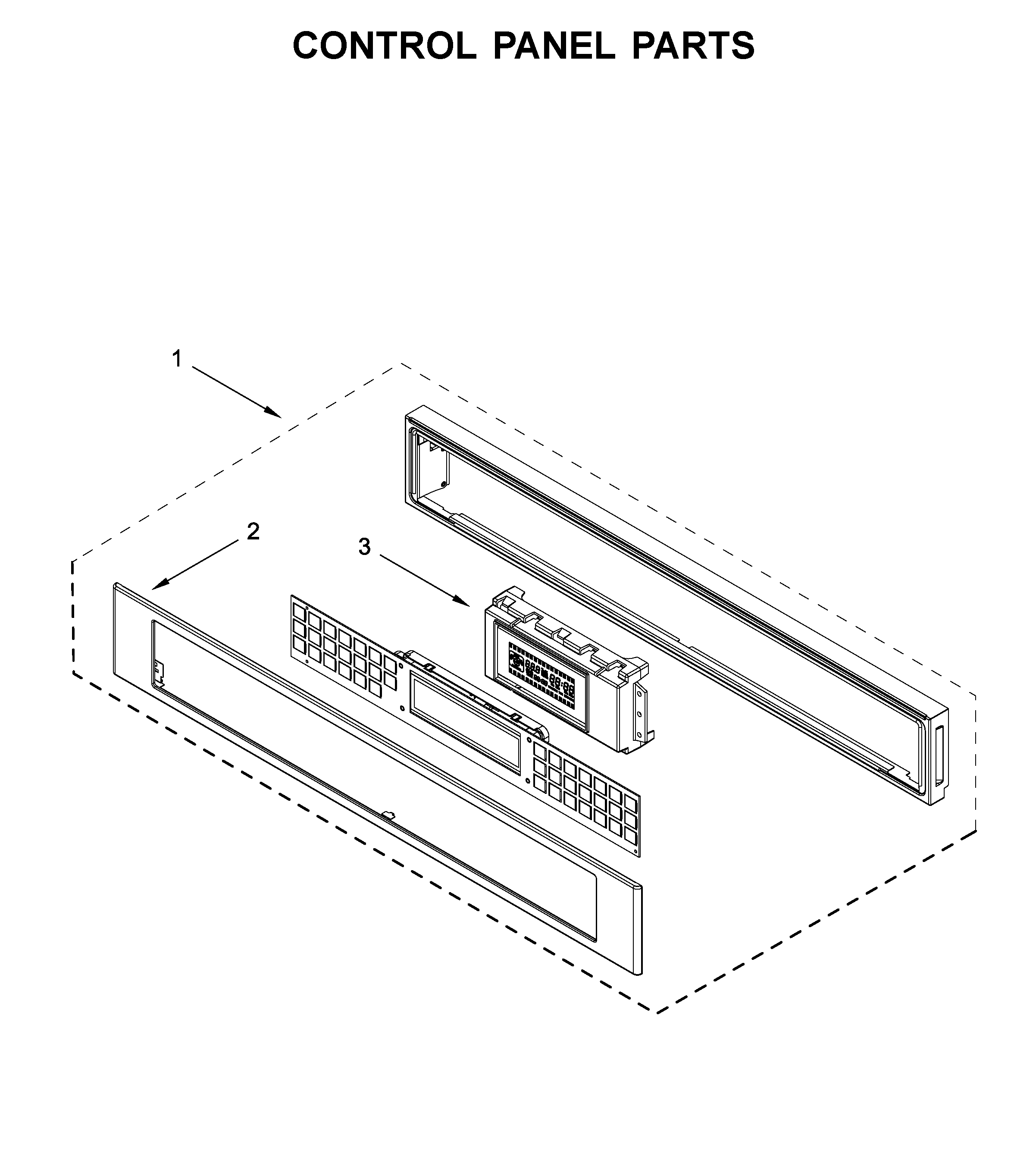

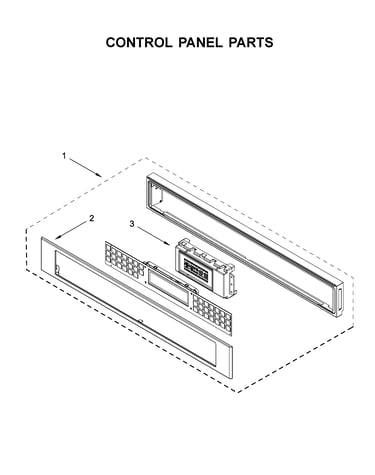

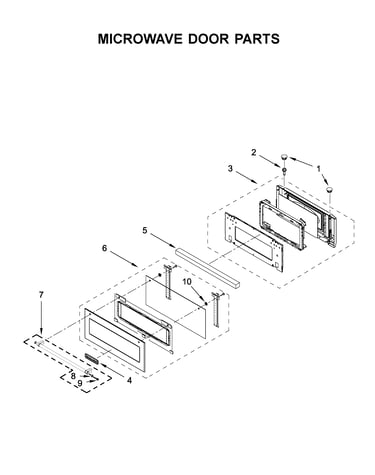

SELECT DIAGRAM

Browse Parts for KMBP107ESS03 Microwaves

Optional parts (not included) diagram
Adhesive
Part #482338
Replaced by #WP482338
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
In Stock
$33.32
15% OFF Phone Price : $39.32
Qty

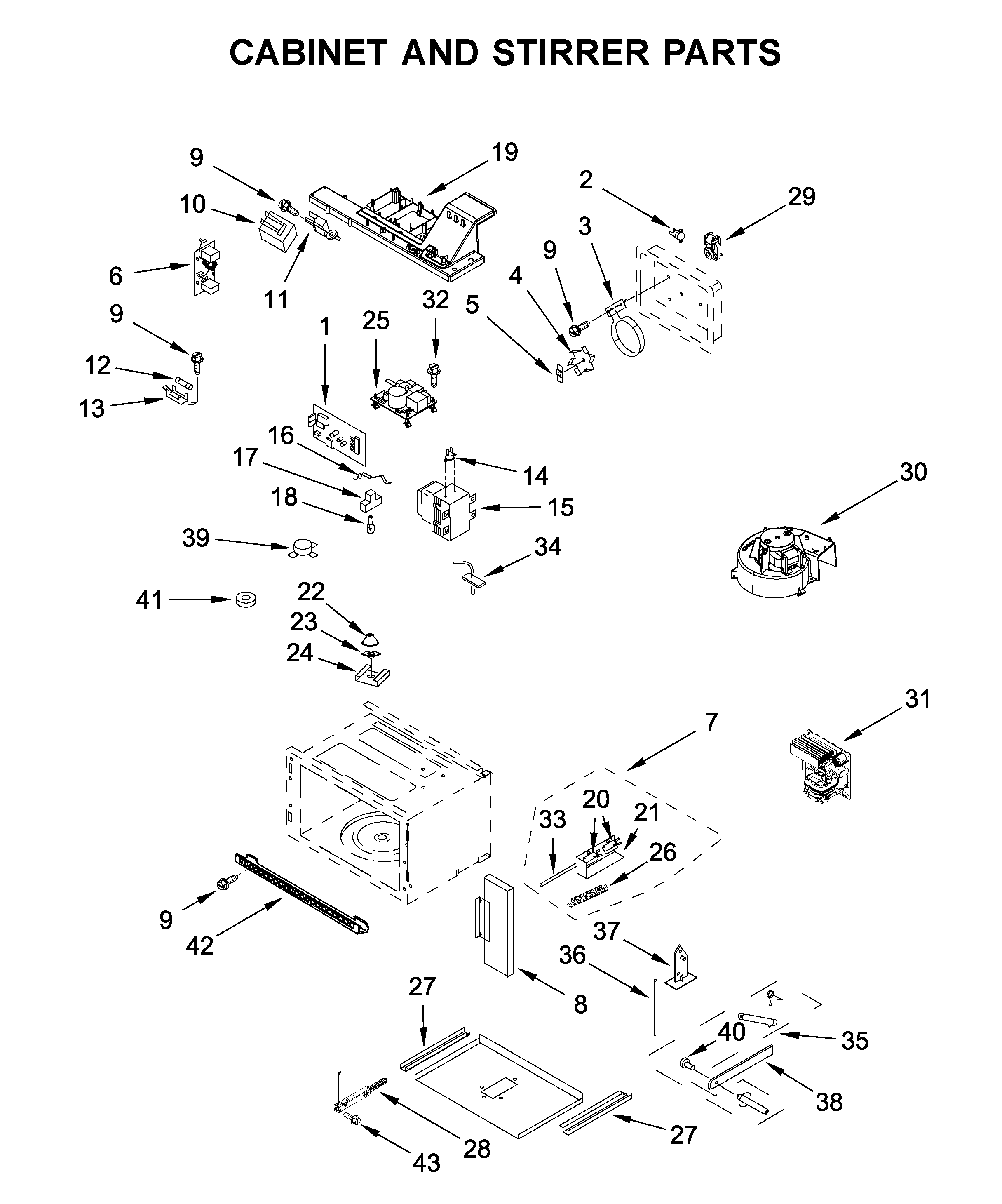

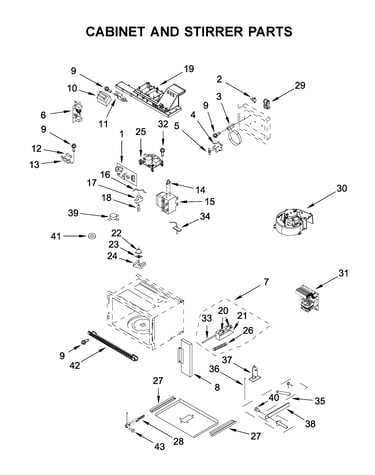

Cabinet and stirrer parts diagram
Magnetron
Part #W11226473
Replaced by #W11346197
Manufacturer substitution
This part replaces W11226473. Substitute parts can look different from the original.
In Stock
$187.88
6% OFF Phone Price : $199.88
Qty
Cabinet and stirrer parts diagram
Interlock
Part #W10358241
Replaced by #W11033422
Manufacturer substitution
This part replaces W10358241. Substitute parts can look different from the original.
In Stock
$124.54
9% OFF Phone Price : $136.54
Qty
Optional parts (not included) diagram
Spray W
Part #350930
Replaced by #350930
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
This item is not returnable
In Stock
$26.00
19% OFF Phone Price : $32.00
Qty
Cabinet and stirrer parts diagram
Inverter
Part #W11237240
Replaced by #W11325604
Manufacturer substitution
This part replaces W11237240. Substitute parts can look different from the original.
In Stock
$170.86
7% OFF Phone Price : $182.86
Qty
Screw
Part #7101P426-60
Replaced by #WP90767
Manufacturer substitution
This part replaces 7101P426-60. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Cabinet and stirrer parts diagram
Lamp G4 Halo
Part #W10795595
Replaced by #W10886919
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
In Stock
$12.07
14% OFF Phone Price : $14.07
Qty

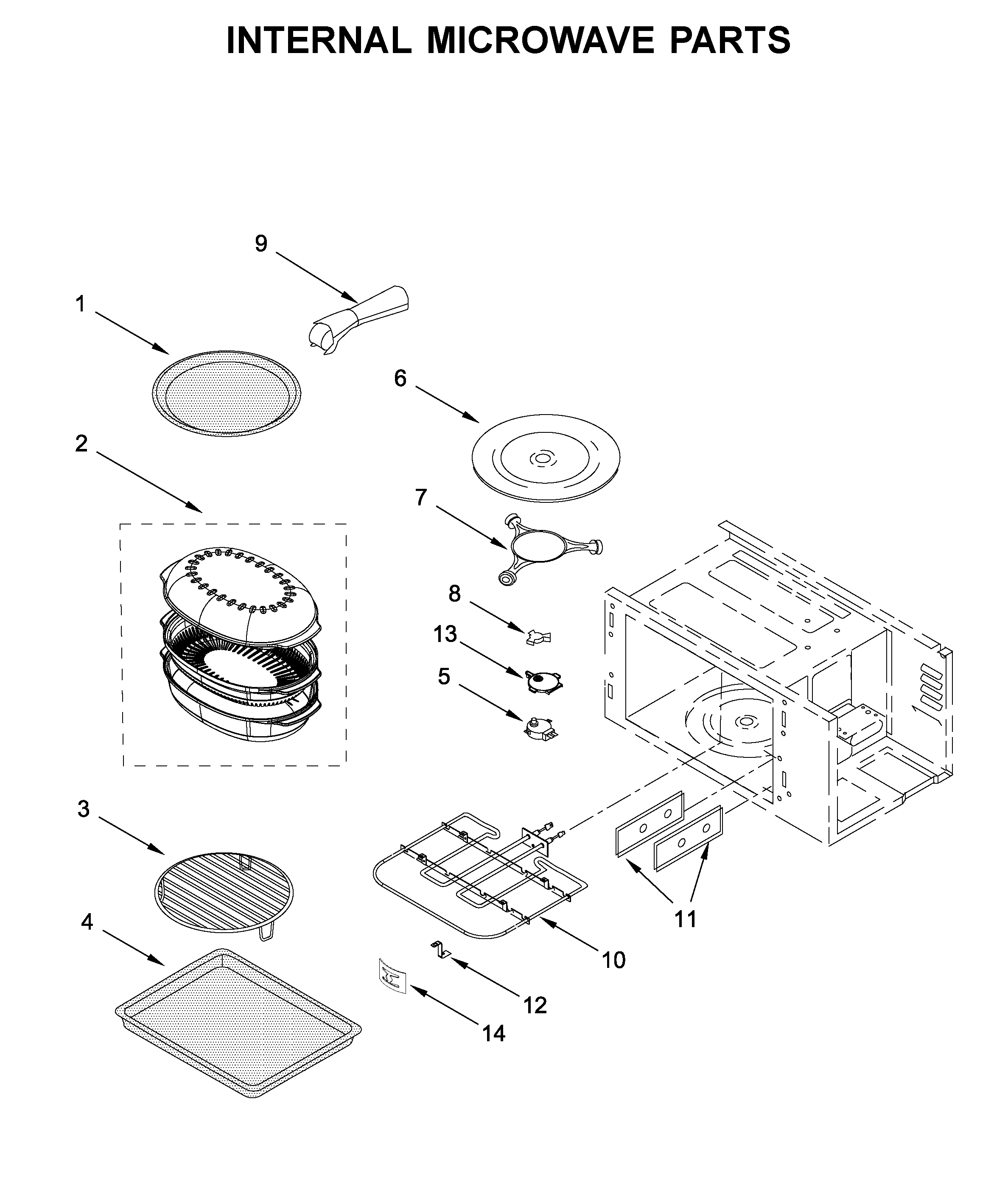

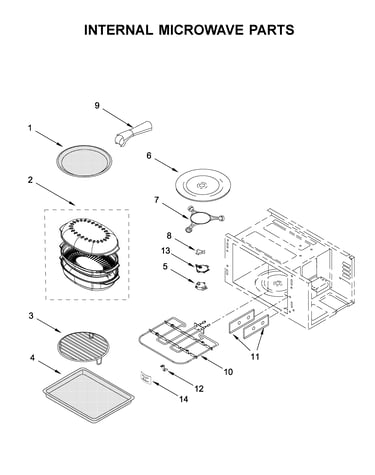

Internal microwave parts diagram
Whirlpool Wall Oven Microwave Element Clip
Part #461967753871
Replaced by #W11724411
Manufacturer substitution
This part replaces 461967753871. Substitute parts can look different from the original.
In Stock
$70.97
Qty
Internal microwave parts diagram
Lock Spring
Part #252262898008
Replaced by #W11724411
Manufacturer substitution
This part replaces 252262898008. Substitute parts can look different from the original.
In Stock
$70.97
Qty

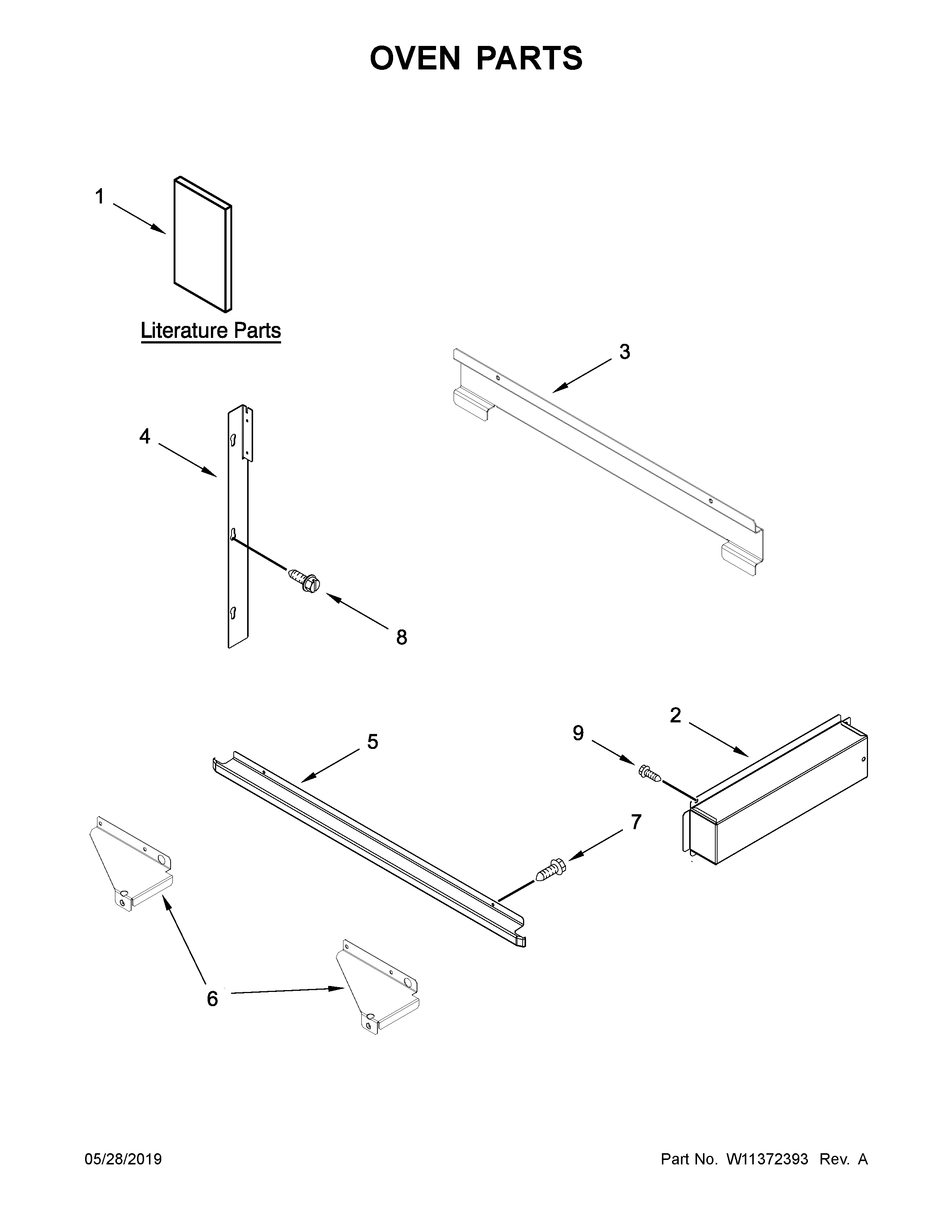

Oven parts diagram
Wall Oven Wire Harness
Part #W11356969
Replaced by #W11449277
Manufacturer substitution
This part replaces W11356969. Substitute parts can look different from the original.
In Stock
$243.06
Qty
