Kenmore 867816316 combination heating & cooling unit Parts
Here are the diagrams and repair parts for Kenmore 867816316 combination heating & cooling unit, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 867816316 Combination Heating & Cooling Unit

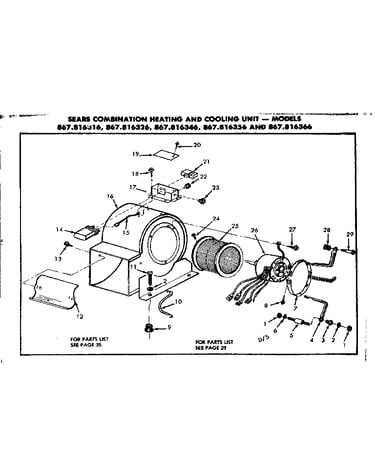

Blower assembly diagram
Motor
Part #607219Replaced by #45461
Manufacturer substitutionThis part replaces 607219. Substitute parts can look different from the original.In Stock$301.96
Qty

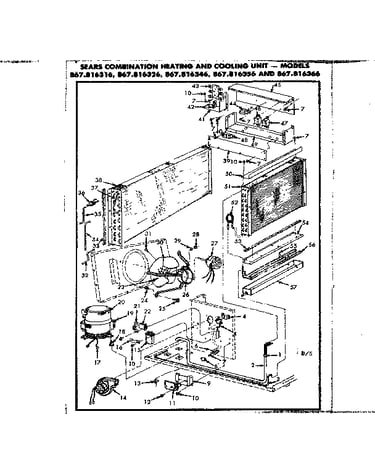

Functional replacement parts diagram
Capacitor
Part #706438Replaced by #12907
Manufacturer substitutionThis part replaces 706438. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7617% OFF Phone Price : $5.76
QtyBlower assembly diagram
Motor
Part #520939Replaced by #45461
Manufacturer substitutionThis part replaces 520939. Substitute parts can look different from the original.In Stock$301.96Qty#NI
All parts diagram
Thermostat
Part #42-9295
The manufacturer no longer makes this part, and there's no substitute part

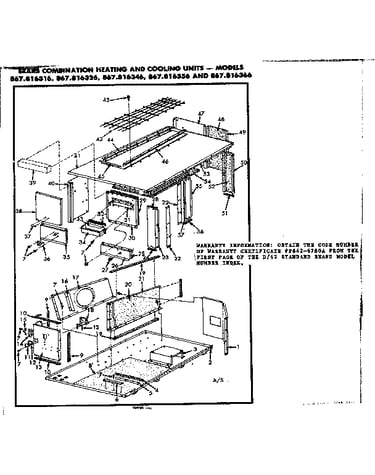

Cabinet diagram
Panel Orifce
In Stock$146.92QtyBlower assembly diagram
Blower Wheel
In Stock$184.58QtyBlower assembly diagram
Cut-off
In Stock$180.90QtyCabinet diagram
Panel Blwer

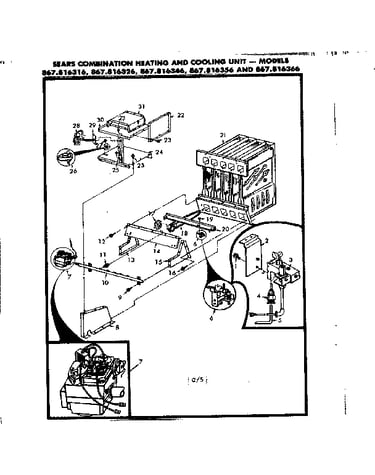

In Stock$36.36QtyHeat exchanger diagram
Crosslghtr
In Stock$216.51Qty#NI
All parts diagram
Diagram Wiri
In Stock$48.68Qty
