Sharp
Countertop Microwave

Model # R-320FW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-320FW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

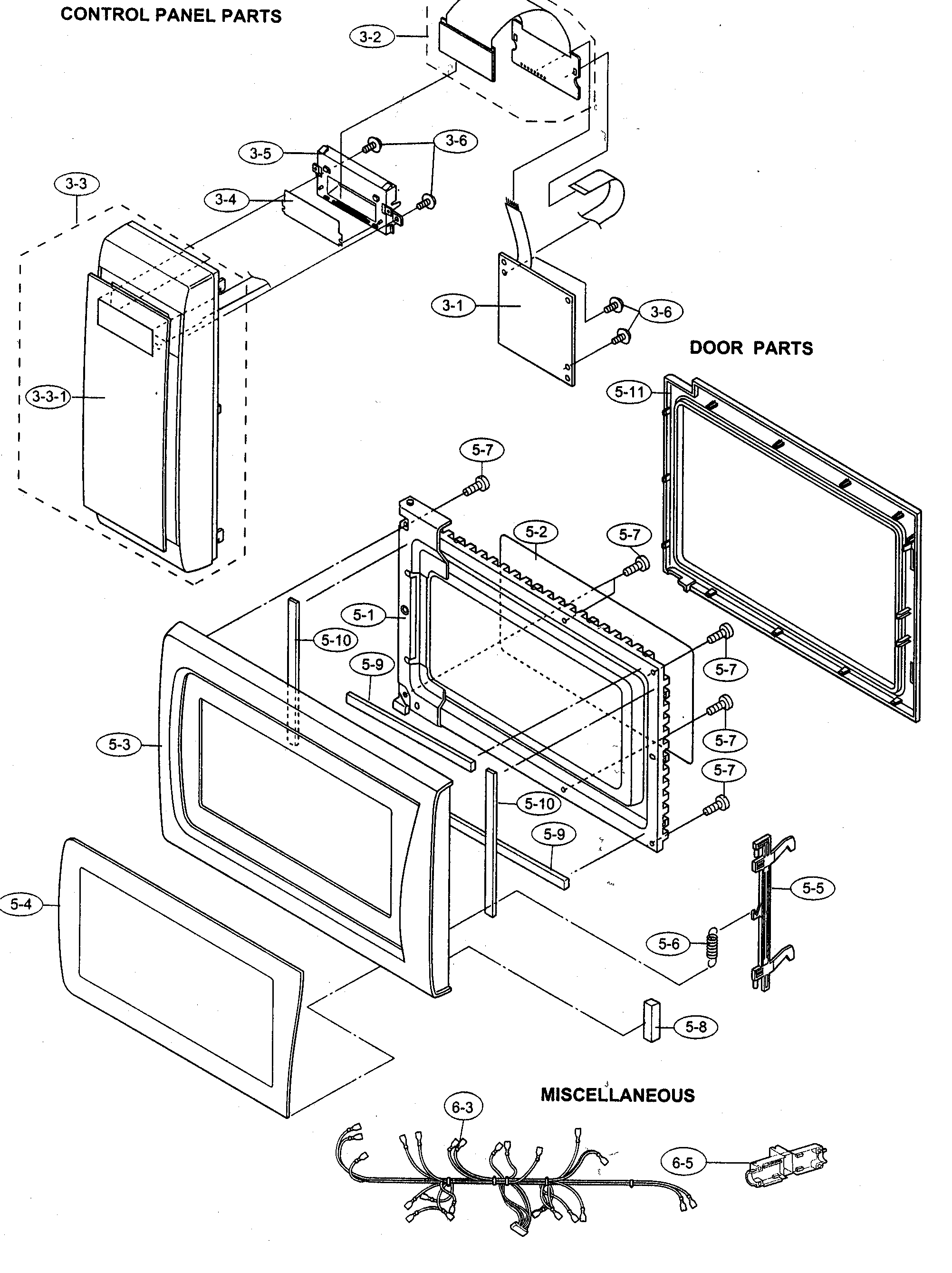

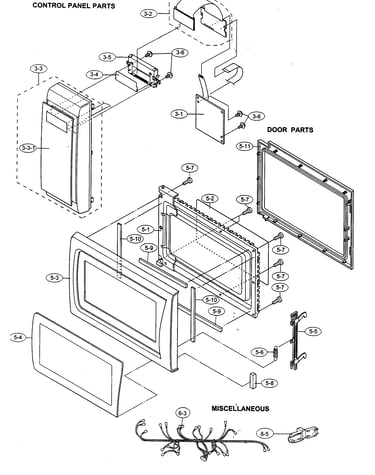

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Switch QSW-MA147WRZZ
#1-1

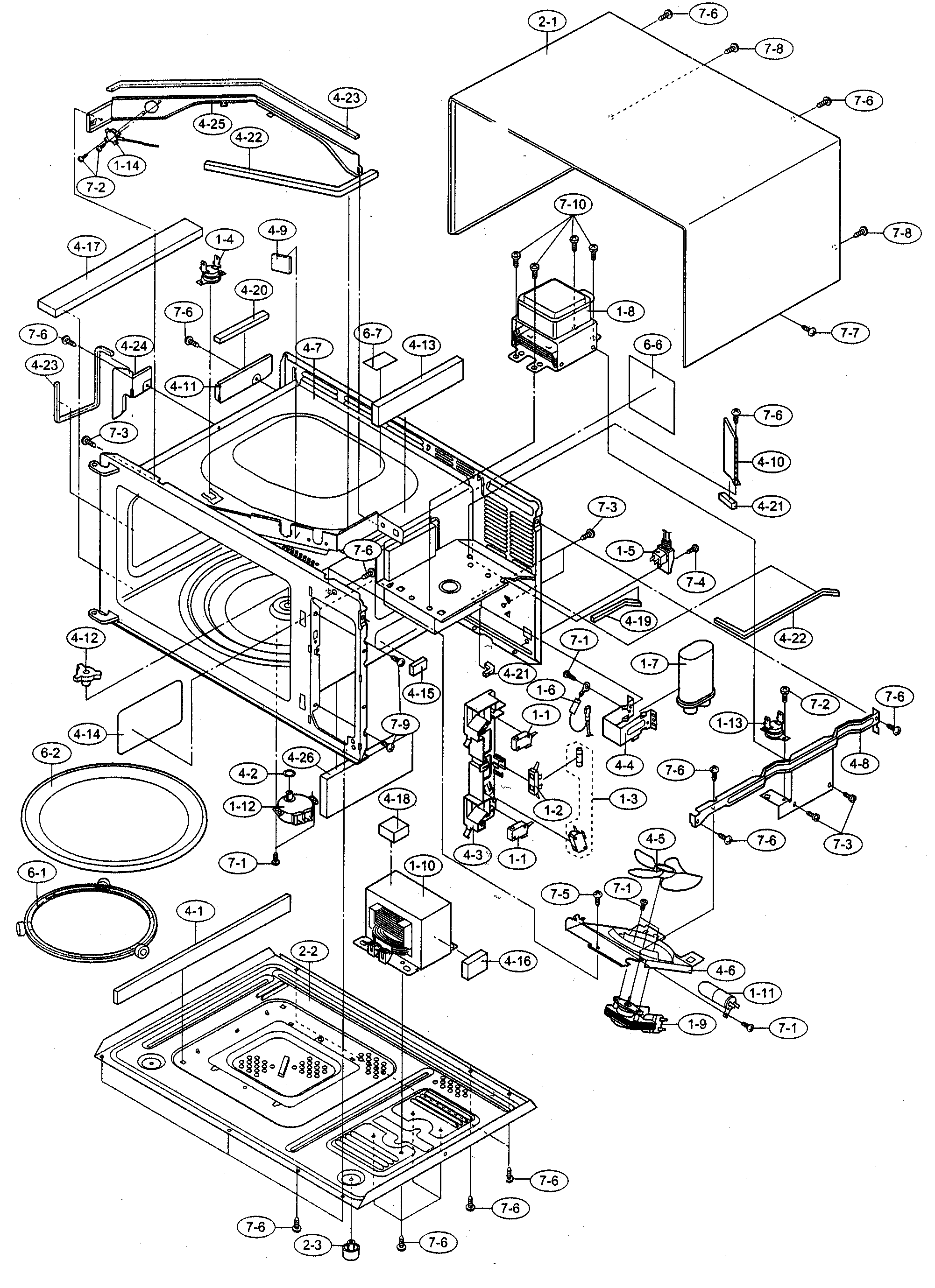

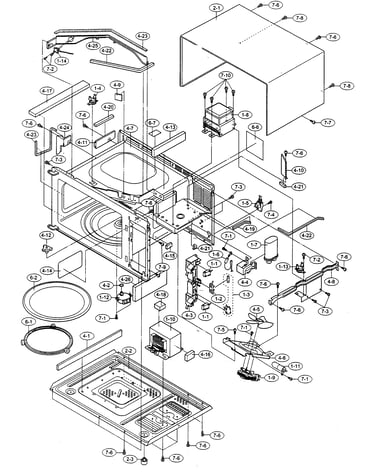

Oven/cabinet parts diagram

Switch

Part #QSW-MA147WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA137WRE0
#1-1A

Oven/cabinet parts diagram

Switch

Part #QSW-MA137WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ
#1-11

Oven/cabinet parts diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA291WRE0
#1-8

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA291WRE0

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDA083WRE0
#1-5

Oven/cabinet parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual TINSEA928WRRZ
#NI

Oven/cabinet parts diagram

Owner's manual

Part #TINSEA928WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support FROLPA079WRK0
#6-1

Oven/cabinet parts diagram

Microwave turntable support

Part #FROLPA079WRK0

The manufacturer no longer makes this part, and there's no substitute part

Cutoff Thermostat RTHM-A080WRE0
#113A

Oven/cabinet parts diagram

Cutoff thermostat

Part #RTHM-A080WRE0

The manufacturer no longer makes this part, and there's no substitute part

High Voltage Capacitor (interchangeable) (are Used In Voltage More Than 250v.) RC-QZA235WRE0
#1-7A

Oven/cabinet parts diagram

High voltage capacitor (interchangeable) (are used in voltage more than 250v.)

Part #RC-QZA235WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sensor FDTCTA197WRK0
#1-14

Oven/cabinet parts diagram

Sensor

Part #FDTCTA197WRK0

The manufacturer no longer makes this part, and there's no substitute part
