Model # PS/1 Official IBM p1/1

Here are the diagrams and repair parts for Official IBM PS-1 p1/1, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

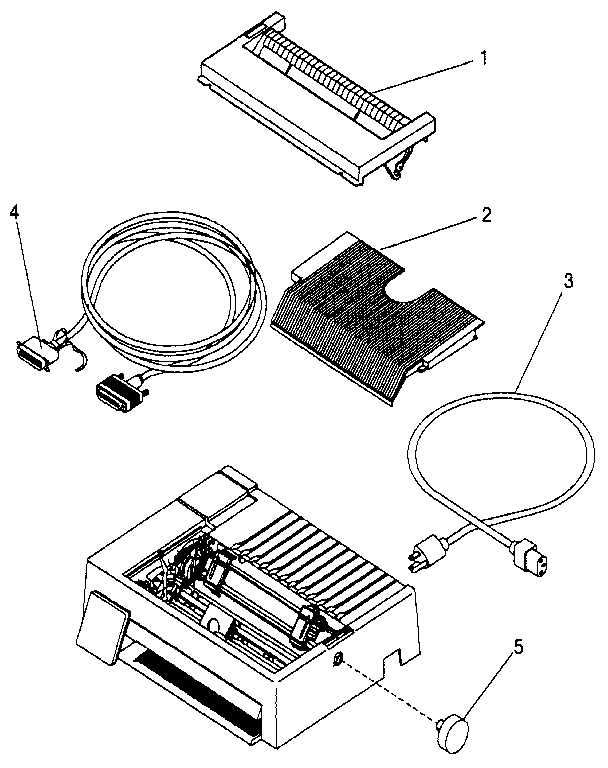

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Bottom Paper Guide 1196742
#6

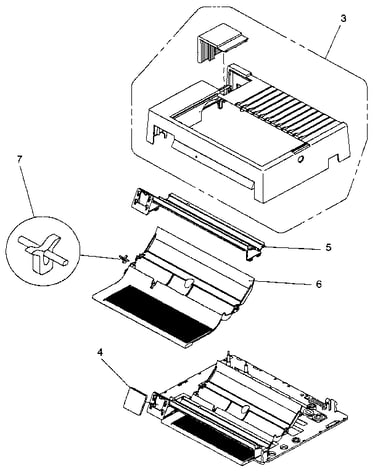

Assembly 2 diagram

Bottom paper guide

Part #1196742

The manufacturer no longer makes this part, and there's no substitute part

Idler Gear 1196754
#10

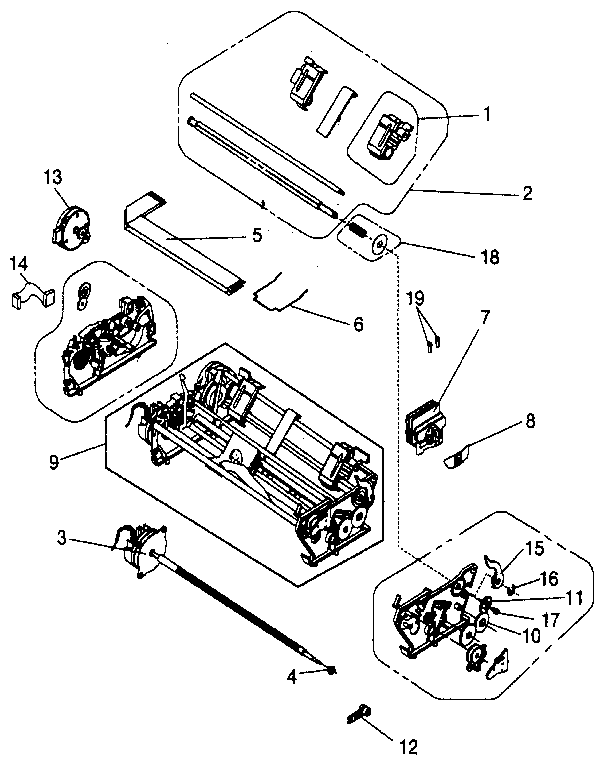

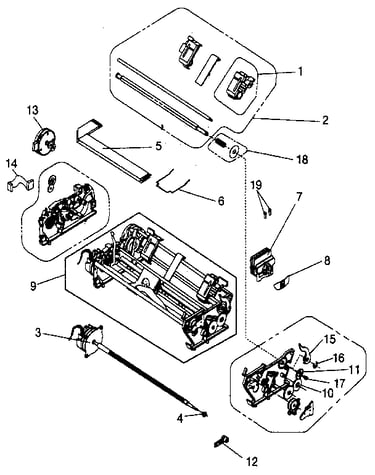

Assembly 4 diagram

Idler gear

Part #1196754

The manufacturer no longer makes this part, and there's no substitute part

Tractor Park Lever 1196579
#15

Assembly 4 diagram

Tractor park lever

Part #1196579

The manufacturer no longer makes this part, and there's no substitute part

Printhead 1196750
#7

Assembly 4 diagram

Printhead

Part #1196750

The manufacturer no longer makes this part, and there's no substitute part

Rubber Foot 23F4429
#6

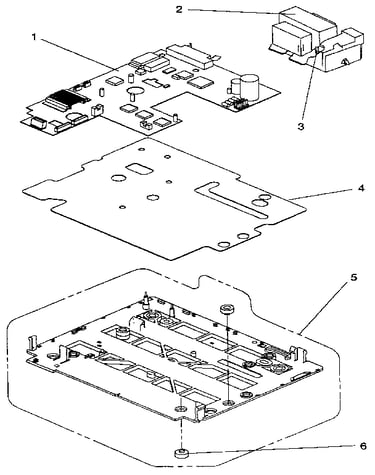

Assembly 3 diagram

Rubber foot

Part #23F4429

The manufacturer no longer makes this part, and there's no substitute part

Pull Tractor Assembly (wide) 49F5262
#1A

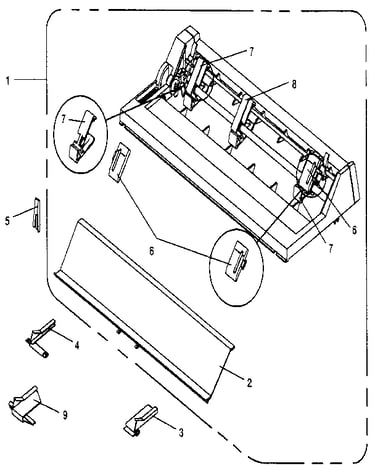

Assembly 5: pull tractor assembly diagram

Pull tractor assembly (wide)

Part #49F5262

The manufacturer no longer makes this part, and there's no substitute part

Paper Guide Assembly (center) 49F5307
#8

Assembly 5: pull tractor assembly diagram

Paper guide assembly (center)

Part #49F5307

The manufacturer no longer makes this part, and there's no substitute part

Edge Guide (right Hand) 49F5267
#3

Assembly 5: pull tractor assembly diagram

Edge guide (right hand)

Part #49F5267

The manufacturer no longer makes this part, and there's no substitute part

Tractor Group 1196747
#2

Assembly 4 diagram

Tractor group

Part #1196747

The manufacturer no longer makes this part, and there's no substitute part

Gear Knob Mounting 1196755
#11

Assembly 4 diagram

Gear knob mounting

Part #1196755

The manufacturer no longer makes this part, and there's no substitute part
