Craftsman 315101530 angle drill

Craftsman 315101530 angle drill Parts

Here are the diagrams and repair parts for Craftsman 315101530 angle drill, as well as links to manuals and error code tables, if available.

By Schematic

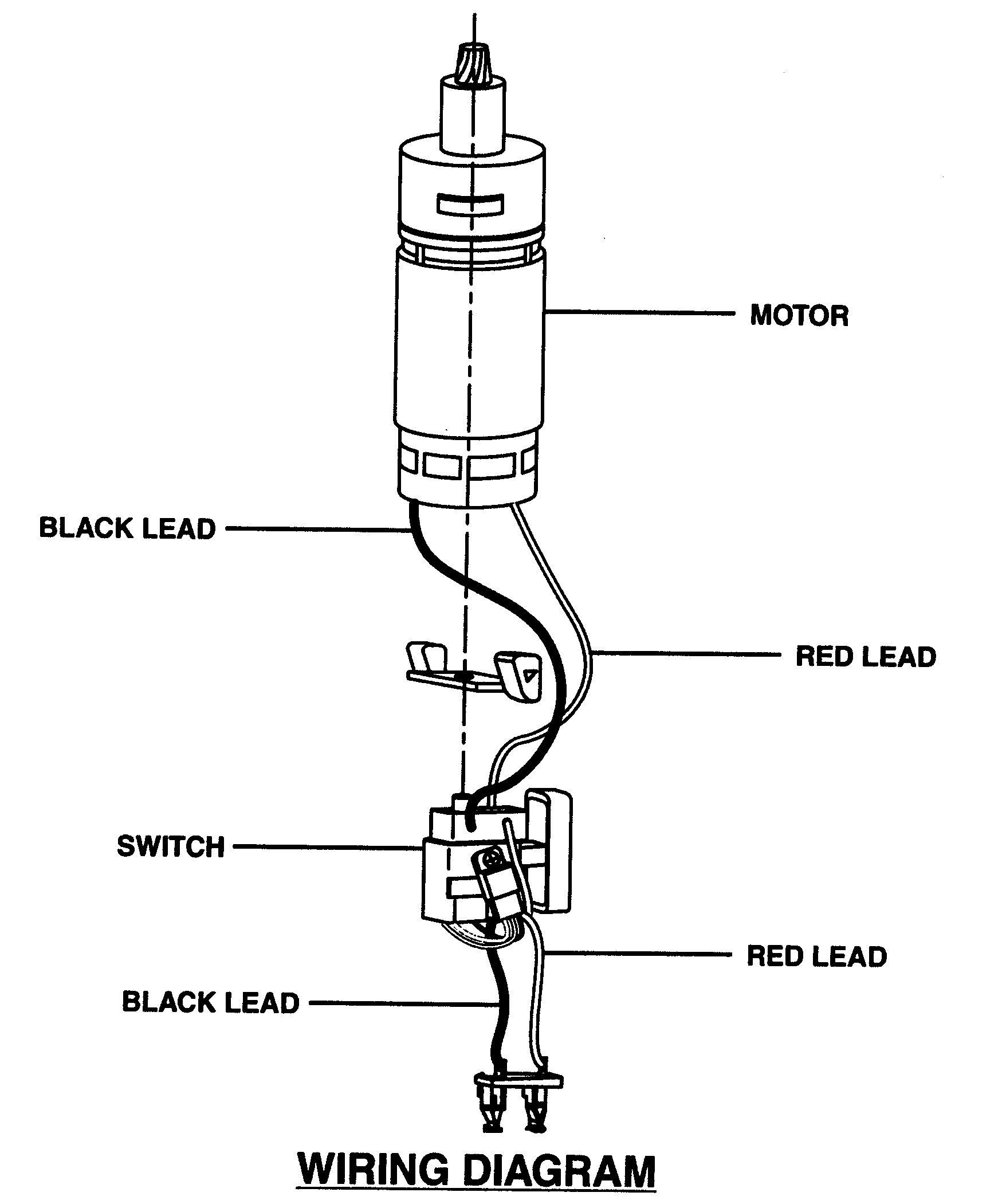

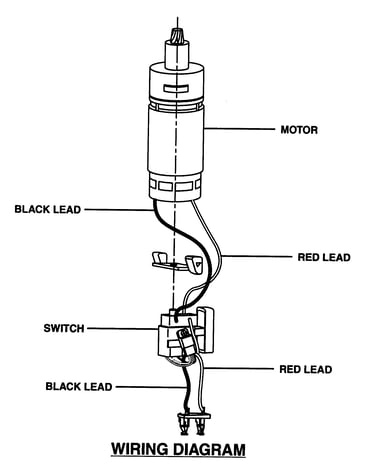

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 315101530 Power Tools

  • Logo Plate for Craftsman 315101530 - Part 9420316

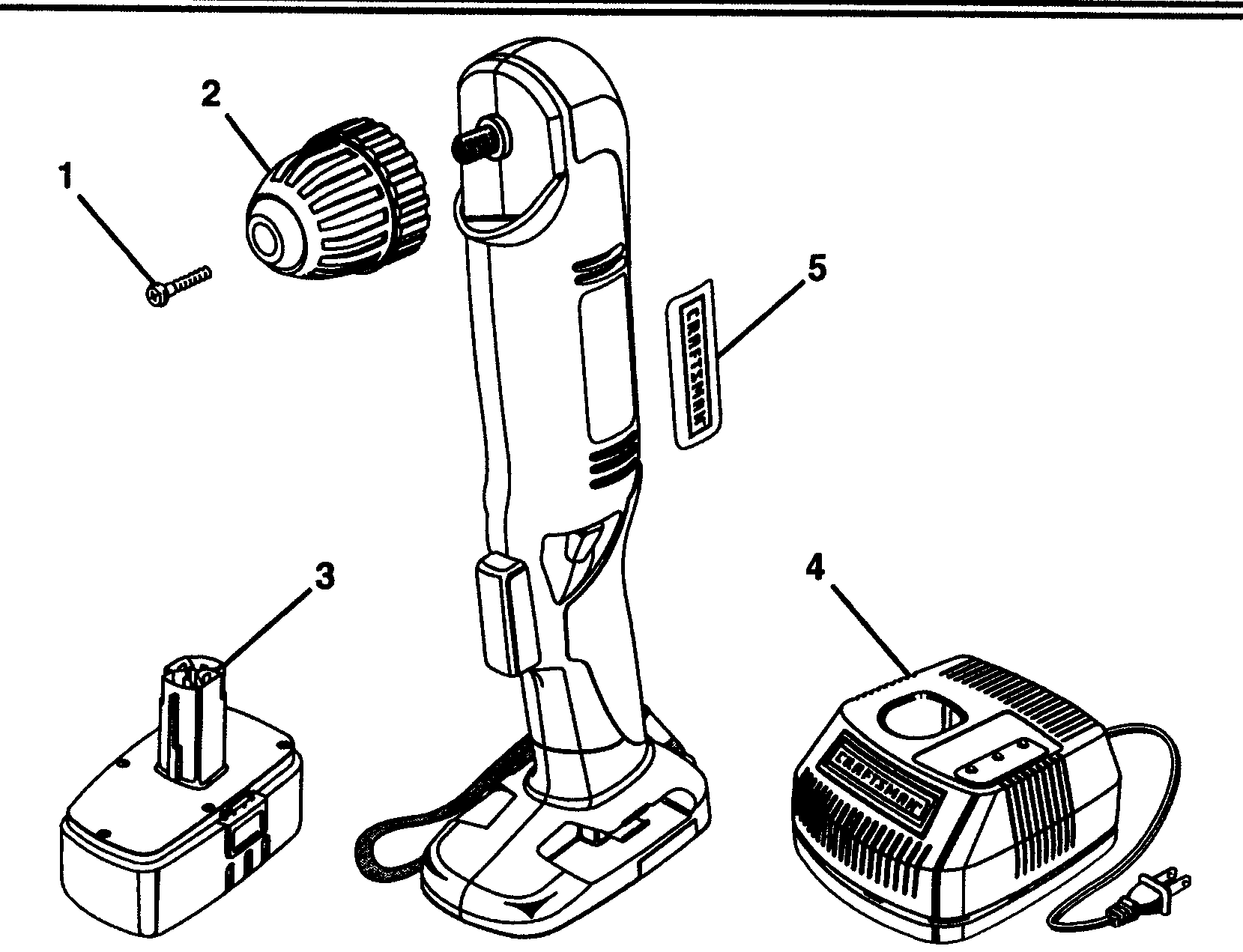

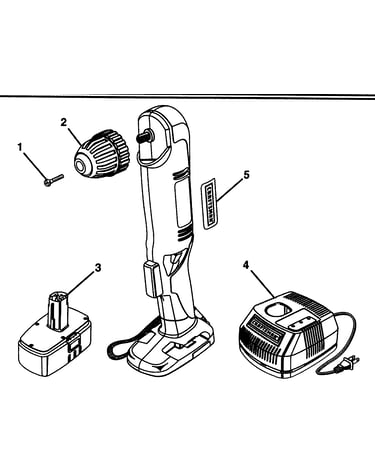

    Drill diagram

    Logo Plate

    Part #9420316

    The manufacturer no longer makes this part, and there's no substitute part

  • Gear Assembly for Craftsman 315101530 - Part 984942-001

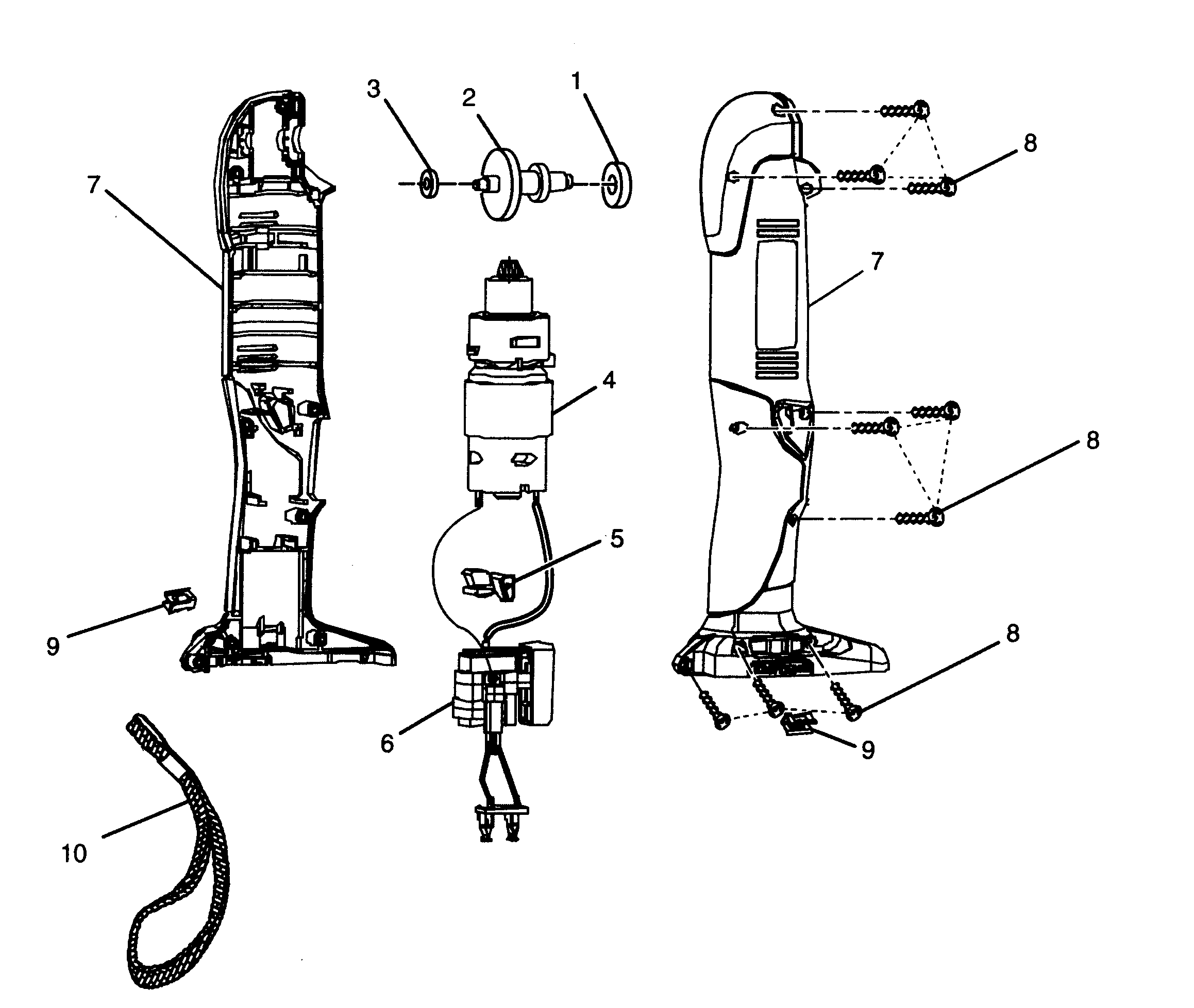

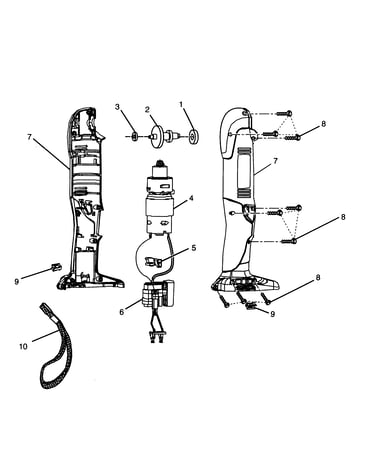

    Motor assy diagram

    Gear Assembly

    Part #984942-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Gear Motor for Craftsman 315101530 - Part 984647-001

    Motor assy diagram

    Gear Motor

    Part #984647-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Charger for Craftsman 315101530 - Part 1425301

    Drill diagram

    Charger

    Part #1425301

    The manufacturer no longer makes this part, and there's no substitute part

  • Chuck for Craftsman 315101530 - Part 6903302

    Drill diagram

    Chuck

    Part #6903302

    The manufacturer no longer makes this part, and there's no substitute part

  • Clip for Craftsman 315101530 - Part 6320601

    Motor assy diagram

    Clip

    Part #6320601

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw M3.5 X 16mm for Craftsman 315101530 - Part 6620606

    Motor assy diagram

    Screw M3.5 X 16mm

    Part #6620606

    The manufacturer no longer makes this part, and there's no substitute part

  • Housing for Craftsman 315101530 - Part 984930-001

    Motor assy diagram

    Housing

    Part #984930-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Wrist Strap for Craftsman 315101530 - Part 9002720

    Motor assy diagram

    Wrist Strap

    Part #9002720

    The manufacturer no longer makes this part, and there's no substitute part

  • Carry Case for Craftsman 315101530 - Part 3073063

    Drill diagram

    Carry Case

    Part #3073063

    The manufacturer no longer makes this part, and there's no substitute part
