Model # TCM401-TY2 Official Black & Decker thermal carafe coffee maker

Here are the diagrams and repair parts for Official Black & Decker TCM401-TY2 thermal carafe coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Spreader Lid 167408-00
#24

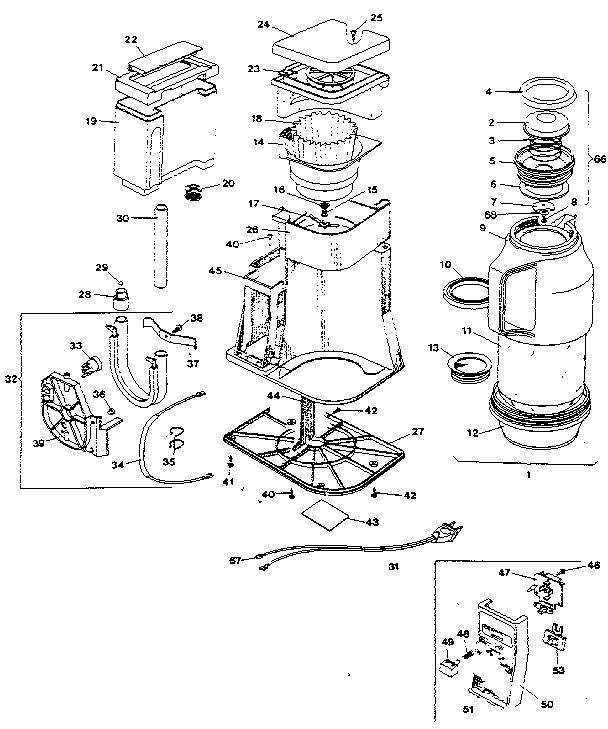

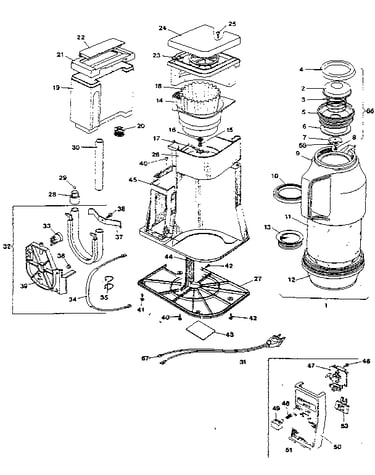

Counter top diagram

Spreader lid

Part #167408-00

The manufacturer no longer makes this part, and there's no substitute part

Base 167403-00
#27

Counter top diagram

Base

Part #167403-00

The manufacturer no longer makes this part, and there's no substitute part

Perm Filter 791746-00

#NI

All parts diagram

Perm filter

Part #791746-00

The manufacturer no longer makes this part, and there's no substitute part

Heater Suprt 167431-00
#39

Counter top diagram

Heater suprt

Part #167431-00

The manufacturer no longer makes this part, and there's no substitute part

Foot 182687-00

#NI

All parts diagram

Foot

Part #182687-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 168209-00
#68

Counter top diagram

Washer

Part #168209-00

The manufacturer no longer makes this part, and there's no substitute part

Cover 167432-00
#22

Counter top diagram

Cover

Part #167432-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 170210-00
Screw

Part #170210-00

The manufacturer no longer makes this part, and there's no substitute part

Plug 167414-00
#13

Counter top diagram

Plug

Part #167414-00

The manufacturer no longer makes this part, and there's no substitute part

Spreader Assembly 167410-00
#23

Counter top diagram

Spreader assembly

Part #167410-00

The manufacturer no longer makes this part, and there's no substitute part
