Model #48GP030060300 Official Carrier central package

Here are the diagrams and repair parts for Carrier 48GP030060300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 126 parts

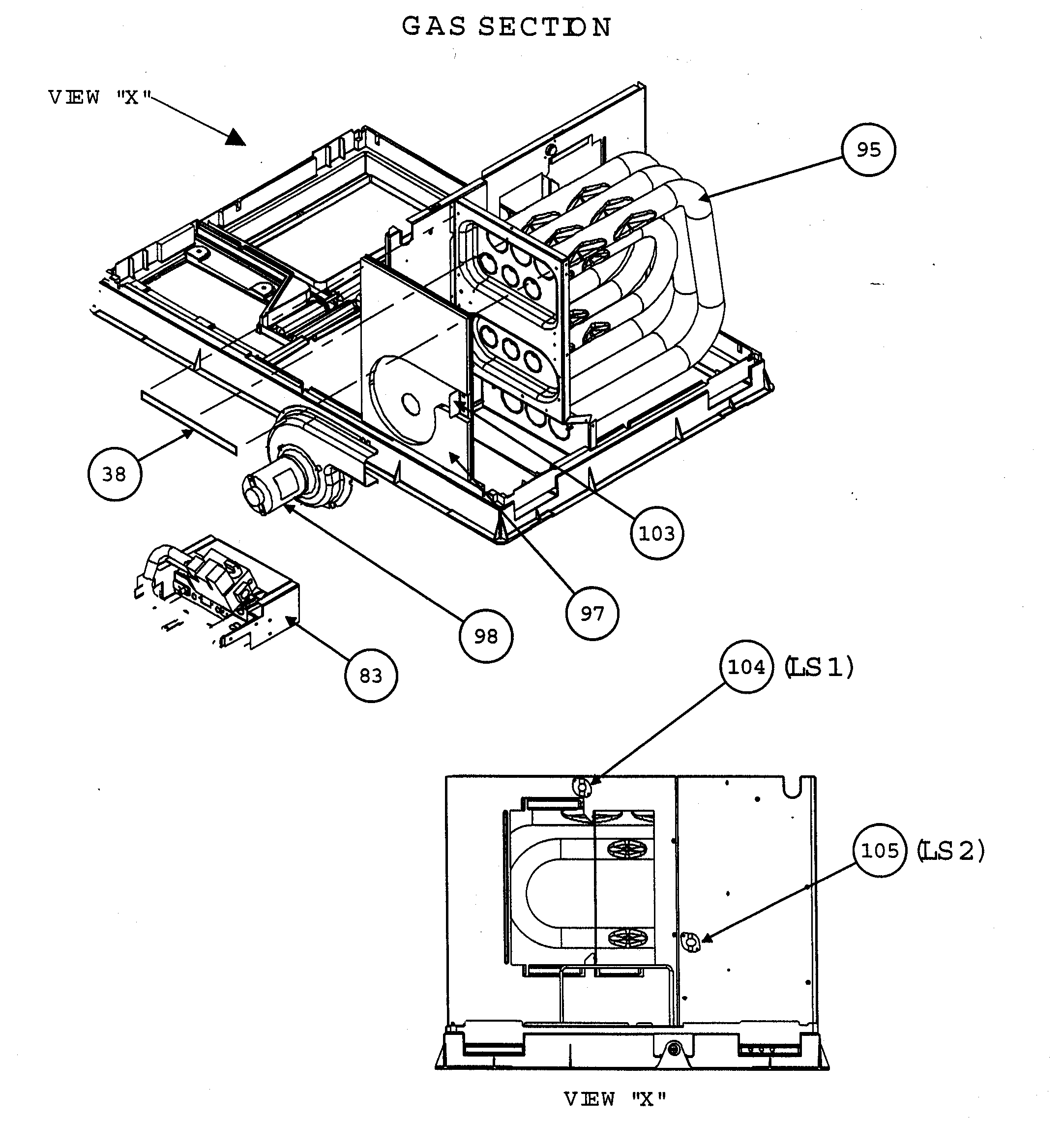

    Furnace Heat Exchanger Cover#97

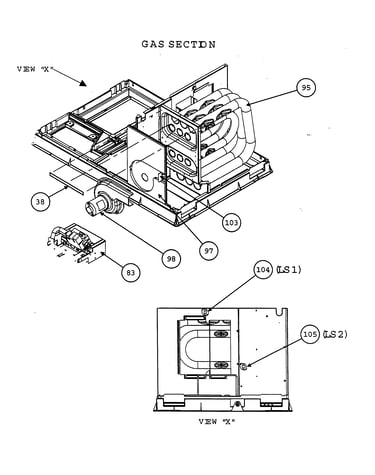

    Gas section Diagram

    In Stock
    $187.89 |
    5% OFF
    Phone Price: $197.89
    Central Air Conditioner Heat Exchanger#95

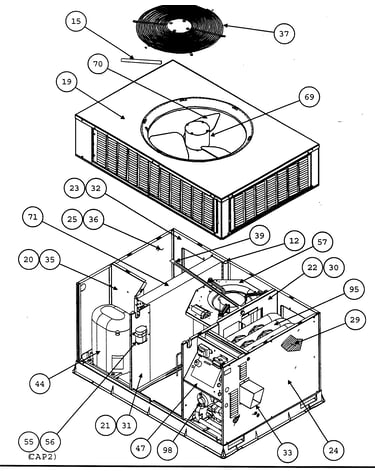

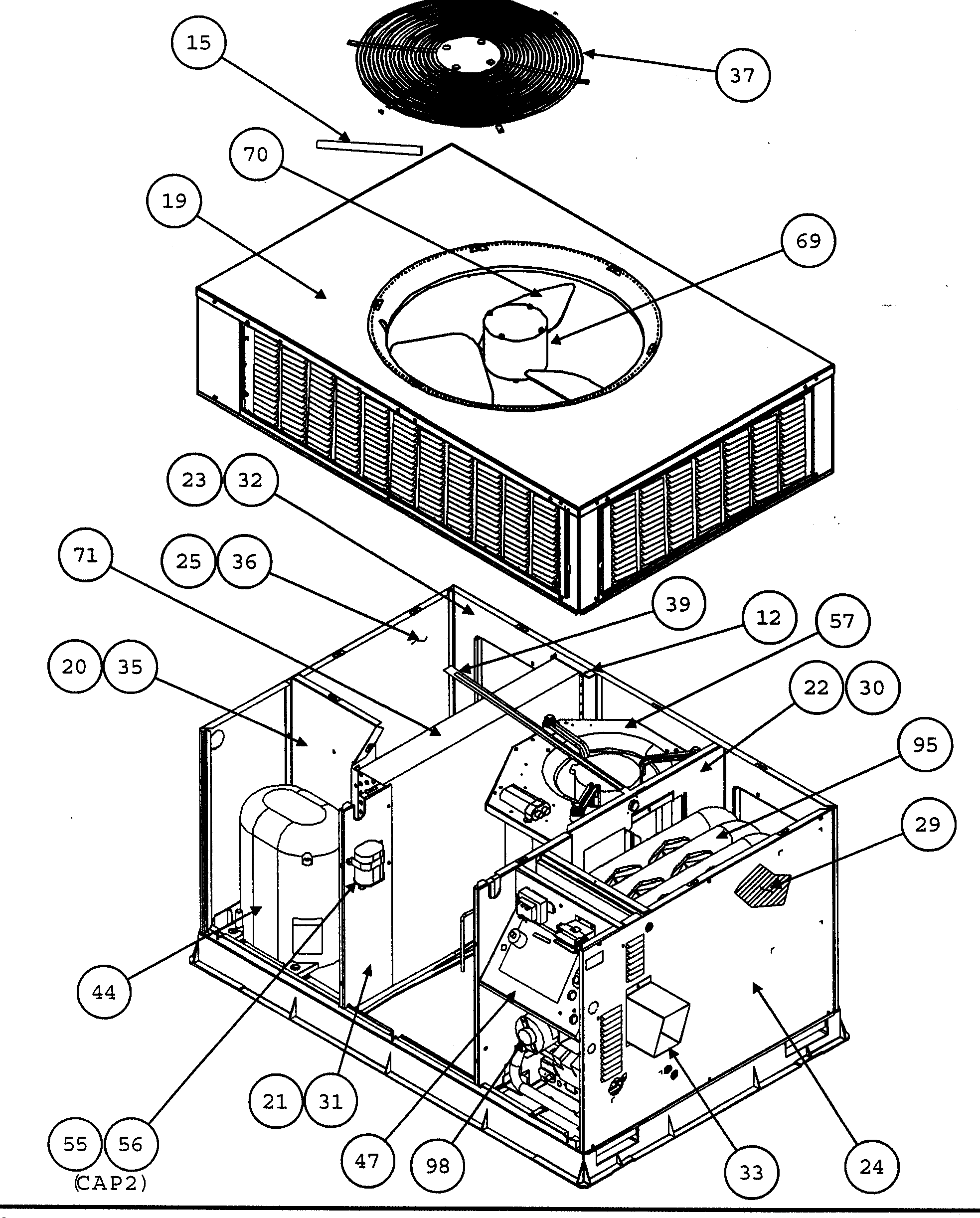

    Inside view Diagram

    In Stock
    $433.34

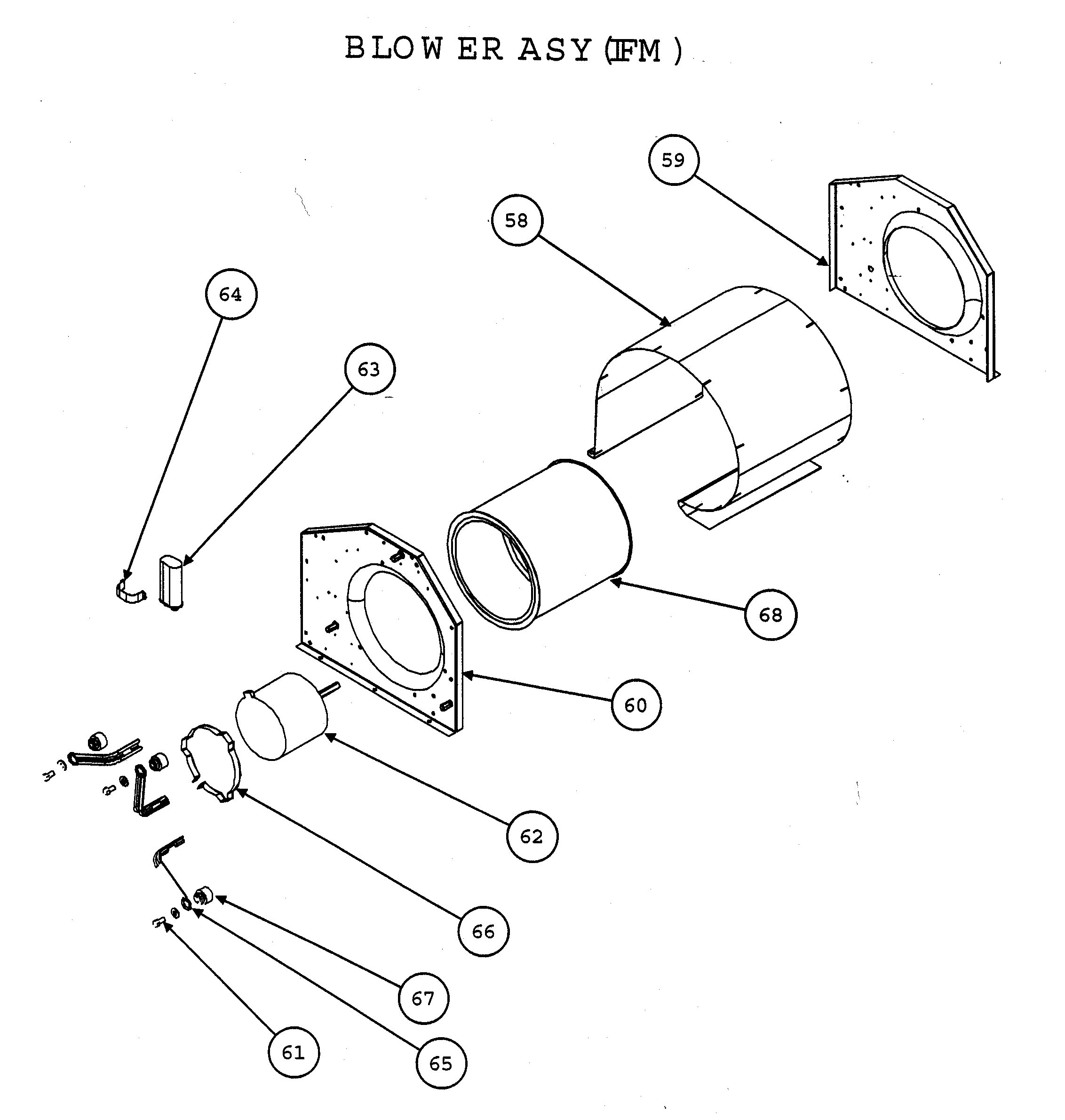

    Furnace Inducer Vent Motor Assembly#98

    Inside view Diagram

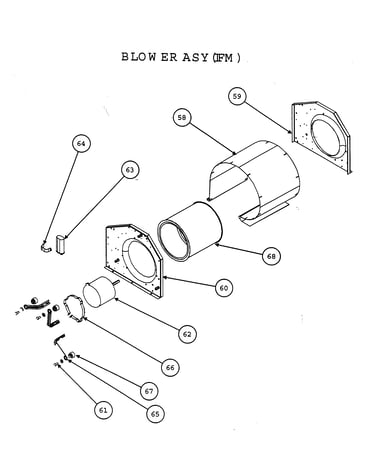

    Blower assembly

    Part #48GS400106
    Replaced by #48GS400649
    ?
    Manufacturer substitution
    This part replaces 48GS400106. Substitute parts can look different from the original.
    In Stock
    $598.89 |
    $10.00 OFF
    Phone Price: $608.89
    Strap Cap#56

    Inside view Diagram

    Strap cap

    Part #P281-0028
    In Stock
    $18.74

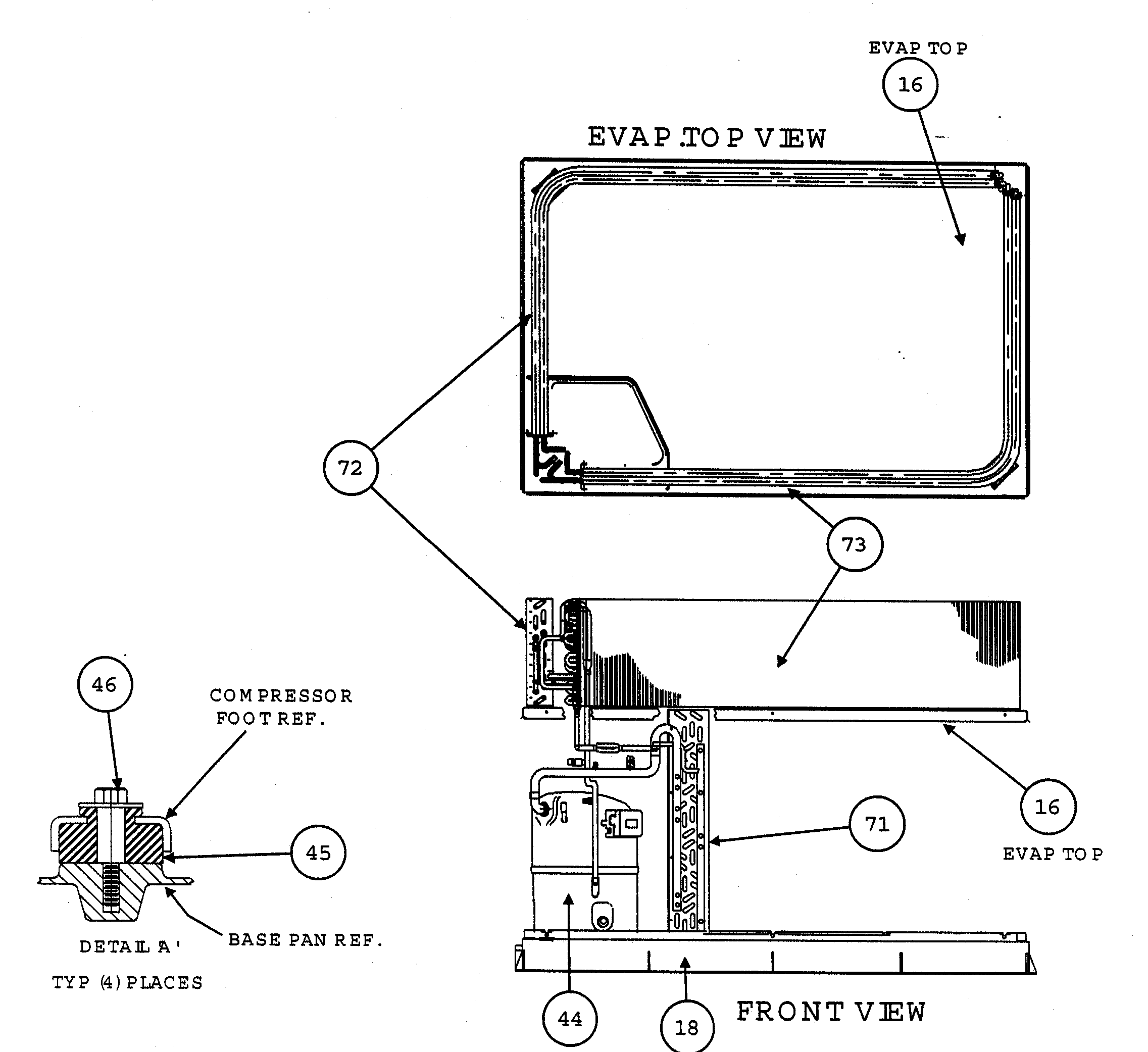

    Top Assembly#16

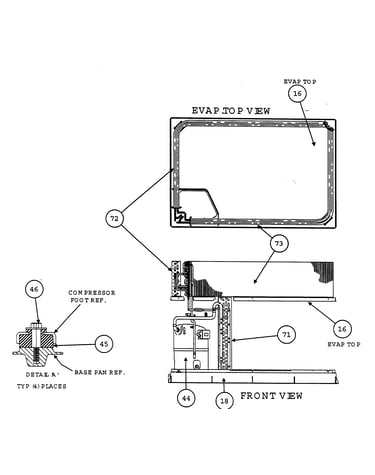

    Evap top view Diagram

    Top assembly

    Part #48GS400058
    In Stock
    $95.99
    Filter#144

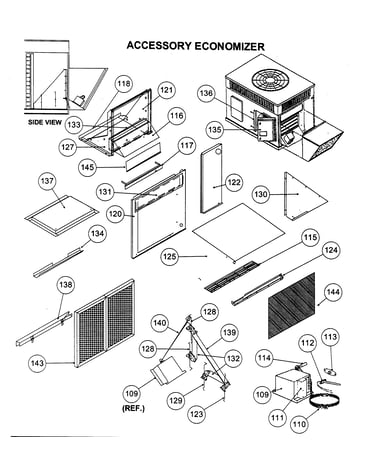

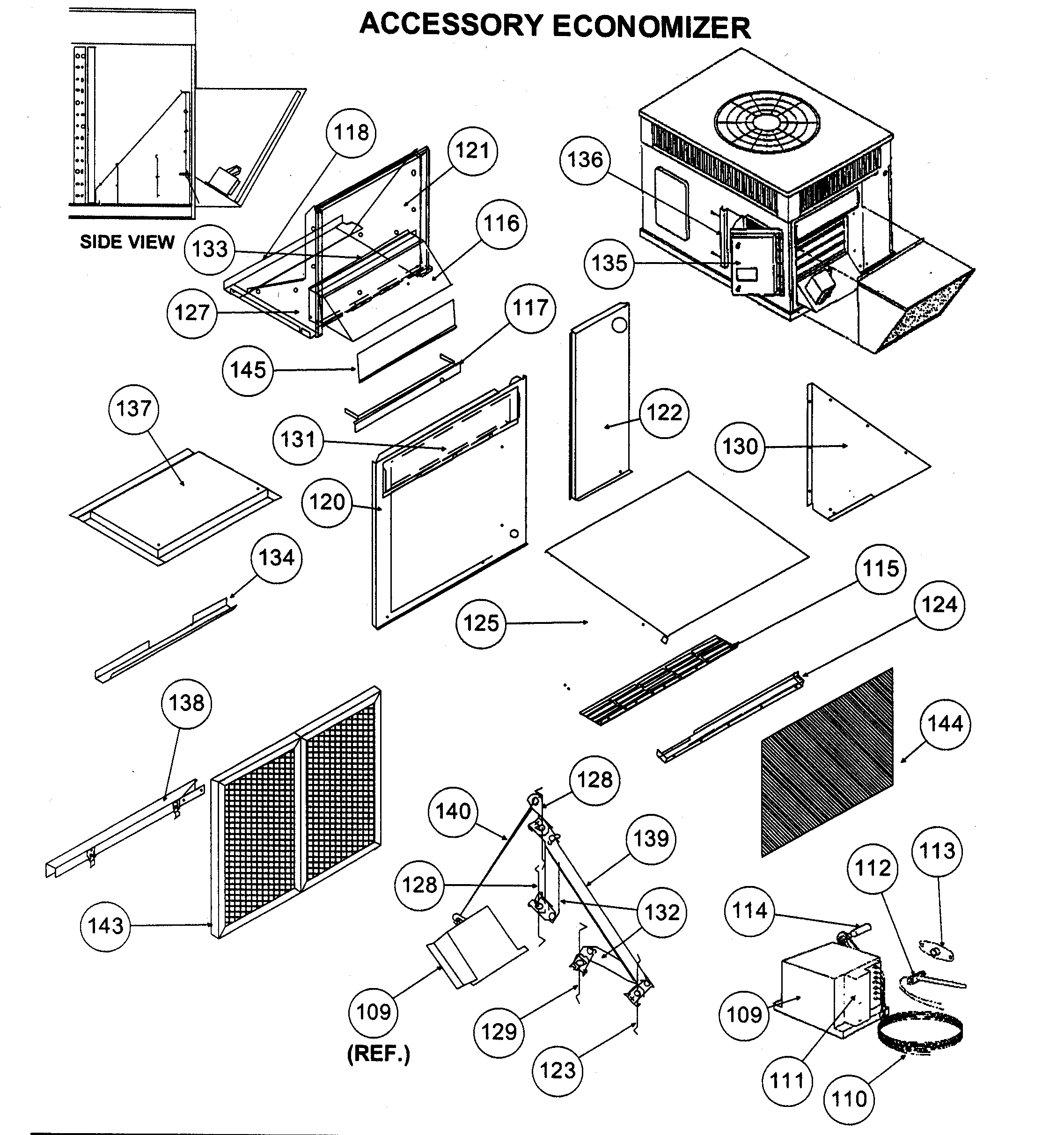

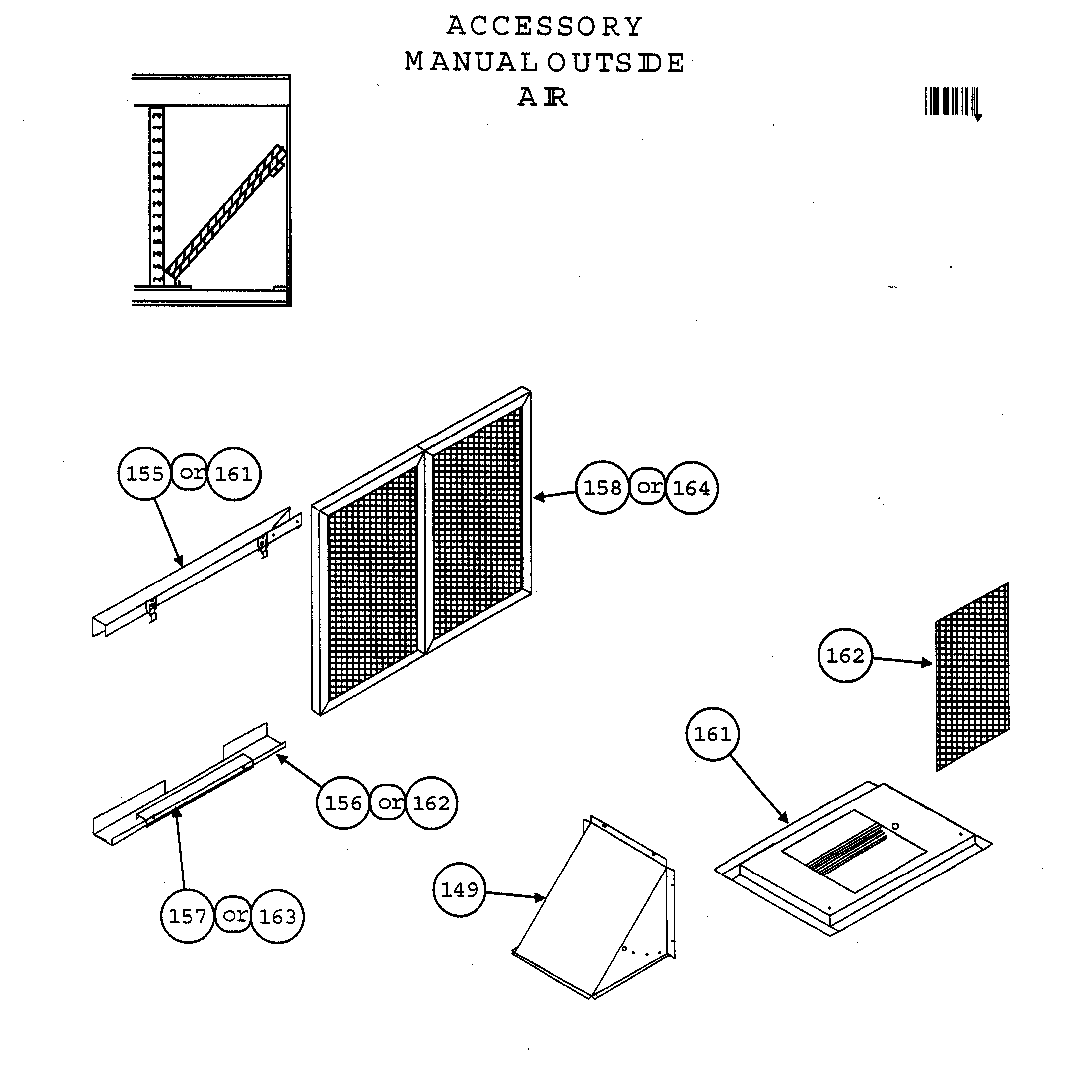

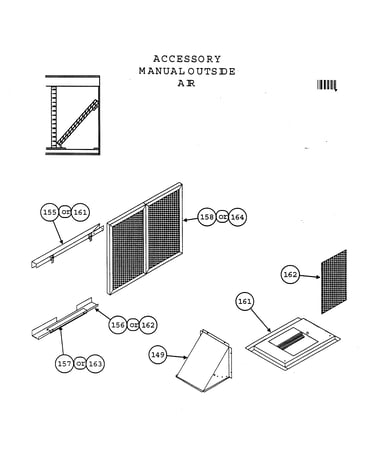

    Accessory 1 Diagram

    Filter

    Part #9460-6300
    In Stock
    $122.99

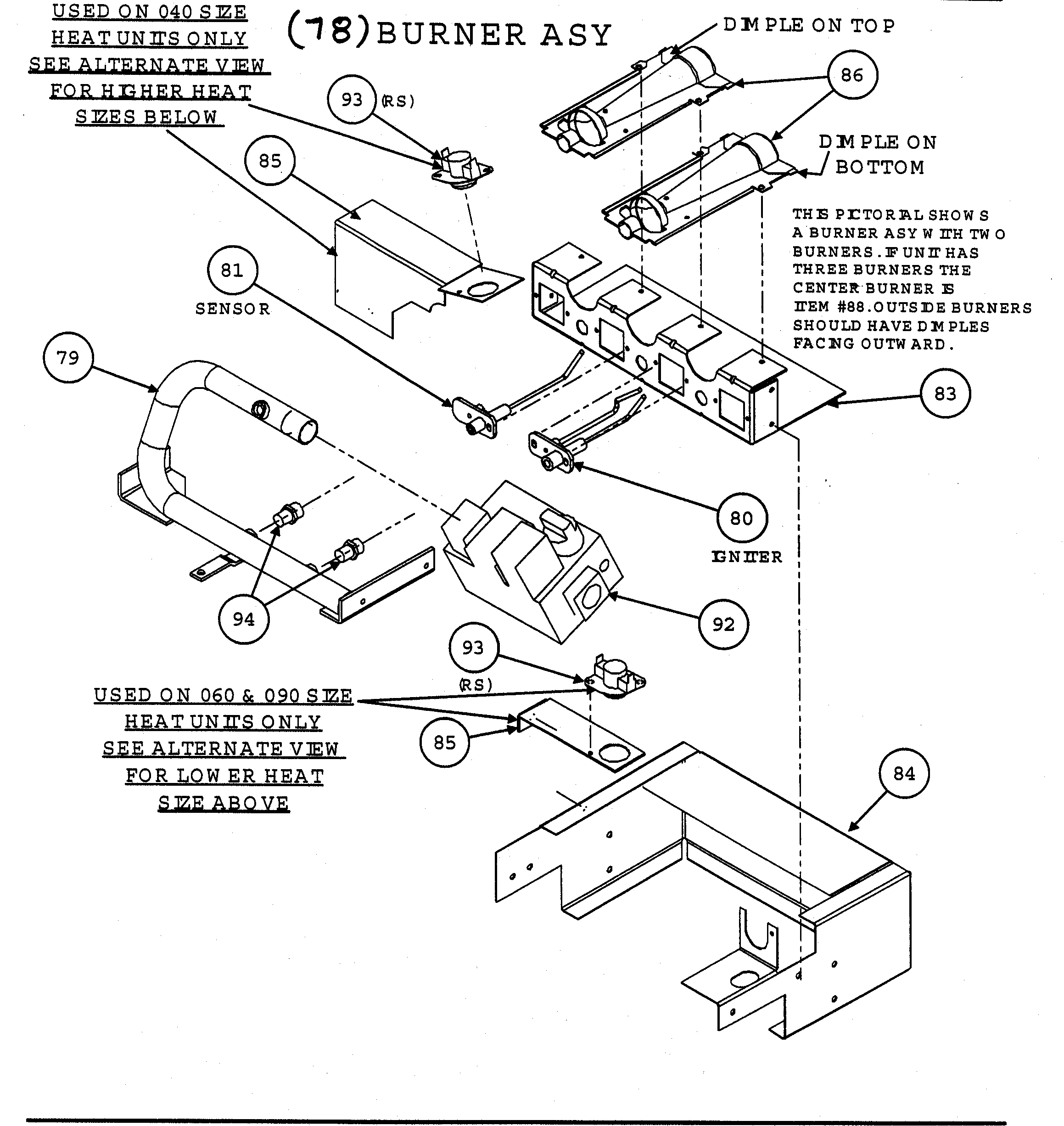

    Igniter#80

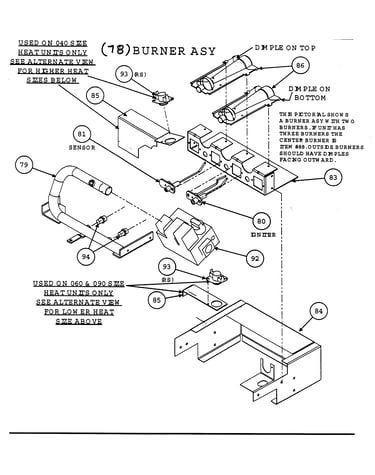

    Burner assy Diagram

    Igniter

    Part #48GS400168
    In Stock
    $23.00
    Coil#72

    Evap top view Diagram

    Coil

    Part #48GX400057
    In Stock
    $500.99
    Switch#NI

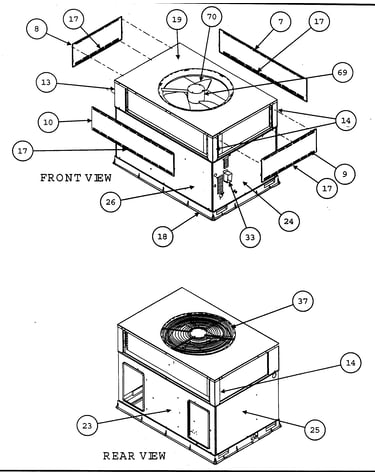

    Front view/rear view Diagram

    Switch

    Part #HK02ZB022
    In Stock
    $33.12

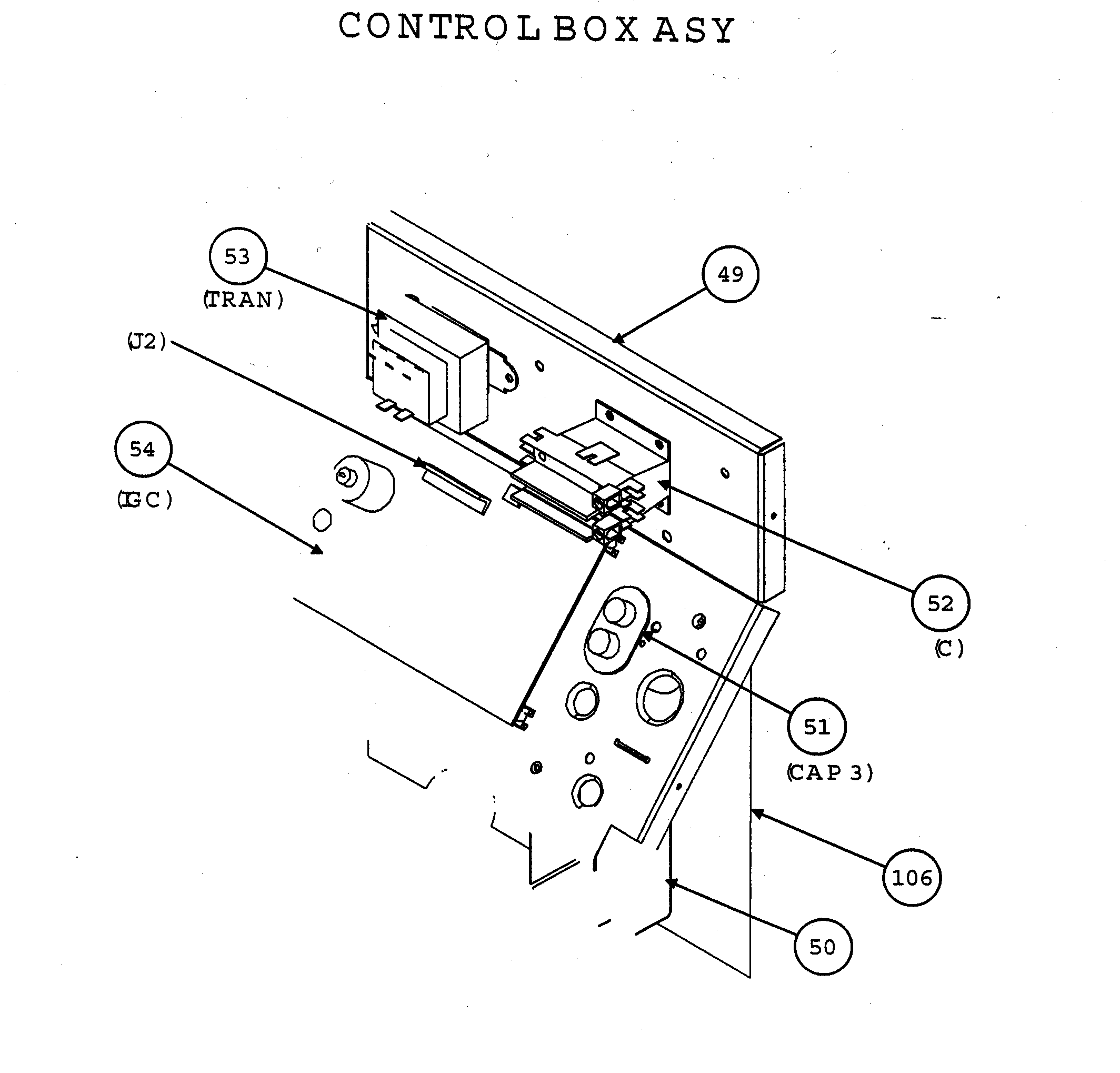

    Transformer#53

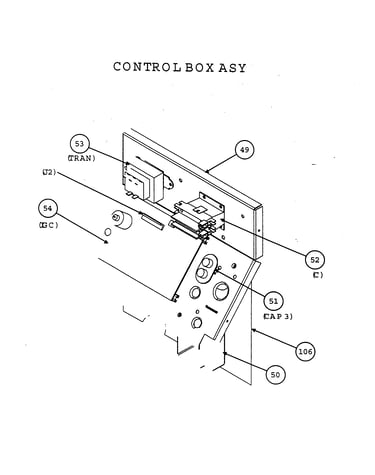

    Control box assy Diagram

    Transformer

    Part #HT01BD209
    In Stock
    $99.99
