Amana
Range/Microwave Combo

Model # 610.002 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 610002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Panel, Front Access (avocado) M72D30
#67C

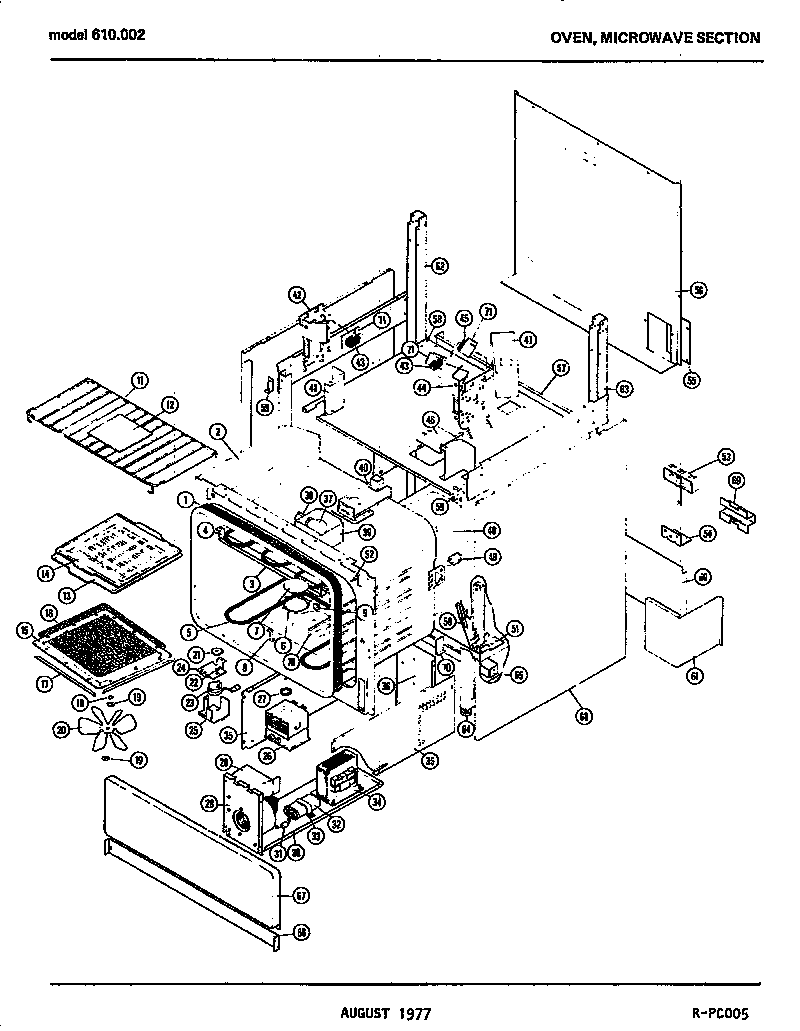

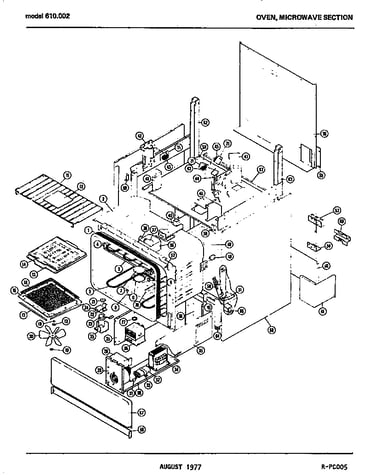

Microwave oven section diagram

Panel, front access (avocado)

Part #M72D30

The manufacturer no longer makes this part, and there's no substitute part

Surface Element, Large (240 V.) M61D28
#4

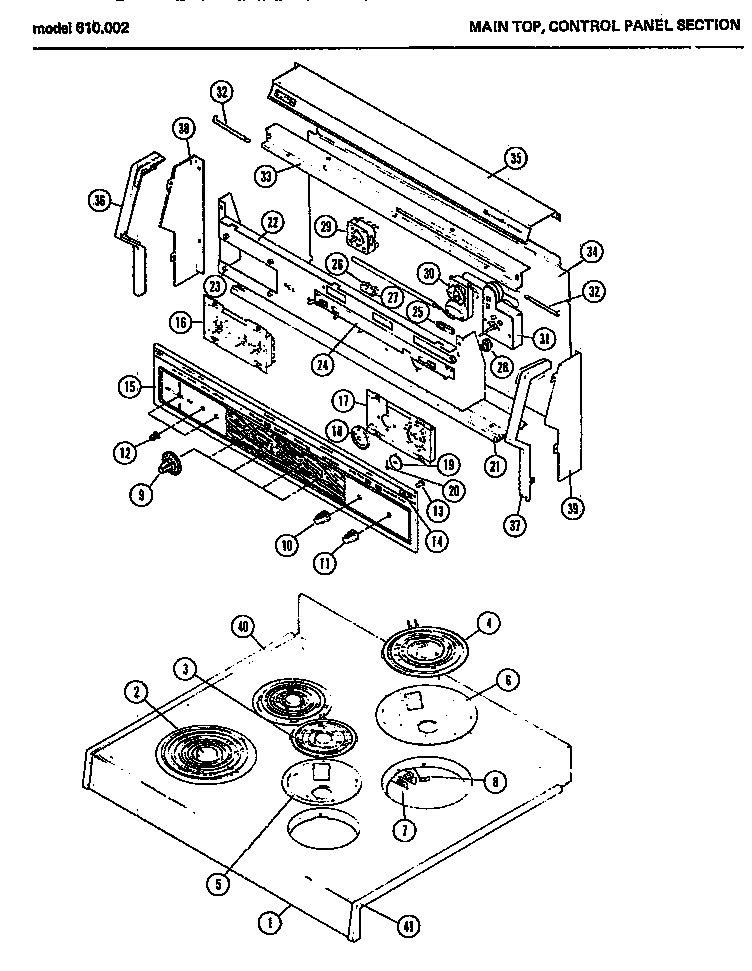

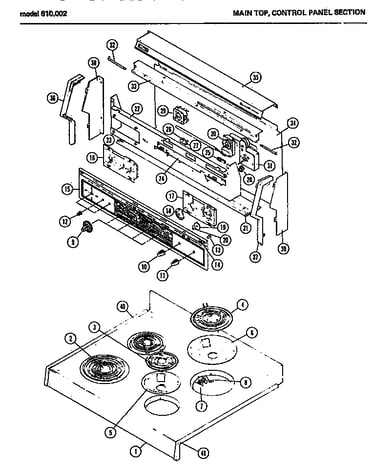

Main top diagram

Surface element, large (240 v.)

Part #M61D28

The manufacturer no longer makes this part, and there's no substitute part

Clip, Stirrer Blade Mtg M1D78
#18

Microwave oven section diagram

Clip, stirrer blade mtg

Part #M1D78

The manufacturer no longer makes this part, and there's no substitute part

Clip, Liner Mtg M1D516
#7

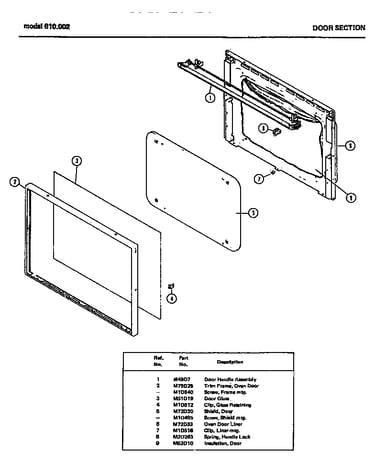

Door section diagram

Clip, liner mtg

Part #M1D516

The manufacturer no longer makes this part, and there's no substitute part

Access Cover M20D73
#55A

Microwave oven section diagram

Access cover

Part #M20D73

The manufacturer no longer makes this part, and there's no substitute part

Main Top (harvest Gold) M82D64
#1B

Main top diagram

Main top (harvest gold)

Part #M82D64

The manufacturer no longer makes this part, and there's no substitute part

Burnell Bowl, Small M44D11
#5

Main top diagram

Burnell bowl, small

Part #M44D11

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Extrusion M52D99
#21A

Main top diagram

Control panel extrusion

Part #M52D99

The manufacturer no longer makes this part, and there's no substitute part

Timer, Microwave (threaded Shaft) M30D49
#31A

Main top diagram

Timer, microwave (threaded shaft)

Part #M30D49

The manufacturer no longer makes this part, and there's no substitute part

Backplate, Control Panel M52D107
#22A

Main top diagram

Backplate, control panel

Part #M52D107

The manufacturer no longer makes this part, and there's no substitute part
