Model # 572611200 Official Craftsman rotory tool

Here are the diagrams and repair parts for Official Craftsman 572611200 rotory tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 19 parts |

#16

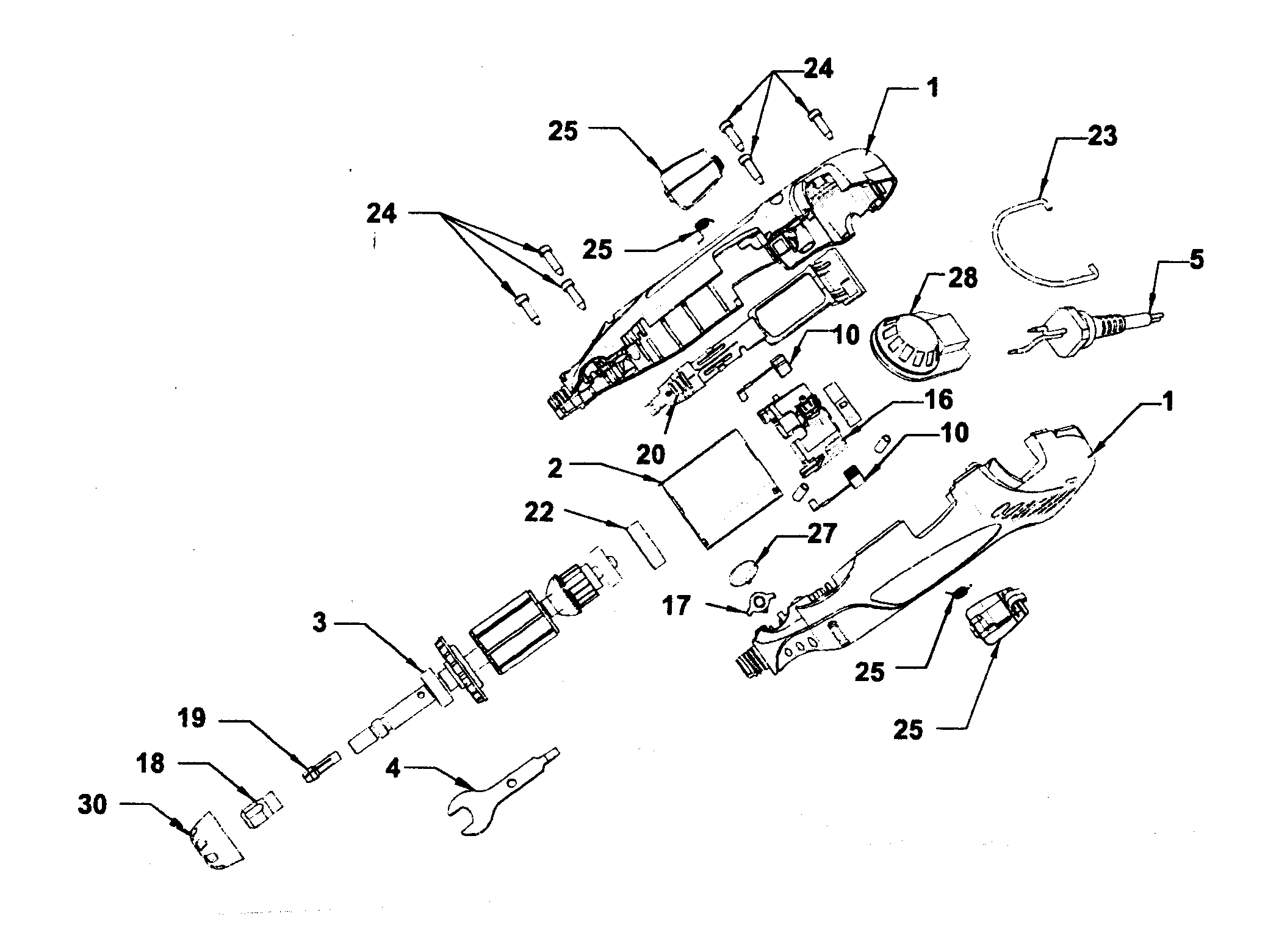

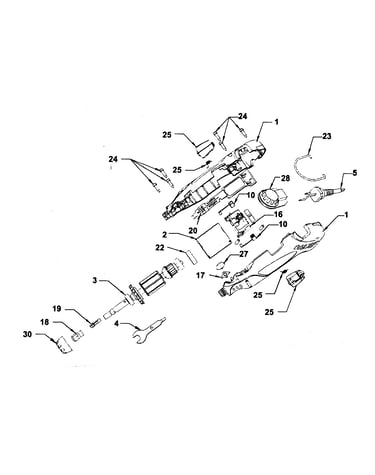

Housing assy diagram

Brush holder

Part #2610920709

The manufacturer no longer makes this part, and there's no substitute part

#24

Housing assy diagram

Screw

Part #2615294035

The manufacturer no longer makes this part, and there's no substitute part

#28

Housing assy diagram

Speed control

Part #2610920711

The manufacturer no longer makes this part, and there's no substitute part

#27

Housing assy diagram

Cap

Part #2610920716

The manufacturer no longer makes this part, and there's no substitute part

#25

Housing assy diagram

Door brush

Part #2610921563

The manufacturer no longer makes this part, and there's no substitute part

#17

Housing assy diagram

Lock pin

Part #2610920972

The manufacturer no longer makes this part, and there's no substitute part

Housing assy diagram

Field assembly

Part #2610920701

The manufacturer no longer makes this part, and there's no substitute part

Housing assy diagram

Rotary tool power cord

Part #2615294041

The manufacturer no longer makes this part, and there's no substitute part

#20

Housing assy diagram

Switch assembly

Part #2610920710

The manufacturer no longer makes this part, and there's no substitute part

#10

Housing assy diagram

Spring

Part #2610920705

The manufacturer no longer makes this part, and there's no substitute part
