Sharp
Countertop Microwave

Model # R-305HK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-305HK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

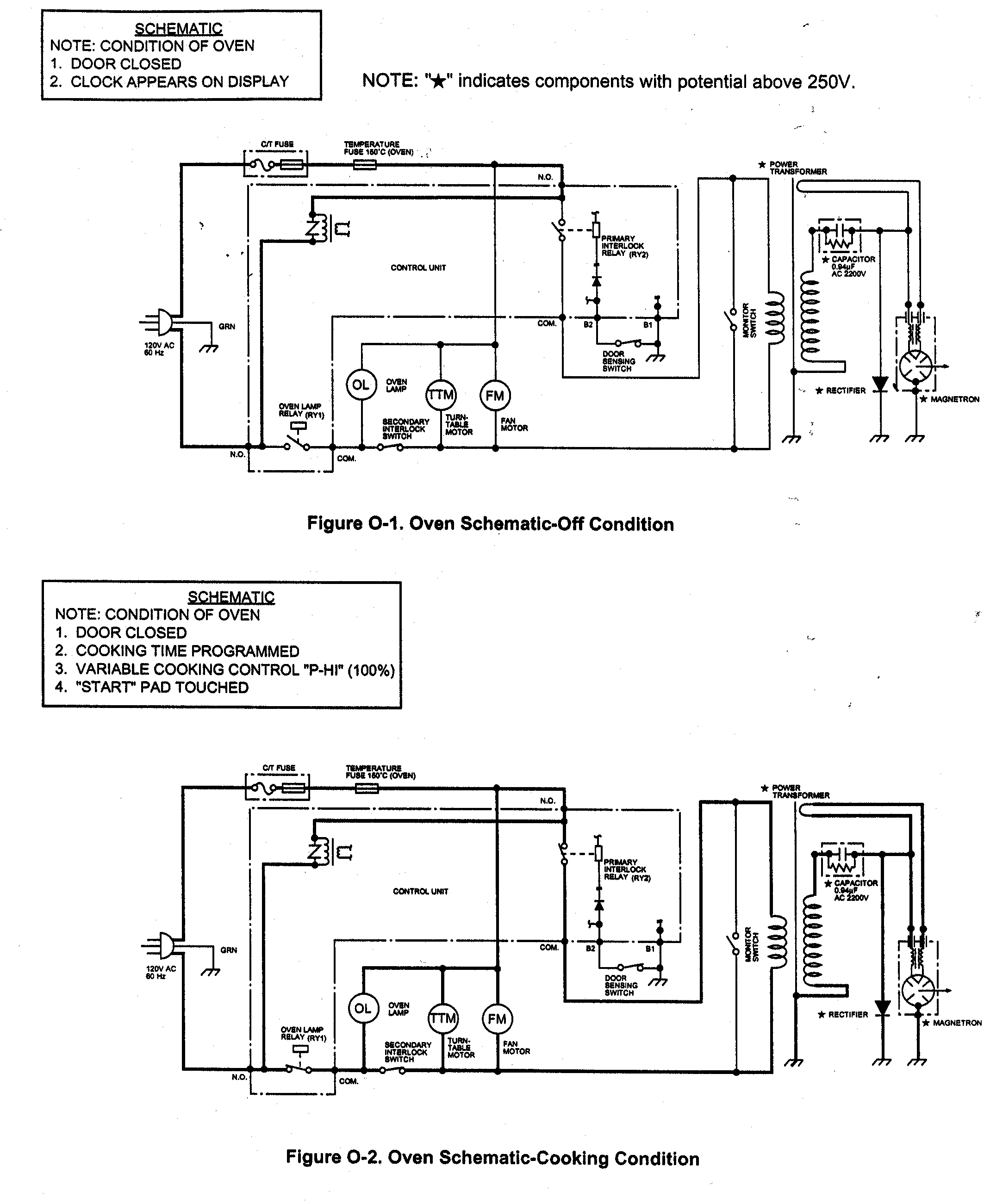

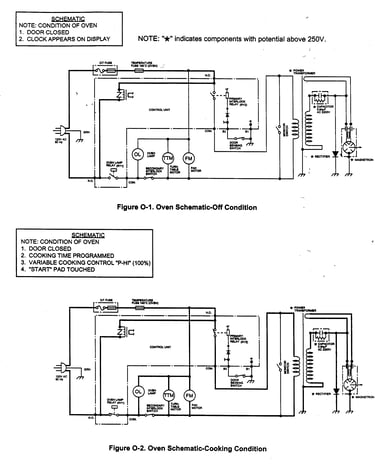

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Magnetron RV-MZA288WRE0
#1-11

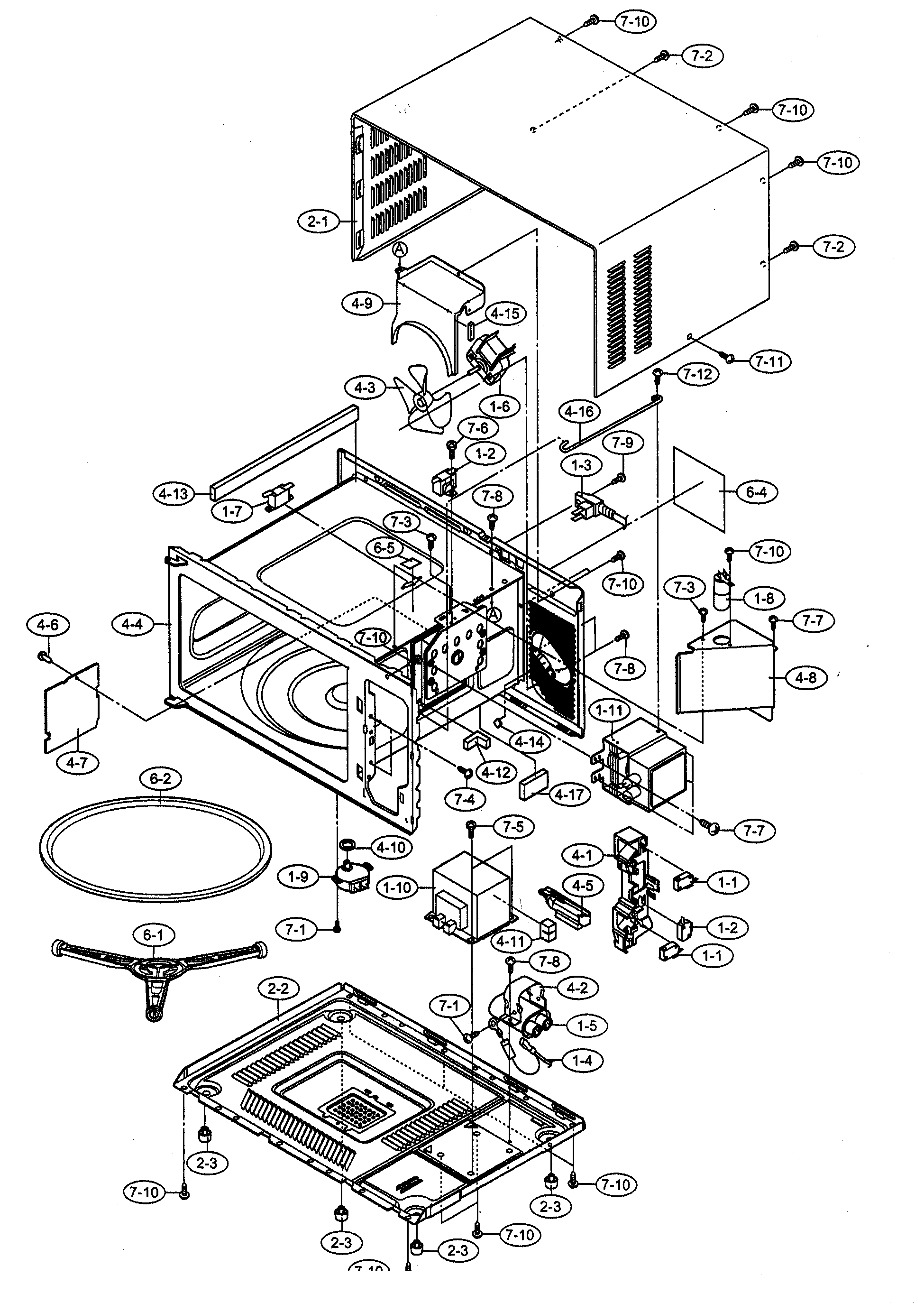

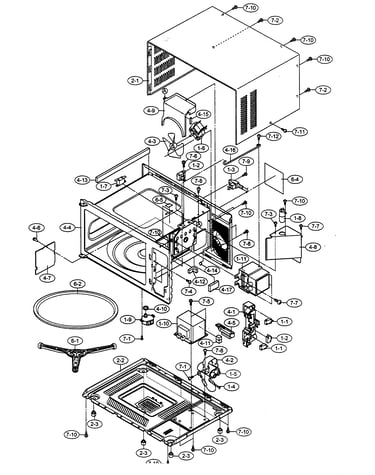

Oven cabinet parts diagram

Magnetron

Part #RV-MZA288WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA213WRE0
#1-5

Oven cabinet parts diagram

Capacitor

Part #RC-QZA213WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Glass Turntable Tray NTNT-A117WREZ
#6-2

Oven cabinet parts diagram

Microwave glass turntable tray

Part #NTNT-A117WREZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Cover GCOVHA450WRFZ
#5-7

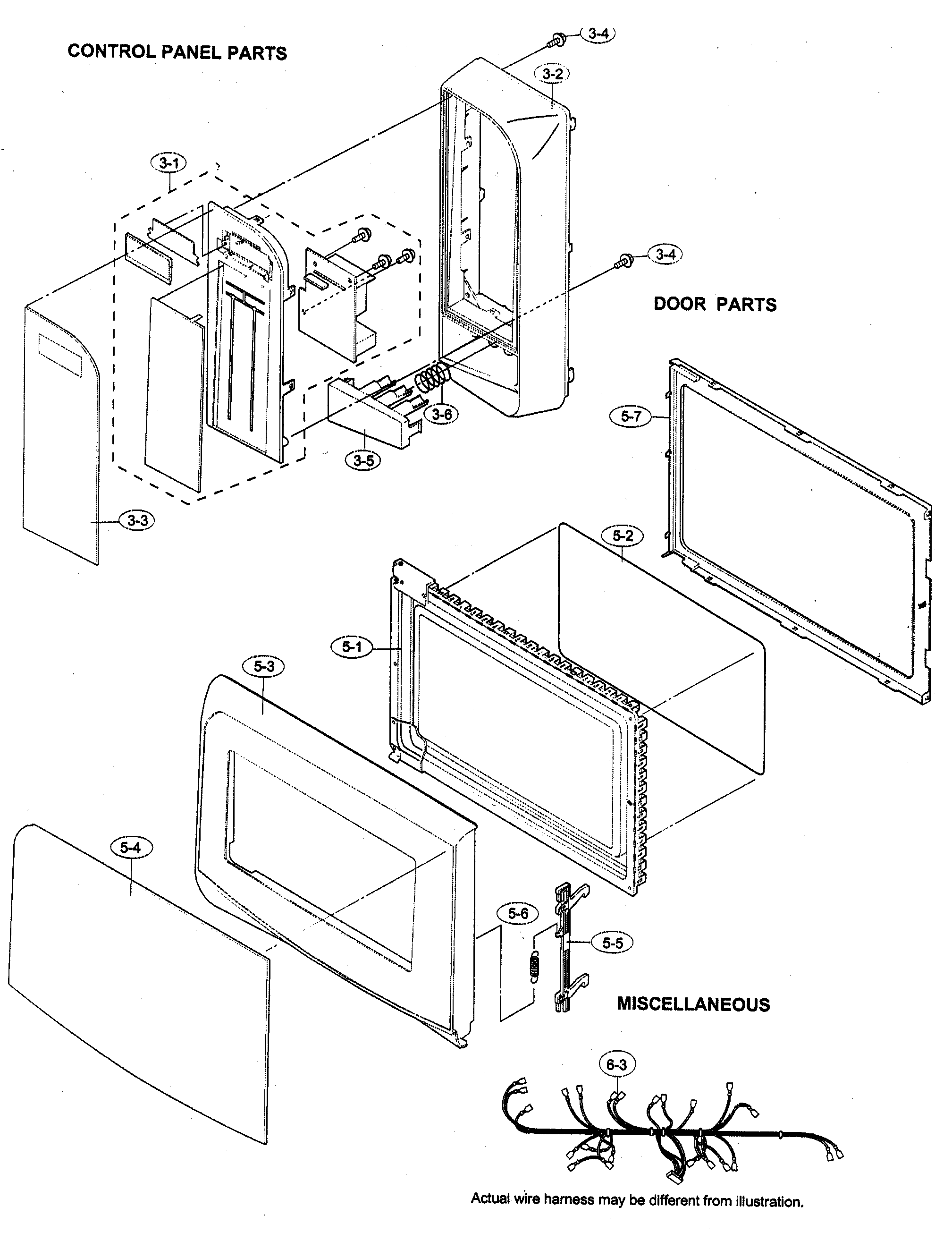

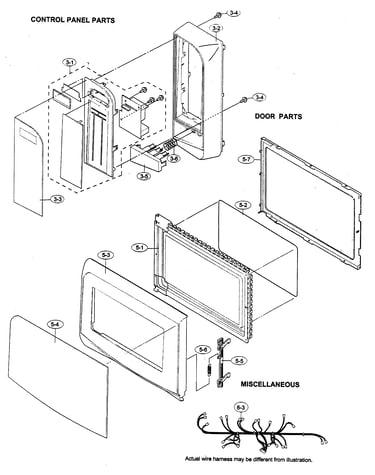

Control panel/door parts/miscellaneous diagram

Microwave cover

Part #GCOVHA450WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ
#1-8

Oven cabinet parts diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Tray Support FROLPA101WRKZ
#6-1

Oven cabinet parts diagram

Microwave turntable tray support

Part #FROLPA101WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDA083WRE0
#1-3

Oven cabinet parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Packing PPACGA176WREZ
#4-10

Oven cabinet parts diagram

Packing

Part #PPACGA176WREZ

The manufacturer no longer makes this part, and there's no substitute part

Diode FH-DZA075WRK0
#1-4

Oven cabinet parts diagram

Diode

Part #FH-DZA075WRK0

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-A131WRFZ
#4-1

Oven cabinet parts diagram

Latch hook

Part #PHOK-A131WRFZ

The manufacturer no longer makes this part, and there's no substitute part
