Amana RCS720SE/P7787226M microwave Parts

Here are the diagrams and repair parts for Amana RCS720SE/P7787226M microwave, as well as links to manuals and error code tables, if available.

Amana RCS720SE/P7787226M microwave
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forRCS720SE/P7787226M Microwaves

  • Microwave Harness for Amana RCS720SE/P7787226M - Part D7837601

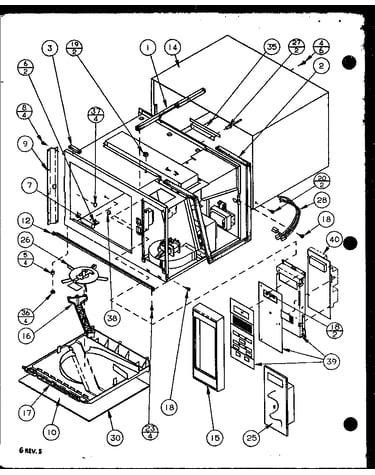

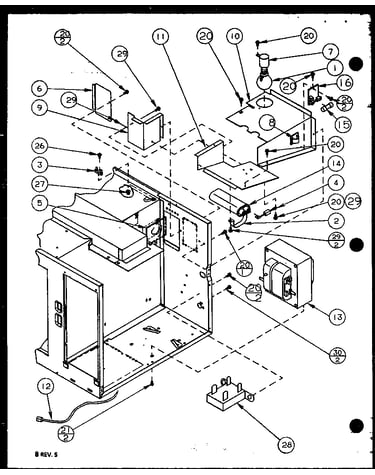

    Cabinet and control panel diagram

    Microwave Harness

    Part #D7837601

    The manufacturer no longer makes this part, and there's no substitute part

  • Sm Screw for Amana RCS720SE/P7787226M - Part M0215115

    Cabinet and control panel diagram

    Sm Screw

    Part #M0215115

    The manufacturer no longer makes this part, and there's no substitute part

  • Use And Care Manual for Amana RCS720SE/P7787226M - Part B8383512

    #NI

    All parts diagram

    Use And Care Manual

    Part #B8383512

    The manufacturer no longer makes this part, and there's no substitute part

  • Shield for Amana RCS720SE/P7787226M - Part D7692501

    Cabinet and control panel diagram

    Shield

    Part #D7692501

    The manufacturer no longer makes this part, and there's no substitute part

  • Use And Care Manual for Amana RCS720SE/P7787226M - Part B8383503

    #NI

    All parts diagram

    Use And Care Manual

    Part #B8383503

    The manufacturer no longer makes this part, and there's no substitute part

  • Hole Plug for Amana RCS720SE/P7787226M - Part M0310320

    Cabinet and control panel diagram

    Hole Plug

    Part #M0310320

    The manufacturer no longer makes this part, and there's no substitute part

  • Control, Mounting Plate for Amana RCS720SE/P7787226M - Part D7685308

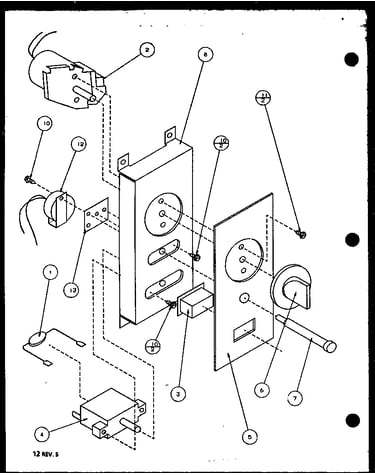

    Timer assembly diagram

    Control, Mounting Plate

    Part #D7685308

    The manufacturer no longer makes this part, and there's no substitute part

  • Revit-shoulder for Amana RCS720SE/P7787226M - Part M1205111

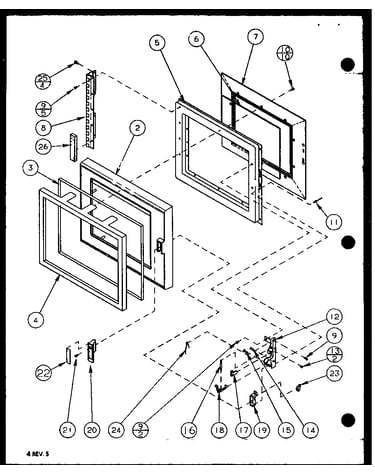

    Door diagram

    Revit-shoulder

    Part #M1205111

    The manufacturer no longer makes this part, and there's no substitute part

  • Interlock Switch for Amana RCS720SE/P7787226M - Part C8935806

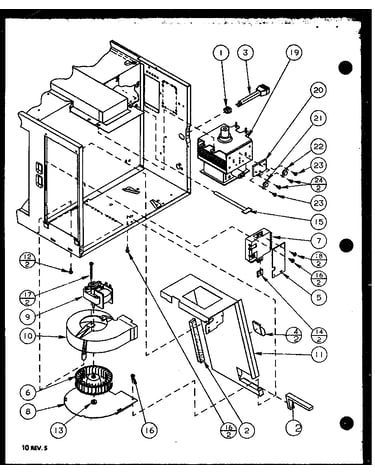

    Blower diagram

    Interlock Switch

    Part #C8935806

    The manufacturer no longer makes this part, and there's no substitute part

  • Removal Tool for Amana RCS720SE/P7787226M - Part R0193557

    #NI

    All parts diagram

    Removal Tool

    Part #R0193557

    The manufacturer no longer makes this part, and there's no substitute part
