Carrier 24ACC630A0030010 air conditioner Parts

A 3-ton central AC system typically cools about 1,500 to 2,100 sq. ft. in many U.S. homes, but the real number depends on your climate, insulation, windows, ceiling height, and ductwork. For Carrier model 24ACC630A0030010, confirm sizing requirements in the installation guide.

Use these as practical starting points, then confirm with a load calculation:

• Hot climates or poor insulation: ~1,200 to 1,600 sq. ft.
• Mixed climates, average insulation: ~1,500 to 2,100 sq. ft.
• Cool climates or very efficient homes: ~1,800 to 2,400 sq. ft.
• Rule of thumb: ~400 to 600 sq. ft. per ton (varies widely)

These factors often swing sizing more than the floor plan itself:

• Insulation and air sealing (attic, walls, rim joists)
• Ceiling height (taller ceilings increase volume and load)
• Window area and sun exposure (west-facing glass adds heat gain)
• Duct condition (leaks and poor airflow reduce delivered cooling)
• Humidity load (coastal and humid regions need more capacity)
• Occupancy and internal heat (cooking, electronics, number of people)

If the system is oversized, it can short-cycle and remove less humidity; if it is undersized, it can run constantly and still not hold set temperature. Correct sizing improves comfort, efficiency, and compressor life.

Even with the right tonnage, installation details matter for how well your 24ACC630A0030010 performs:

• Maintain required airflow clearances around the outdoor unit.
• Keep refrigerant line length and routing within recommended limits.
• Charge accuracy matters; the unit is typically charged for a standard lineset length and adjusted by line length per the installation instructions.

Last updated: February 2026

For your Carrier central air conditioner model 24ACC630A0030010, we tell tonnage by finding the unit size code in the outdoor unit’s model number or rating plate. In most Carrier model numbers, the size code (like 18, 24, 30, 36, 42, 48, 60) maps to nominal capacity in thousands of BTU; divide by 12 to get tons.

Use this quick rule when the model number includes a two-digit size:

• Find the size code in the model number (commonly 18, 24, 30, 36, 42, 48, 60)
• Treat it as BTU in thousands (example: 36 means about 36,000 BTU/hr)
• Divide by 12,000 to convert BTU/hr to tons
• Confirm on the rating plate if it lists BTU/hr or “nominal tons”

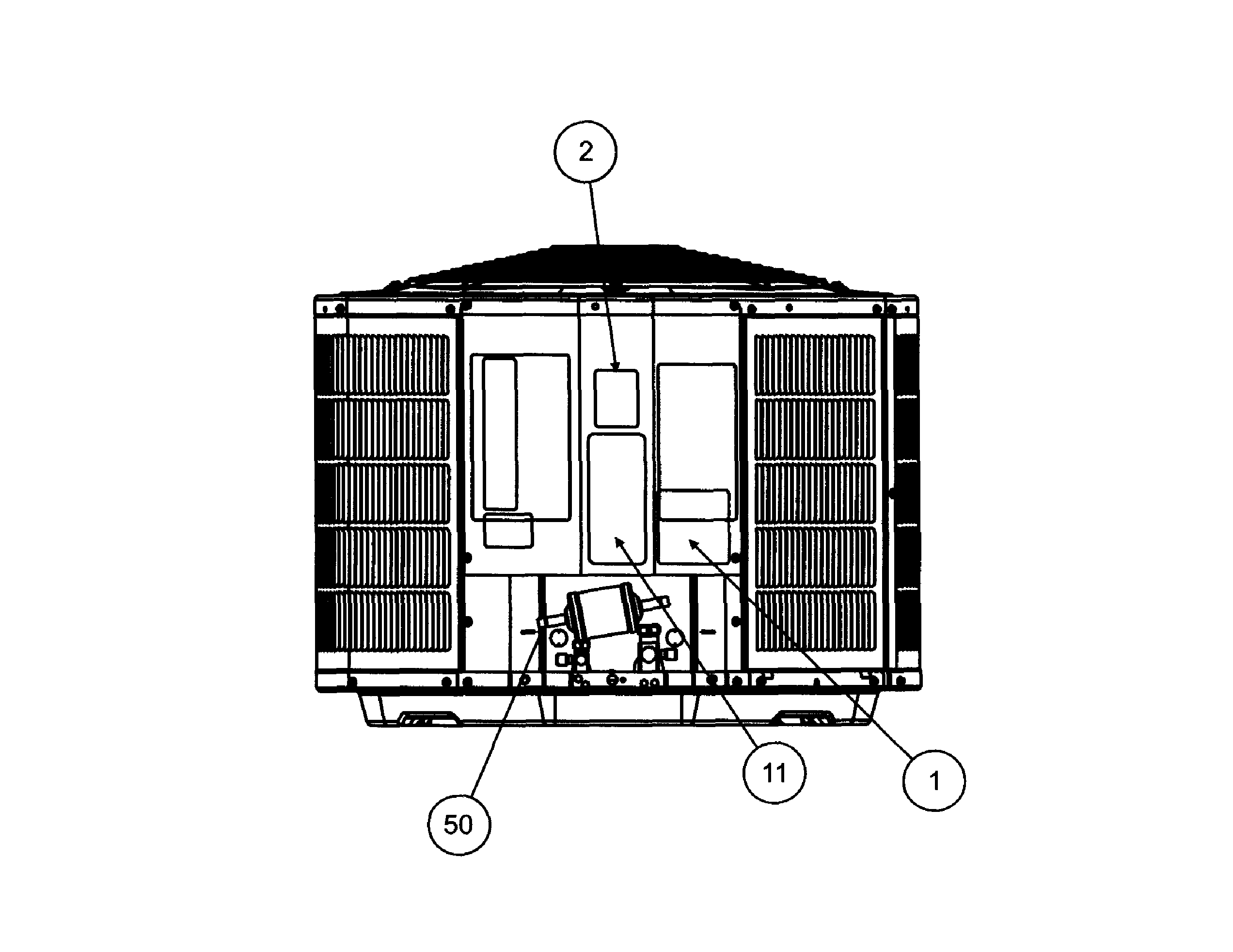

On a split-system Carrier AC, the outdoor condenser has a rating plate with identifying information.

• Outside of the condenser cabinet (often near the electrical access panel)
• The rating plate typically lists model number and serial number
• Some plates also list cooling capacity (BTU/hr) or “tons”

For model-specific labeling and identification details, use the 24ACC630A0030010 owner's manual.

Correct tonnage helps you match the right indoor coil, refrigerant line sizing, and service parts. It also prevents comfort issues caused by oversizing or undersizing (humidity control, run time, and efficiency).

Last updated: February 2026

For your Carrier central air conditioner model 24ACC630A0030010, buy parts by matching the model and serial information from the unit rating plate to the parts list for this exact model, then ordering the part number that matches your component. The 24ACC630A0030010 owner's manual shows where to find the rating plate details.

Use these steps to avoid ordering the wrong HVAC part:

• Locate the rating plate on the outdoor unit and write down the model and serial numbers.
• Confirm the model is 24ACC630A0030010 (character for character).
• Identify the failed component (for example: fan, wiring connection, grommet, nameplate, plug assembly).
• Match the part by part description and part number, then order the exact replacement.
• Use the basic troubleshooting checks in the manual (disconnects, breakers, airflow, thermostat settings) before replacing parts.

These are examples of parts available for Carrier 24ACC630A0030010 that customers commonly look up when diagnosing outdoor unit issues:

Central air conditioner parts are not one size fits all. Using the exact model number and the rating plate information helps ensure the electrical and mechanical parts fit correctly and operate safely.

Last updated: February 2026

Replacing only the compressor is cheaper than replacing the entire Carrier 24ACC630A0030010 outdoor unit when the rest of the system is in good condition. Full unit replacement costs more upfront, but it prevents repeat repairs and improves efficiency when the system is older or has multiple problems.

We base the decision on the condition of the refrigerant circuit (sealed system) and the electrical controls that start the compressor.

• System age and condition: Older equipment with multiple worn components favors replacement.
• Cause of failure: Burnout or contamination increases labor and required cleanup parts.
• Refrigerant work required: Proper evacuation and charging are critical; never use the compressor as a vacuum pump.
• Electrical health: A weak contactor or damaged wiring can mimic a bad compressor.
• Efficiency goals: Newer equipment typically delivers better seasonal efficiency.

These checks align with how the 24ACC630A0030010 is designed to run (thermostat call energizes the contactor, which starts the compressor and outdoor fan).

• Verify the thermostat call for cooling energizes the outdoor contactor.
• Inspect and test the contactor for pitted or stuck contacts.
• Confirm the outdoor fan runs; a failed fan can drive pressures high and damage the compressor.
• After service, ensure service valves are opened and caps are reinstalled correctly.

For wiring and sequence-of-operation details, use the installation guide.

If the real problem is a control or airflow issue, replacing the compressor alone can lead to another failure and higher total cost than fixing the root cause or replacing the unit.

Last updated: February 2026

On most central AC systems (including Carrier model 24ACC630A0030010), the most common electrical failure is the run capacitor; the contactor and condenser fan components are also frequent failure points. Heat, age, vibration, and electrical wear make these start and switching parts fail more often than the cabinet.

• Run capacitor: outdoor unit hums, fan will not start, compressor struggles to start
• Contactor: outdoor unit will not turn on, intermittent cooling, chattering or buzzing at the contactor
• Condenser fan issues: poor cooling, unit overheats, fan not spinning or noisy
• Electrical connections: burnt wires, loose terminals, intermittent operation
• Airflow and maintenance problems (dirty filter, blocked vents, dirty coils): longer run times, higher bills, icing, reduced comfort

Before you remove panels or touch wiring, shut off power at the disconnect(s). Carrier notes there may be more than one disconnect, and power should be off to both indoor and outdoor units before maintenance; follow the safety and routine maintenance steps in the 24ACC630A0030010 owner's manual.

• Confirm the thermostat is calling for cooling
• Verify the outdoor disconnect and breaker are on
• Inspect the indoor air filter and replace or clean it if dirty
• Make sure the outdoor unit is not covered or blocked and has clear airflow
• If the outdoor unit will not start, a failed switching component (often the contactor or capacitor) is a common cause

These parts control starting and airflow. When they fail, the system can run longer, cool poorly, or stop entirely. Routine maintenance (filter, coils, drain inspection, and checking wiring connections) improves reliability and lifespan.

Last updated: February 2026
