Model # 217590171 Official Craftsman electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 217590171 electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

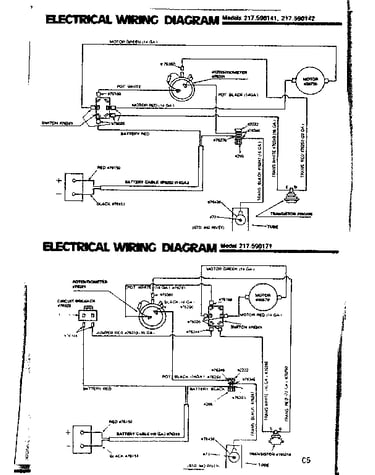

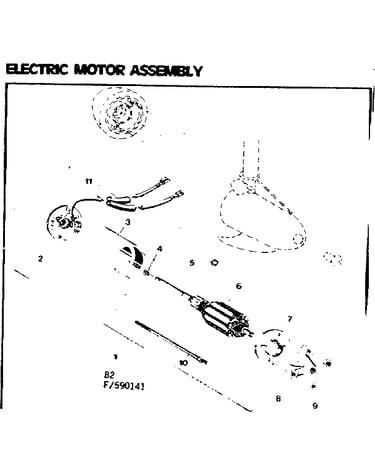

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Rocker Switch 76341
#1

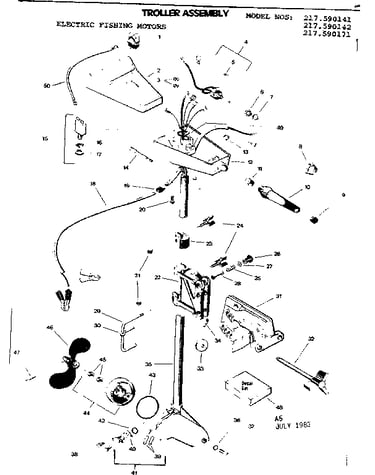

Troller assembly diagram

Rocker switch

Part #76341

The manufacturer no longer makes this part, and there's no substitute part

Resistor 36571
#5

Troller assembly diagram

Resistor

Part #36571

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 26329
#45

Troller assembly diagram

Oil seal

Part #26329

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 7459
#28

Troller assembly diagram

Roll pin

Part #7459

The manufacturer no longer makes this part, and there's no substitute part

Cap Assembly 195009-21
#44

Troller assembly diagram

Cap assembly

Part #195009-21

The manufacturer no longer makes this part, and there's no substitute part

Pin, Cottr 6404
#47

Troller assembly diagram

Pin, cottr

Part #6404

The manufacturer no longer makes this part, and there's no substitute part

Wire 76278

#NI

All parts diagram

Wire

Part #76278

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 76360

#NI

All parts diagram

Receptacle

Part #76360

The manufacturer no longer makes this part, and there's no substitute part

Plate 36730
#40

Troller assembly diagram

Plate

Part #36730

The manufacturer no longer makes this part, and there's no substitute part

Screw 285
#20

Troller assembly diagram

Screw

Part #285

The manufacturer no longer makes this part, and there's no substitute part
