Craftsman
Power Sander

Model # 900116810 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 900116810 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

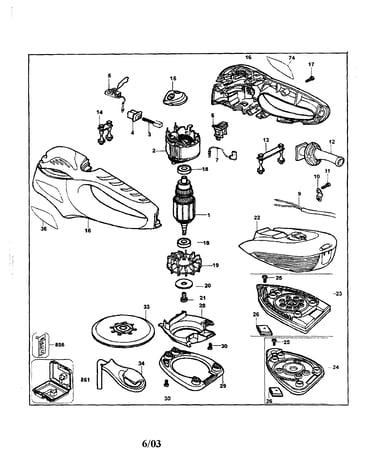

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Sander Felt Pad 372367-00
#26

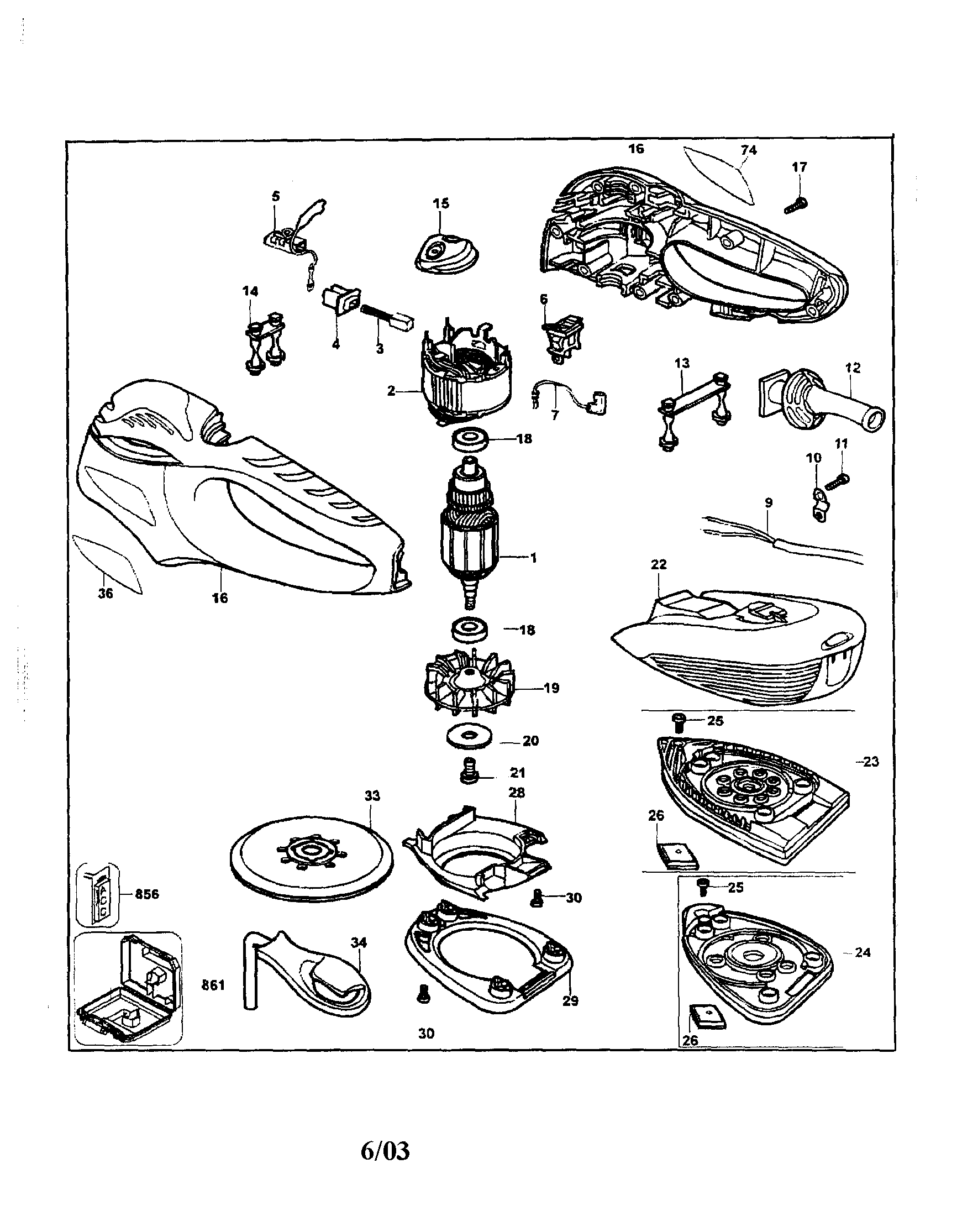

Sander diagram

Sander felt pad

Part #372367-00

The manufacturer no longer makes this part, and there's no substitute part

Brush Box 578974-00
#5

Sander diagram

Brush box

Part #578974-00

The manufacturer no longer makes this part, and there's no substitute part

Protrector 579052-00
#12

Sander diagram

Protrector

Part #579052-00

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 581389-00
#7

Sander diagram

Lead wire

Part #581389-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 574853-06
#18

Sander diagram

Bearing

Part #574853-06

The manufacturer no longer makes this part, and there's no substitute part

Sander On/off Switch 579050-00
#6

Sander diagram

Sander on/off switch

Part #579050-00

The manufacturer no longer makes this part, and there's no substitute part

Armature 576373-10
#1

Sander diagram

Armature

Part #576373-10

The manufacturer no longer makes this part, and there's no substitute part

Field 576374-08
#2

Sander diagram

Field

Part #576374-08

The manufacturer no longer makes this part, and there's no substitute part

Screw 573148-00
#11

Sander diagram

Screw

Part #573148-00

The manufacturer no longer makes this part, and there's no substitute part

Kit Box 580438-01
#861

Sander diagram

Kit box

Part #580438-01

The manufacturer no longer makes this part, and there's no substitute part
