Kenmore Pro
Electric Cooktop

Model # 79040403510 Official Kenmore Pro electric cooktop

Here are the diagrams and repair parts for Official Kenmore Pro 79040403510 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

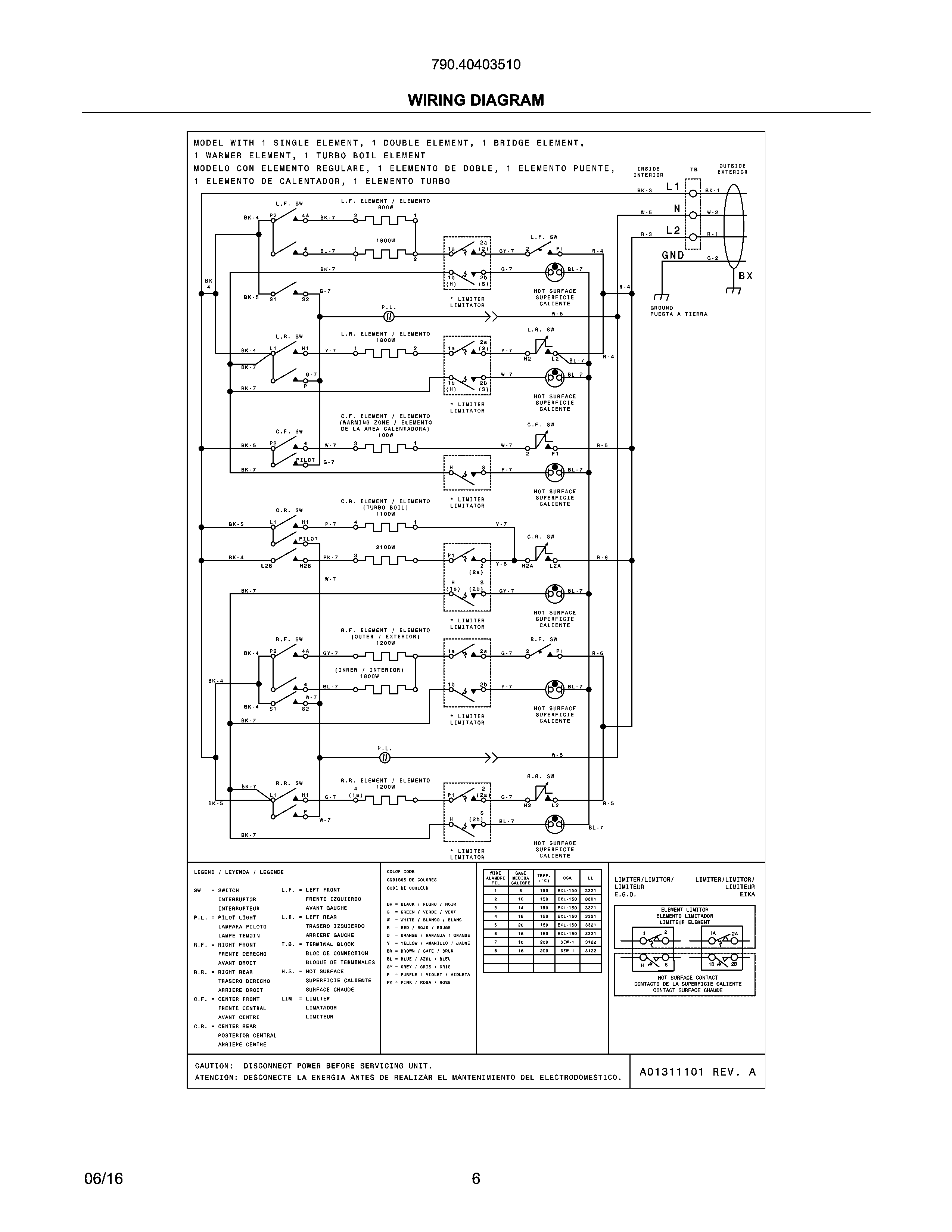

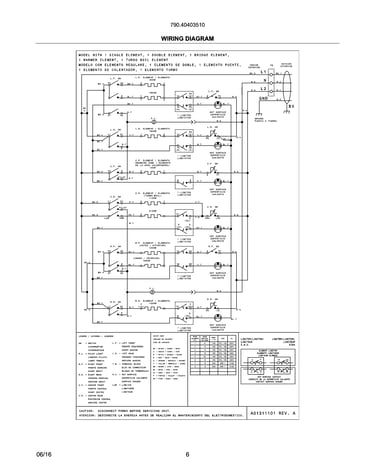

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

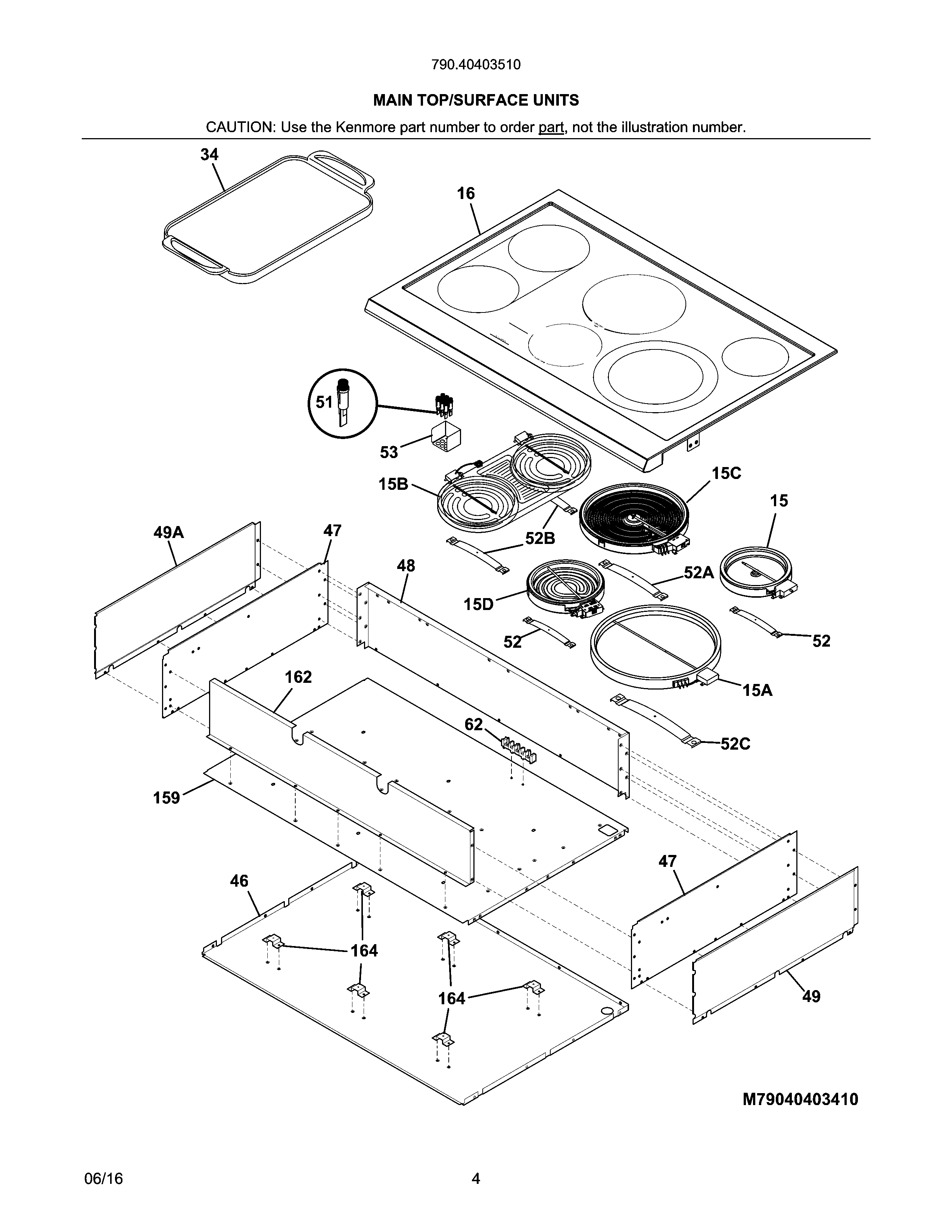

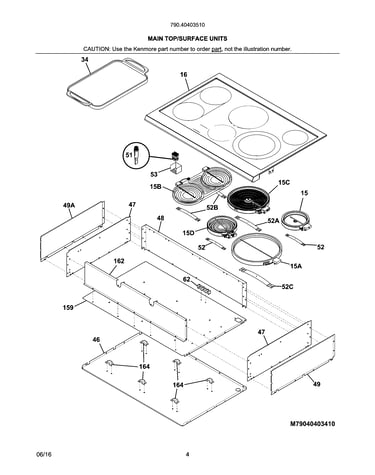

Maintop/surface units diagram

Range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$147.02
6% OFF Phone Price : $157.02
In Stock
Range Radiant Surface Element 316530000
#15C

Maintop/surface units diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$180.16
5% OFF Phone Price : $190.16
In Stock
Cooktop Element Control Switch (replaces 318293918, 318369612) 318293818
#54

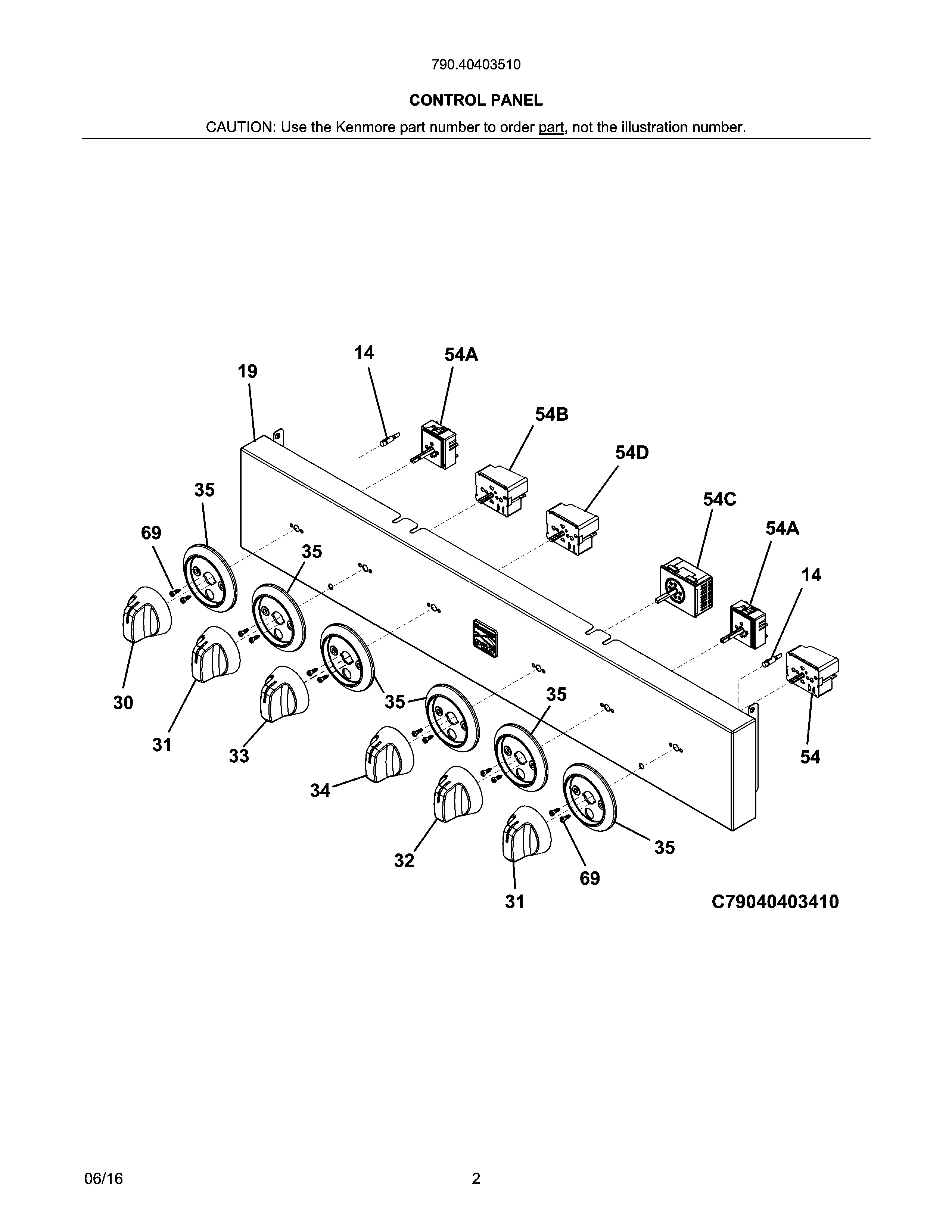

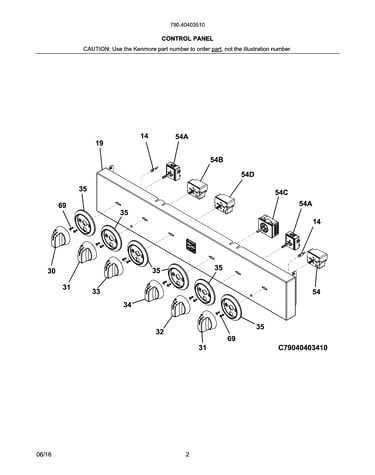

Control panel diagram

Cooktop element control switch (replaces 318293918, 318369612)

Part #318293818

$63.74
7% OFF Phone Price : $68.74
In Stock
Cooktop Turbo Element Control Switch 316305102
#54C

Control panel diagram

Cooktop turbo element control switch

Part #316305102

$126.69
7% OFF Phone Price : $136.69
In Stock
Brdge Elmnt 318178200
#15B

Maintop/surface units diagram

Brdge elmnt

Part #318178200

Replaced by #318258201

?
Manufacturer substitution
This part replaces 318178200. Substitute parts can look different from the original.
$356.39
$10.00 OFF Phone Price : $366.39
In Stock
Range Nut 5303323144
#NI

Maintop/surface units diagram

Range nut

Part #5303323144

In Stock
Control Panel 5304500684
#19

Control panel diagram

Control panel

Part #5304500684

In Stock
Knob 5304500688
#33

Control panel diagram

Knob

Part #5304500688

In Stock
Cooktop Knob Bezel (stainless) 5304500690
#35

Control panel diagram

Cooktop knob bezel (stainless)

Part #5304500690

$85.09
6% OFF Phone Price : $90.09
In Stock
Bracket 318125960
#53

Maintop/surface units diagram

Bracket

Part #318125960

In Stock
