DeWalt
Angle Grinder

Model # DW831 TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DW831-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Angle Grinder Spindle Lock Button 390705-00
#124

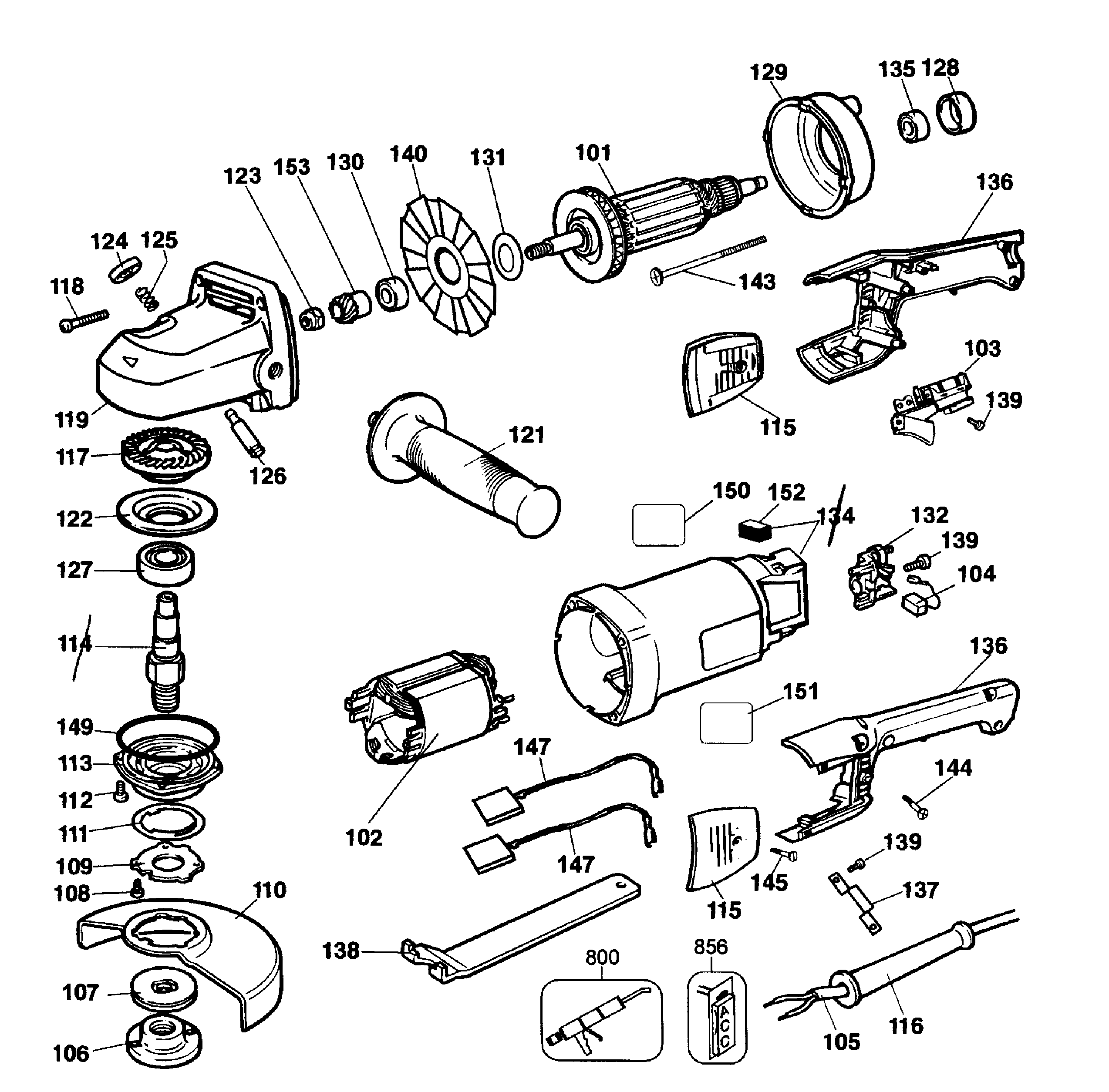

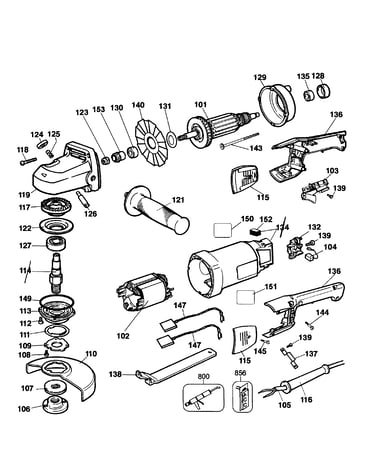

Grinder assy diagram

Angle grinder spindle lock button

Part #390705-00

The manufacturer no longer makes this part, and there's no substitute part

Label 398941-00
#151

Grinder assy diagram

Label

Part #398941-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 562097-10
#118

Grinder assy diagram

Screw

Part #562097-10

The manufacturer no longer makes this part, and there's no substitute part

Flange 403156-00
#122

Grinder assy diagram

Flange

Part #403156-00

The manufacturer no longer makes this part, and there's no substitute part

Pinion 402863-00
#153

Grinder assy diagram

Pinion

Part #402863-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 930753-00
#131

Grinder assy diagram

Washer

Part #930753-00

The manufacturer no longer makes this part, and there's no substitute part

O-ring 403123-00
#149

Grinder assy diagram

O-ring

Part #403123-00

The manufacturer no longer makes this part, and there's no substitute part

Lead 402878-01
#147

Grinder assy diagram

Lead

Part #402878-01

The manufacturer no longer makes this part, and there's no substitute part

Flange 403121-01
#140

Grinder assy diagram

Flange

Part #403121-01

The manufacturer no longer makes this part, and there's no substitute part

Holder 402869-03
#132

Grinder assy diagram

Holder

Part #402869-03

The manufacturer no longer makes this part, and there's no substitute part
