Model # ZGG48N31C2SS Official GE gas grill

Here are the diagrams and repair parts for Official GE ZGG48N31C2SS gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

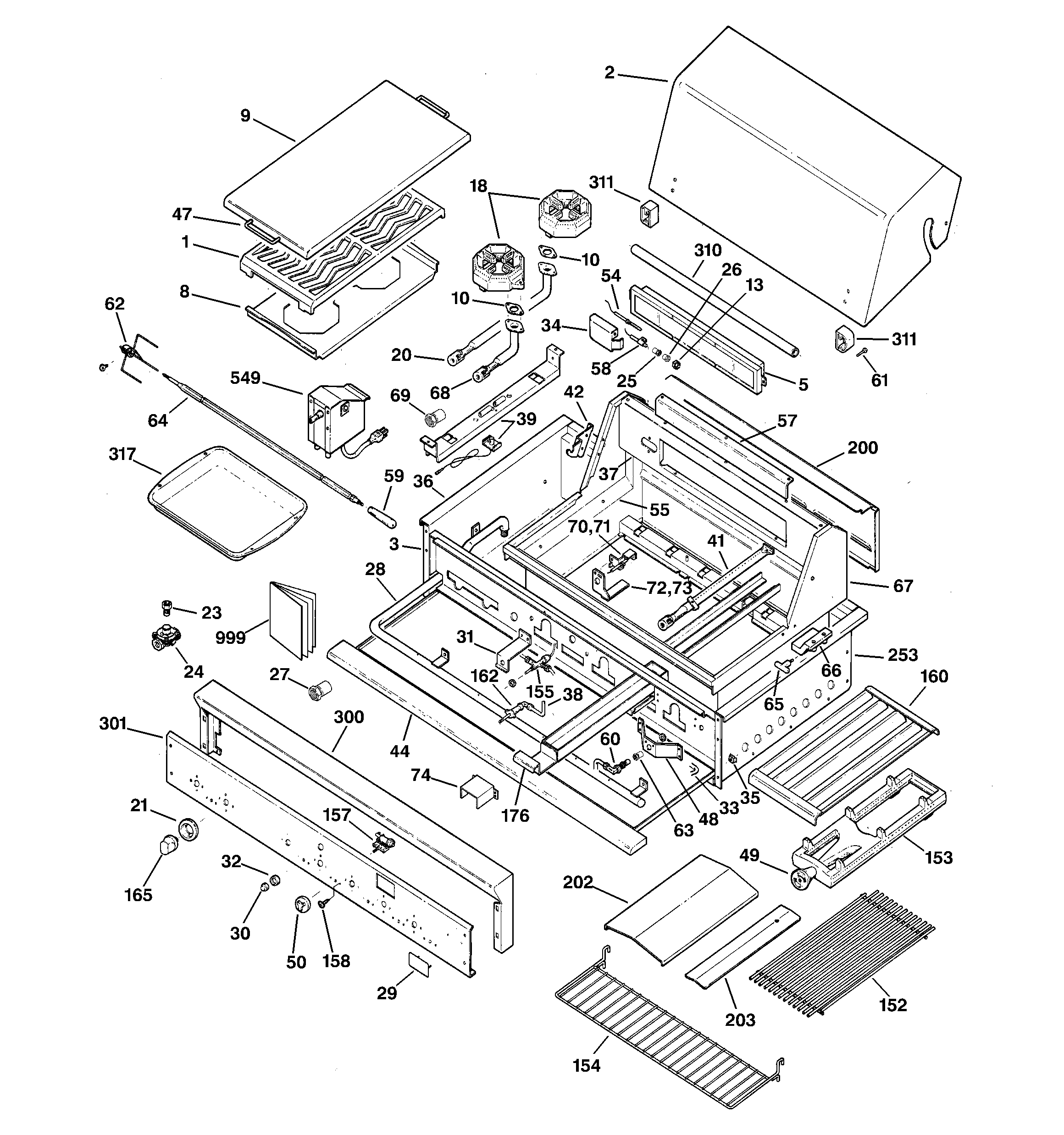

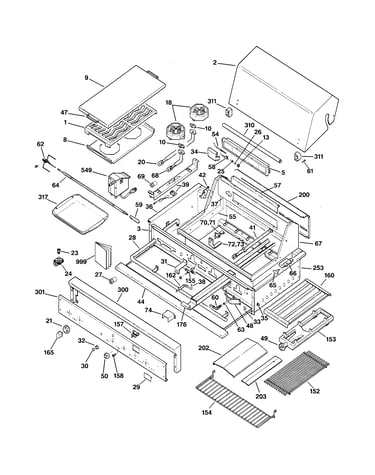

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Gas Grill Radiant Tray WB02X10661
#160

Gas grill parts diagram

Gas grill radiant tray

Part #WB02X10661

$272.22
$10.00 OFF Phone Price : $282.22
In Stock
Range Surface Burner Grate WB49X5591
#1

Gas grill parts diagram

Range surface burner grate

Part #WB49X5591

In Stock
Gas Grill Rotisserie Motor WB26X10014
#549

Gas grill parts diagram

Gas grill rotisserie motor

Part #WB26X10014

$390.29
$10.00 OFF Phone Price : $400.29
In Stock
Rotisserie WB28X10011
#5

Gas grill parts diagram

Rotisserie

Part #WB28X10011

In Stock
Monogram Logo WB02X10349
#29

Gas grill parts diagram

Monogram logo

Part #WB02X10349

In Stock
Gas Grill Burner Heat Shield WB07X10039
#203

Gas grill parts diagram

Gas grill burner heat shield

Part #WB07X10039

$93.79
5% OFF Phone Price : $98.79
In Stock
Gas Grill Natural Gas Regulator WB21X10010
#24

Gas grill parts diagram

Gas grill natural gas regulator

Part #WB21X10010

$143.99
6% OFF Phone Price : $153.99
In Stock
Gas Grill H-burner WB28X10021
#153

Gas grill parts diagram

Gas grill h-burner

Part #WB28X10021

$277.25
$10.00 OFF Phone Price : $287.25
In Stock
Zgg24+ Outdo 49-8965
#999

Gas grill parts diagram

Zgg24+ outdo

Part #49-8965

Replaced by #049-80376

?
Manufacturer substitution
This part replaces 49-8965. Substitute parts can look different from the original.
In Stock
Gas Grill Cooking Grate WB49X10013
#152

Gas grill parts diagram

Gas grill cooking grate

Part #WB49X10013

Replaced by #WB48X27603

?
Manufacturer substitution
This part replaces WB49X10013. Substitute parts can look different from the original.
In Stock
