KitchenAid KEMS306BBL3 built-in oven with microwave Parts

Here are the diagrams and repair parts for KitchenAid KEMS306BBL3 built-in oven with microwave, as well as links to manuals and error code tables, if available.

KitchenAid KEMS306BBL3 built-in oven with microwave
By Schematic
By Part

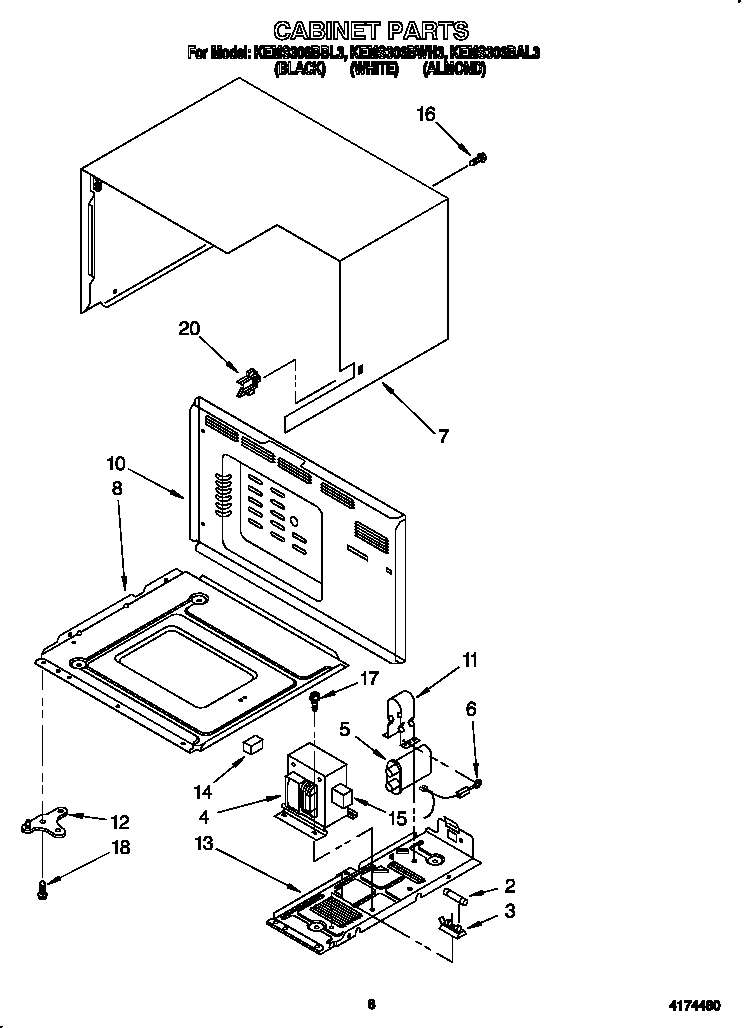

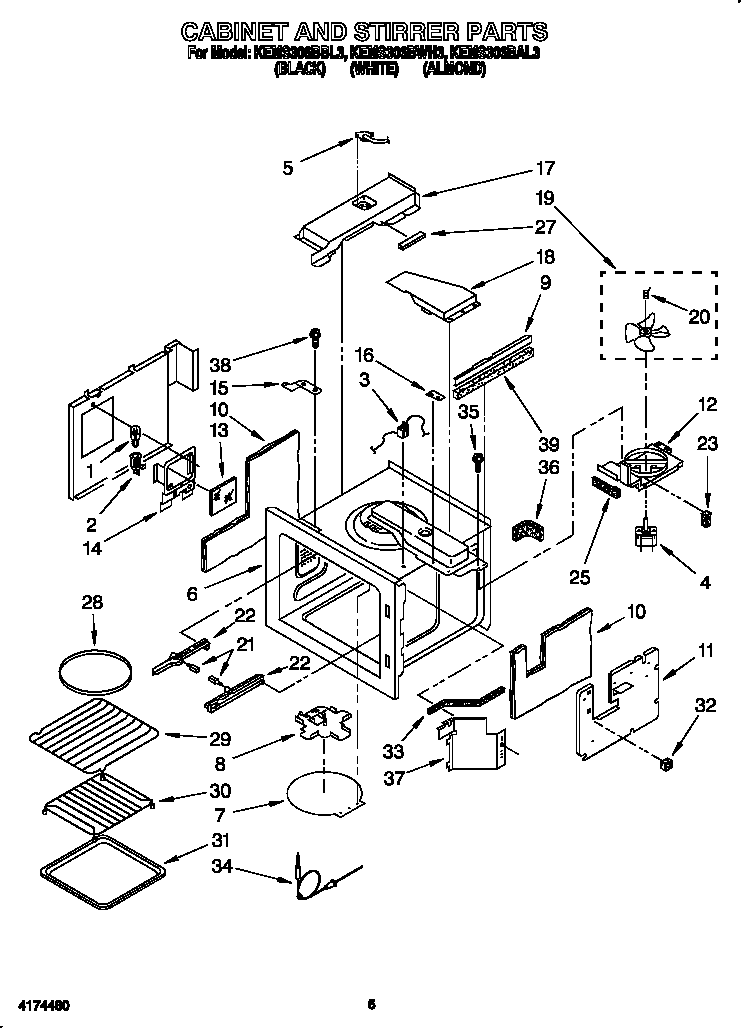

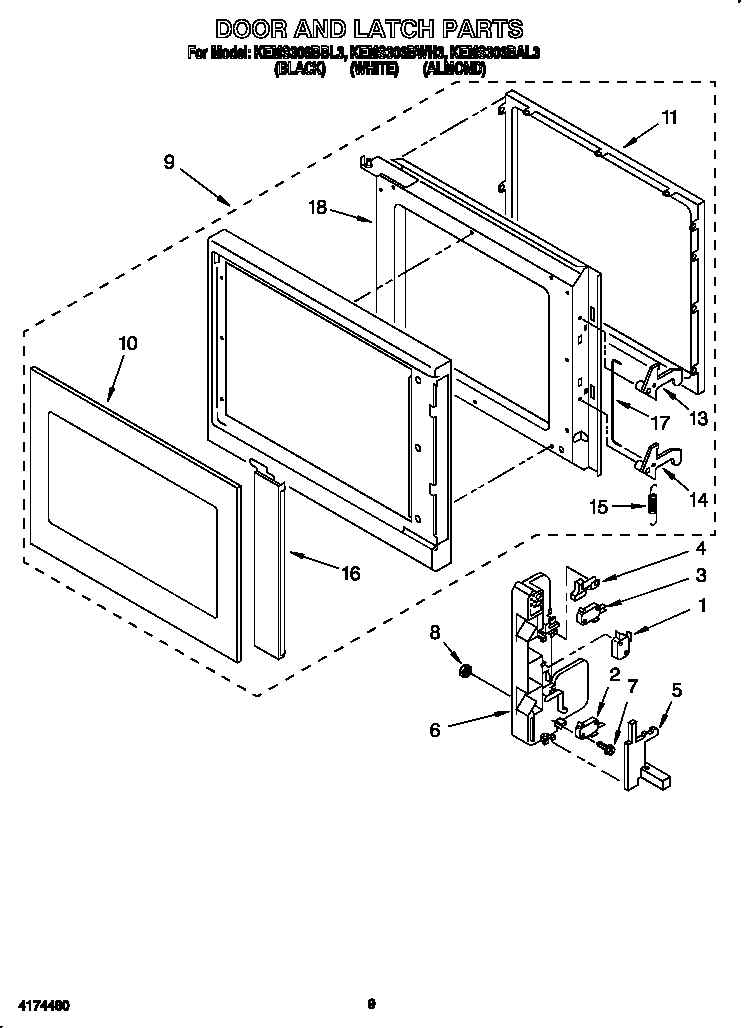

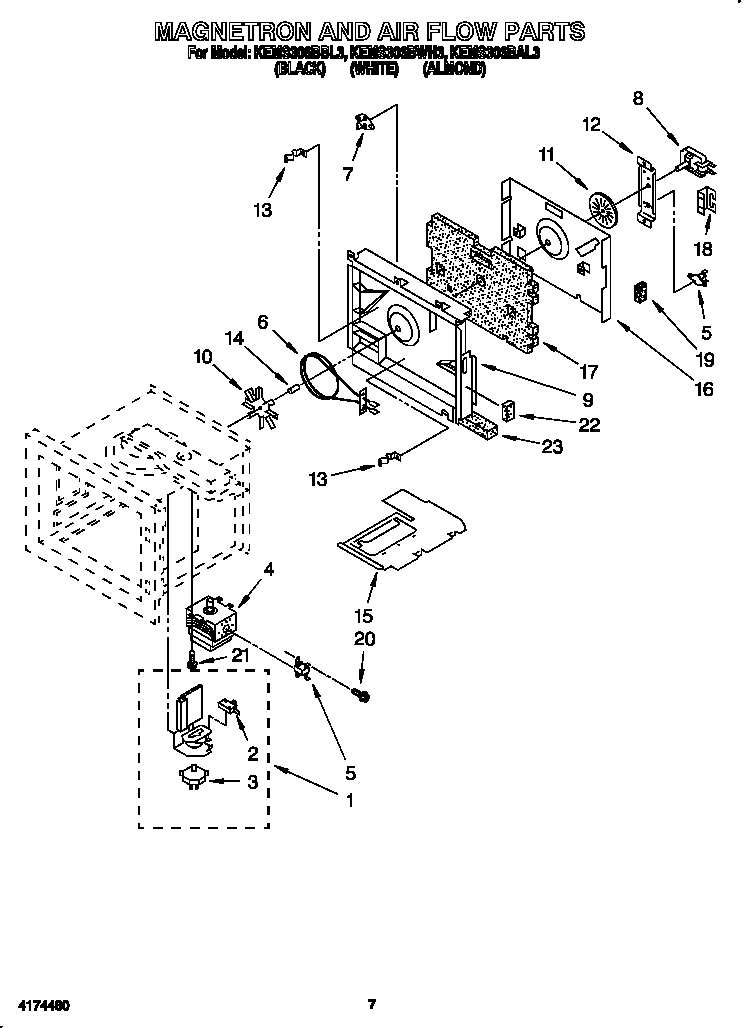

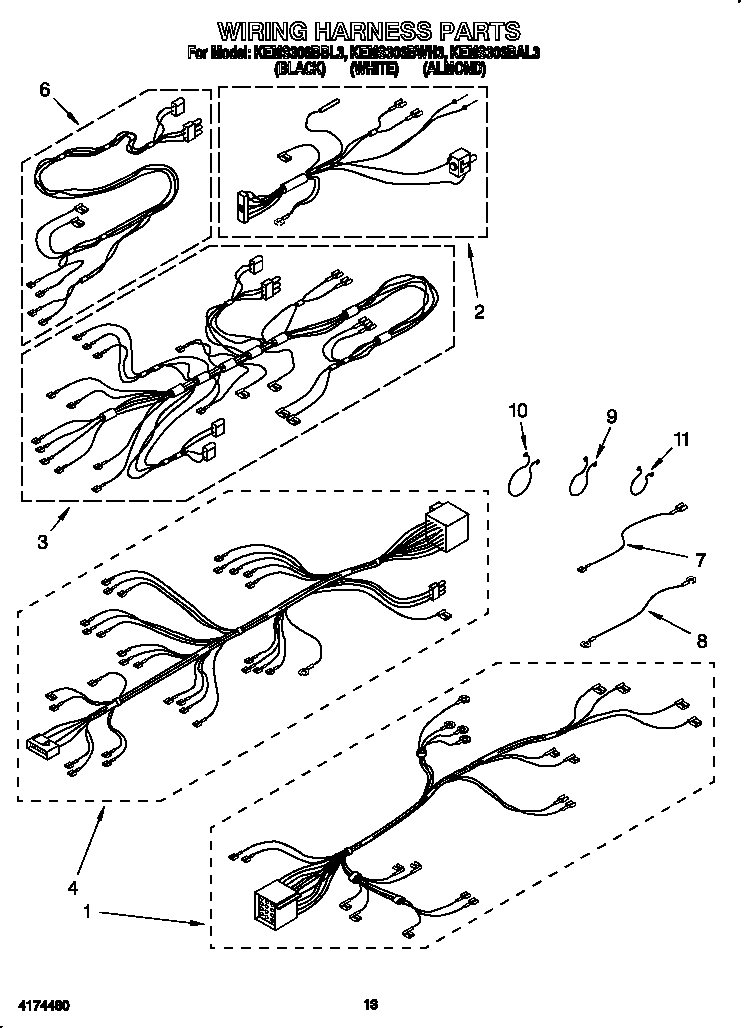

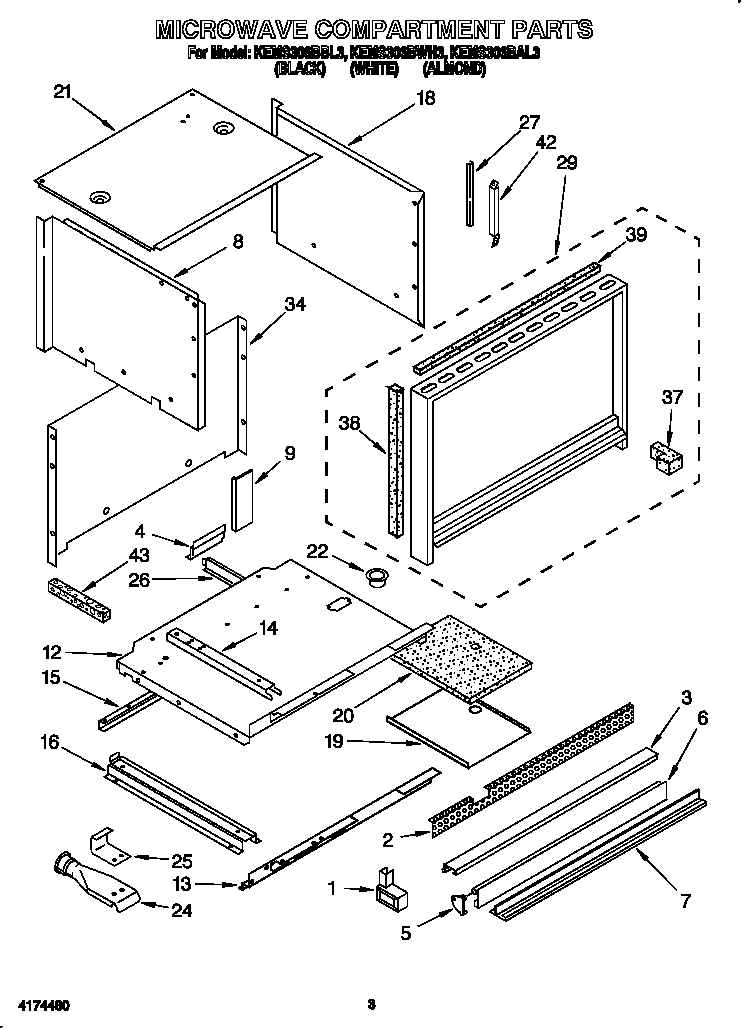

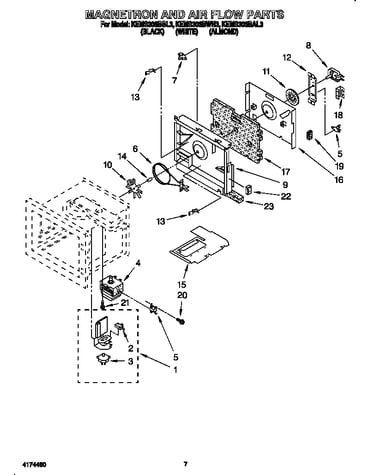

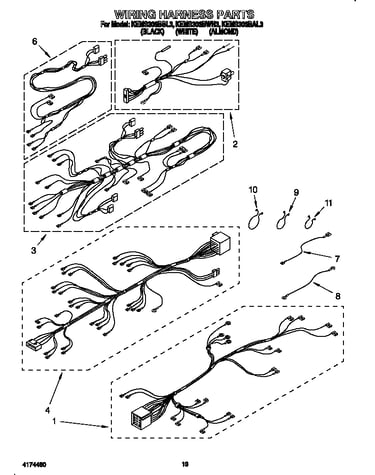

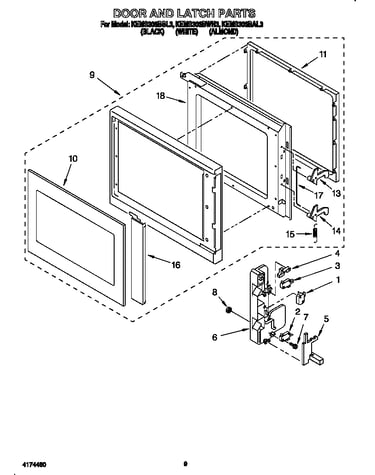

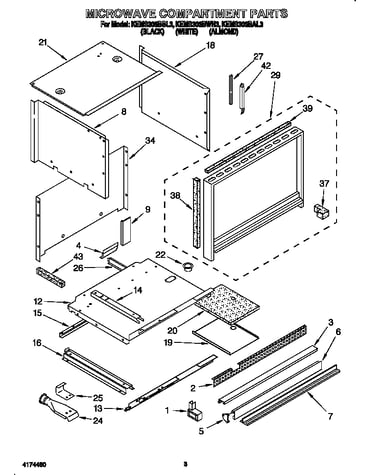

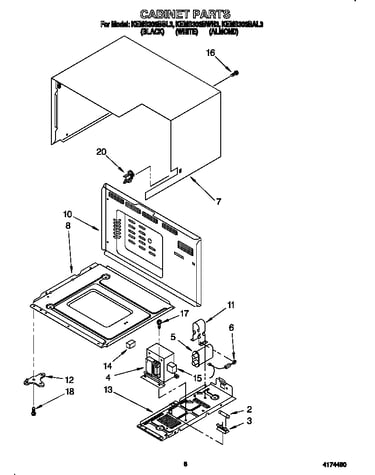

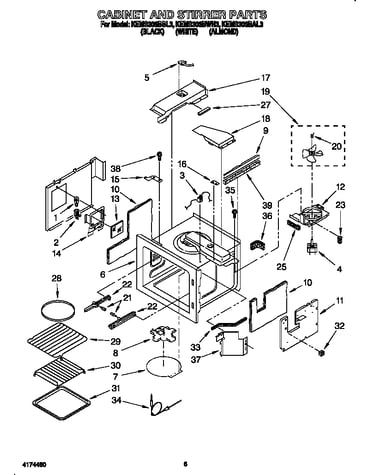

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KEMS306BBL3 Built-In Oven with Microwave

  • Appliance Spray Paint (white) for KitchenAid KEMS306BBL3 - Part 350930

    #NI

    All parts diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.78
    18% OFF Phone Price : $32.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Screw, 10-16 X 1/2-in for KitchenAid KEMS306BBL3 - Part WP681414

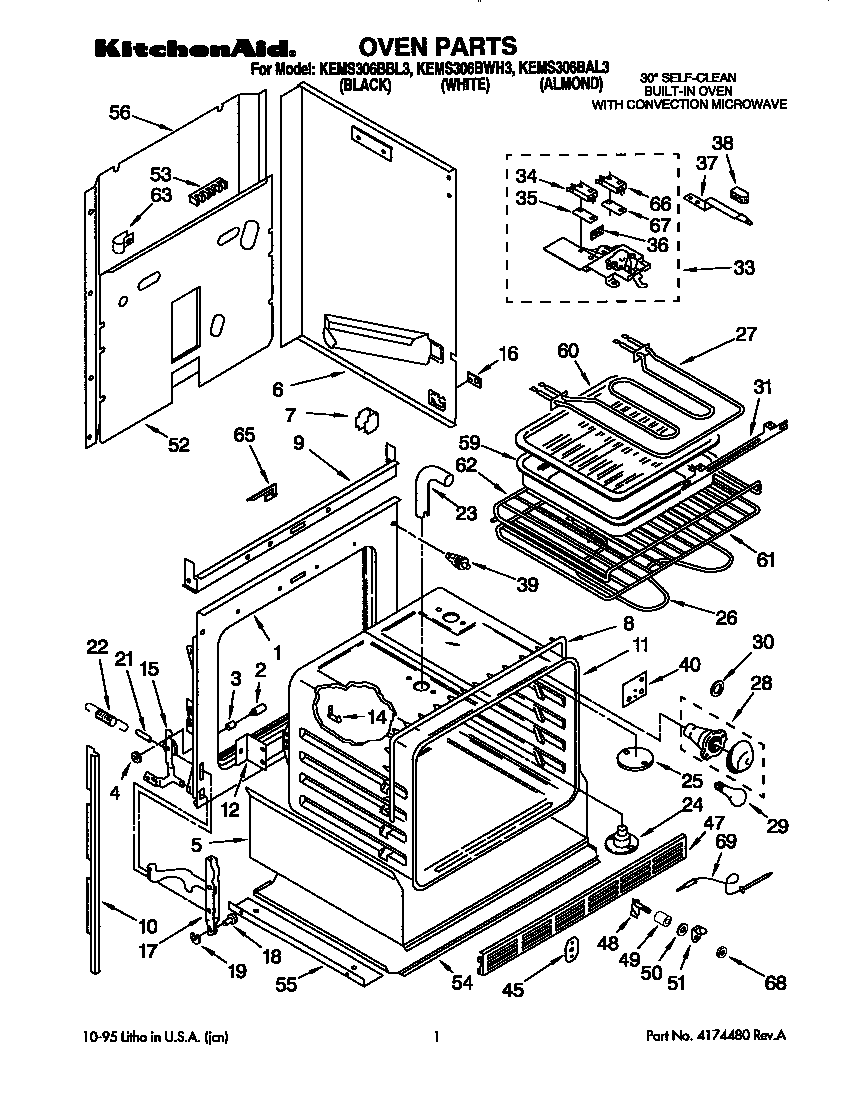

    Oven diagram

    Screw

    Part #343641

    Replaced by #WP681414

    Info Icon
    Manufacturer substitution
    This part replaces 343641. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (almond) for KitchenAid KEMS306BBL3 - Part WP72107

    #NI

    All parts diagram

    Touchup Al

    Part #72107

    Replaced by #WP72107

    Info Icon
    Manufacturer substitution
    This part replaces 72107. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.89
    9% OFF Phone Price : $10.89Info Icon
    Minus Item
    Qty
    Plus Item

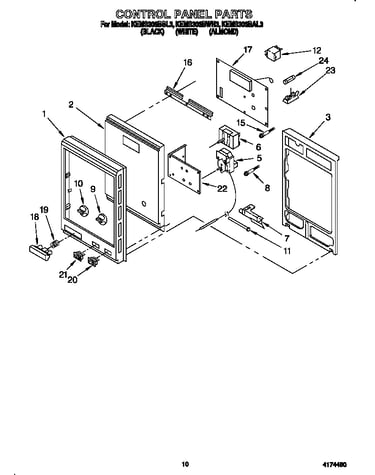

  • Microwave Fuse for KitchenAid KEMS306BBL3 - Part WPW10017410

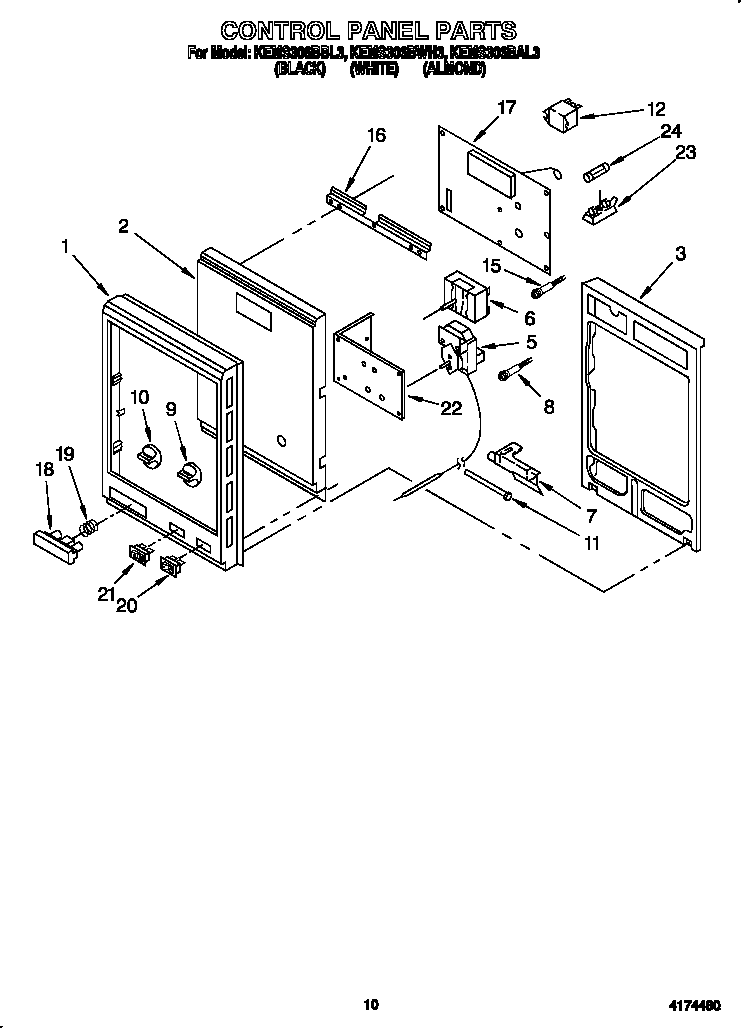

    Control panel diagram

    Fuse

    Part #309796

    Replaced by #WPW10017410

    Info Icon
    Manufacturer substitution
    This part replaces 309796. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.19
    13% OFF Phone Price : $15.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Assembly for KitchenAid KEMS306BBL3 - Part W11594027

    Oven diagram

    Light Socket

    Part #3150505

    Replaced by #W11594027

    Info Icon
    Manufacturer substitution
    This part replaces 3150505. Substitute parts can look different from the original.
    In Stock
    $73.85
    8% OFF Phone Price : $79.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for KitchenAid KEMS306BBL3 - Part 72032

    #NI

    All parts diagram

    Touch-up Paint (black)

    Part #72032

    Replaced by #72032

    Info Icon
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item

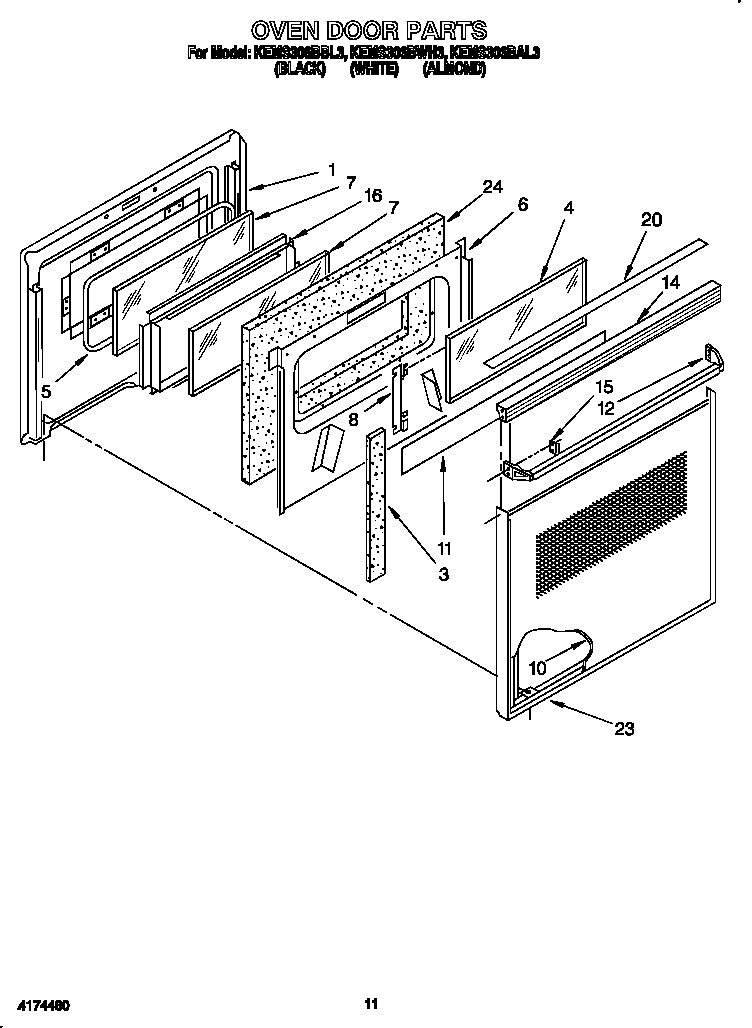

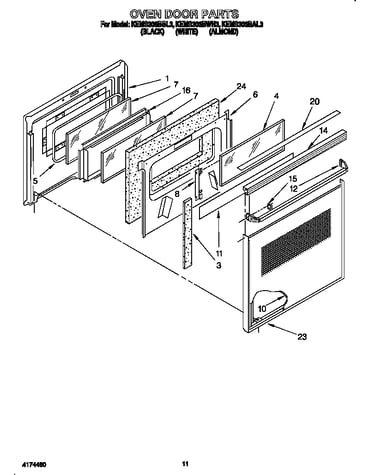

  • Wall Oven Door Inner Glass for KitchenAid KEMS306BBL3 - Part WP3169203

    Oven door diagram

    Wall Oven Door Inner Glass

    Part #3169203

    Replaced by #WP3169203

    Info Icon
    Manufacturer substitution
    This part replaces 3169203. Substitute parts can look different from the original.
    In Stock
    $80.14
    7% OFF Phone Price : $86.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Kirkland Appliance Touch-up Paint, 0.6-oz (golden Harvest) for KitchenAid KEMS306BBL3 - Part 72110

    #NI

    All parts diagram

    Touchup Ng

    Part #72110

    Replaced by #72110

    Info Icon
    Manufacturer substitution
    This part replaces 72110. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.24
    11% OFF Phone Price : $18.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Selector Switch for KitchenAid KEMS306BBL3 - Part WP4314961

    Control panel diagram

    Light Switch (black)

    Part #3182373

    Replaced by #WP4314961

    Info Icon
    Manufacturer substitution
    This part replaces 3182373. Substitute parts can look different from the original.
    In Stock
    $45.02
    12% OFF Phone Price : $51.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Selector Switch for KitchenAid KEMS306BBL3 - Part WP4314961

    Control panel diagram

    Light Switch (white)

    Part #3182371

    Replaced by #WP4314961

    Info Icon
    Manufacturer substitution
    This part replaces 3182371. Substitute parts can look different from the original.
    In Stock
    $45.02
    12% OFF Phone Price : $51.02Info Icon
    Minus Item
    Qty
    Plus Item
