Lawn-Boy
Gas Walk-Behind Mower

Model #10310-5900001-5999999 Lawn-Boy walk-behind lawn mower

Here are the diagrams and repair parts for Lawn-Boy 10310-5900001-5999999 walk-behind lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 260 parts

    Lawn & Garden Equipment Engine Air Filter

    #245

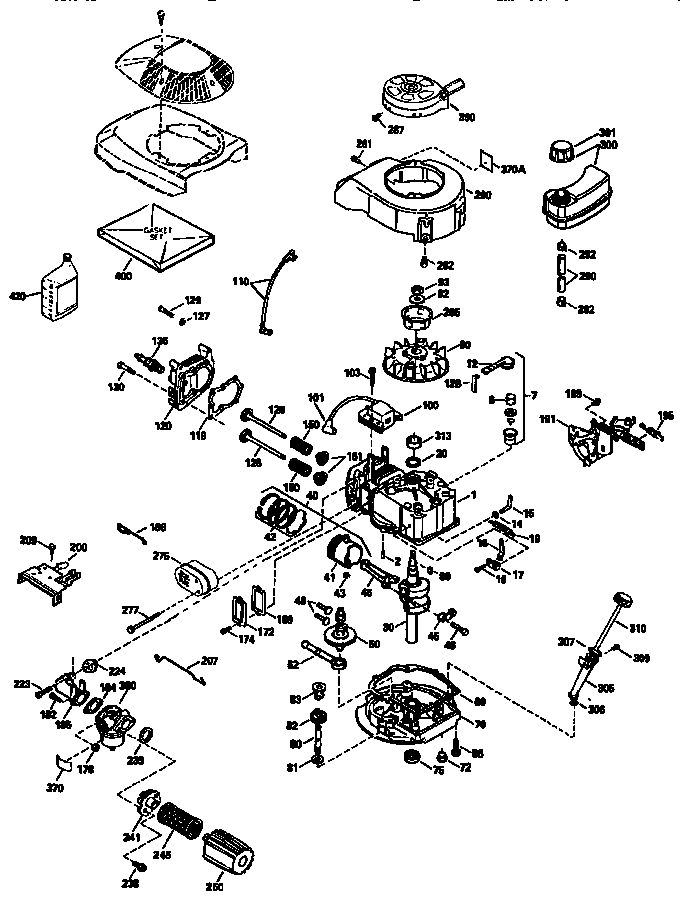

    Engine tvs115-57904c (71/143) Diagram

    Lawn & garden equipment engine air filter

    Part #35066
    This item is not returnable
    $4.89

    In Stock

    Lawn & Garden Equipment Engine Carburetor Gasket

    #184

    Engine tvs115-57904c (71/143) Diagram

    Lawn & garden equipment engine carburetor gasket

    Part #26756
    This item is not returnable
    $6.22

    In Stock

    Lawn & Garden Equipment Engine Fuel Line Clamp

    #292

    Engine tvs115-57904c (71/143) Diagram

    Lawn & garden equipment engine fuel line clamp

    Part #26460
    This item is not returnable
    $2.16

    In Stock

    Lawn & Garden Equipment Engine Air Filter Collar Gasket

    #238

    Engine tvs115-57904c (71/143) Diagram

    Lawn & garden equipment engine air filter collar gasket

    Part #34338
    This item is not returnable
    $3.54

    In Stock

    Lawn & Garden Equipment Engine Oil Seal

    #75

    Engine tvs115-57904c (71/143) Diagram

    Lawn & garden equipment engine oil seal

    Part #27897
    This item is not returnable
    $4.67

    In Stock

    Lawn & Garden Equipment O-Ring

    #307

    Engine tvs115-57904c (71/143) Diagram

    Lawn & garden equipment o-ring

    Part #35499
    This item is not returnable
    $2.37

    In Stock

    Lawn & Garden Equipment Engine Oil Seal

    #20

    Engine tvs115-57904c (71/143) Diagram

    $9.89

    In Stock

    Lawn & Garden Equipment Engine Flywheel Key

    #89

    Engine tvs115-57904c (71/143) Diagram

    Lawn & garden equipment engine flywheel key

    Part #611004
    This item is not returnable
    $1.38 |
    36% OFF MSRP:$2.16

    In Stock

    Lawn & Garden Equipment Engine Oil Drain Plug

    #72

    Engine tvs115-57904c (71/143) Diagram

    Lawn & garden equipment engine oil drain plug

    Part #36083
    This item is not returnable
    $4.37

    In Stock

    Lawn & Garden Equipment Engine Crankcase Breather

    #7

    Engine tvs115-57904c (71/143) Diagram

    $14.69

    In Stock
