Model # 5KSB52EBU4 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB52EBU4 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Blender Drive Coupling 9704230
#12

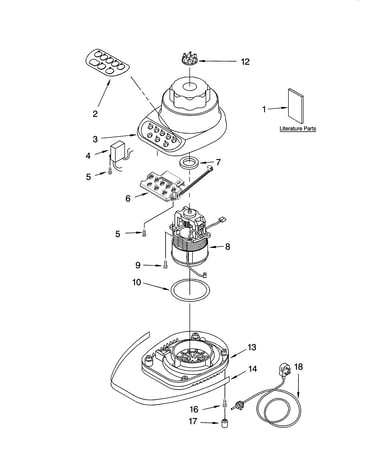

Unit parts diagram

Blender drive coupling

Part #9704230

Replaced by #WP9704230

?
Manufacturer substitution
This part replaces 9704230. Substitute parts can look different from the original.
$10.79 |
16% OFF Phone Price : $12.79
In Stock
Foot 115792
#17

Unit parts diagram

Foot

Part #115792

Replaced by #WP9709707

?
Manufacturer substitution
This part replaces 115792. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Seal 9701859
#4

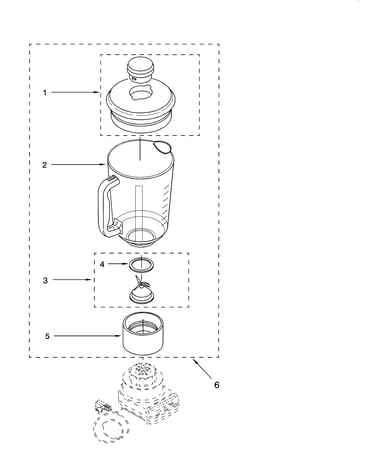

Attachment parts diagram

Seal

Part #9701859

Replaced by #WP9704204

?
Manufacturer substitution
This part replaces 9701859. Substitute parts can look different from the original.
$11.19 |
15% OFF Phone Price : $13.19
In Stock
Screw W10068250
#5

Unit parts diagram

Screw

Part #W10068250

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces W10068250. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Collar 9704253
#5A

Attachment parts diagram

Collar

Part #9704253

Replaced by #WP9704253

?
Manufacturer substitution
This part replaces 9704253. Substitute parts can look different from the original.
$81.69 |
6% OFF Phone Price : $86.69
In Stock
Collar 9704251
#5

Attachment parts diagram

Collar

Part #9704251

The manufacturer no longer makes this part, and there's no substitute part

Base 9706723
#13C

Unit parts diagram

Base

Part #9706723

The manufacturer no longer makes this part, and there's no substitute part

Blender Assembly 9707582
#6E

Attachment parts diagram

Blender assembly

Part #9707582

The manufacturer no longer makes this part, and there's no substitute part

Housing 9706993
#3A

Unit parts diagram

Housing

Part #9706993

The manufacturer no longer makes this part, and there's no substitute part

Lid Assembly 9707916
#1F

Attachment parts diagram

Lid assembly

Part #9707916

The manufacturer no longer makes this part, and there's no substitute part
