Craftsman
Power Drill

Model # 90066841 Official Craftsman drill bit sharpener

Here are the diagrams and repair parts for Official Craftsman 90066841 drill bit sharpener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

Bearing 89241-01
#43

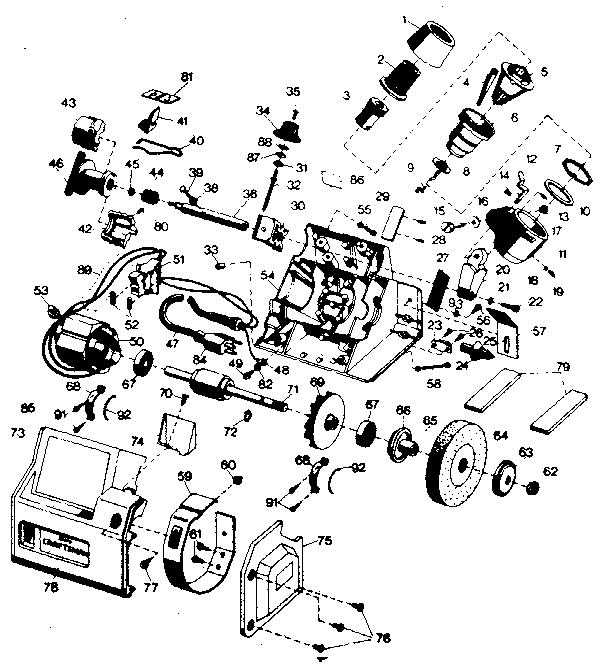

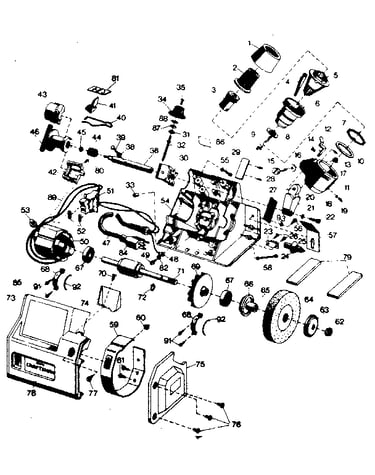

Unit parts diagram

Bearing

Part #89241-01

The manufacturer no longer makes this part, and there's no substitute part

Pivot Rod 89271-01
#36

Unit parts diagram

Pivot rod

Part #89271-01

The manufacturer no longer makes this part, and there's no substitute part

Stator 400924-51
#50

Unit parts diagram

Stator

Part #400924-51

The manufacturer no longer makes this part, and there's no substitute part

Rotor Assembly 400304-00
#70A

Unit parts diagram

Rotor assembly

Part #400304-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 99408-04
#9

Unit parts diagram

Screw

Part #99408-04

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 417-00
#93

Unit parts diagram

Lock washer

Part #417-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing Clamp 95635-00
#68

Unit parts diagram

Bearing clamp

Part #95635-00

The manufacturer no longer makes this part, and there's no substitute part

Rotor 90995-01
#71

Unit parts diagram

Rotor

Part #90995-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 99250-07
#77

Unit parts diagram

Screw

Part #99250-07

The manufacturer no longer makes this part, and there's no substitute part

Guard 92284
#57

Unit parts diagram

Guard

Part #92284

The manufacturer no longer makes this part, and there's no substitute part
