Kenmore Elite
Gas Grill

Model # 14117690 Official Kenmore Elite gas grill

Here are the diagrams and repair parts for Official Kenmore Elite 14117690 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Gas Grill Side Burner Electrode P02607052C
#65

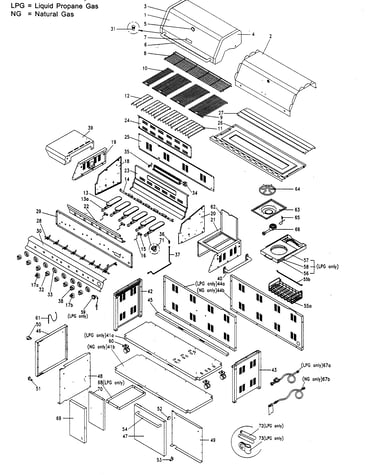

Grill diagram

Gas grill side burner electrode

Part #P02607052C

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Burner Air Shutter Heat Shield P06801007F
#71

Grill diagram

Gas grill burner air shutter heat shield

Part #P06801007F

The manufacturer no longer makes this part, and there's no substitute part

Slide / Lpg P05516131B
#58

Grill diagram

Slide / lpg

Part #P05516131B

The manufacturer no longer makes this part, and there's no substitute part

Bracket P04010030H
#57

Grill diagram

Bracket

Part #P04010030H

The manufacturer no longer makes this part, and there's no substitute part

Division Wire P05204012E
#55B

Grill diagram

Division wire

Part #P05204012E

The manufacturer no longer makes this part, and there's no substitute part

Shutter P05524060C
#13B

Grill diagram

Shutter

Part #P05524060C

The manufacturer no longer makes this part, and there's no substitute part

Igniter P02502024C
#17A

Grill diagram

Igniter

Part #P02502024C

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Caster Wheel And Brake P05115020A
#60

Grill diagram

Gas grill caster wheel and brake

Part #P05115020A

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Side Burner Outer Frame P00743296C
#21

Grill diagram

Gas grill side burner outer frame

Part #P00743296C

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Burner Box Panel, Rear P00725304A
#23

Grill diagram

Gas grill burner box panel, rear

Part #P00725304A

The manufacturer no longer makes this part, and there's no substitute part
