Model # DCR-SX41R Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-SX41R digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Tp Block A1363617A
#LCD9

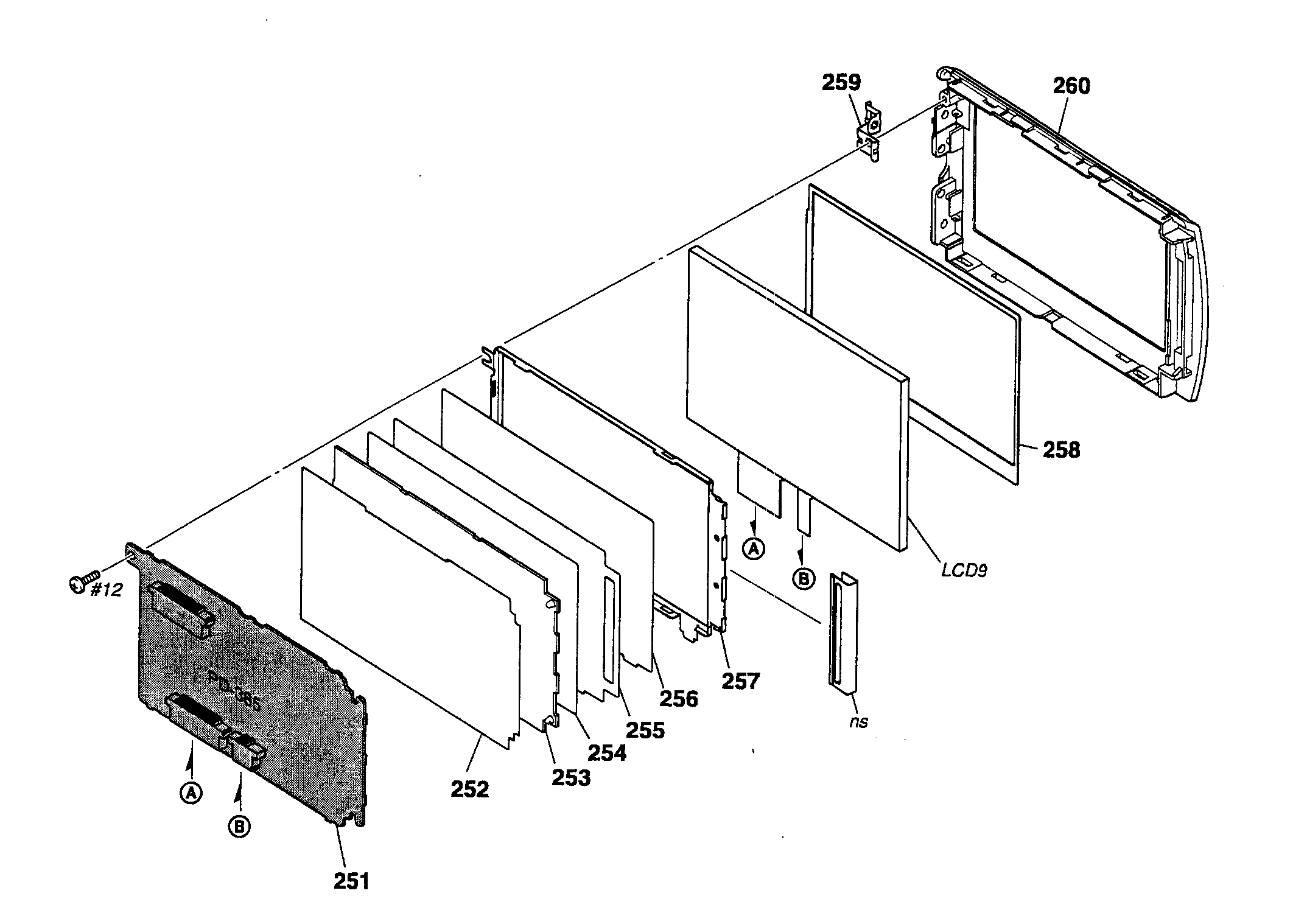

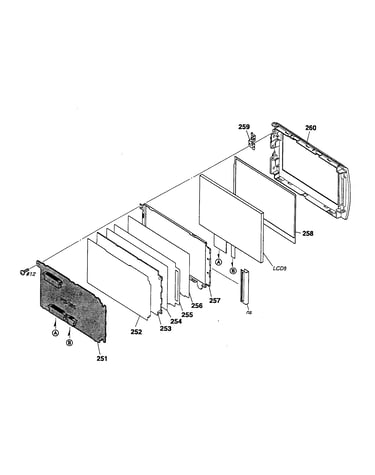

Lcd assy diagram

Tp block

Part #A1363617A

The manufacturer no longer makes this part, and there's no substitute part

Diffusion Sheet 269451401
#254

Lcd assy diagram

Diffusion sheet

Part #269451401

Replaced by #269451401

?
Manufacturer substitution
This part replaces 269451401. Substitute parts can look different from the original.
This item is not returnable
$6.49
In Stock
Screw 263556231
Screw

Part #263556231

The manufacturer no longer makes this part, and there's no substitute part

Connector 181806961
#NI

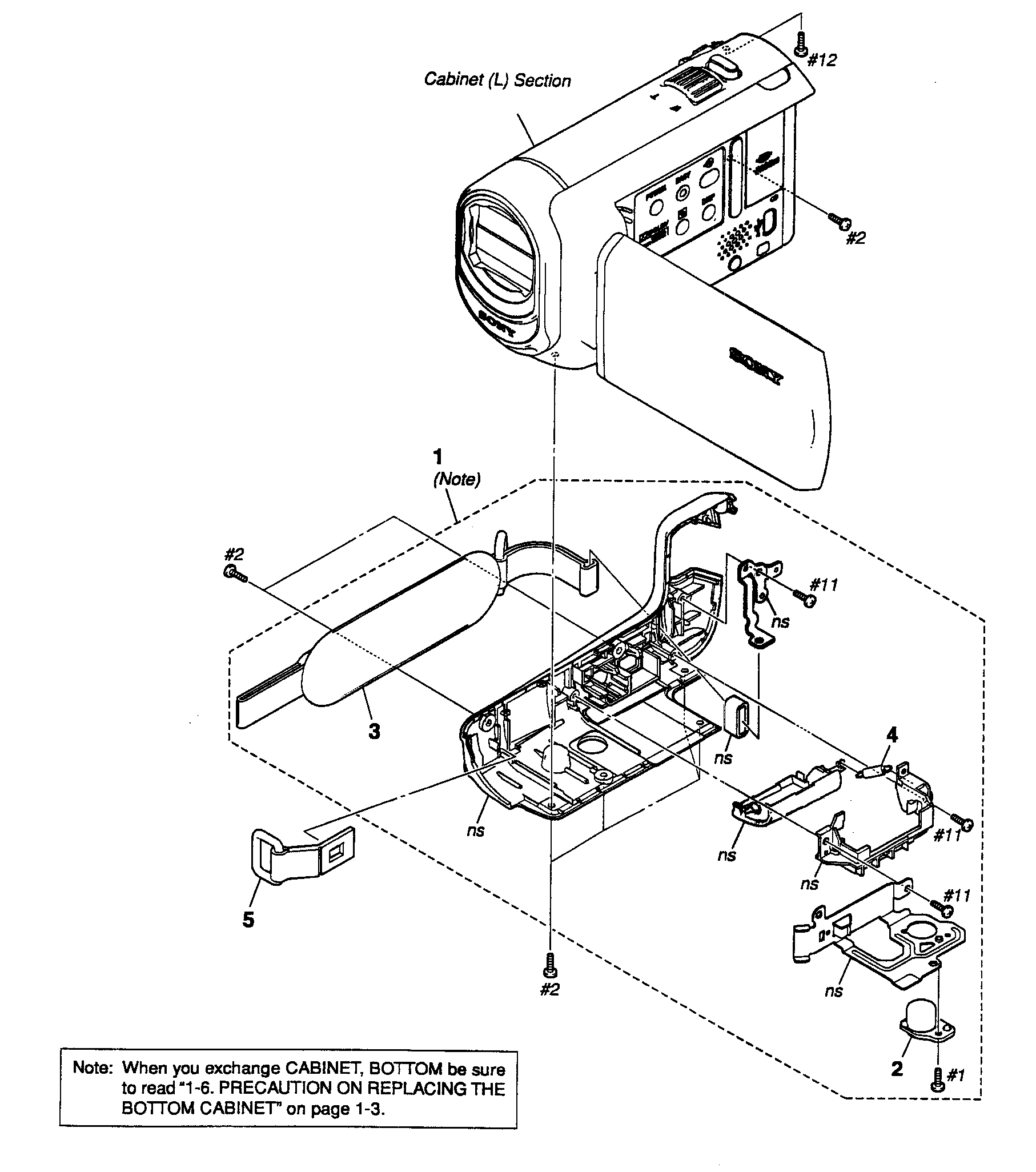

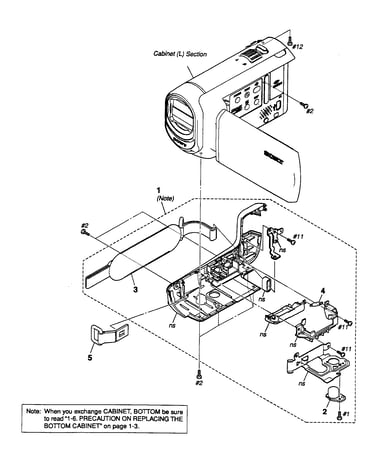

Bottom cabinet diagram

Connector

Part #181806961

The manufacturer no longer makes this part, and there's no substitute part

Screw 307889011
Screw

Part #307889011

The manufacturer no longer makes this part, and there's no substitute part

Prism Sheet 269451301
#255

Lcd assy diagram

Prism sheet

Part #269451301

Replaced by #269451301

?
Manufacturer substitution
This part replaces 269451301. Substitute parts can look different from the original.
$10.31
In Stock
Cable Audio Video 182315651
#NI

Bottom cabinet diagram

Cable audio video

Part #182315651

The manufacturer no longer makes this part, and there's no substitute part

Battery,li 175613412
#BT91

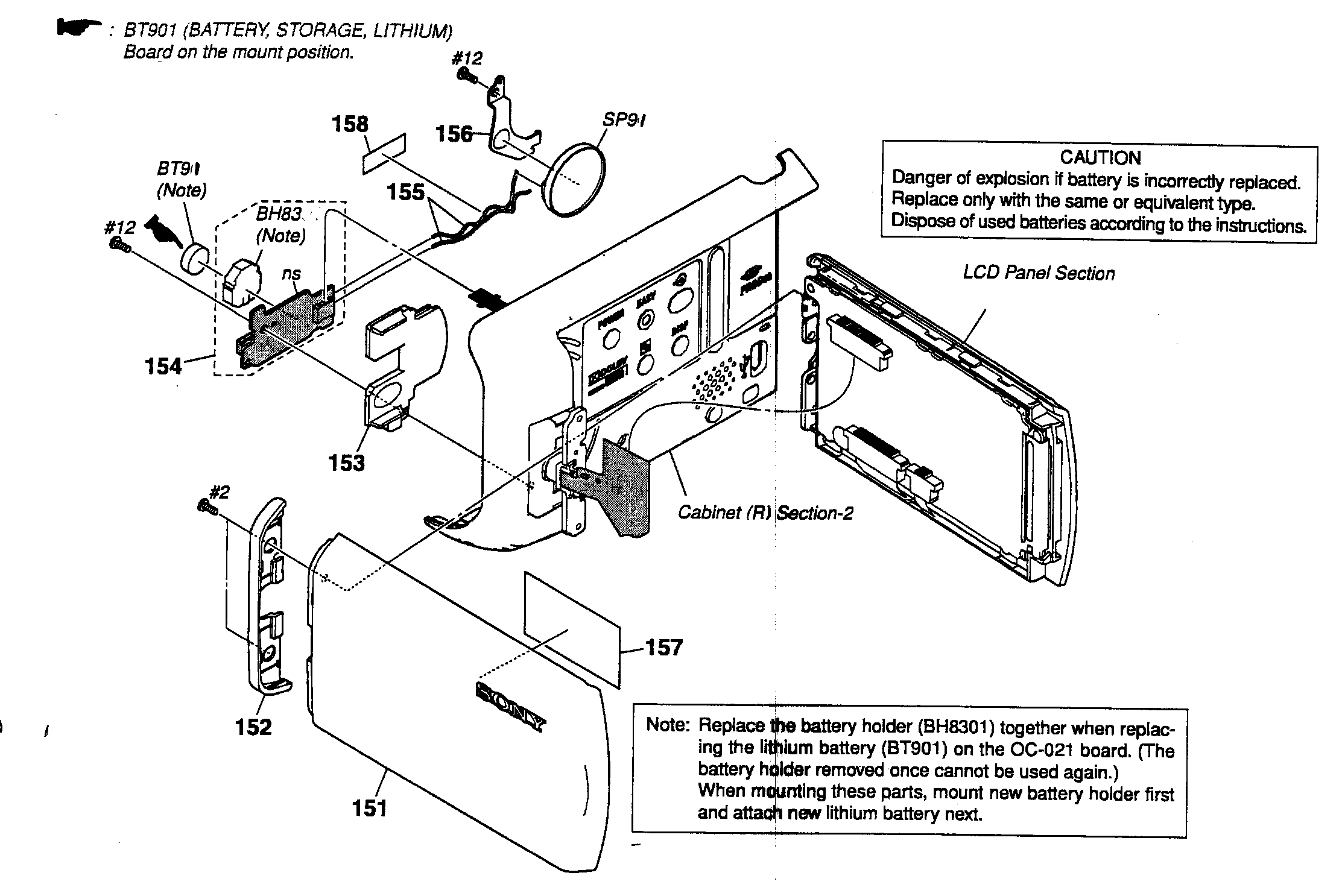

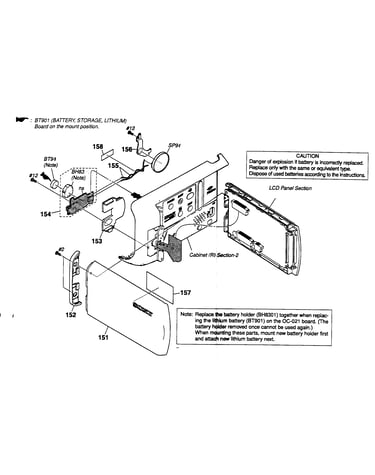

Right cabinet 1 diagram

Battery,li

Part #175613412

The manufacturer no longer makes this part, and there's no substitute part

Usb Cable 182986831
#NI

Bottom cabinet diagram

Usb cable

Part #182986831

The manufacturer no longer makes this part, and there's no substitute part

Loud Speak 182526251
#SP91

Right cabinet 1 diagram

Loud speak

Part #182526251

Replaced by #182526251

?
Manufacturer substitution
This part replaces 182526251. Substitute parts can look different from the original.
$14.79
In Stock
