Model # 143840680 Official Kenmore thermostat controlled coal or wood burning circulator

Here are the diagrams and repair parts for Official Kenmore 143840680 thermostat controlled coal or wood burning circulator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Therm Dial 85079
#8

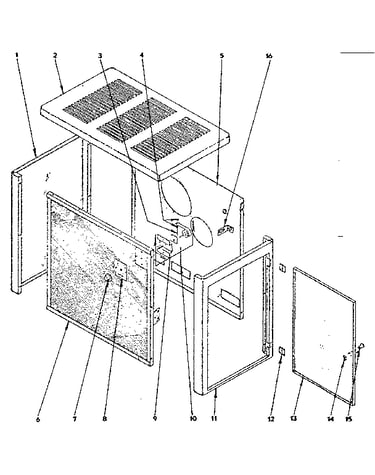

Cabinet diagram

Therm dial

Part #85079

The manufacturer no longer makes this part, and there's no substitute part

Clip Pin 83818
#31

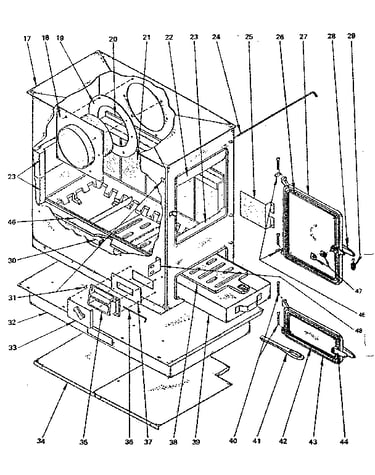

Replacement parts diagram

Clip pin

Part #83818

The manufacturer no longer makes this part, and there's no substitute part

Heater Fuel Grate 40101
#38

Replacement parts diagram

Heater fuel grate

Part #40101

The manufacturer no longer makes this part, and there's no substitute part

Support 40131
#30

Replacement parts diagram

Support

Part #40131

The manufacturer no longer makes this part, and there's no substitute part

Plate 21552
#37

Replacement parts diagram

Plate

Part #21552

The manufacturer no longer makes this part, and there's no substitute part

Retainer 40132
#20

Replacement parts diagram

Retainer

Part #40132

The manufacturer no longer makes this part, and there's no substitute part

Chain 89064
#10

Cabinet diagram

Chain

Part #89064

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 85203

#NI

All parts diagram

Owner's manual

Part #85203

The manufacturer no longer makes this part, and there's no substitute part

Damper Pin 17200
#36

Replacement parts diagram

Damper pin

Part #17200

The manufacturer no longer makes this part, and there's no substitute part

Fire Brick 89066
#21

Replacement parts diagram

Fire brick

Part #89066

The manufacturer no longer makes this part, and there's no substitute part
