Bosch
Drill/Driver

Model # 0601951261 Official Bosch drill

Here are the diagrams and repair parts for Official Bosch 0601951261 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Label 2610998406
#20

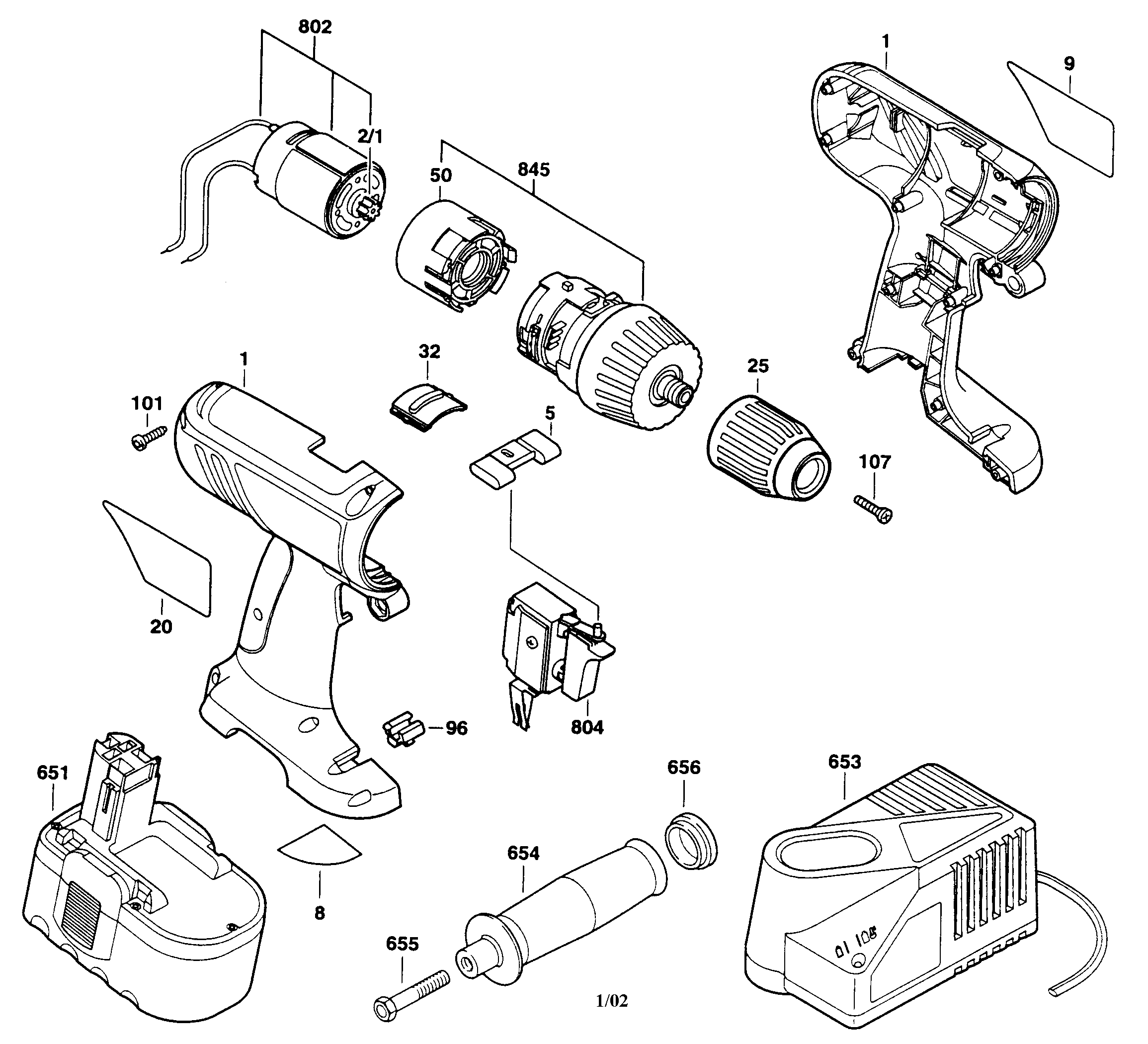

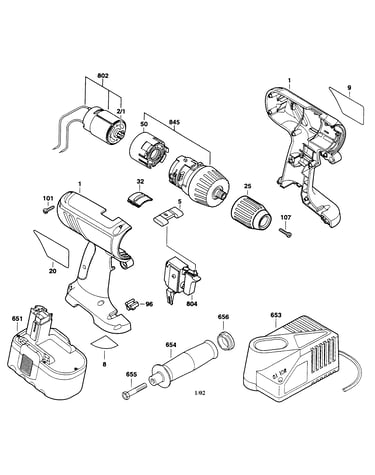

Housing diagram

Label

Part #2610998406

The manufacturer no longer makes this part, and there's no substitute part

Label 2610998407
#9

Housing diagram

Label

Part #2610998407

The manufacturer no longer makes this part, and there's no substitute part

Housing 2605104678
#1

Housing diagram

Housing

Part #2605104678

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2911061207
#655

Housing diagram

Bolt

Part #2911061207

The manufacturer no longer makes this part, and there's no substitute part

Drive Assembly 2606200914
#845

Housing diagram

Drive assembly

Part #2606200914

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 2610998915
#8

Housing diagram

Nameplate

Part #2610998915

The manufacturer no longer makes this part, and there's no substitute part

Lever 2601099086
#32

Housing diagram

Lever

Part #2601099086

The manufacturer no longer makes this part, and there's no substitute part

Switch 2607200413
#804

Housing diagram

Switch

Part #2607200413

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap 2610998827
#656

Housing diagram

Handle cap

Part #2610998827

The manufacturer no longer makes this part, and there's no substitute part

Handle 2602025108
#654

Housing diagram

Handle

Part #2602025108

The manufacturer no longer makes this part, and there's no substitute part
