Kenmore
Microwave/Hood Combo

Model #72164684300 Kenmore microwave/hood combo

Here are the diagrams and repair parts for Kenmore 72164684300 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 96 parts

    Microwave Charcoal Filter

    #5037

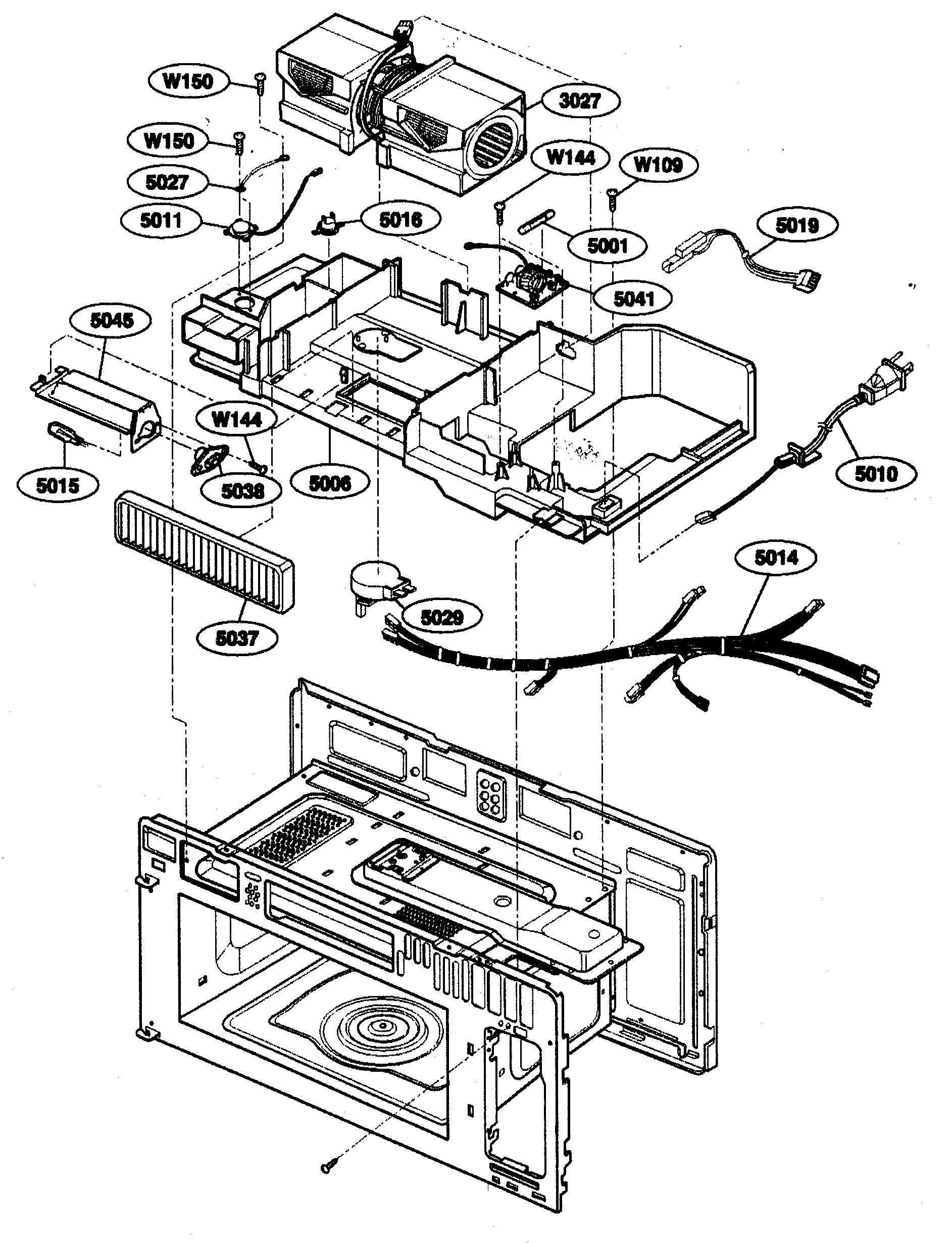

    Interior parts 2 Diagram

    Microwave charcoal filter

    Part #5230W1A003A
    $34.99

    In Stock

    Microwave Door Interlock Switch

    #4003

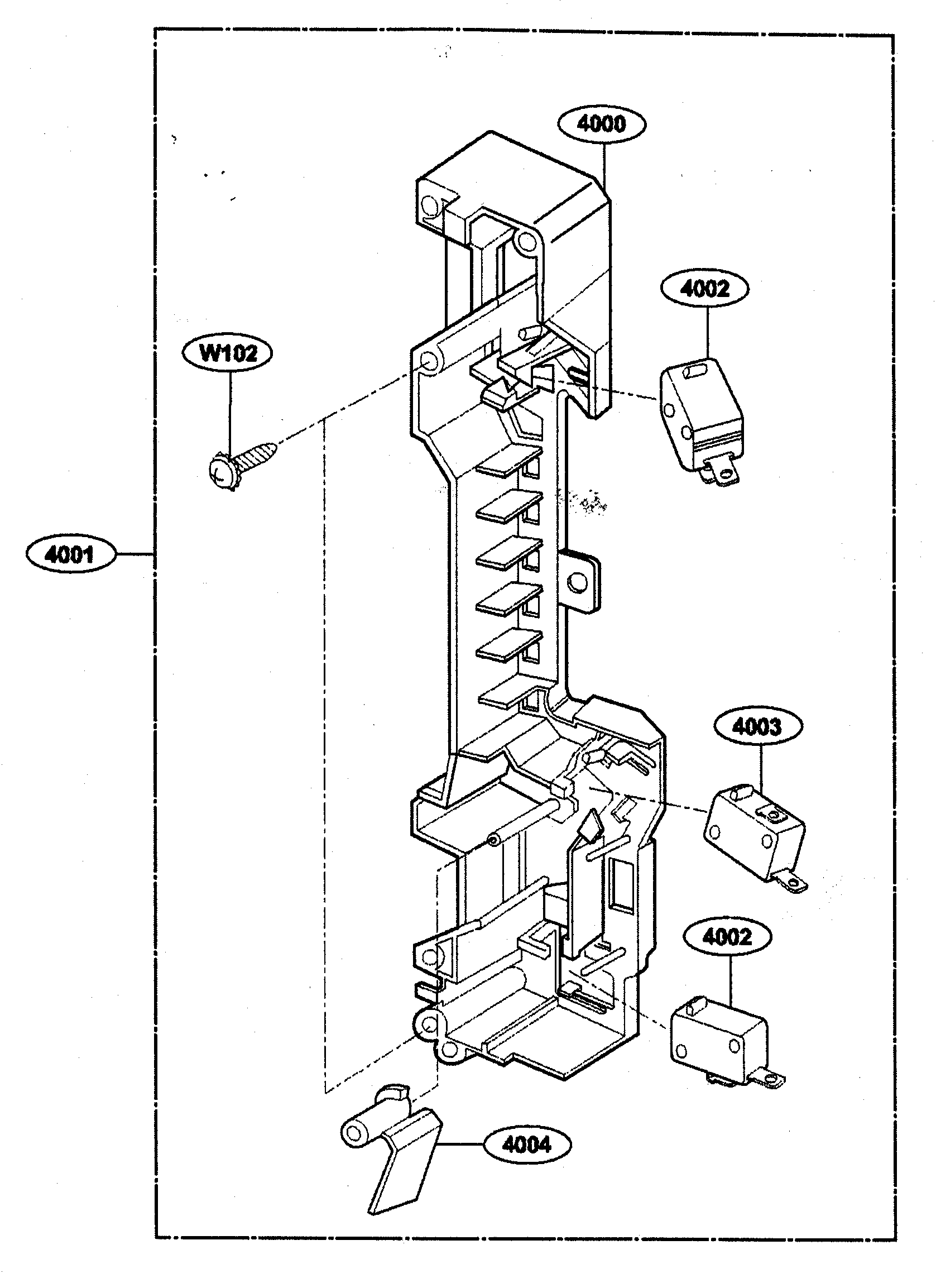

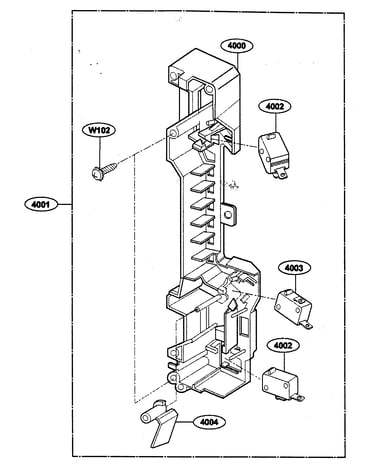

    Latch board Diagram

    Microwave door interlock switch

    Part #6600W1K001C
    This item is not returnable
    $6.22

    In Stock

    Microwave Door Interlock Switch

    #4002

    Latch board Diagram

    Microwave door interlock switch

    Part #6600W1K001D
    This item is not returnable
    $7.19

    In Stock

    Microwave Door Latch Hook

    #1006

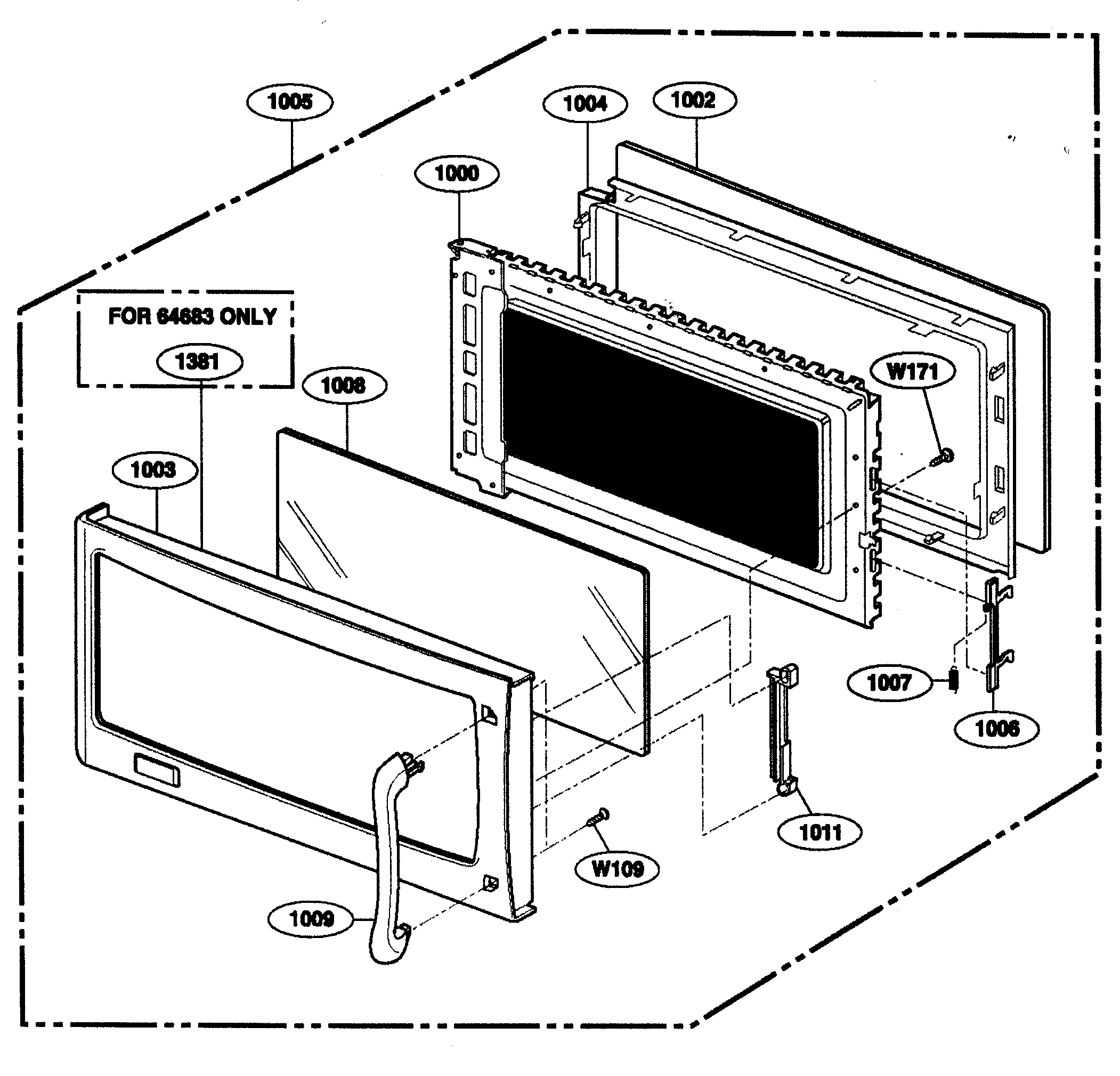

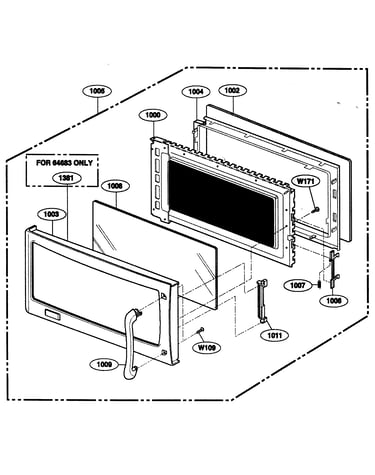

    Door assy Diagram

    Microwave door latch hook

    Part #4026W2A015A
    This item is not returnable
    $4.89

    In Stock

    Microwave Fuse

    #5001

    Interior parts 2 Diagram

    Microwave fuse

    Part #3B74133K
    This item is not returnable
    $6.99

    In Stock

    Microwave Door Latch Spring

    #1007

    Door assy Diagram

    Microwave door latch spring

    Part #4970WRA001G
    This item is not returnable
    $4.19

    In Stock

    Microwave Waveguide Cover Rivet

    #3004

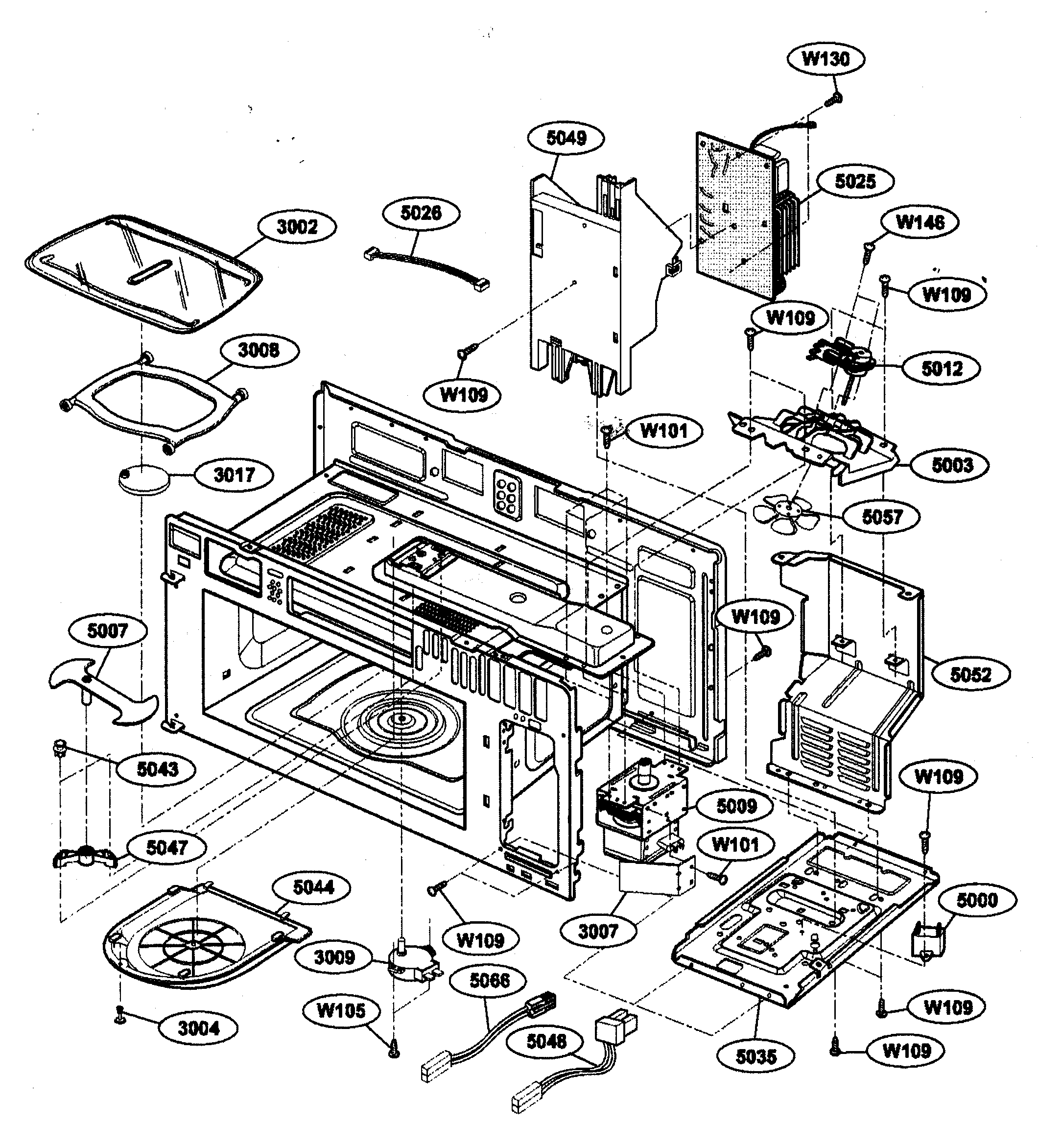

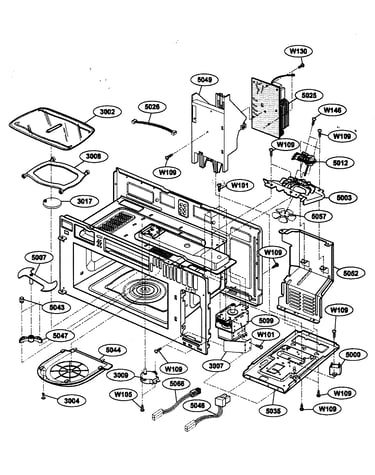

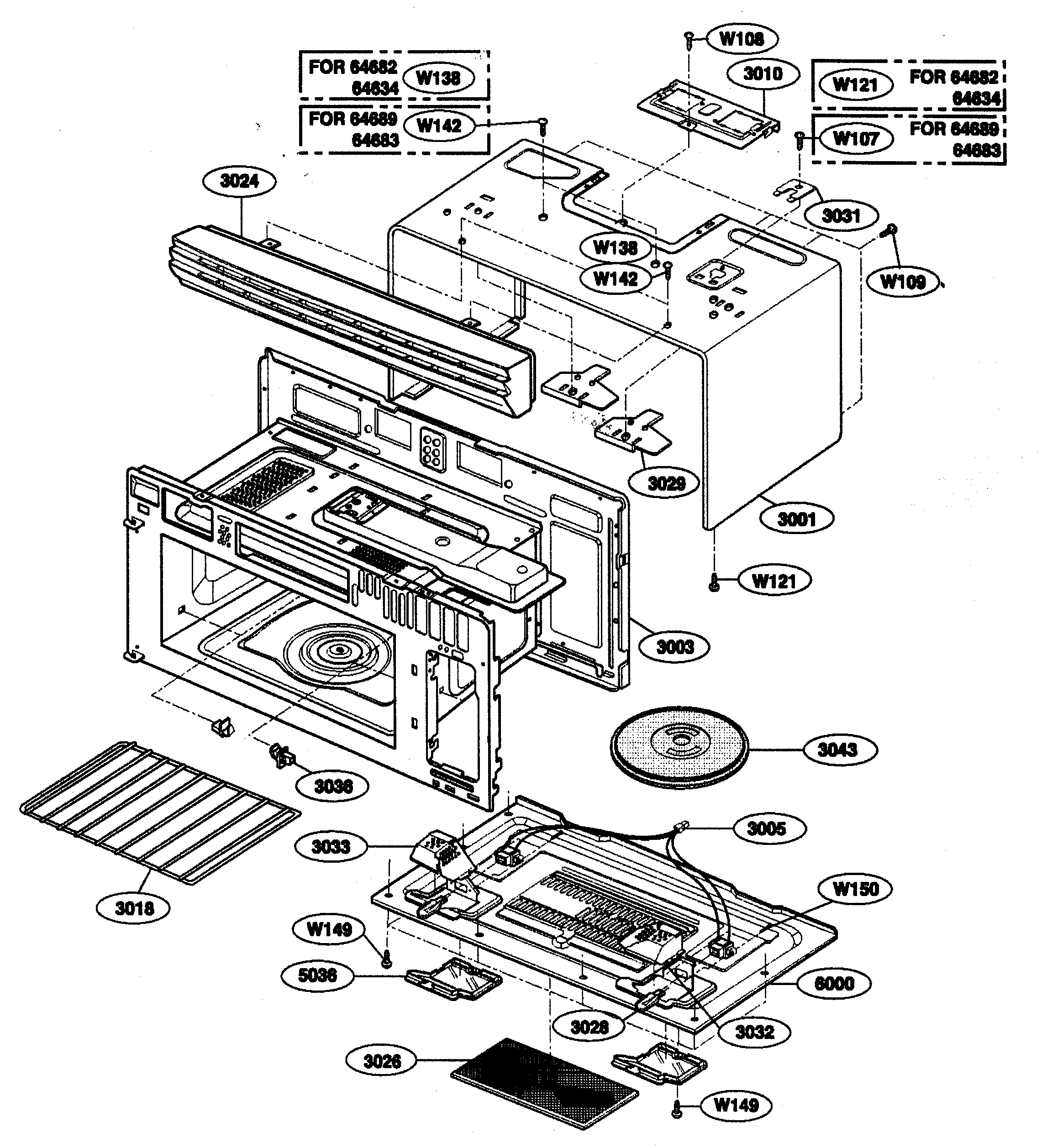

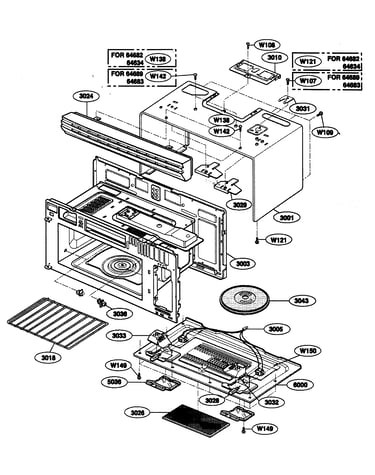

    Interior parts 1 Diagram

    Microwave waveguide cover rivet

    Part #4051W3A001A
    This item is not returnable
    $2.79

    In Stock

    Microwave Turntable Motor

    #3009

    Interior parts 1 Diagram

    Microwave turntable motor

    Part #6549W1S013D
    $15.99

    In Stock

    Microwave Mounting Bolt

    #W135

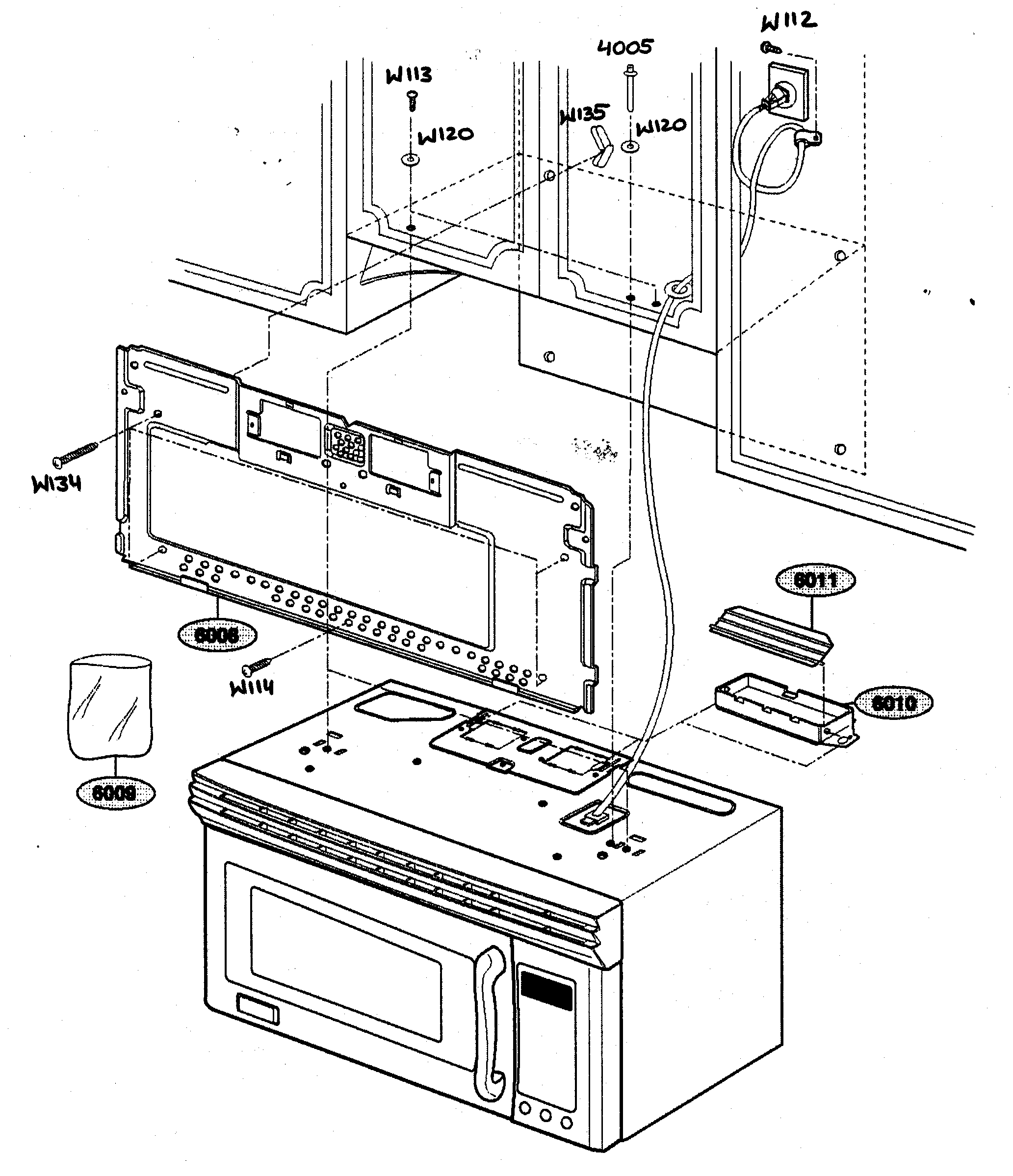

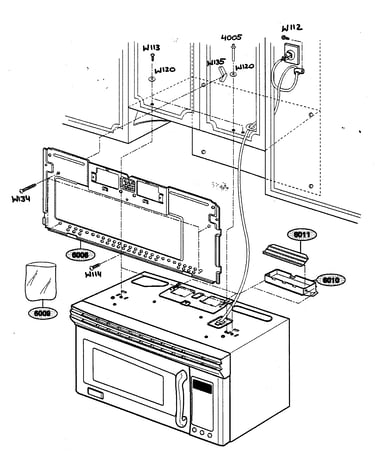

    Installation parts Diagram

    Microwave mounting bolt

    Part #4B72059C
    This item is not returnable
    $2.54

    In Stock

    Microwave Power Control Board Assembly

    #2009

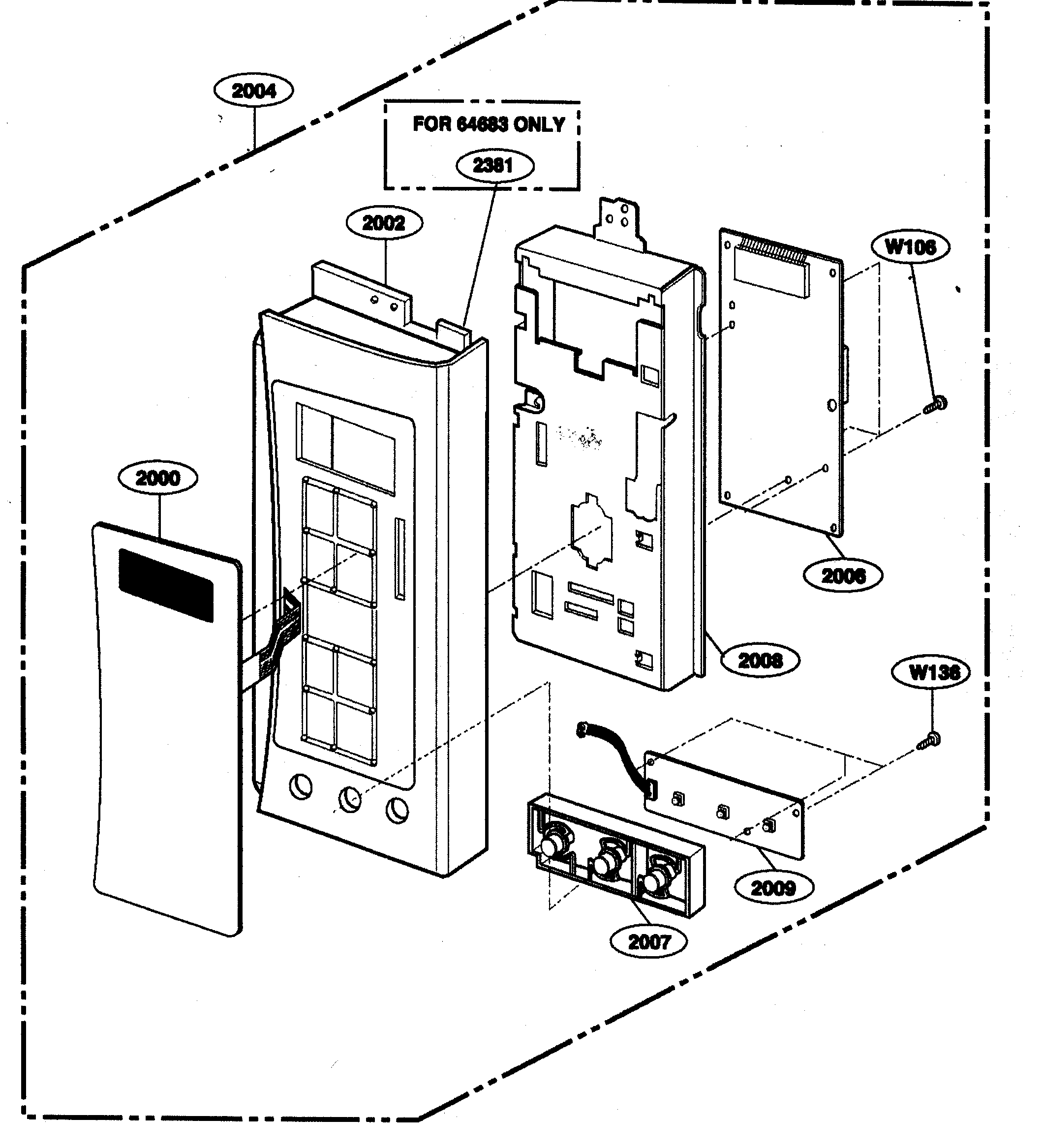

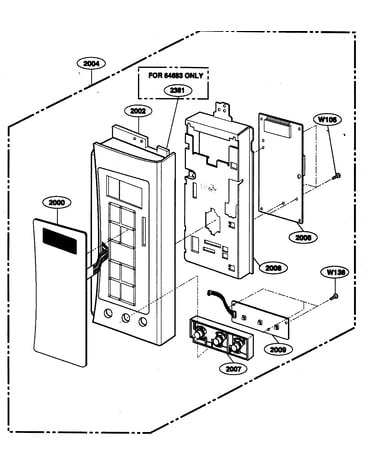

    Controller assy Diagram

    $17.99

    In Stock
