LG
Microwave/Hood Combo

Model # LMVM2033SB/00 Official LG microwave

Here are the diagrams and repair parts for Official LG LMVM2033SB-00 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

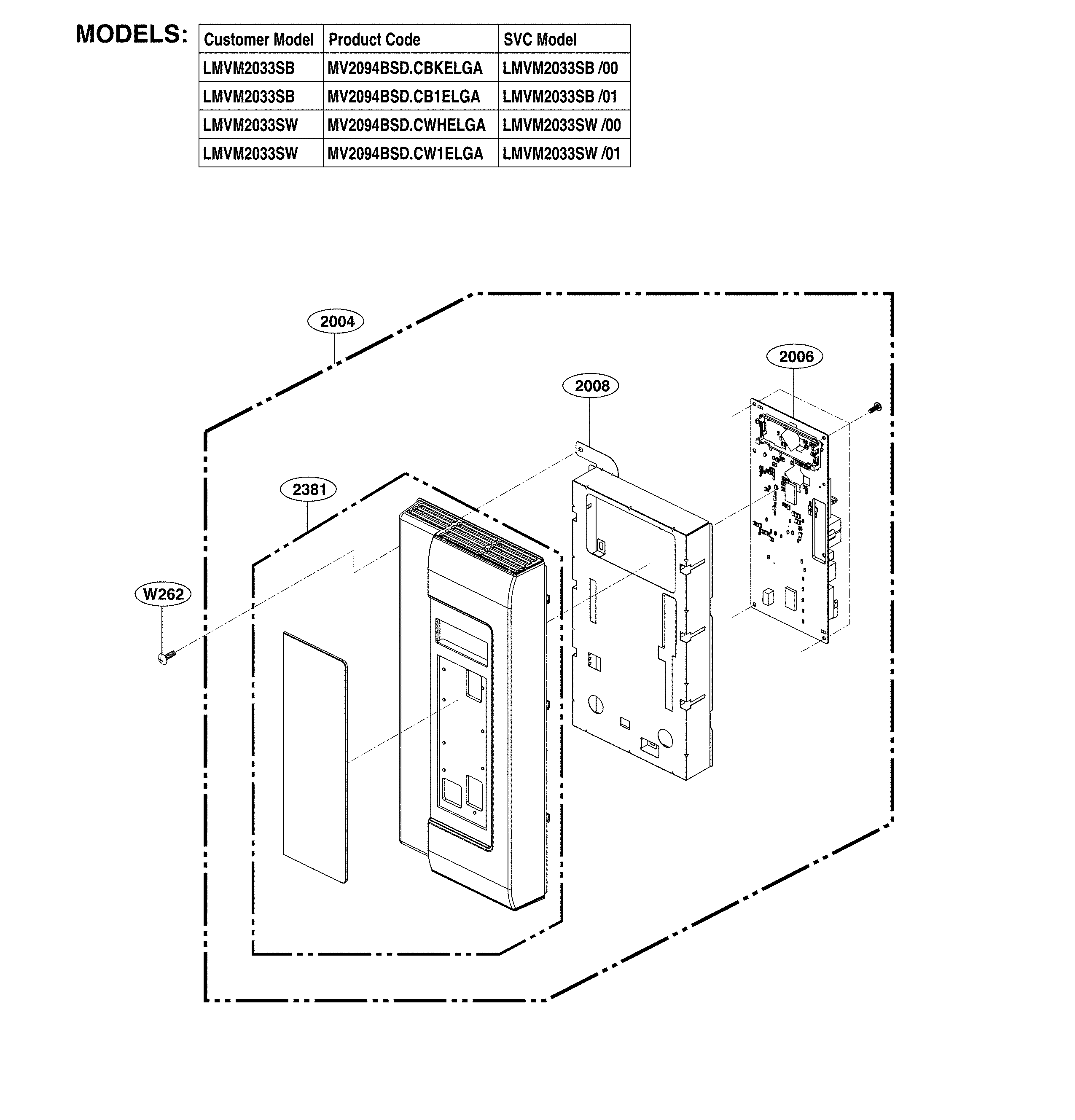

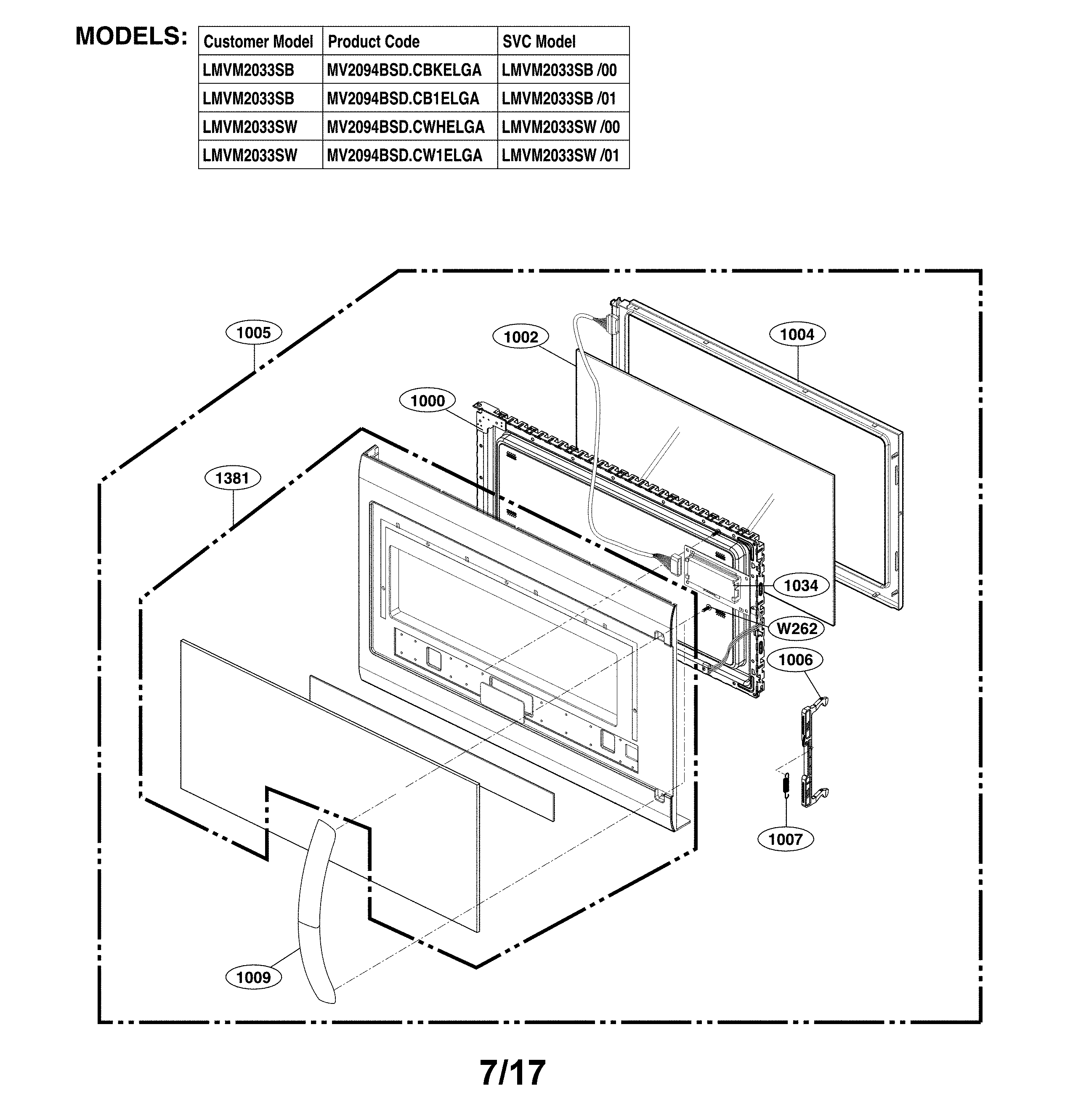

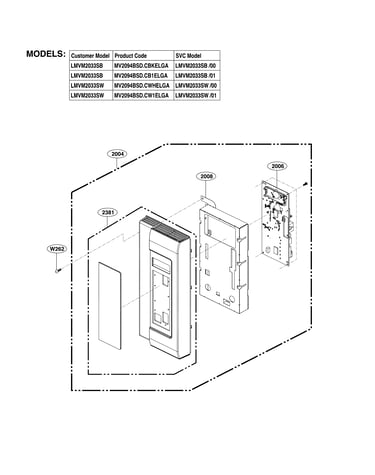

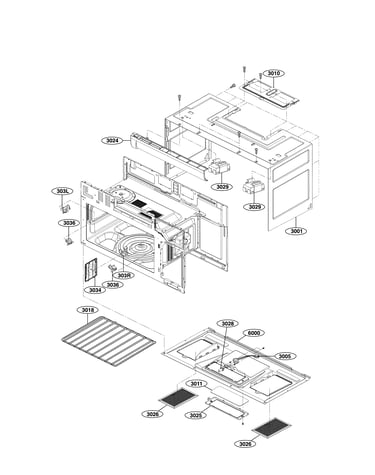

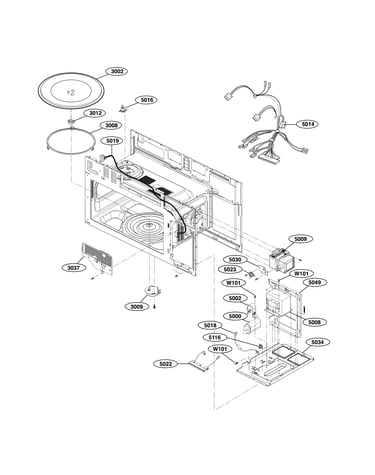

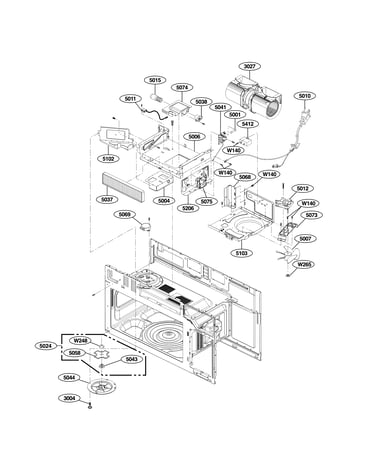

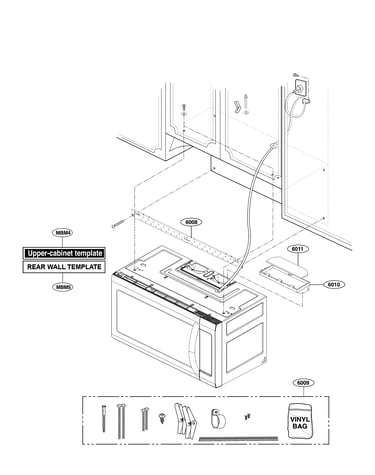

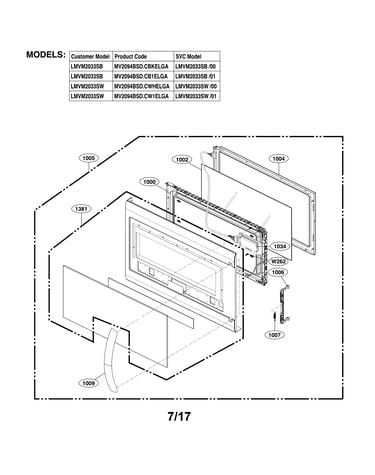

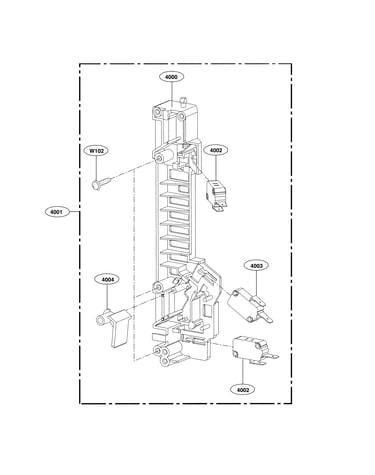

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

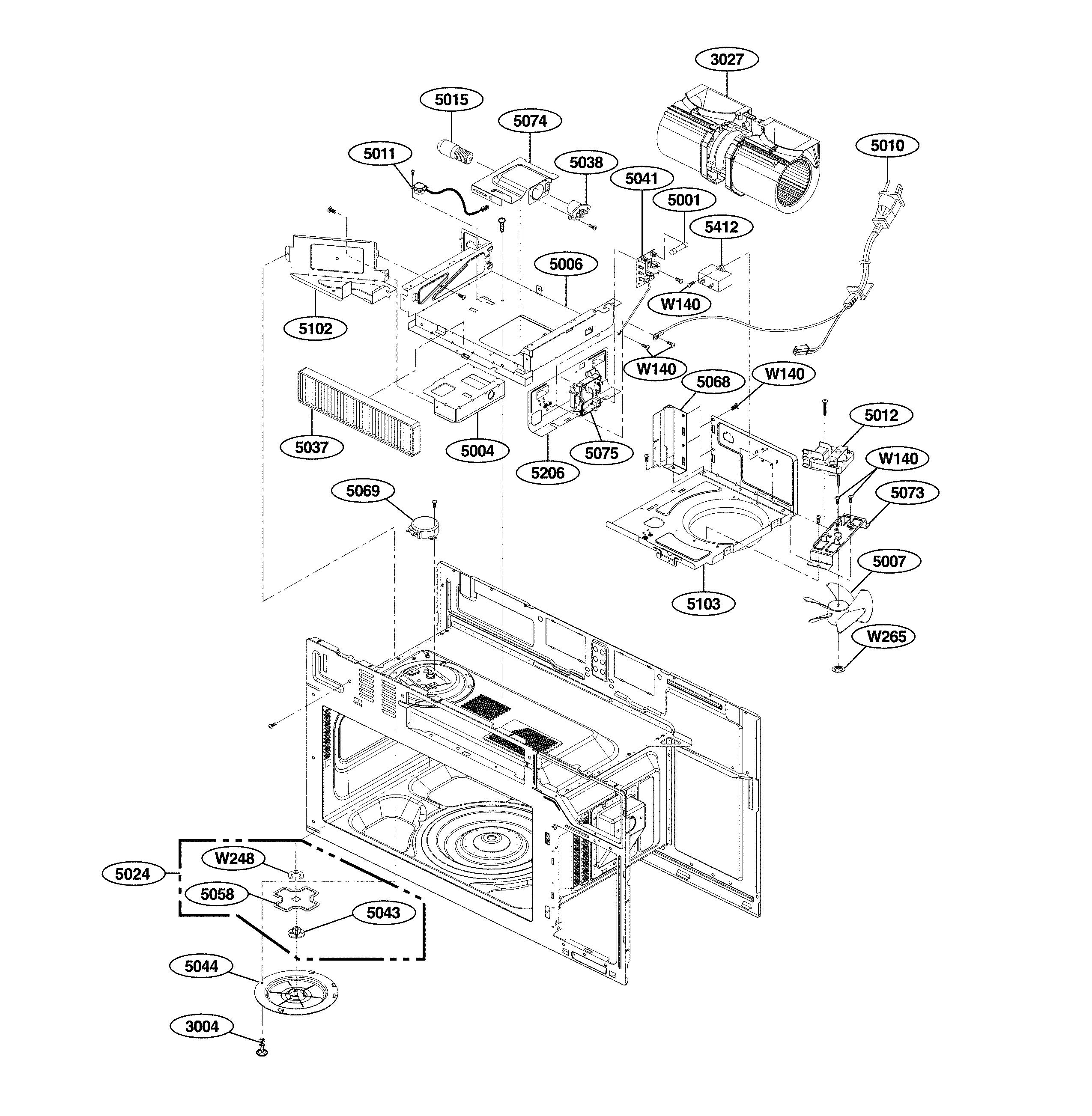

Microwave Charcoal Filter 5230W1A003A

#5037

All parts diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19
15% OFF Phone Price : $33.19
In Stock

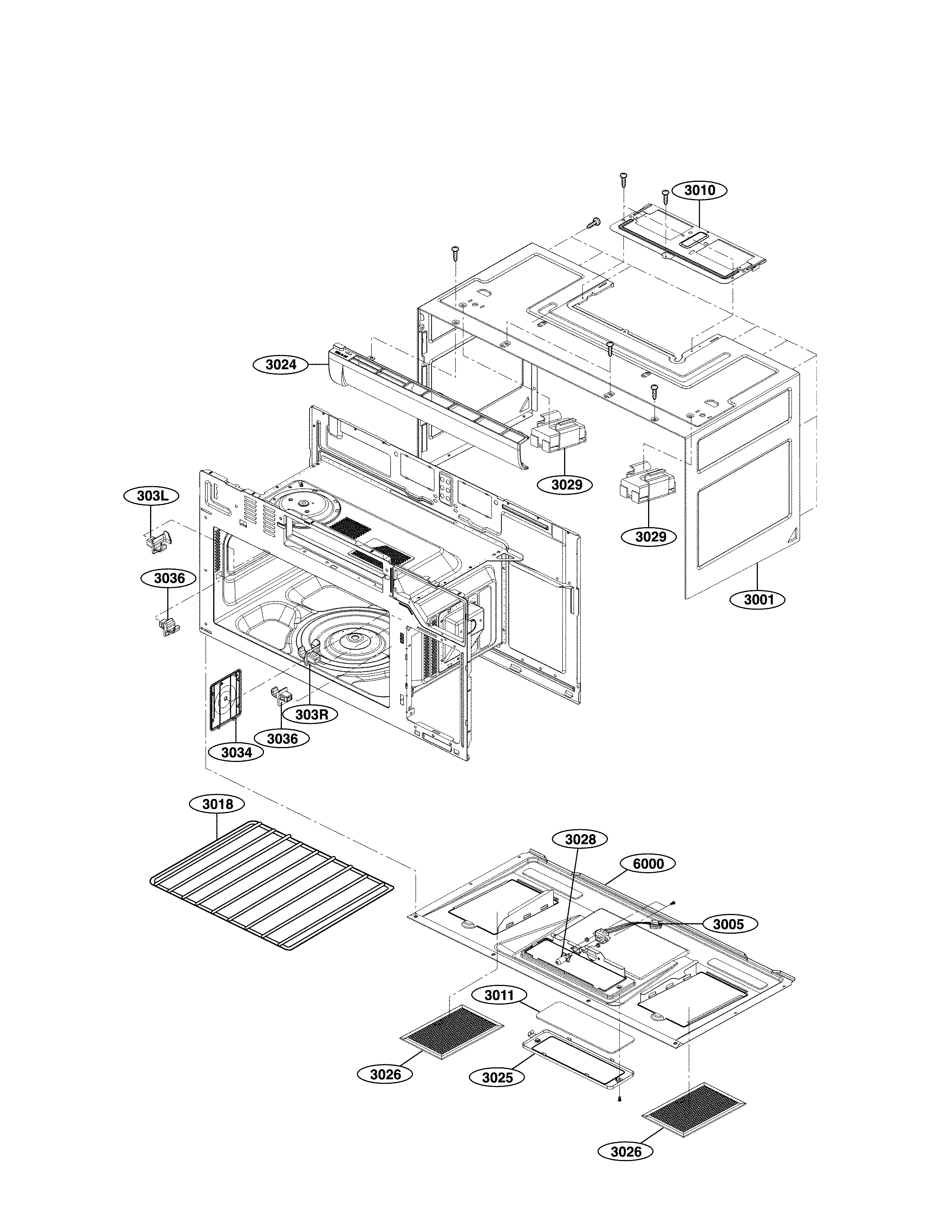

Microwave Vent Grille (black) MDX61912701

#3024

All parts diagram

Microwave vent grille (black)

Part #MDX61912701

BEST SELLER
$55.97
8% OFF Phone Price : $60.97
In Stock
Microwave Grease Filter (replaces 2b72705b) 5230W1A012B

#3026

All parts diagram

Microwave grease filter (replaces 2b72705b)

Part #5230W1A012B

BEST SELLER
$12.00
14% OFF Phone Price : $14.00
In Stock
Microwave Light Bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d) 6912W1Z004B

#5015

All parts diagram

Microwave light bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d)

Part #6912W1Z004B

BEST SELLER
$9.42
10% OFF Phone Price : $10.42
In Stock

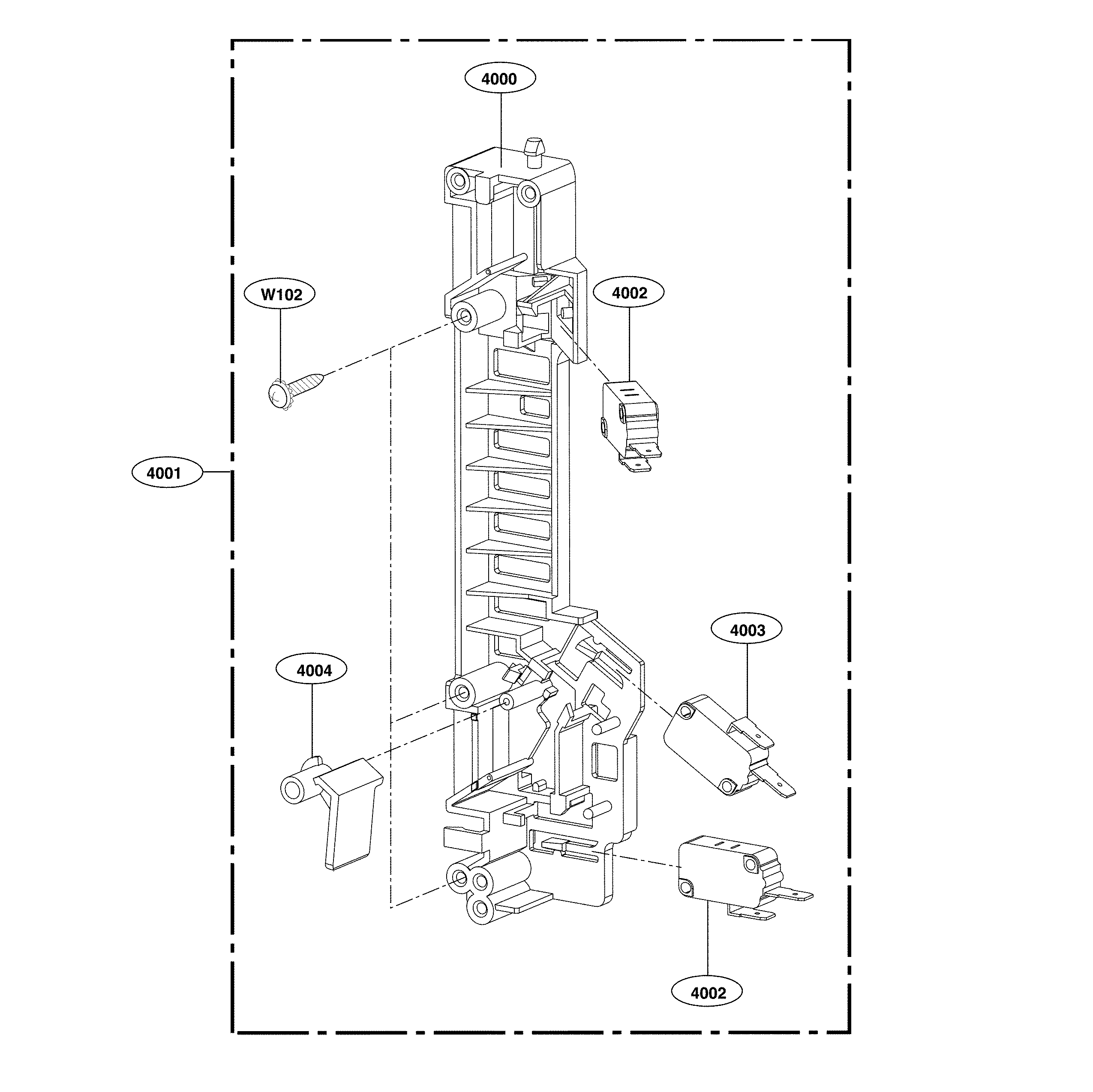

Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D

#4002

All parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76
9% OFF Phone Price : $10.76
In Stock

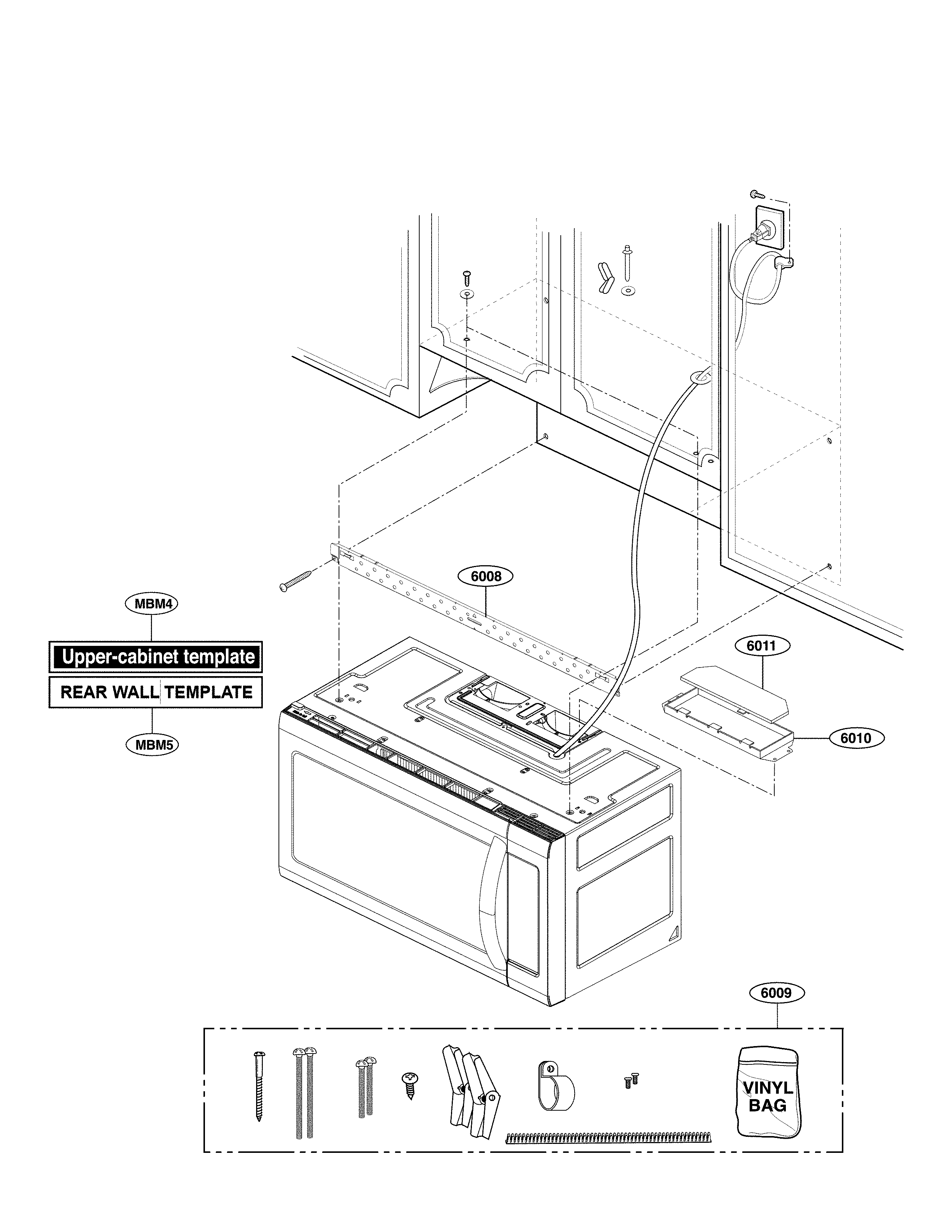

Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A

#6010

All parts diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43
14% OFF Phone Price : $14.43
In Stock
Microwave Vent Damper Door (replaces 3b71432a) 4900W1A001B

#6011

All parts diagram

Microwave vent damper door (replaces 3b71432a)

Part #4900W1A001B

BEST SELLER
This item is not returnable
$8.52
11% OFF Phone Price : $9.52
In Stock
Microwave Mounting Plate 3300W0A045A

#6008

All parts diagram

Microwave mounting plate

Part #3300W0A045A

BEST SELLER
This item is not returnable
$15.01
12% OFF Phone Price : $17.01
In Stock
Microwave Halogen Light Bulb 6912A40002J

#3028

All parts diagram

Microwave halogen light bulb

Part #6912A40002J

BEST SELLER
$17.98
10% OFF Phone Price : $19.98
In Stock

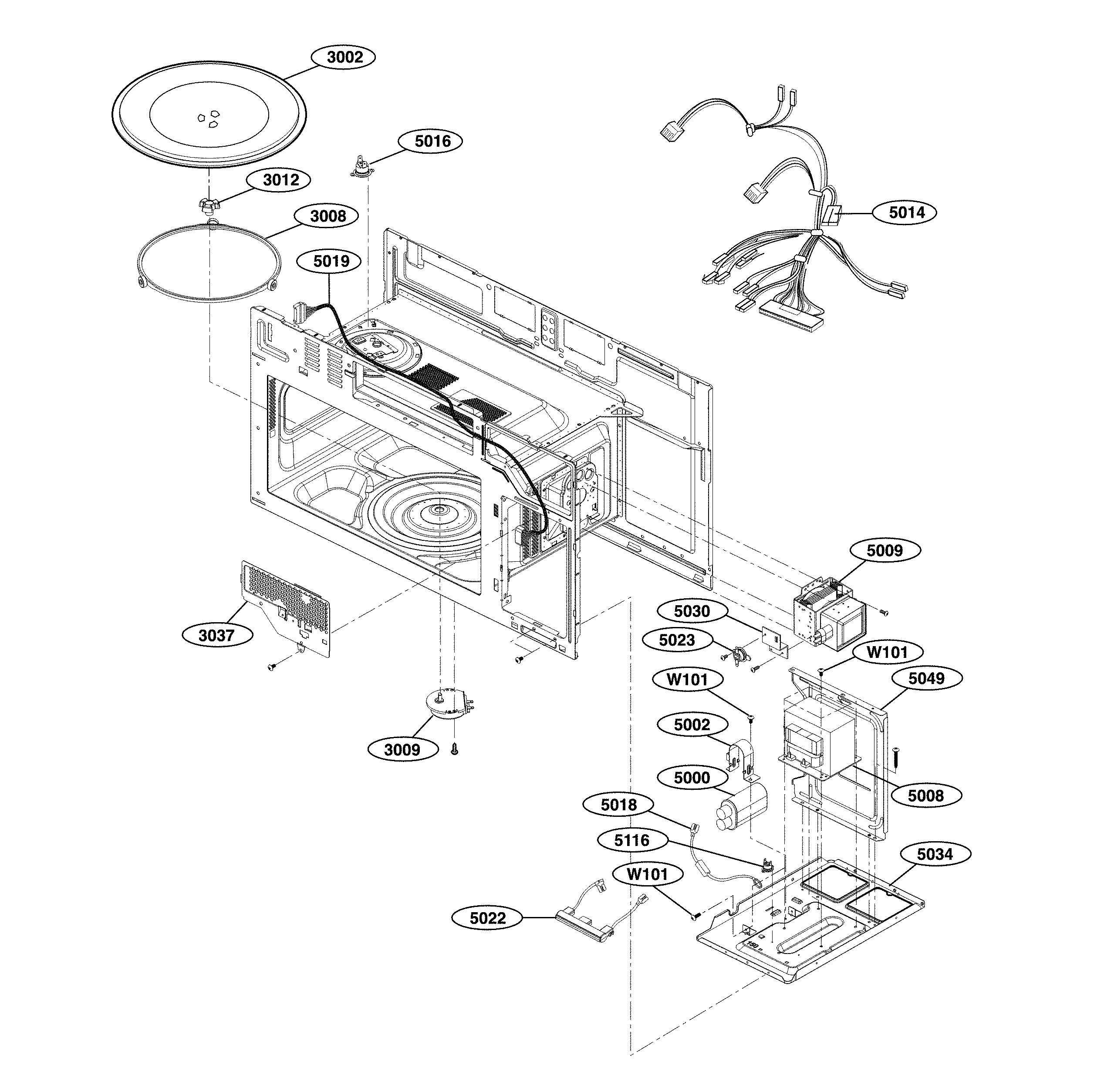

Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L

#5009

All parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94
5% OFF Phone Price : $96.94
In Stock
