Whirlpool ACU072XE3 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACU072XE3 air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for ACU072XE3 Air Conditioner

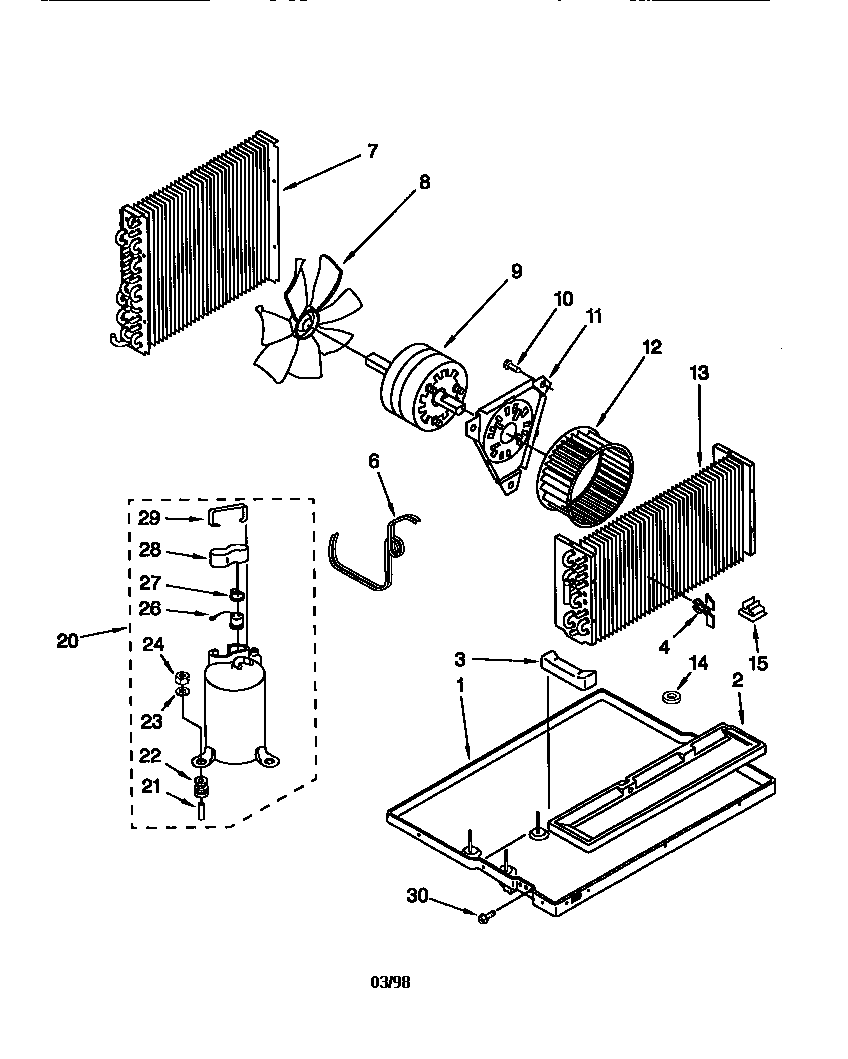

Unit diagram
Spring Overlay
In Stock$27.79
Qty

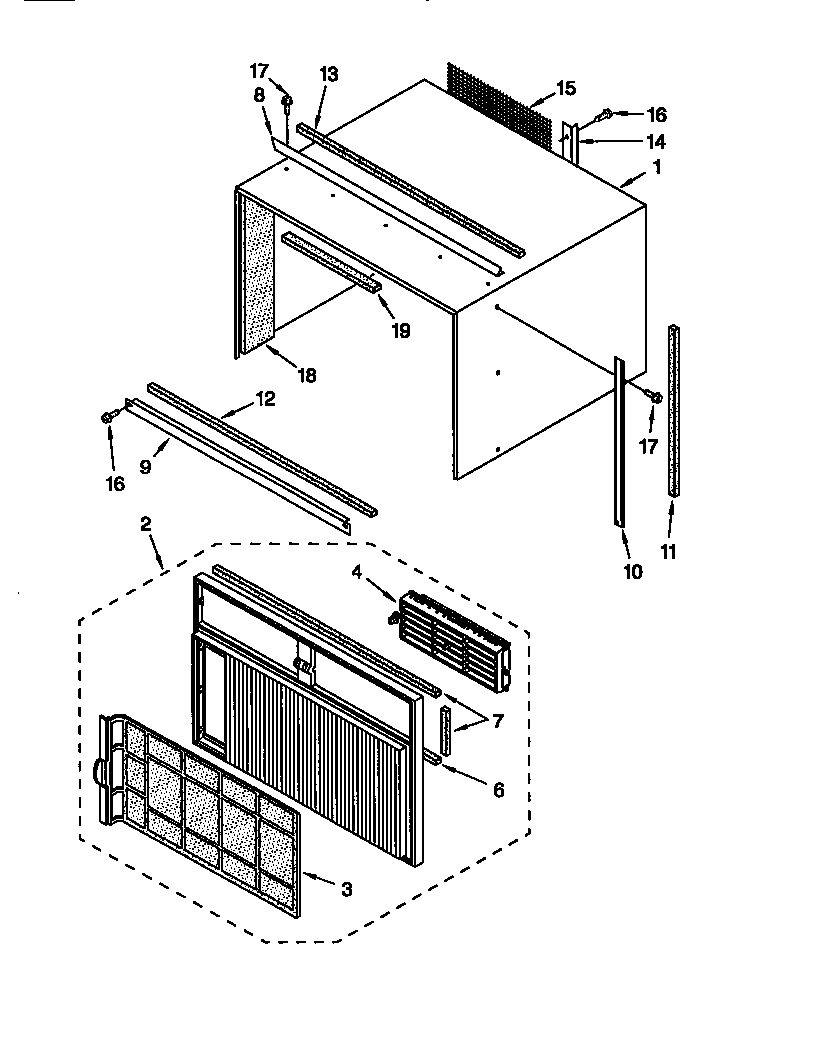

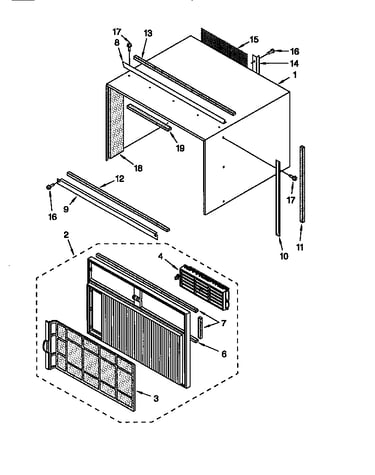

Cabinet diagram
Seal Strip
Part #789741Replaced by #WP854334
Manufacturer substitutionThis part replaces 789741. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17

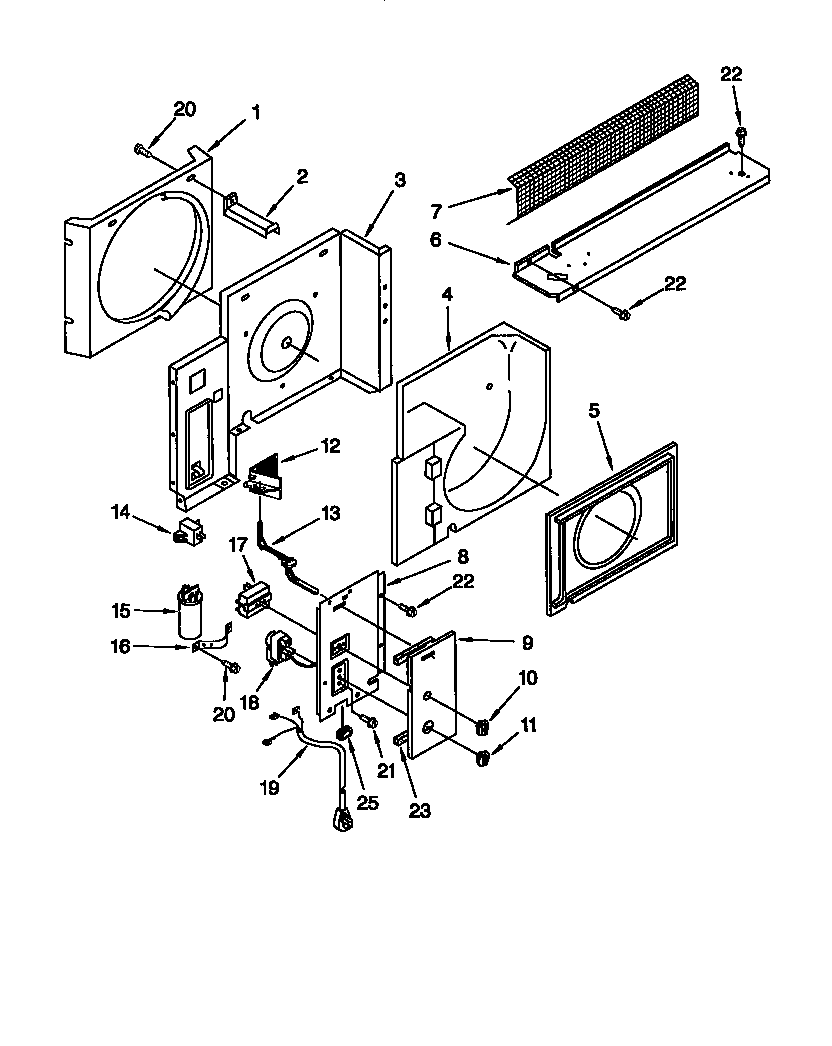

QtyAirflow and control diagram
Spacer
Part #789623Replaced by #WP854334
Manufacturer substitutionThis part replaces 789623. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyCabinet diagram
Seal Strip
Part #789740Replaced by #WP854334
Manufacturer substitutionThis part replaces 789740. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyUnit diagram
Washer
Part #789761Replaced by #W11236646
Manufacturer substitutionThis part replaces 789761. Substitute parts can look different from the original.This item is not returnableIn Stock$19.299% OFF Phone Price : $21.29QtyCabinet diagram
Seal Strip
Part #789742Replaced by #WP854334
Manufacturer substitutionThis part replaces 789742. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyCabinet diagram
Frame
Part #789613
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Cabinet
Part #4378882
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Overload
Part #789787
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Relief Stirrer
Part #789624
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your room air conditioners
Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …
Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…
Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…
Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…
Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…
Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…
Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…
Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…
Main causes: clogged drain hole, air conditioner not leveled properly…
