Model # 6650001 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber 6650001 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |

Door Hinge 70332
Door hinge

Part #70332

The manufacturer no longer makes this part, and there's no substitute part

Heat Shield 62763
#26

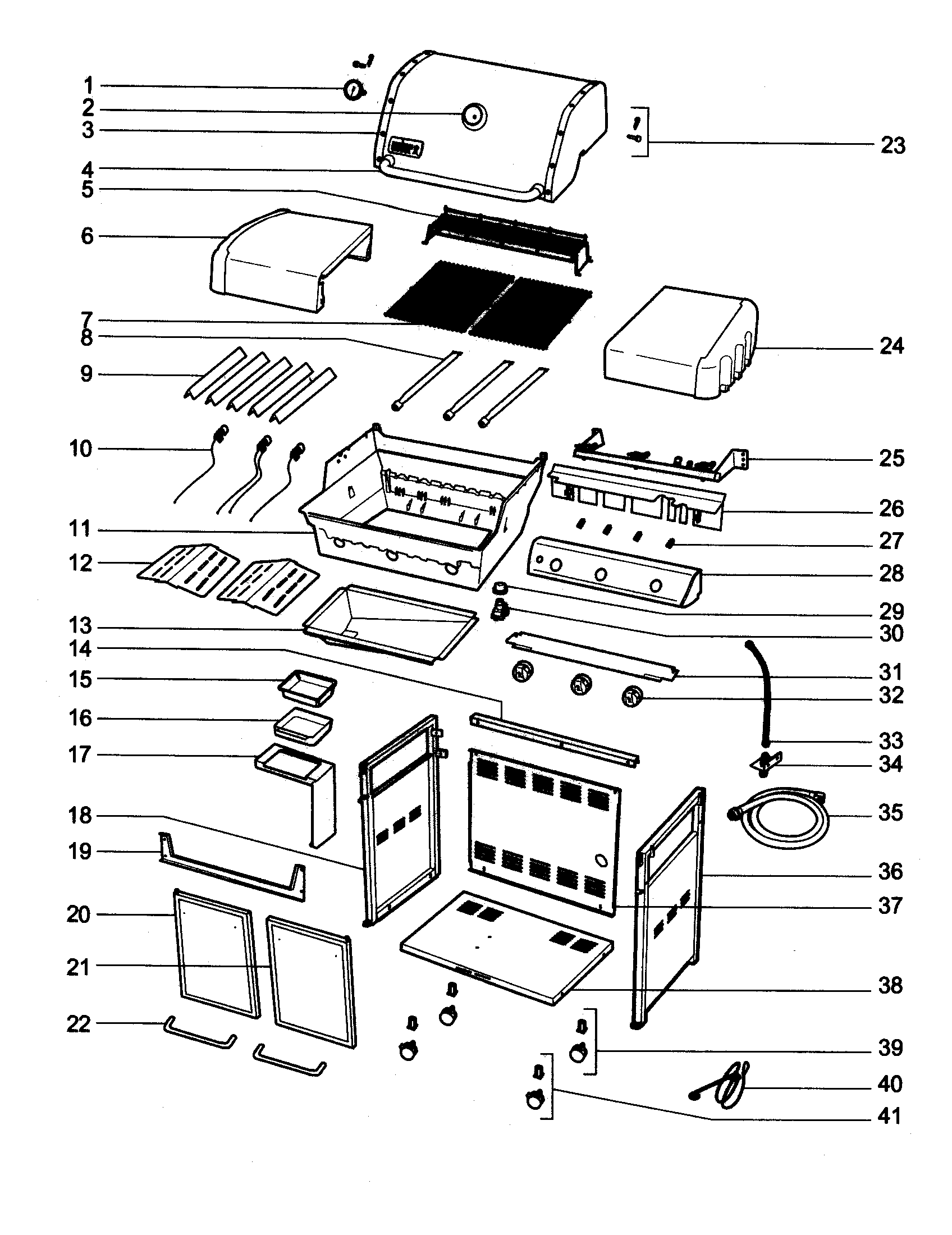

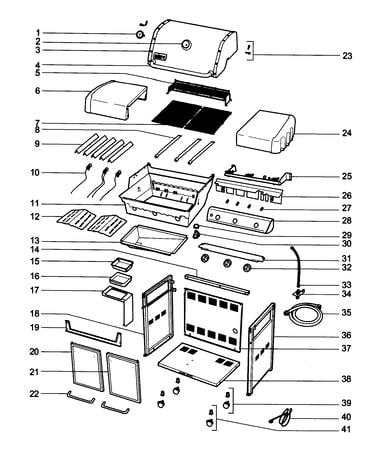

Grill diagram

Heat shield

Part #62763

The manufacturer no longer makes this part, and there's no substitute part

Lid, Ss 68230
#3

Grill diagram

Lid, ss

Part #68230

The manufacturer no longer makes this part, and there's no substitute part

Smoke Kit 7563
#NI

Grill diagram

Smoke kit

Part #7563

The manufacturer no longer makes this part, and there's no substitute part

Heat Deflector 62756
#12

Grill diagram

Heat deflector

Part #62756

The manufacturer no longer makes this part, and there's no substitute part

Giddle 7566
#NI

Grill diagram

Giddle

Part #7566

The manufacturer no longer makes this part, and there's no substitute part

Burner Tube 62799
#8

Grill diagram

Burner tube

Part #62799

The manufacturer no longer makes this part, and there's no substitute part

Smoker Kit 7575
#NI

Grill diagram

Smoker kit

Part #7575

The manufacturer no longer makes this part, and there's no substitute part

Ng Manifold 70055
#25

Grill diagram

Ng manifold

Part #70055

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Screw 62781
#25A

Grill diagram

Gas grill screw

Part #62781

The manufacturer no longer makes this part, and there's no substitute part
