GE JTP90DP4WW built-in oven with microwave

GE JTP90DP4WW built-in oven with microwave Parts

Here are the diagrams and repair parts for GE JTP90DP4WW built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

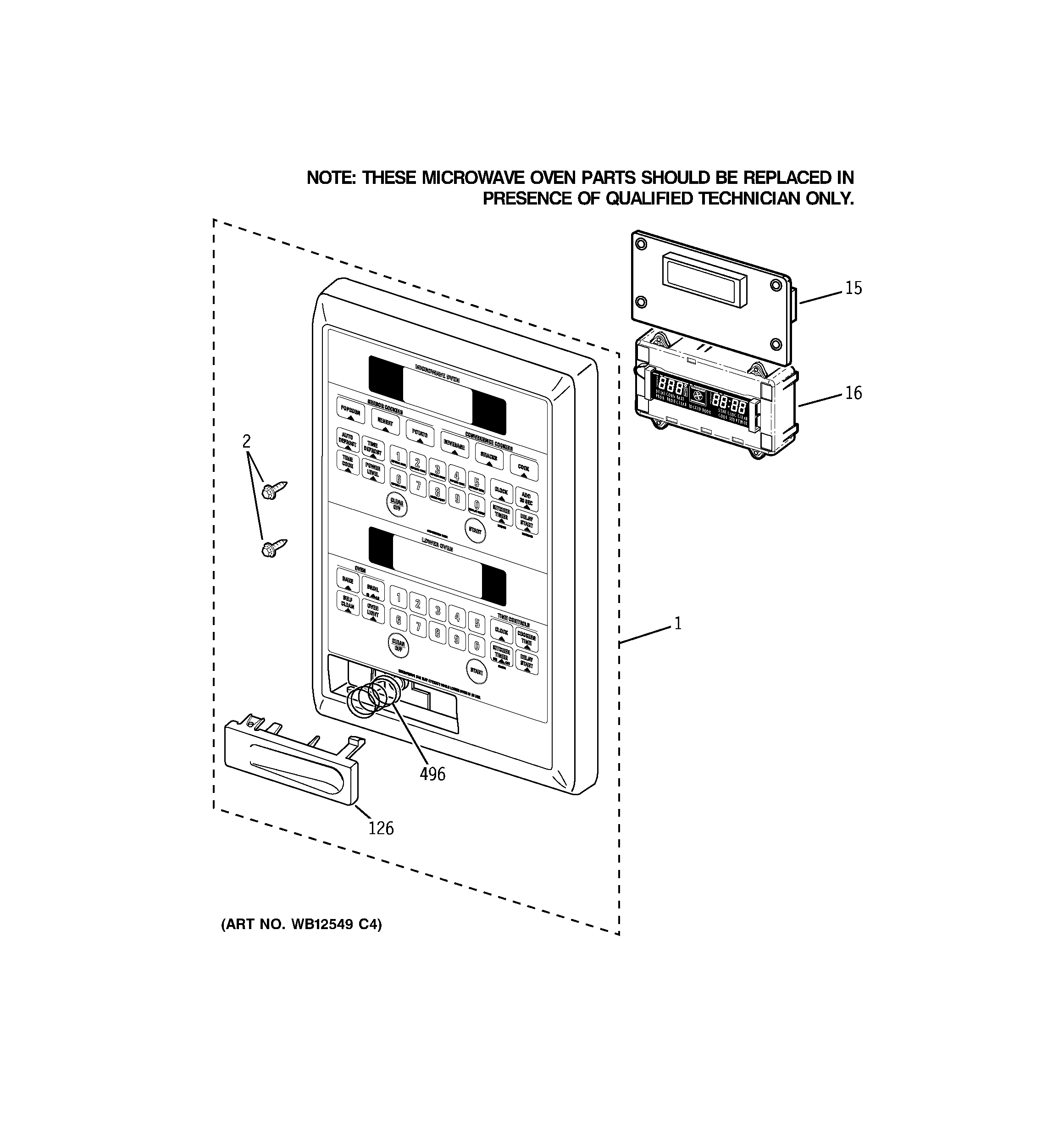

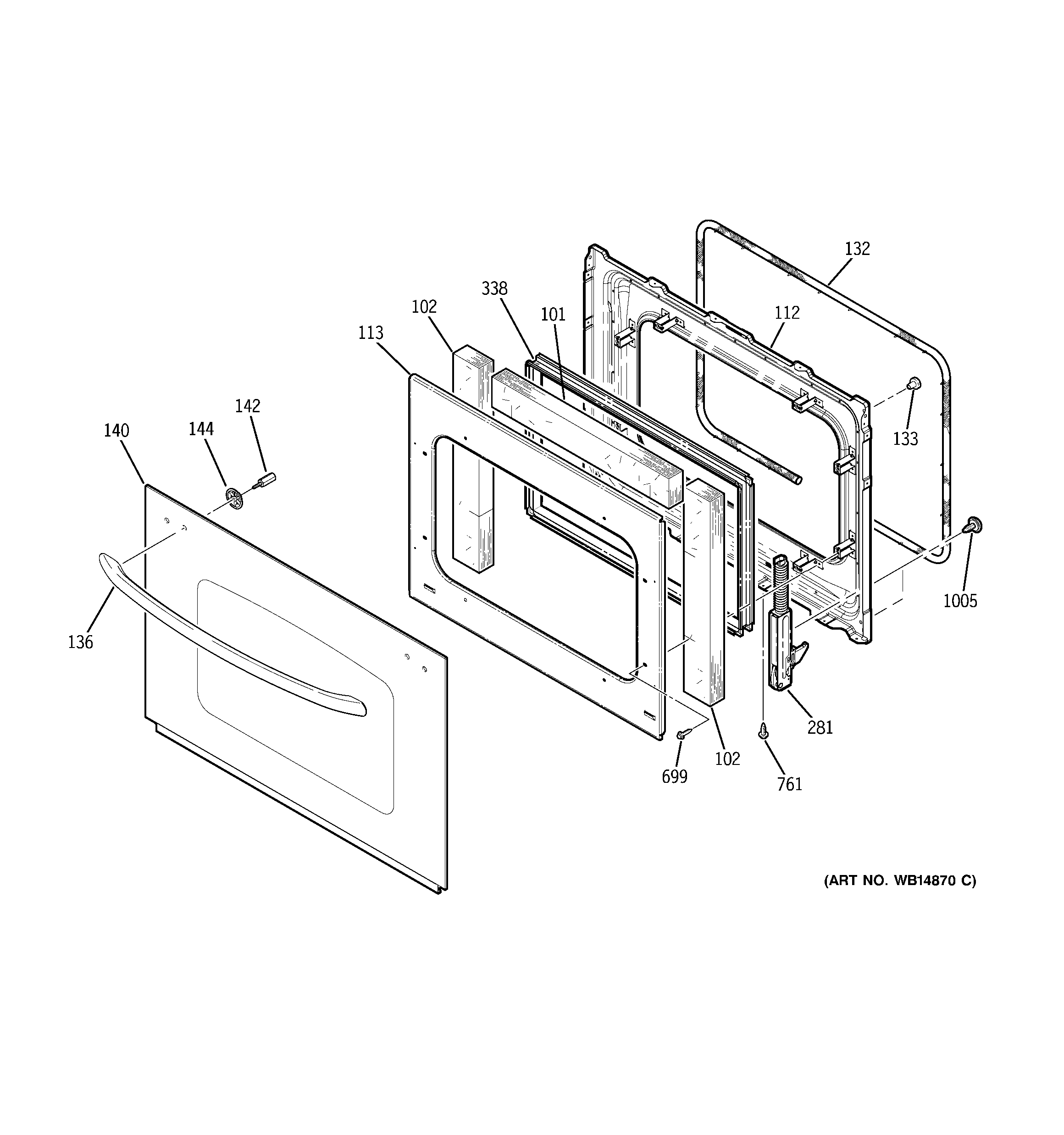

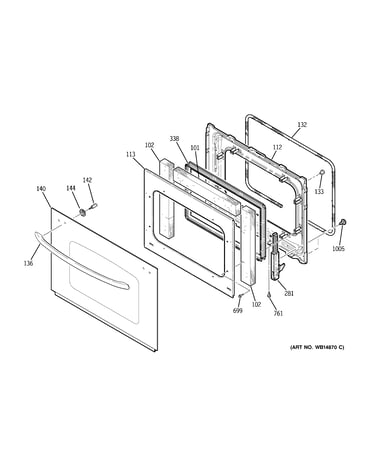

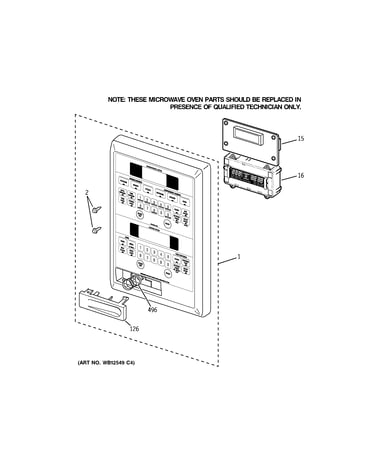

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JTP90DP4WW Built-In Oven with Microwave

  • Microwave Micro-switch for GE JTP90DP4WW - Part WB24X829

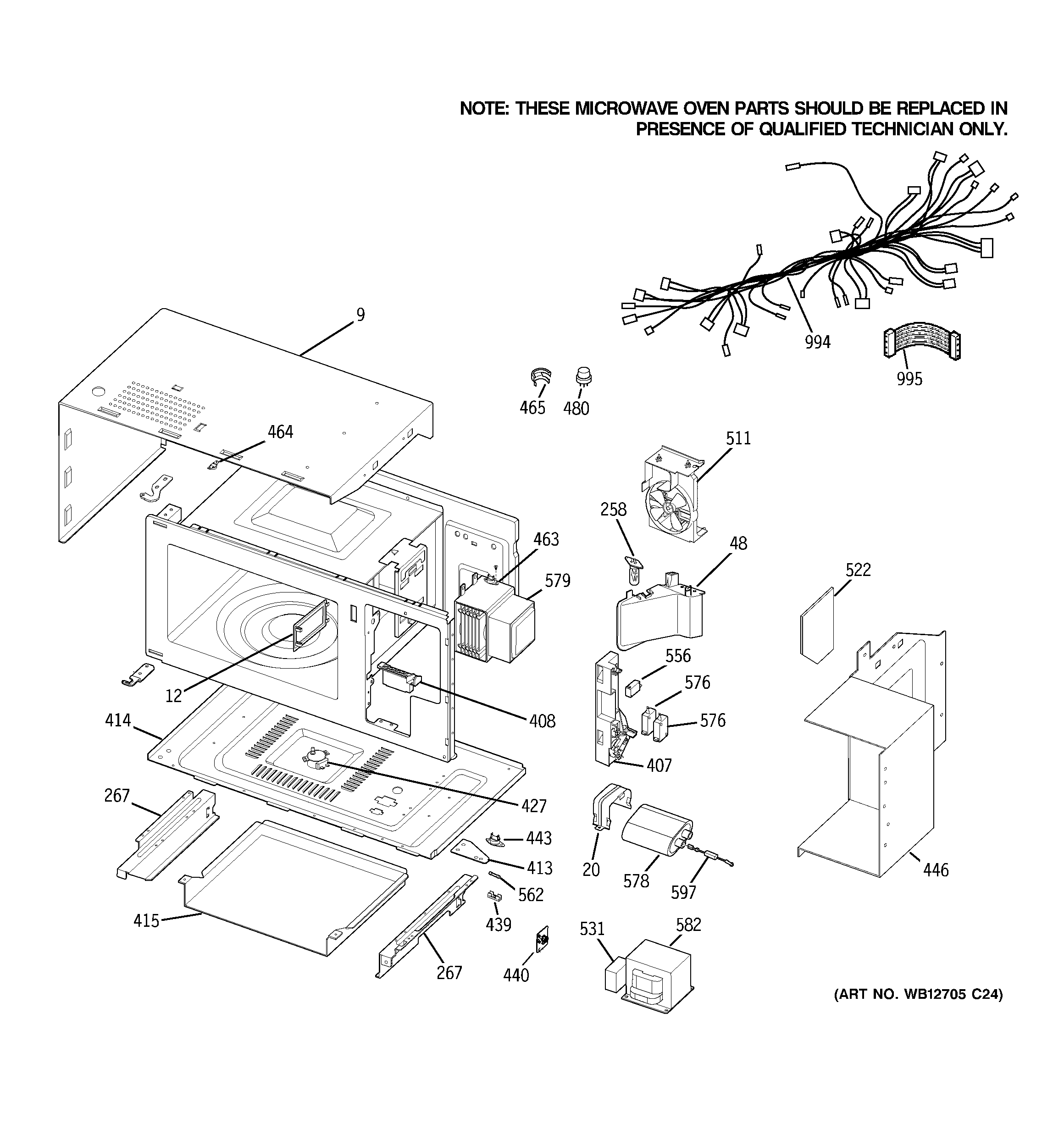

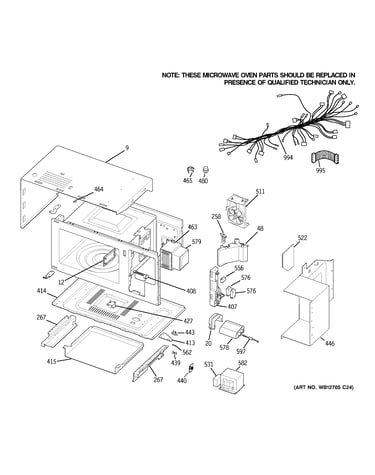

    Microwave body parts diagram

    Switch-micro

    Part #WB24X0829

    Replaced by #WB24X829

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0829. Substitute parts can look different from the original.
    In Stock
    $30.28
    17% OFF Phone Price : $36.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for GE JTP90DP4WW - Part WB27X10928

    Microwave body parts diagram

    Fuse Cartridge

    Part #WB27X10474

    Replaced by #WB27X10928

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10474. Substitute parts can look different from the original.
    In Stock
    $12.92
    13% OFF Phone Price : $14.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for GE JTP90DP4WW - Part WB24X830

    Microwave body parts diagram

    Monitor Switch

    Part #WB24X0830

    Replaced by #WB24X830

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0830. Substitute parts can look different from the original.
    In Stock
    $36.05
    14% OFF Phone Price : $42.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Diode for GE JTP90DP4WW - Part WB27X10597

    Microwave body parts diagram

    High-voltage Diode

    Part #WB27X10169

    Replaced by #WB27X10597

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10169. Substitute parts can look different from the original.
    In Stock
    $55.83
    10% OFF Phone Price : $61.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Safety Thermostat for GE JTP90DP4WW - Part WB24T10060

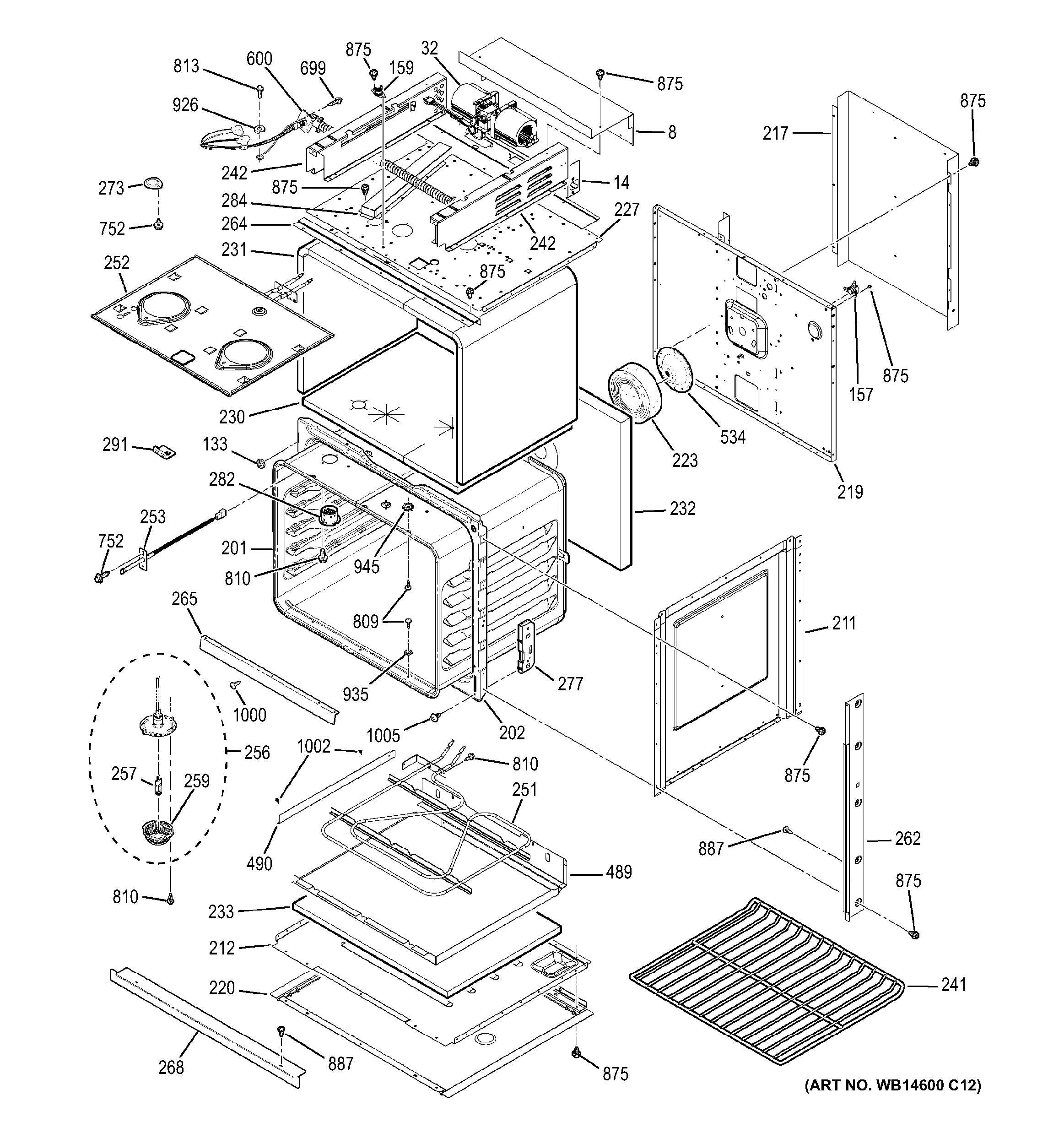

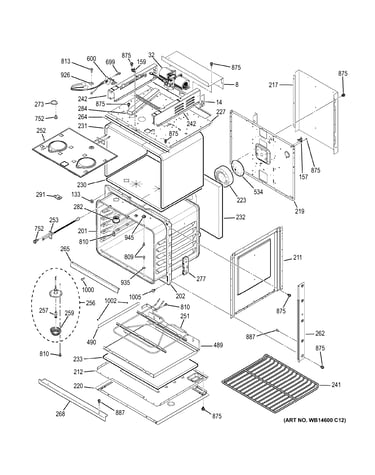

    Body with microwave support diagram

    Wall Oven Safety Thermostat

    Part #WB24T10060
    This item is not returnable
    In Stock
    $14.61
    12% OFF Phone Price : $16.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooking Appliance Screw, #10-32 for GE JTP90DP4WW - Part WB01T10008

    Cooking Appliance Screw, #10-32

    Part #WB01T10008
    This item is not returnable
    In Stock
    $10.87
    16% OFF Phone Price : $12.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven High-limit Thermostat for GE JTP90DP4WW - Part WB24T10081

    Body with microwave support diagram

    Wall Oven High-limit Thermostat

    Part #WB24T10081
    This item is not returnable
    In Stock
    $34.52
    15% OFF Phone Price : $40.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Sensor Assembly for GE JTP90DP4WW - Part WB21T10018

    Body with microwave support diagram

    Sensor Assembly

    Part #WB21T10018
    This item is not returnable
    In Stock
    $29.48
    17% OFF Phone Price : $35.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Light Bulb, 40-watt for GE JTP90DP4WW - Part 40A15

    Body with microwave support diagram

    Appliance Light Bulb, 40-watt

    Part #40A15
    This item is not returnable
    In Stock
    $54.20
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JTP90DP4WW - Part WB1M1

    Screw

    Part #WB01K5150

    Replaced by #WB1M1

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5150. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
