Ryobi
Drill/Driver

Model # JS10521K2 Official Ryobi 14.4-v jobsite drill

Here are the diagrams and repair parts for Official Ryobi JS10521K2 14.4-v jobsite drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Chuck 3/8" 981761001
#2

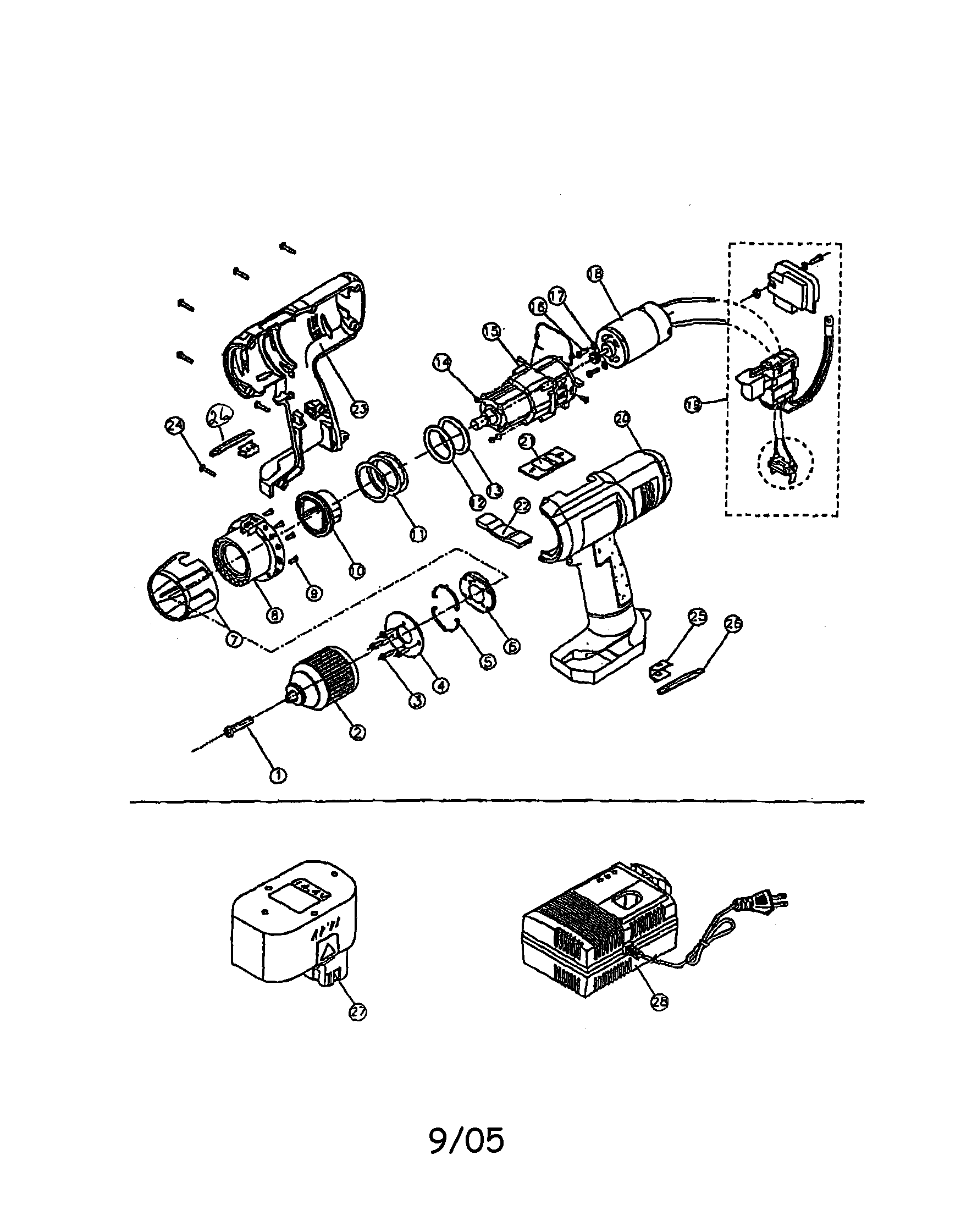

14.4v jobsite drill diagram

Chuck 3/8"

Part #981761001

The manufacturer no longer makes this part, and there's no substitute part

2 Speed Gear Box 981781001
#15

14.4v jobsite drill diagram

2 speed gear box

Part #981781001

The manufacturer no longer makes this part, and there's no substitute part

St Screw (m3.5 X 14mm) (11) 981776001
#24

14.4v jobsite drill diagram

St screw (m3.5 x 14mm) (11)

Part #981776001

The manufacturer no longer makes this part, and there's no substitute part

Stamping (2) 981777001
#25

14.4v jobsite drill diagram

Stamping (2)

Part #981777001

The manufacturer no longer makes this part, and there's no substitute part

Washer (.3mm) 981767001
#12

14.4v jobsite drill diagram

Washer (.3mm)

Part #981767001

The manufacturer no longer makes this part, and there's no substitute part

Dbl Bit #2 And #6 4240014
#26-1

14.4v jobsite drill diagram

Dbl bit #2 and #6

Part #4240014

The manufacturer no longer makes this part, and there's no substitute part

Chuck Screw 6130388
#1

14.4v jobsite drill diagram

Chuck screw

Part #6130388

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 981782001
#18

14.4v jobsite drill diagram

Motor assembly

Part #981782001

The manufacturer no longer makes this part, and there's no substitute part

St Screw (ph M2,6 X 8mm) (4) 981766001
#9

14.4v jobsite drill diagram

St screw (ph m2,6 x 8mm) (4)

Part #981766001

The manufacturer no longer makes this part, and there's no substitute part

Washer 1900015
#17

14.4v jobsite drill diagram

Washer

Part #1900015

The manufacturer no longer makes this part, and there's no substitute part
