Model #298585170 Craftsman 1.75-hp outboard motor

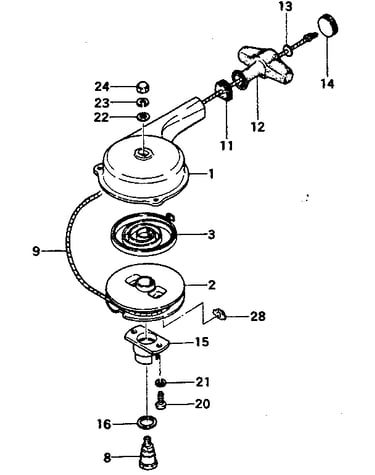

Here are the diagrams and repair parts for Craftsman 298585170 1.75-hp outboard motor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 242 parts

    Screw,ps,4x1

    #70

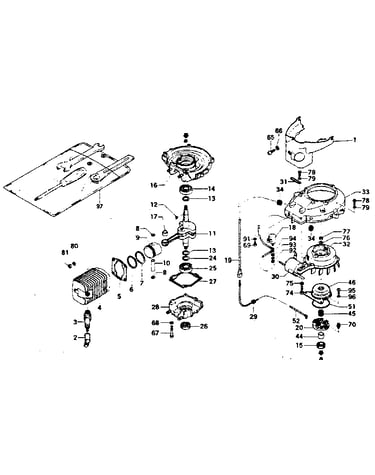

    Engine Diagram

    Screw,ps,4x1

    Part #669-5370
    ?
    Manufacturer substitution
    This part replaces 994-15040-101. Substitute parts can look different from the original.
    This part replaces 994-15040-101
    This item is not returnable
    $2.16

    In Stock

    Shim,10.1x16

    #17C

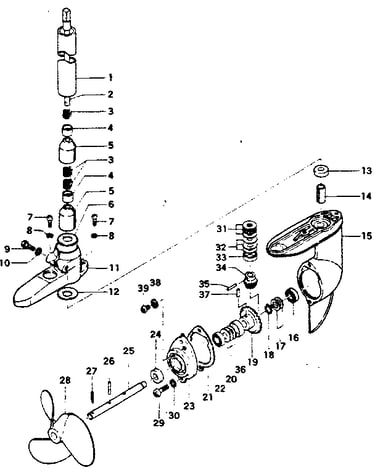

    Drive shaft pipe & gear case Diagram

    Shim,10.1x16

    Part #668-7799
    ?
    Manufacturer substitution
    This part replaces 175-35500-200. Substitute parts can look different from the original.
    This part replaces 175-35500-200
    This item is not returnable
    $2.16

    In Stock

    Start Spring

    #6

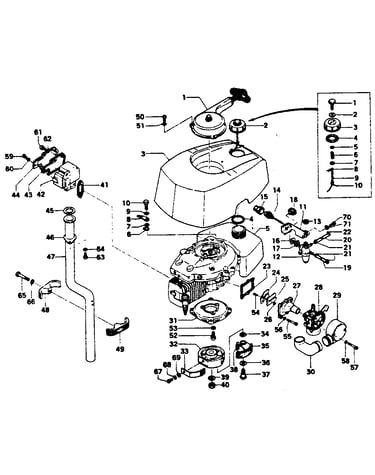

    Tank, clutch & muffler Diagram

    Start spring

    Part #669-3343
    ?
    Manufacturer substitution
    This part replaces 790-00601-202. Substitute parts can look different from the original.
    This part replaces 790-00601-202
    This item is not returnable
    $2.16

    In Stock

    Boat Motor Fuel Hose Spring Clamp

    #21

    Tank, clutch & muffler Diagram

    Boat motor fuel hose spring clamp

    Part #669-2309
    ?
    Manufacturer substitution
    This part replaces 680-01004-200. Substitute parts can look different from the original.
    This part replaces 680-01004-200
    This item is not returnable
    $2.55

    In Stock

    Screw,4x16

    #55

    Tank, clutch & muffler Diagram

    Screw,4x16

    Part #669-4870
    ?
    Manufacturer substitution
    This part replaces 990-11040-162. Substitute parts can look different from the original.
    This part replaces 990-11040-162
    This item is not returnable
    $2.16

    In Stock

    Screw,5x25

    #3

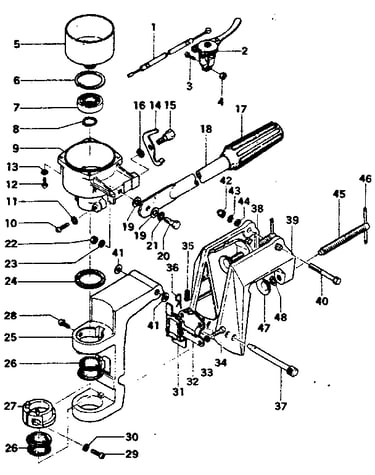

    Handle & bracket Diagram

    Screw,5x25

    Part #669-4897
    ?
    Manufacturer substitution
    This part replaces 990-11050-252. Substitute parts can look different from the original.
    This part replaces 990-11050-252
    This item is not returnable
    $2.16

    In Stock

    Lawn & Garden Equipment Bolt

    #39

    Drive shaft pipe & gear case Diagram

    Lawn & garden equipment bolt

    Part #669-4981
    ?
    Manufacturer substitution
    This part replaces 990-11060-082. Substitute parts can look different from the original.
    This part replaces 990-11060-082
    This item is not returnable
    $2.16

    In Stock

    Screw

    #70

    Tank, clutch & muffler Diagram

    Screw

    Part #990-11060-122

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #61

    Tank, clutch & muffler Diagram

    Screw

    Part #990-11060-202

    The manufacturer no longer makes this part, and there's no substitute part

    Nut 8

    #40

    Tank, clutch & muffler Diagram

    Nut 8

    Part #991-01080-011

    The manufacturer no longer makes this part, and there's no substitute part
