Maytag HJ650PBDS water heater Parts
Here are the diagrams and repair parts for Maytag HJ650PBDS water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for HJ650PBDS Water Heaters

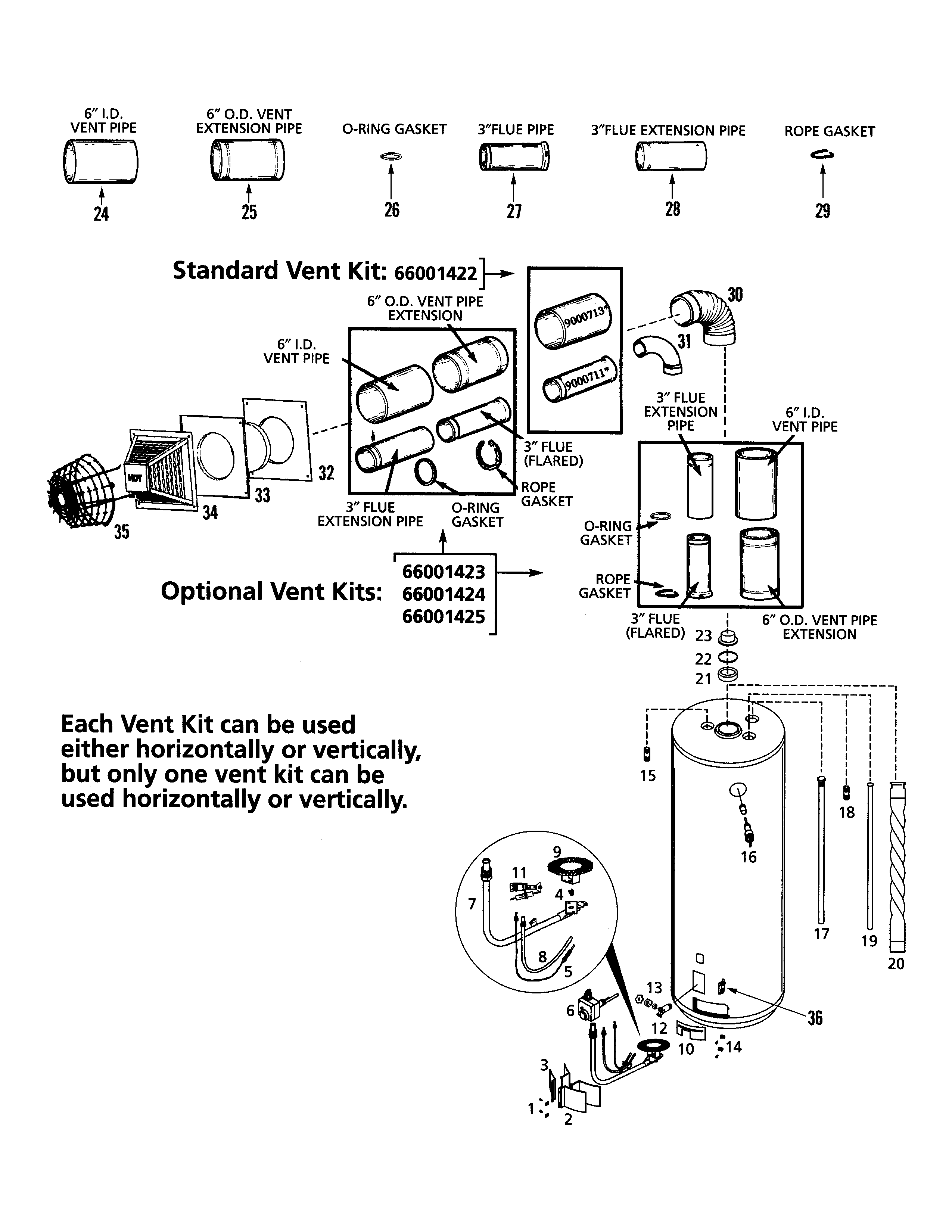

Body (models with piezo ignitor) diagram
Anode Rod
In Stock$109.86
Qty

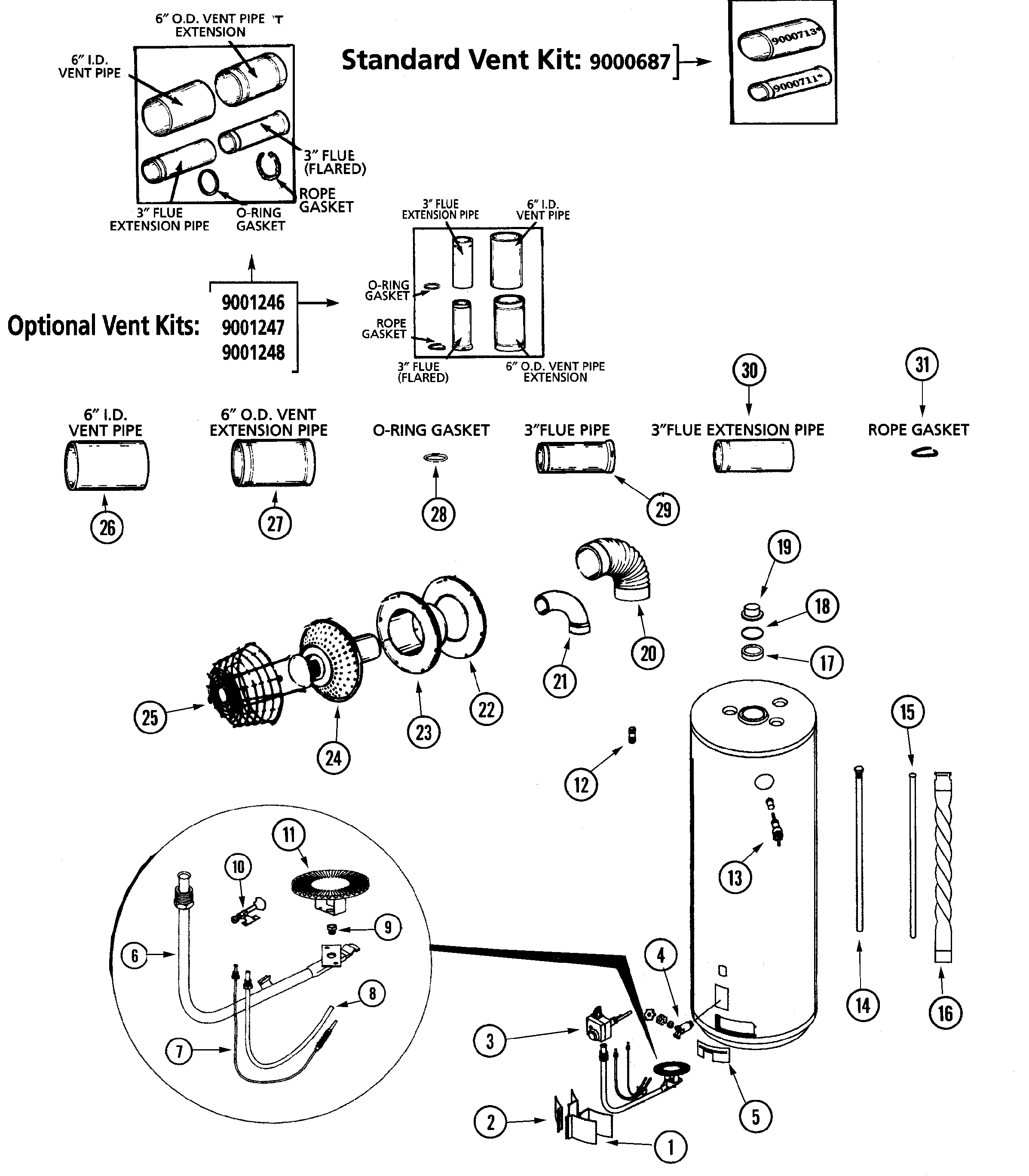

Body (models with piezo ignitor) diagram
Dip Tube
In Stock$46.11QtyBody diagram
Vent Wall
Part #9000724Replaced by #66001214
Manufacturer substitutionThis part replaces 9000724. Substitute parts can look different from the original.In Stock$127.78QtyBody diagram
Collar Liner
Part #9000723Replaced by #66001213
Manufacturer substitutionThis part replaces 9000723. Substitute parts can look different from the original.In Stock$59.19QtyBody diagram
Vent Cap Assembly
Part #9000725Replaced by #66001215
Manufacturer substitutionThis part replaces 9000725. Substitute parts can look different from the original.In Stock$191.46QtyBody diagram
Access Door
Part #9000696
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Door
Part #9000281
The manufacturer no longer makes this part, and there's no substitute part
Body (models with piezo ignitor) diagram
Manifold
Part #66001037
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Burner Orifice
Part #0230120
The manufacturer no longer makes this part, and there's no substitute part
Nipple
Part #66001311
The manufacturer no longer makes this part, and there's no substitute part
