Samsung
Washer

Model # WF218ANW/XAA-00 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF218ANW-XAA-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

Washer Shock Absorber (replaces Dc66-00650d) DC66-00470A
#6

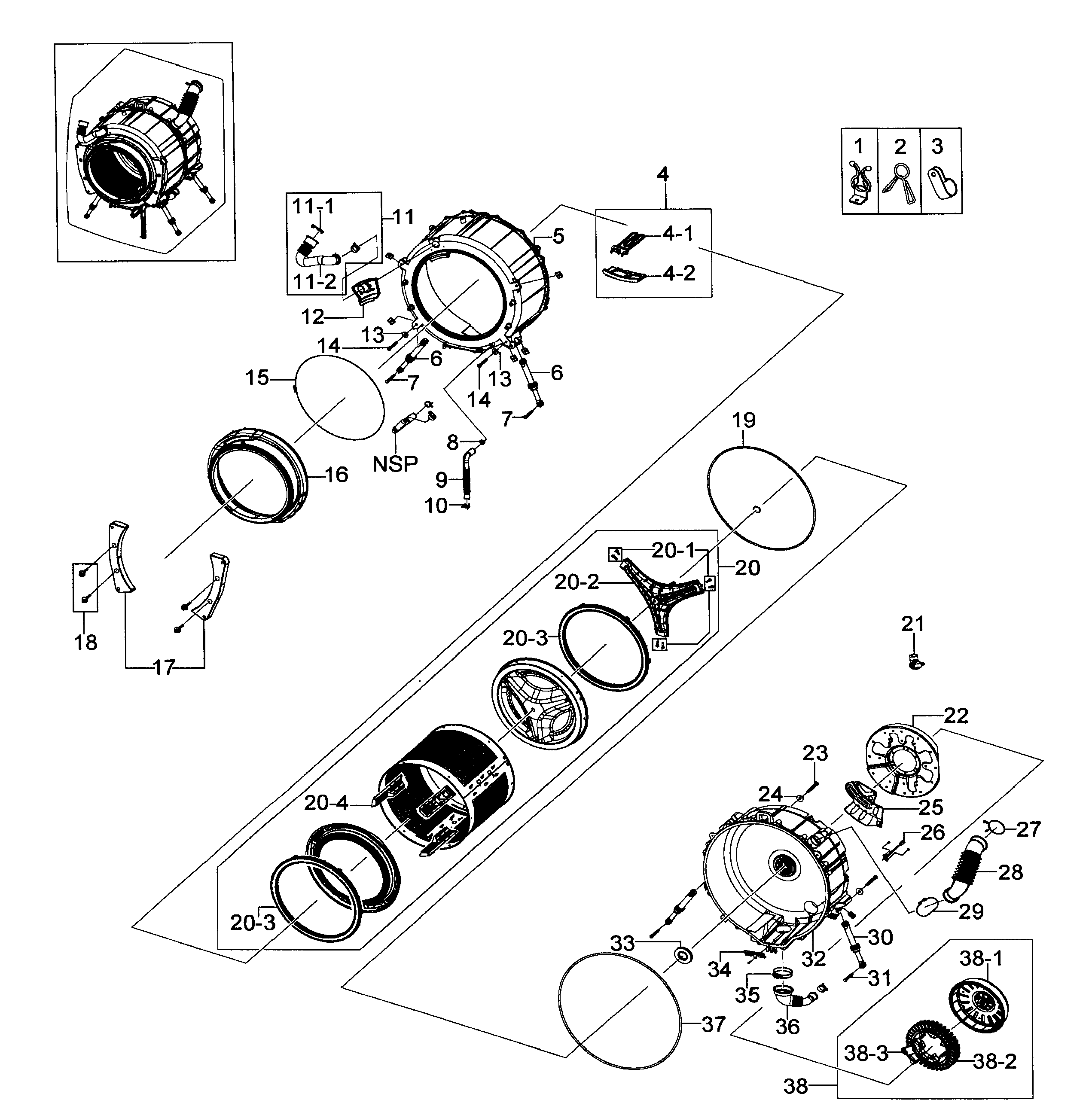

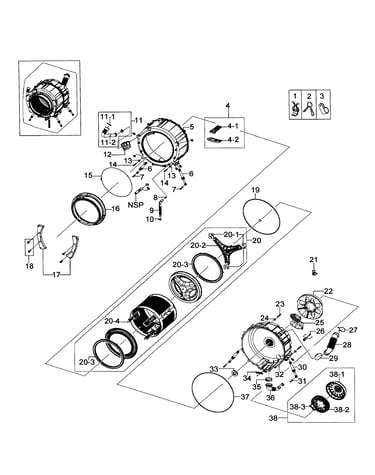

Drum assy diagram

Washer shock absorber (replaces dc66-00650d)

Part #DC66-00470A

BEST SELLER
$49.01
11% OFF Phone Price : $55.01
In Stock
Washer Drain Pump (replaces Dc31-00016a) DC31-00054A
#15-5

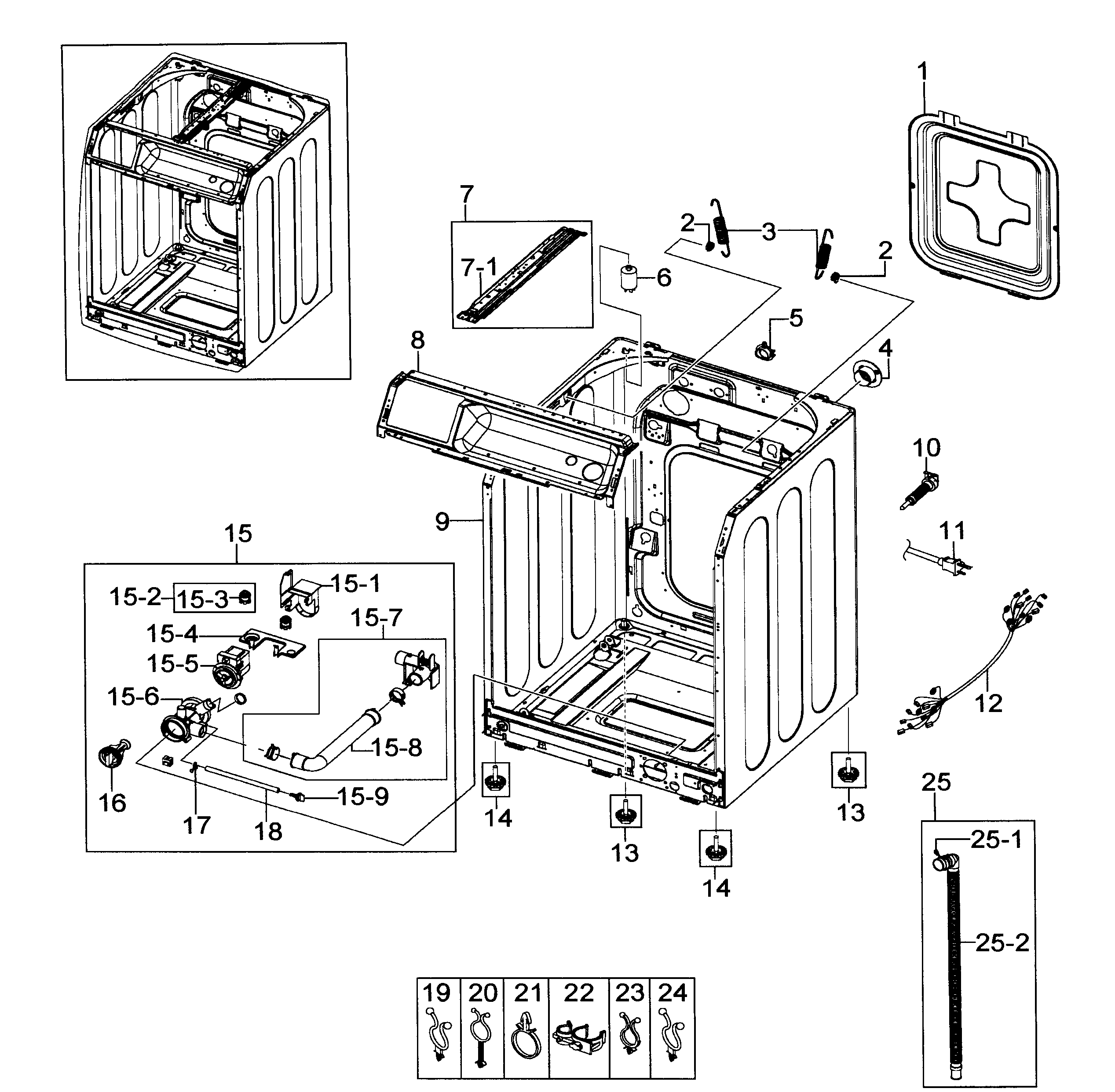

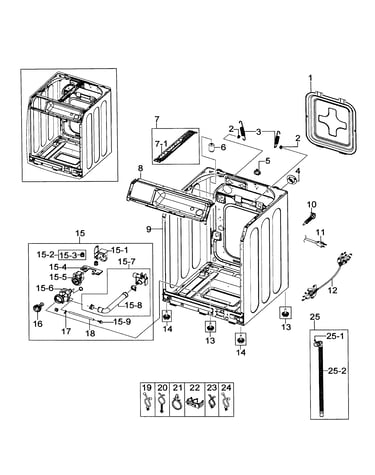

Cabinet diagram

Washer drain pump (replaces dc31-00016a)

Part #DC31-00054A

BEST SELLER
$131.97
8% OFF Phone Price : $143.97
In Stock
Washer Bolt (replaces Dc60-40138a) DC97-02412A
#18

Drum assy diagram

Washer bolt (replaces dc60-40138a)

Part #DC97-02412A

BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Washer Water Inlet Valve (replaces Dc62-30314h) DC62-30314K
#1

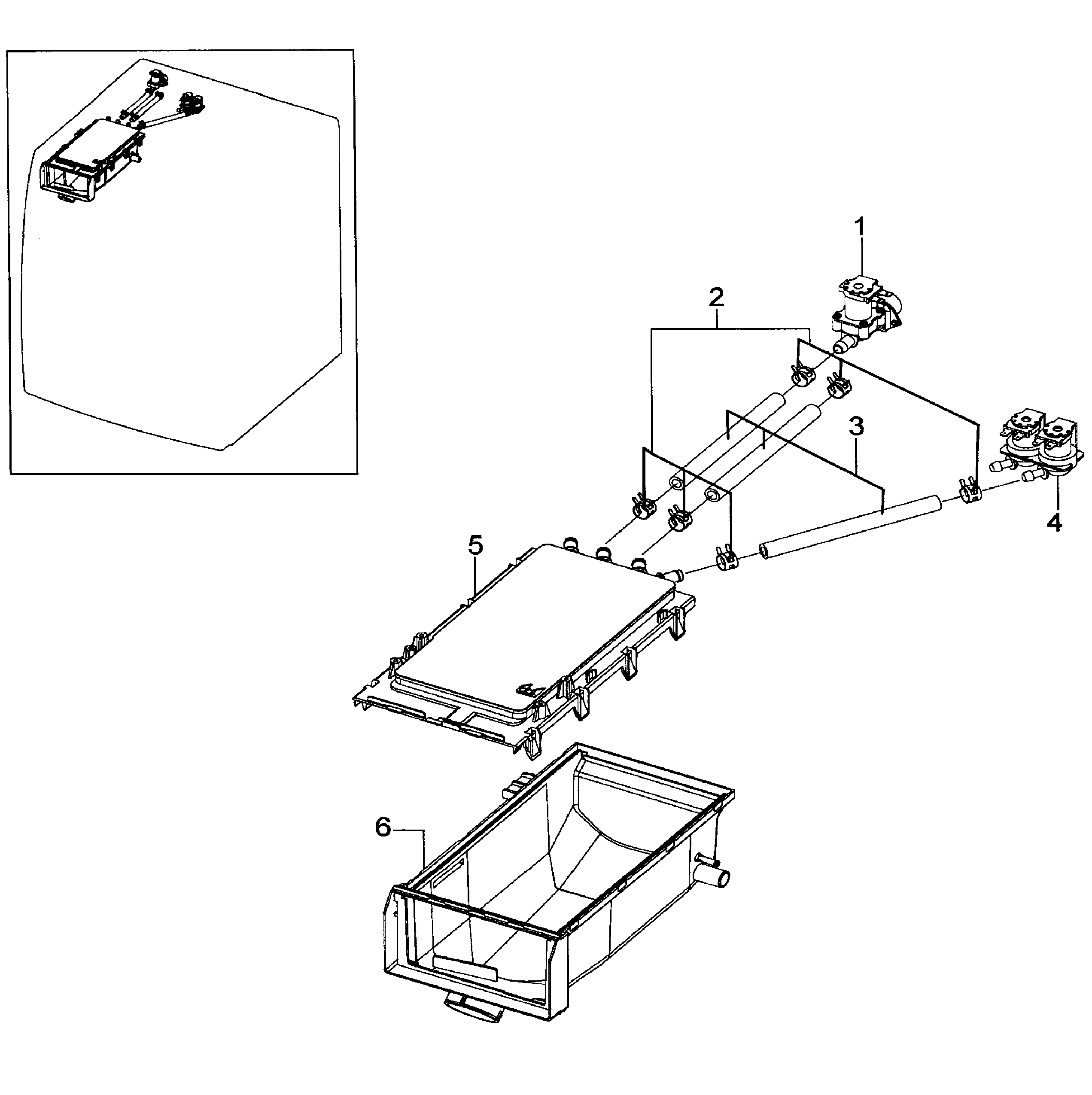

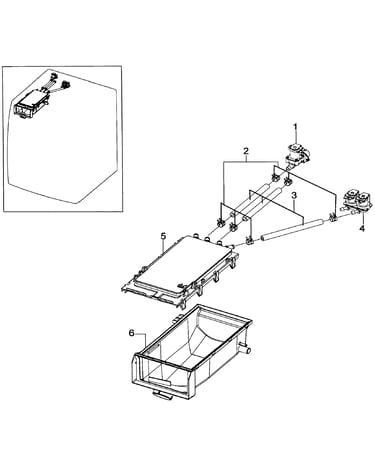

Drawer housing diagram

Washer water inlet valve (replaces dc62-30314h)

Part #DC62-30314K

BEST SELLER
$61.69
9% OFF Phone Price : $67.69
In Stock
Washer Door Boot Spring Clamp DC97-04973B
#19

Drum assy diagram

Washer door boot spring clamp

Part #DC97-04973B

BEST SELLER
$10.94
15% OFF Phone Price : $12.94
In Stock
Washer Outer Tub Gasket DC69-00804A
#37

Drum assy diagram

Washer outer tub gasket

Part #DC69-00804A

BEST SELLER
$24.00
20% OFF Phone Price : $30.00
In Stock
Washer Door Boot Spring Clamp DC97-04981D
#15

Drum assy diagram

Washer door boot spring clamp

Part #DC97-04981D

BEST SELLER
$16.00
11% OFF Phone Price : $18.00
Back Order
Door Latch DC66-00375A
#1-5

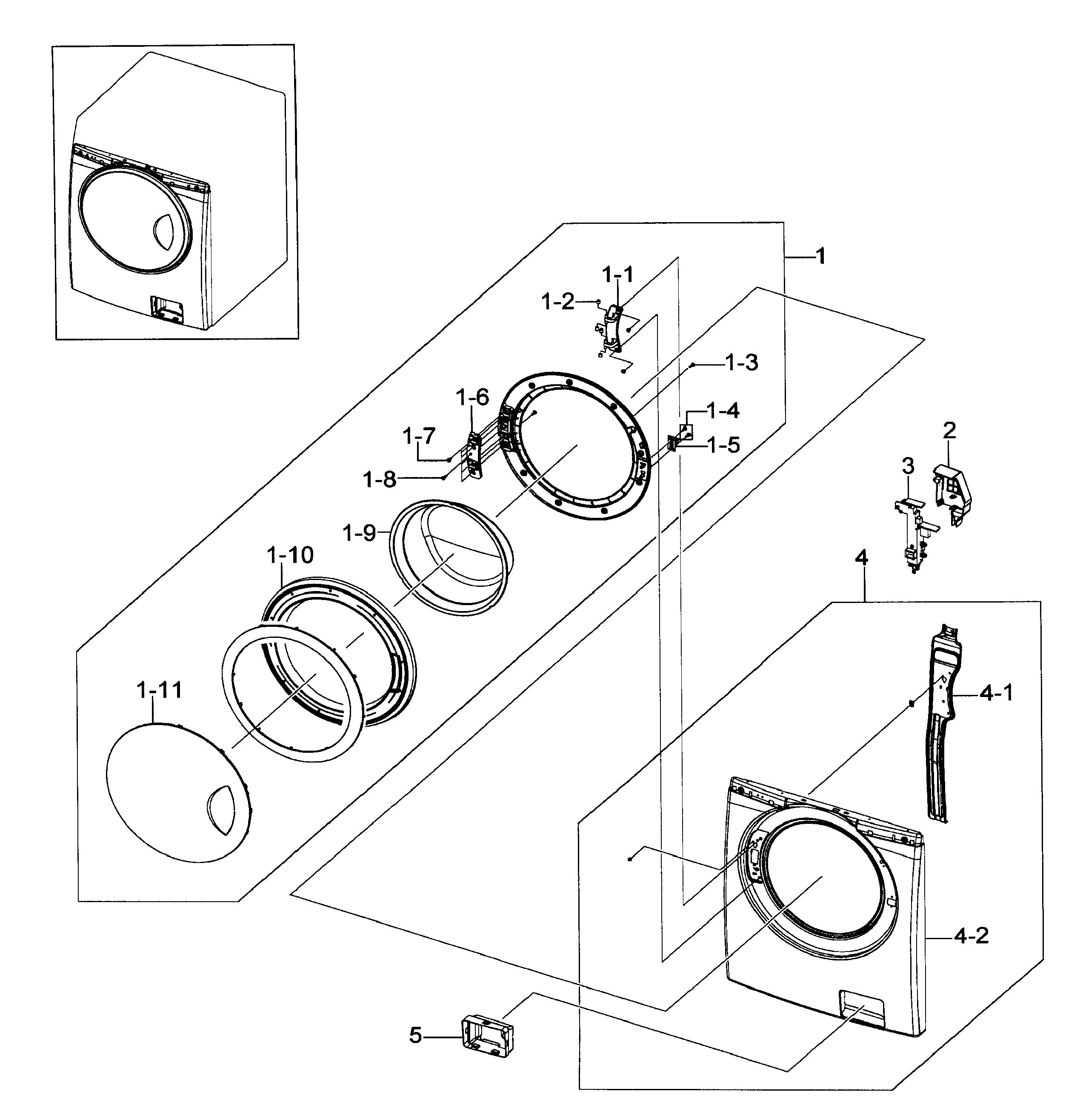

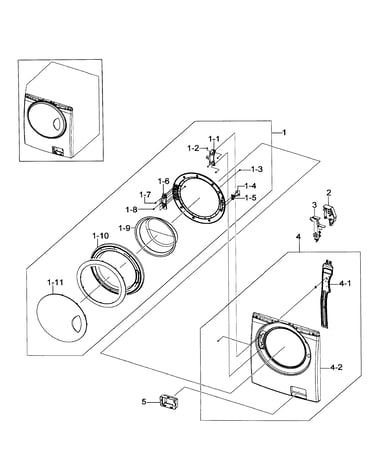

Front assy diagram

Door latch

Part #DC66-00375A

BEST SELLER
In Stock
Washer Drain Hose (replaces Dc67-00330c) DC97-15273A
#25

Cabinet diagram

Washer drain hose (replaces dc67-00330c)

Part #DC97-15273A

$46.43
11% OFF Phone Price : $52.43
In Stock
Kenmore Washer Suspension Spring Bracket DC61-02432A
#2

Cabinet diagram

Kenmore washer suspension spring bracket

Part #DC61-02432A

This item is not returnable
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
