Model # 39030101 Official Sears jet pump

Here are the diagrams and repair parts for Official Sears 39030101 jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |

Motor, 1-hp J218-433
#1B

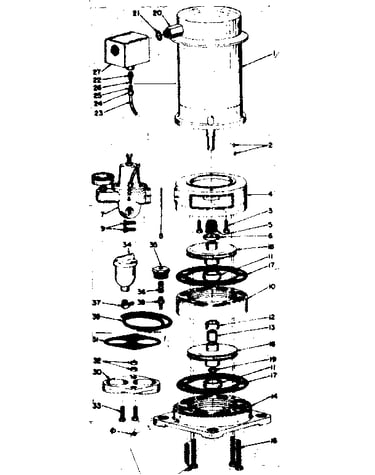

Motor and pump assembly diagram

Motor, 1-hp

Part #J218-433

Replaced by #J218-600C

?
Manufacturer substitution
This part replaces J218-433. Substitute parts can look different from the original.
$150.29
7% OFF Phone Price : $162.29
Back Order
Motor 3/4 Hp J218-432
#1A

Motor and pump assembly diagram

Motor 3/4 hp

Part #J218-432

Replaced by #J218-600C

?
Manufacturer substitution
This part replaces J218-432. Substitute parts can look different from the original.
$150.29
7% OFF Phone Price : $162.29
Back Order

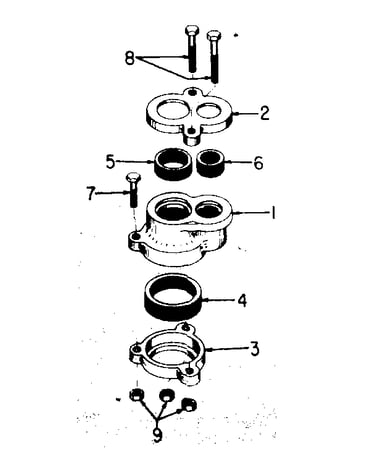

Pump Jet Body Leather Seal, 2-in J57-1
#7A

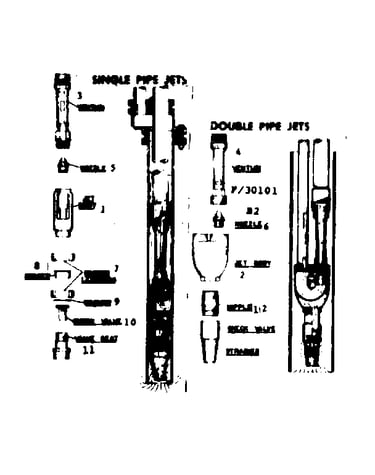

Single & double pipe jets diagram

Pump jet body leather seal, 2-in

Part #J57-1

$63.99
9% OFF Phone Price : $69.99
In Stock
Pump Motor Shaft Spring Retainer J24-11
#6

Motor and pump assembly diagram

Pump motor shaft spring retainer

Part #J24-11

This item is not returnable
$21.29
22% OFF Phone Price : $27.29
Back Order
Pump Wear Ring J23-10
#11

Motor and pump assembly diagram

Pump wear ring

Part #J23-10

This item is not returnable
Back Order
Pump Impeller Spacer J43-23
#13

Motor and pump assembly diagram

Pump impeller spacer

Part #J43-23

Back Order
Impeller Nut U36-79SS
#19

Motor and pump assembly diagram

Impeller nut

Part #U36-79SS

Replaced by #U36-175D

?
Manufacturer substitution
This part replaces U36-79SS. Substitute parts can look different from the original.
This item is not returnable
In Stock
Elbow U11-86
#19

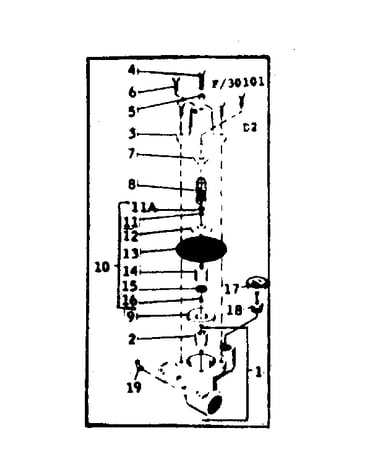

Jet pump pressure regulator diagram

Elbow

Part #U11-86

Replaced by #U111-212T

?
Manufacturer substitution
This part replaces U11-86. Substitute parts can look different from the original.
This item is not returnable
$27.69
18% OFF Phone Price : $33.69
Back Order
Adapter J20-12
#31

Motor and pump assembly diagram

Adapter

Part #J20-12

Replaced by #J20-12N

?
Manufacturer substitution
This part replaces J20-12. Substitute parts can look different from the original.
This item is not returnable
$14.49
12% OFF Phone Price : $16.49
Back Order
Guide J42-5
#9

Jet pump pressure regulator diagram

Guide

Part #J42-5

This item is not returnable
In Stock
