Kenmore 86766152 gas-fired space saver furnace Parts

Name: Kenmore 86766152 Parts | Diagrams | Sears PartsDirect
Brand: Kenmore
SKU: 86766152
Availability: InStock

Here are the diagrams and repair parts for Kenmore 86766152 gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for 86766152 Gas-Fired Space Saver Furnace

Return air drop diagram
Filter Support
Part #69944
The manufacturer no longer makes this part, and there's no substitute part
Burner and manifold assembly diagram
Screw
Part #132892
The manufacturer no longer makes this part, and there's no substitute part
Return air drop diagram
Filter Support
Part #69946
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Homart Model 541.9188
Part #9188
The manufacturer no longer makes this part, and there's no substitute part
H-q blower assembly diagram
Box Cover
Part #74465
The manufacturer no longer makes this part, and there's no substitute part

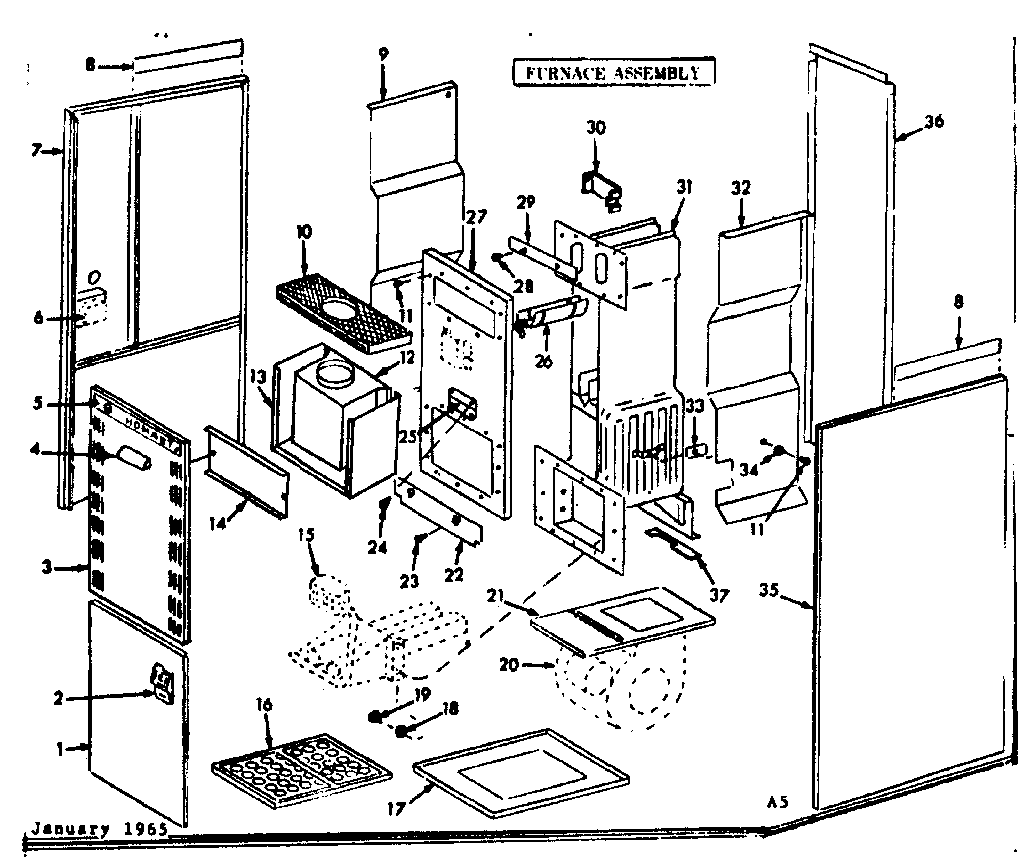

Furnace assembly diagram
Bracket
Part #69118
The manufacturer no longer makes this part, and there's no substitute part
Furnace assembly diagram
Burner Shield
Part #79038
The manufacturer no longer makes this part, and there's no substitute part
