Model # SA-HT920P Official Panasonic home theater

Here are the diagrams and repair parts for Official Panasonic SA-HT920P home theater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Spring RMC0387
#326

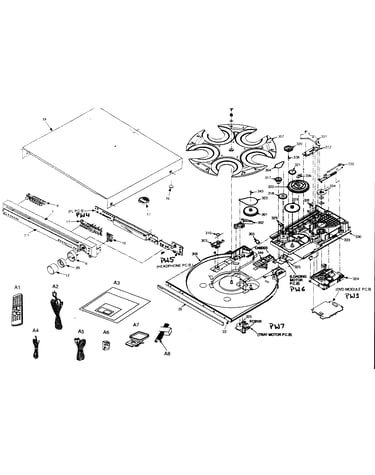

Cabinet parts diagram

Spring

Part #RMC0387

This item is not returnable
$4.17
In Stock
Clamp RMR1446-X
#333

Cabinet parts diagram

Clamp

Part #RMR1446-X

This item is not returnable
$3.41
In Stock
Relay Gear RDG0563
#318

Cabinet parts diagram

Relay gear

Part #RDG0563

This item is not returnable
$3.92
In Stock
Drive Gear RDG0566
#321

Cabinet parts diagram

Drive gear

Part #RDG0566

This item is not returnable
$2.74
In Stock
Plate Rlat RMM0254
#332

Cabinet parts diagram

Plate rlat

Part #RMM0254

This item is not returnable
$3.09
In Stock
Plate L RMM0255
#312

Cabinet parts diagram

Plate l

Part #RMM0255

This item is not returnable
$2.99
In Stock
Ic 5v Reg C0CBADG00023
#NI

Cabinet parts diagram

Ic 5v reg

Part #C0CBADG00023

This item is not returnable
$6.17
In Stock
Fuse Protc K5G202AA0002
#NI

Cabinet parts diagram

Fuse protc

Part #K5G202AA0002

This item is not returnable
$5.41
In Stock
Base Block RMM0256
#344

Cabinet parts diagram

Base block

Part #RMM0256

This item is not returnable
$4.58
In Stock
Vol. Ring RGKX0253-1S
#6

Cabinet parts diagram

Vol. ring

Part #RGKX0253-1S

This item is not returnable
$4.58
In Stock
