Maytag
Garbage Disposal

Model # DFB6000AAX Official Maytag garbage disposal

Here are the diagrams and repair parts for Official Maytag DFB6000AAX garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

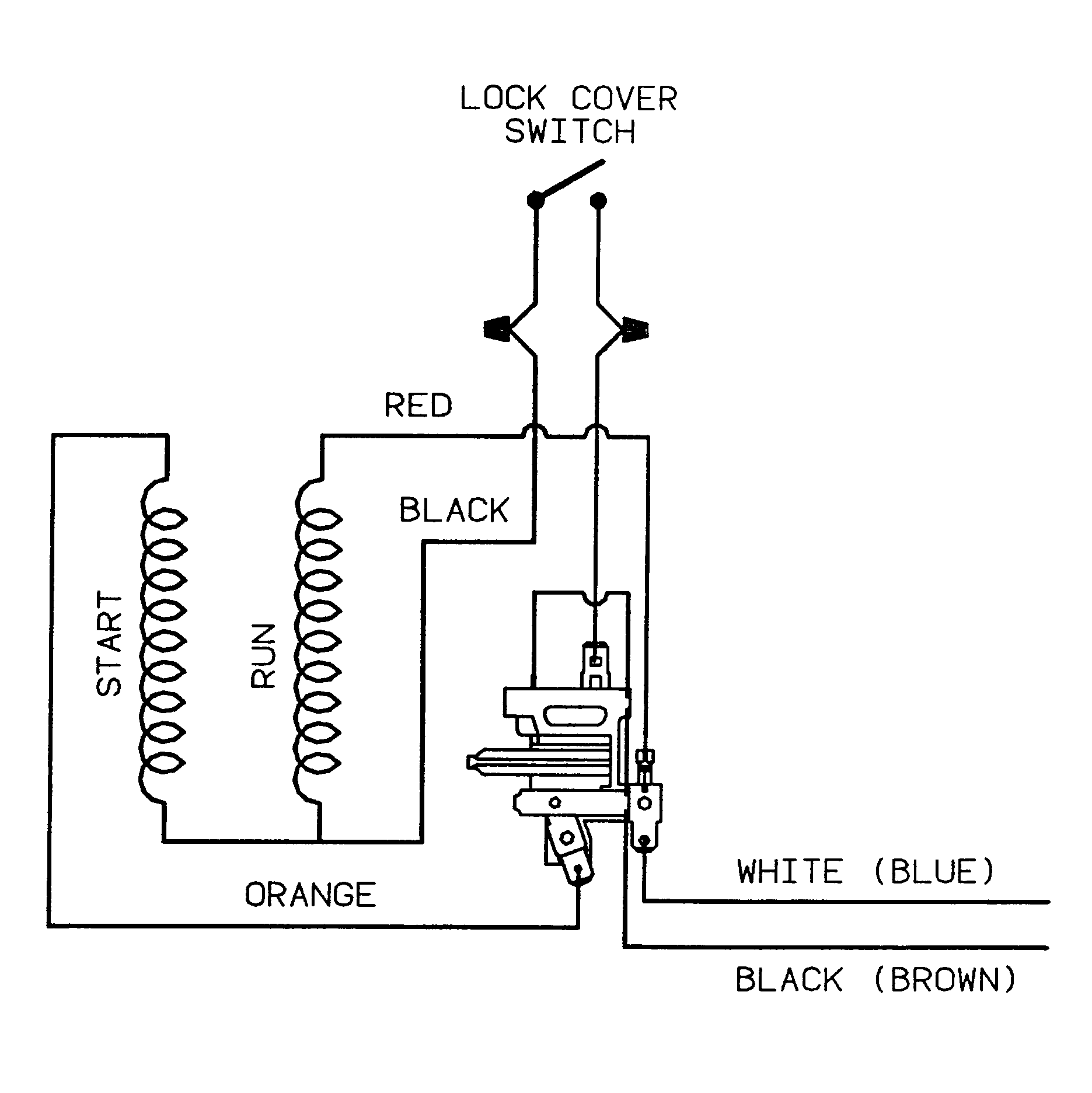

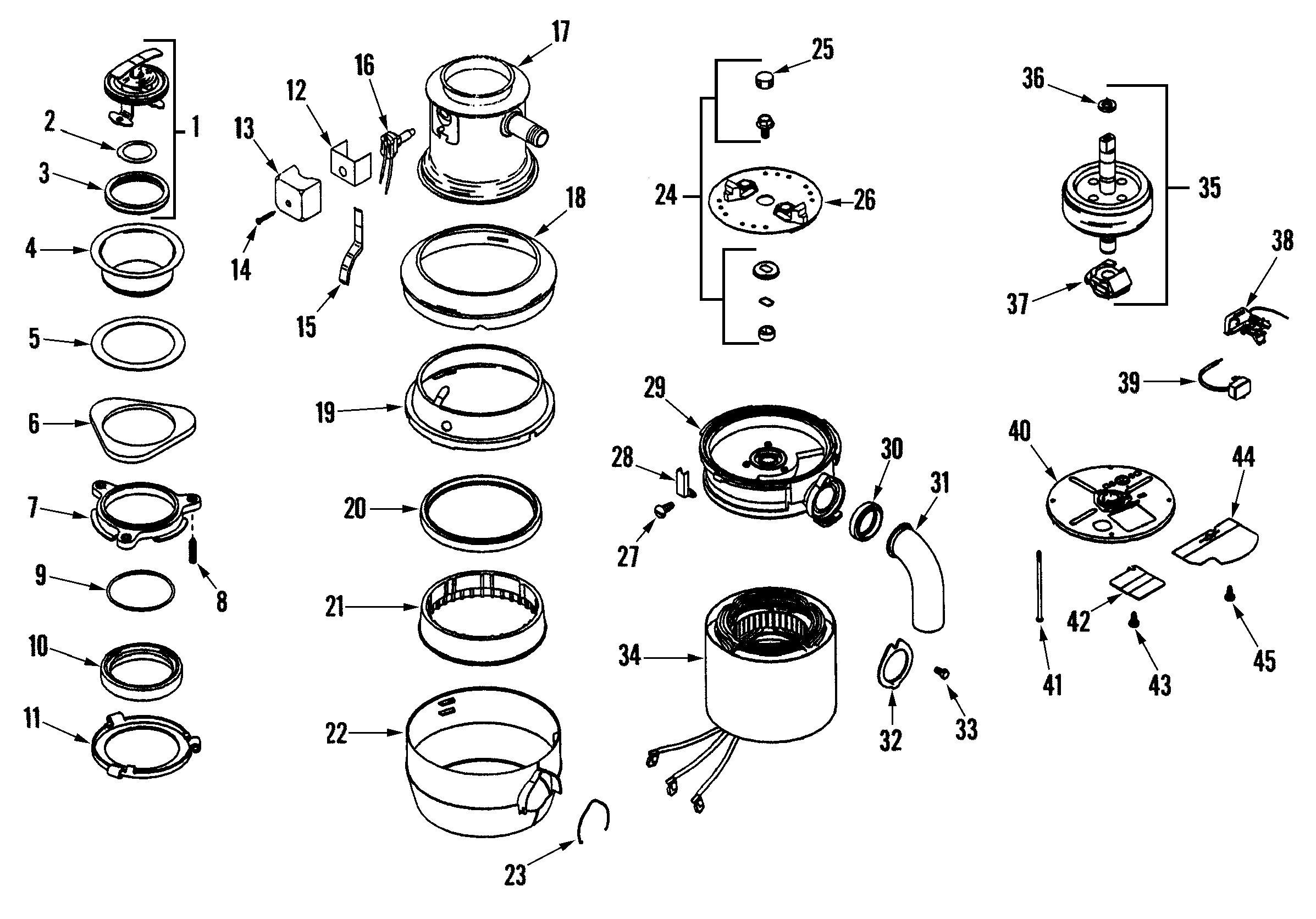

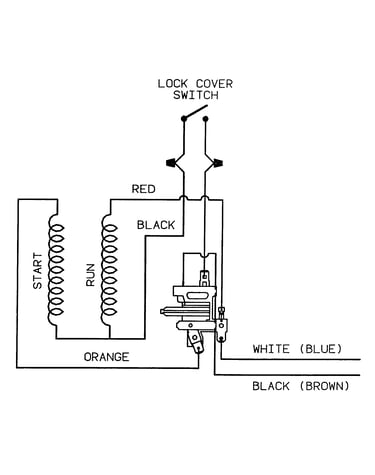

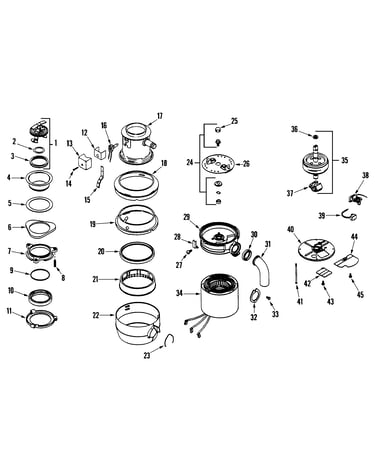

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Gasket Stop 08300070
#2

Body diagram

Gasket stop

Part #08300070

The manufacturer no longer makes this part, and there's no substitute part

Wire Shield 08300098
#28

Body diagram

Wire shield

Part #08300098

Replaced by #Y08300098

?
Manufacturer substitution
This part replaces 08300098. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Switch 83001008
#38

Body diagram

Switch

Part #83001008

The manufacturer no longer makes this part, and there's no substitute part

Shredder, St 08300077
#21

Body diagram

Shredder, st

Part #08300077

Replaced by #Y08300077

?
Manufacturer substitution
This part replaces 08300077. Substitute parts can look different from the original.
$144.68
In Stock
Tailpipe 752553
#31

Body diagram

Tailpipe

Part #752553

The manufacturer no longer makes this part, and there's no substitute part

Gasket 752502
#5

Body diagram

Gasket

Part #752502

Replaced by #4211606

?
Manufacturer substitution
This part replaces 752502. Substitute parts can look different from the original.
This item is not returnable
$14.00
In Stock
Mounting Gasket 08300102
#10

Body diagram

Mounting gasket

Part #08300102

Replaced by #4211411

?
Manufacturer substitution
This part replaces 08300102. Substitute parts can look different from the original.
$9.98
In Stock
End Frame 08300045
#40

Body diagram

End frame

Part #08300045

Replaced by #Y08300045

?
Manufacturer substitution
This part replaces 08300045. Substitute parts can look different from the original.
$14.95
In Stock
Sleeve & Sea 08300042
#24

Body diagram

Sleeve & sea

Part #08300042

The manufacturer no longer makes this part, and there's no substitute part

Centrifugal 752520
#37

Body diagram

Centrifugal

Part #752520

Replaced by #4211322

?
Manufacturer substitution
This part replaces 752520. Substitute parts can look different from the original.
$37.96
In Stock
