Model # SA-CT380 Official Sony audio speaker

Here are the diagrams and repair parts for Official Sony SA-CT380 audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Pcb Key A2063684A
#103

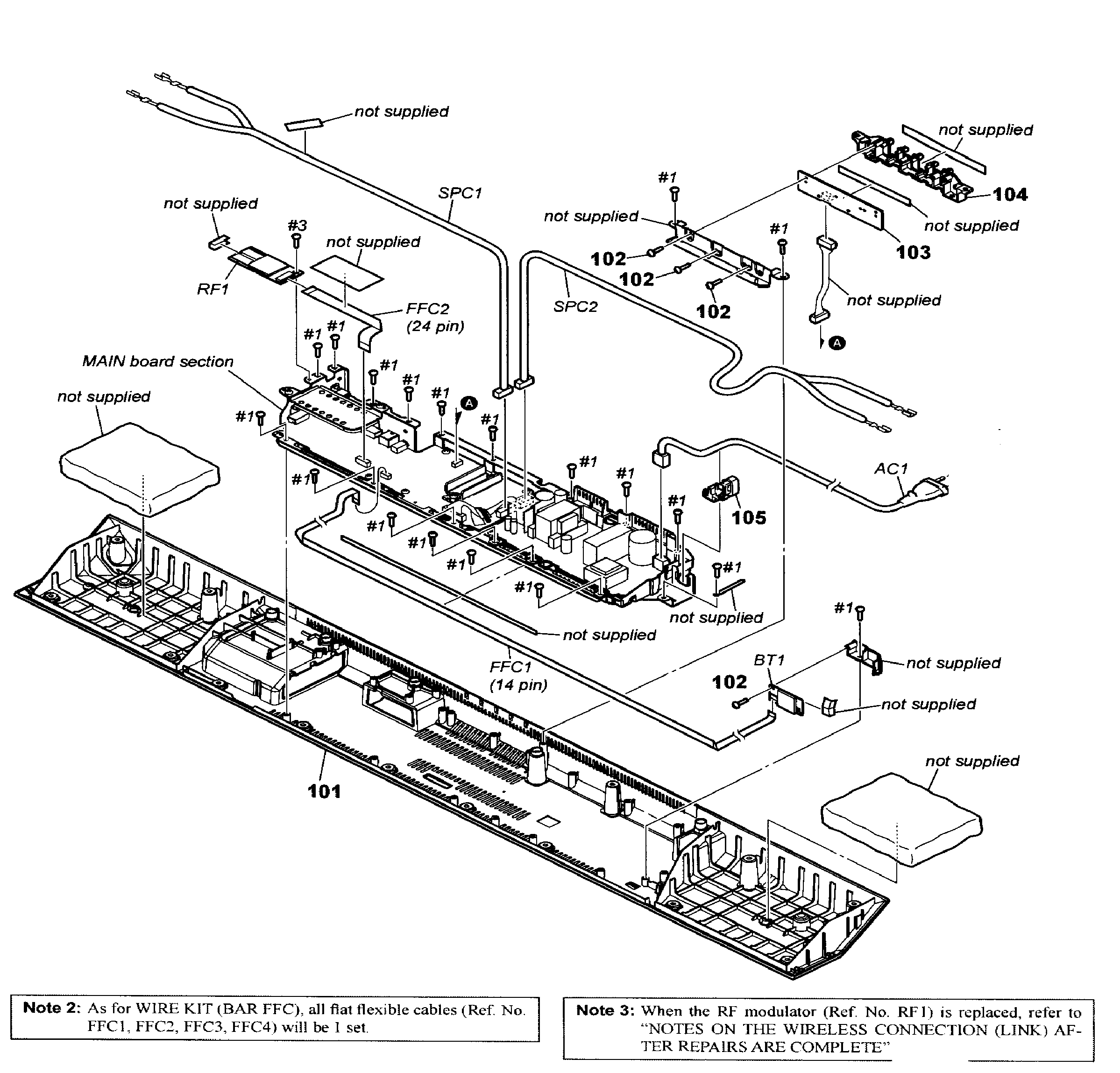

Rear panel diagram

Pcb key

Part #A2063684A

The manufacturer no longer makes this part, and there's no substitute part

Side Panel X25911291
#52

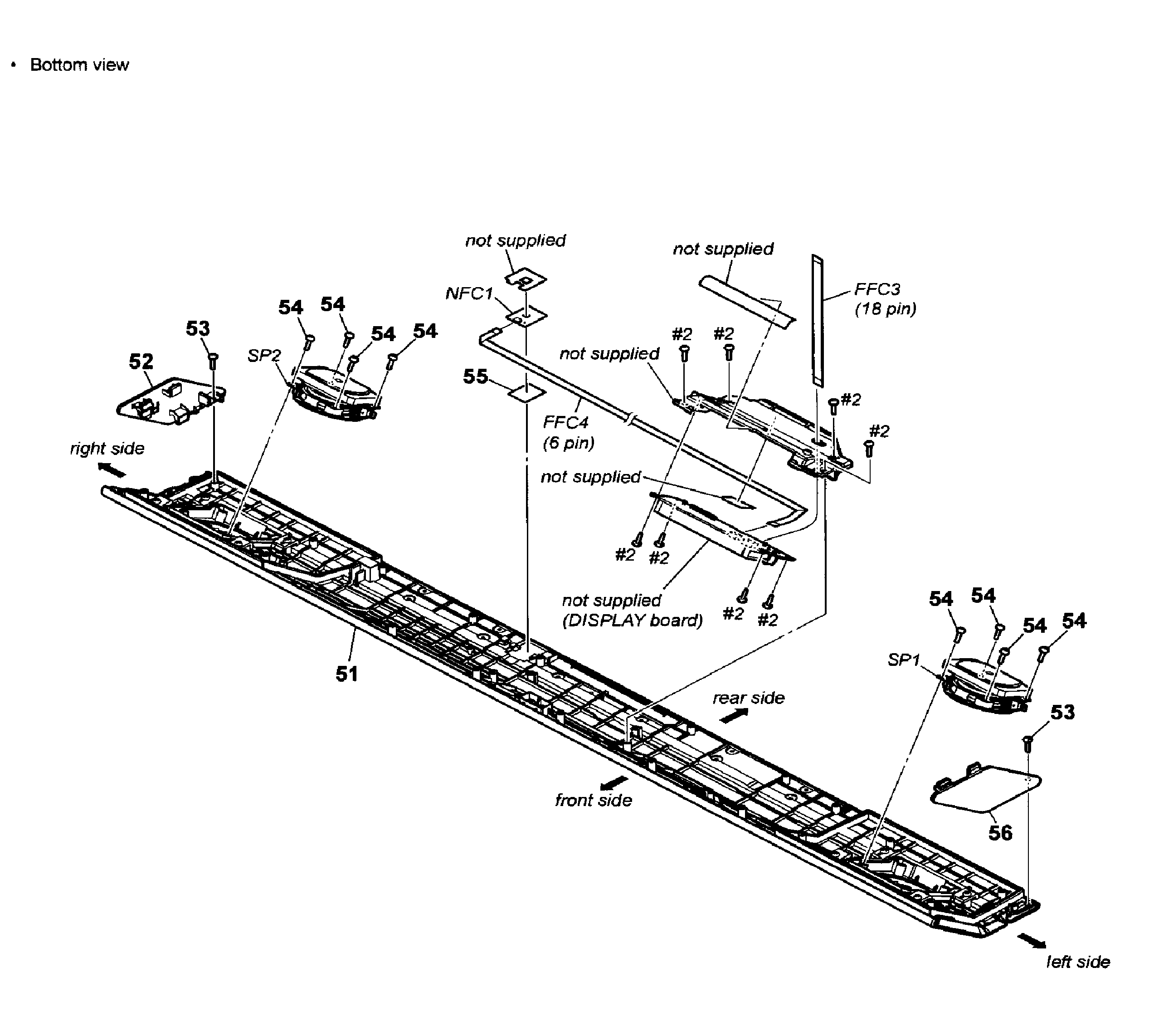

Front panel diagram

Side panel

Part #X25911291

The manufacturer no longer makes this part, and there's no substitute part

Home Theater System Remote Control 149293112
#NI

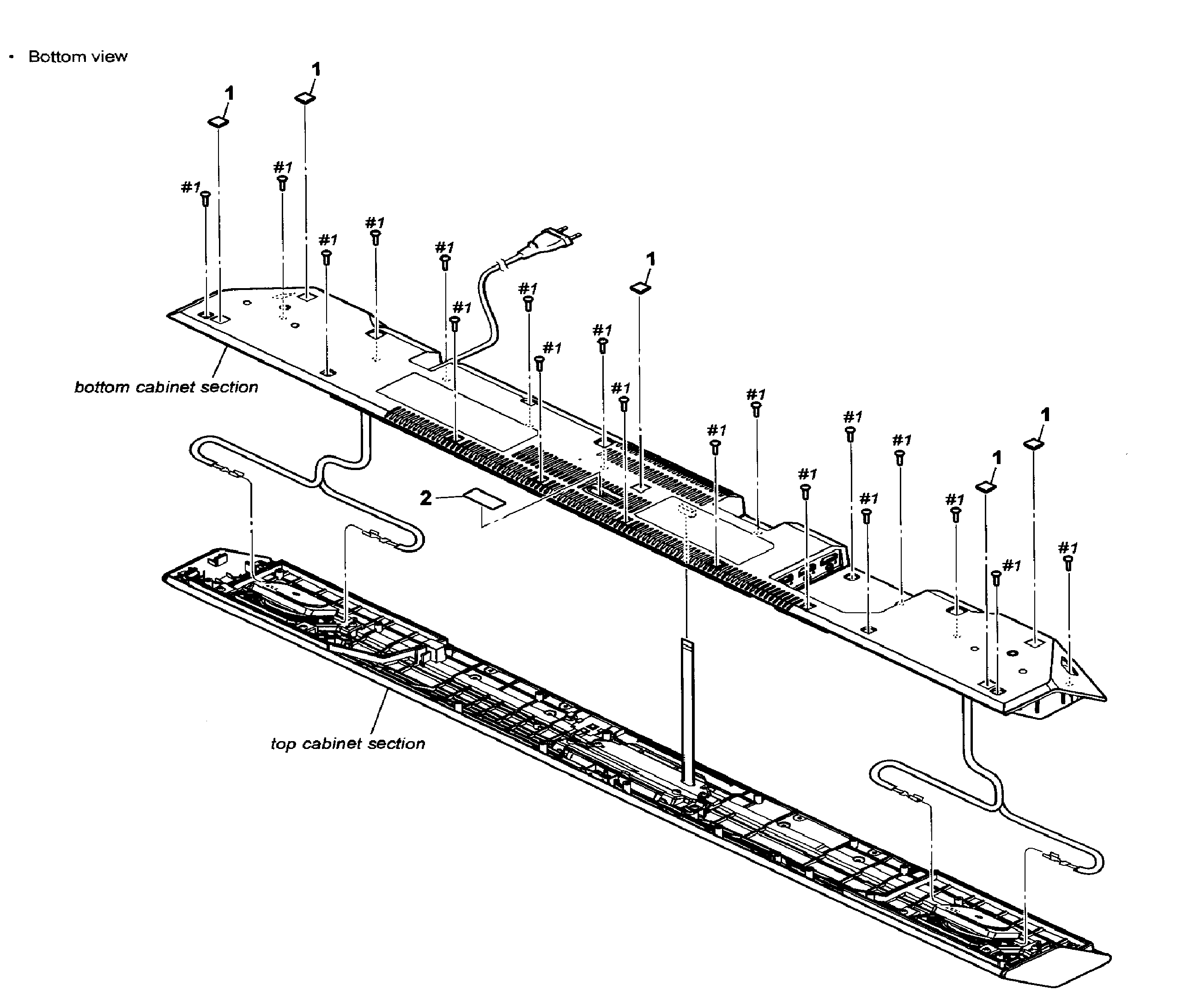

Cabinet diagram

Home theater system remote control

Part #149293112

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb A2076757A
#152

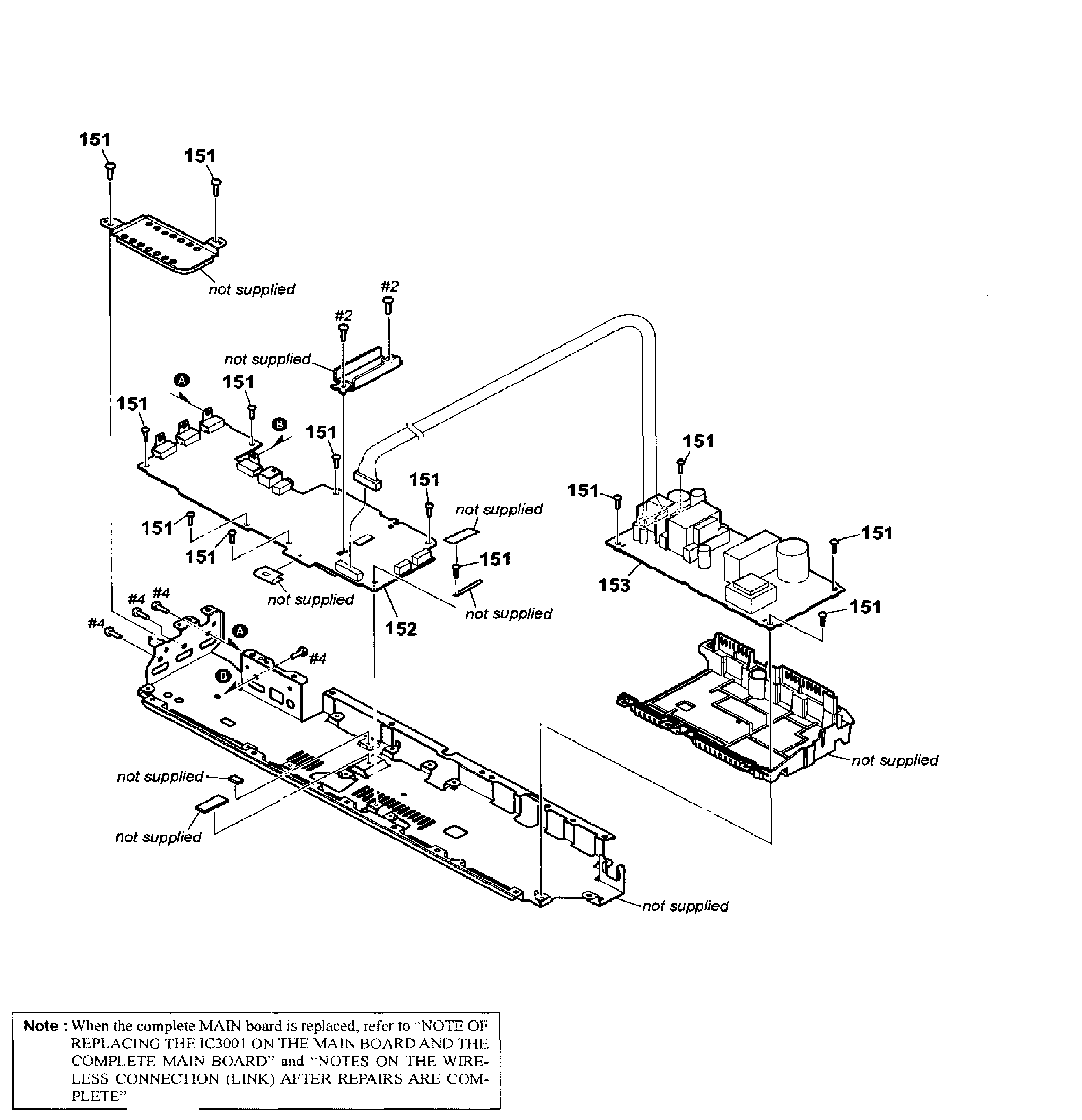

Main board diagram

Main pcb

Part #A2076757A

The manufacturer no longer makes this part, and there's no substitute part

Holder Wal 454975801
#NI

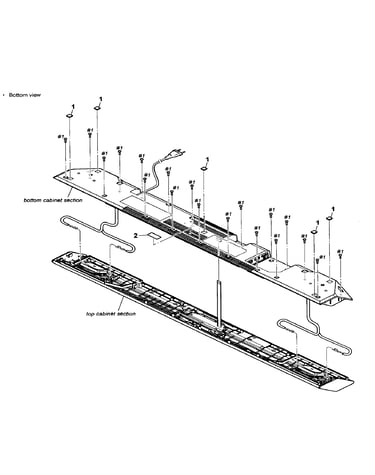

Cabinet diagram

Holder wal

Part #454975801

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb A2063682A
#153

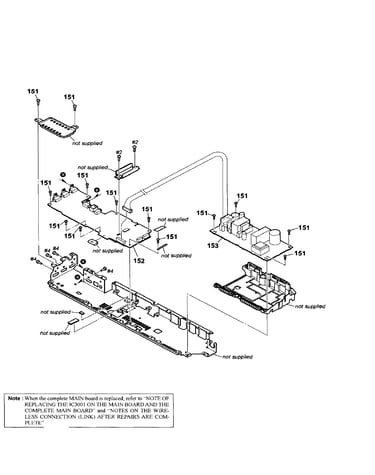

Main board diagram

Power pcb

Part #A2063682A

The manufacturer no longer makes this part, and there's no substitute part

Side Panel X25911281
#56

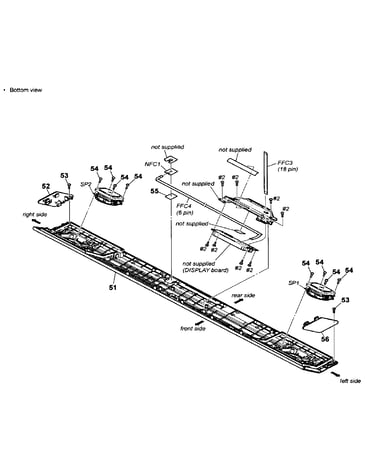

Front panel diagram

Side panel

Part #X25911281

The manufacturer no longer makes this part, and there's no substitute part

Cabe W/spk 184886611
#SPC1

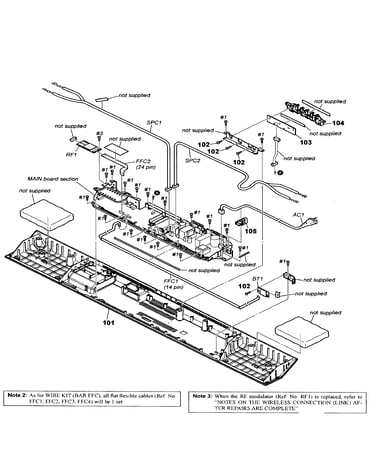

Rear panel diagram

Cabe w/spk

Part #184886611

The manufacturer no longer makes this part, and there's no substitute part

Double Adh 445900601
#55

Front panel diagram

Double adh

Part #445900601

The manufacturer no longer makes this part, and there's no substitute part

Nfc Module 898960200
#NFC1

Front panel diagram

Nfc module

Part #898960200

The manufacturer no longer makes this part, and there's no substitute part
