Kenmore
Countertop Microwave

Model # 5649927710 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5649927710 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

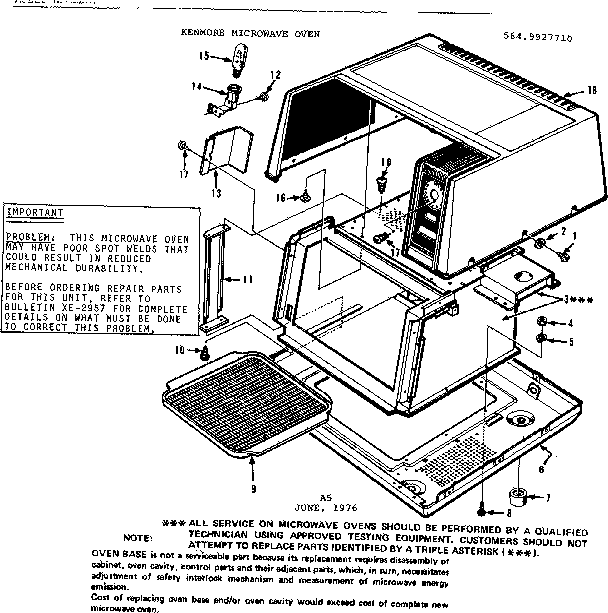

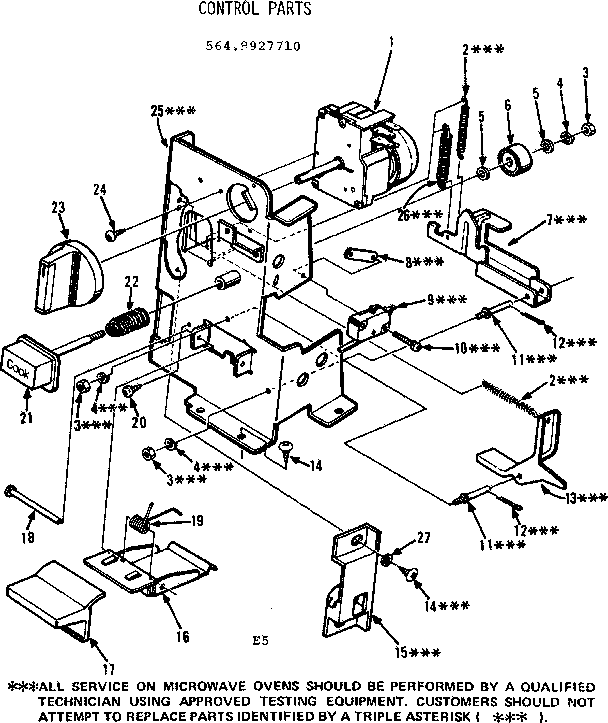

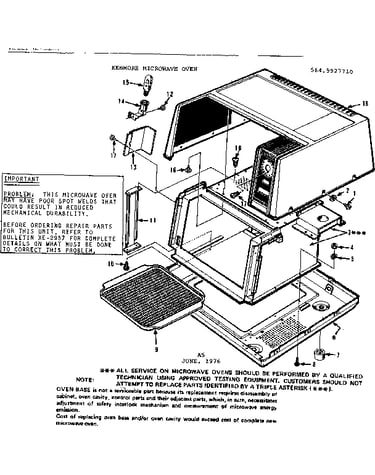

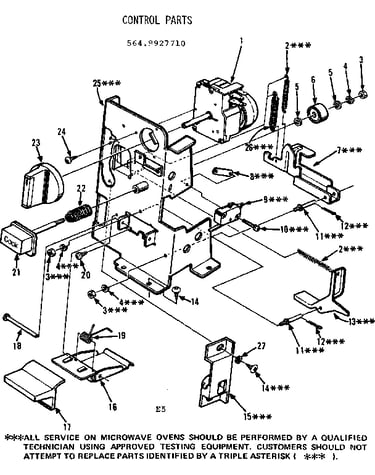

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Magnetron 10479
#5

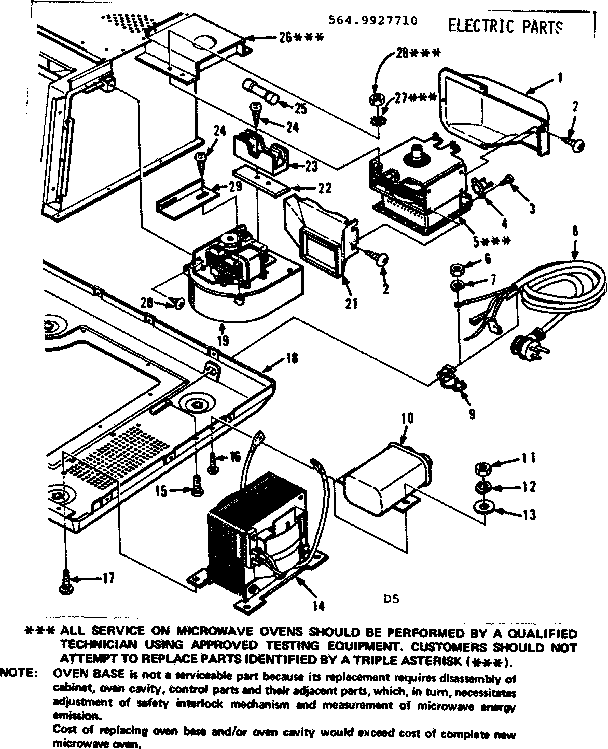

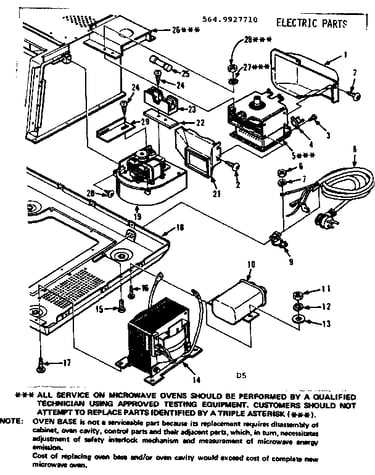

Electric parts diagram

Magnetron

Part #10479

The manufacturer no longer makes this part, and there's no substitute part

Screw 10049
#3

Electric parts diagram

Screw

Part #10049

The manufacturer no longer makes this part, and there's no substitute part

Screw 10506
Screw

Part #10506

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 10304
#4

Electric parts diagram

Thermostat

Part #10304

The manufacturer no longer makes this part, and there's no substitute part

Spring 10497
#14

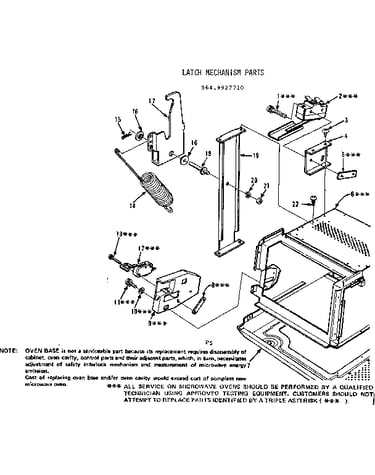

Latch mechanism parts diagram

Spring

Part #10497

The manufacturer no longer makes this part, and there's no substitute part

Supporter 10431
Supporter

Part #10431

The manufacturer no longer makes this part, and there's no substitute part

Door Arm 10500
#17

Latch mechanism parts diagram

Door arm

Part #10500

The manufacturer no longer makes this part, and there's no substitute part

Ferrite Rubber 10472
#21

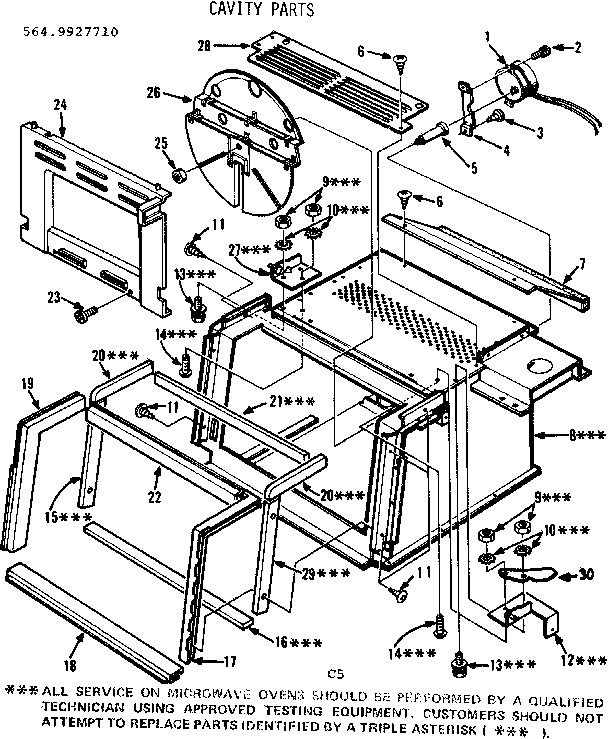

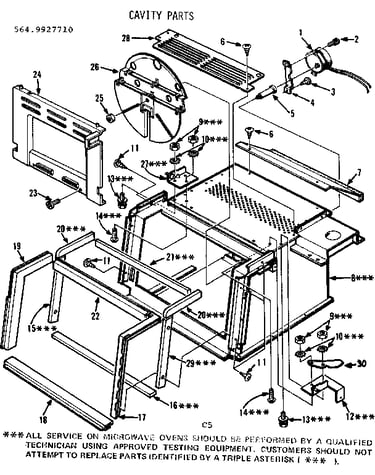

Cavity parts diagram

Ferrite rubber

Part #10472

The manufacturer no longer makes this part, and there's no substitute part

Fact Tag 10509

#NI

All parts diagram

Fact tag

Part #10509

The manufacturer no longer makes this part, and there's no substitute part

Screw 10450
#19

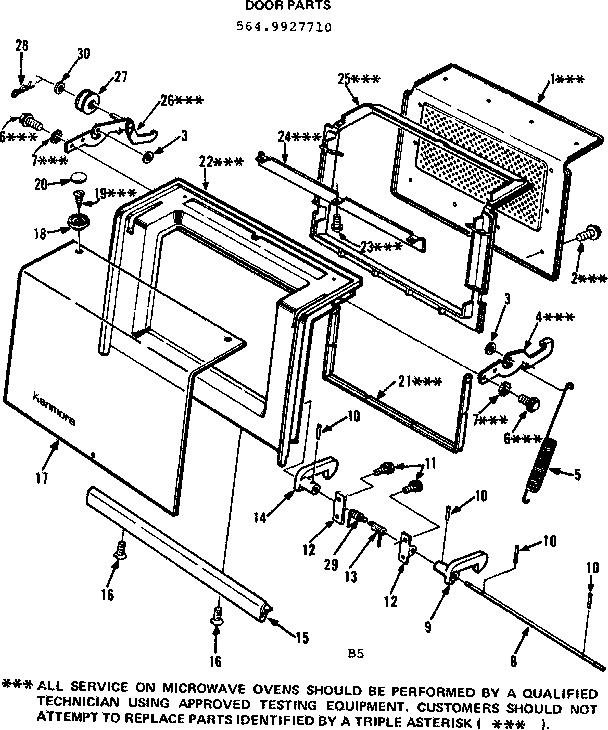

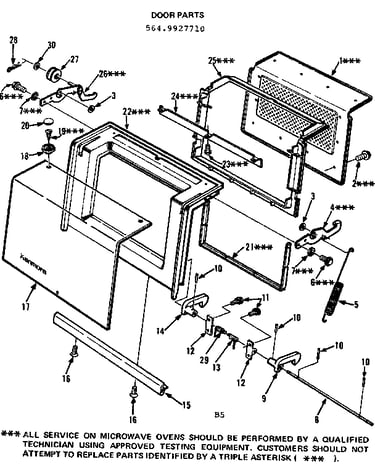

Door parts diagram

Screw

Part #10450

The manufacturer no longer makes this part, and there's no substitute part
