Model #60UF8500 LG lcd television

Here are the diagrams and repair parts for LG 60UF8500 lcd television, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 19 parts

    Television Wi-Fi Module

    #570

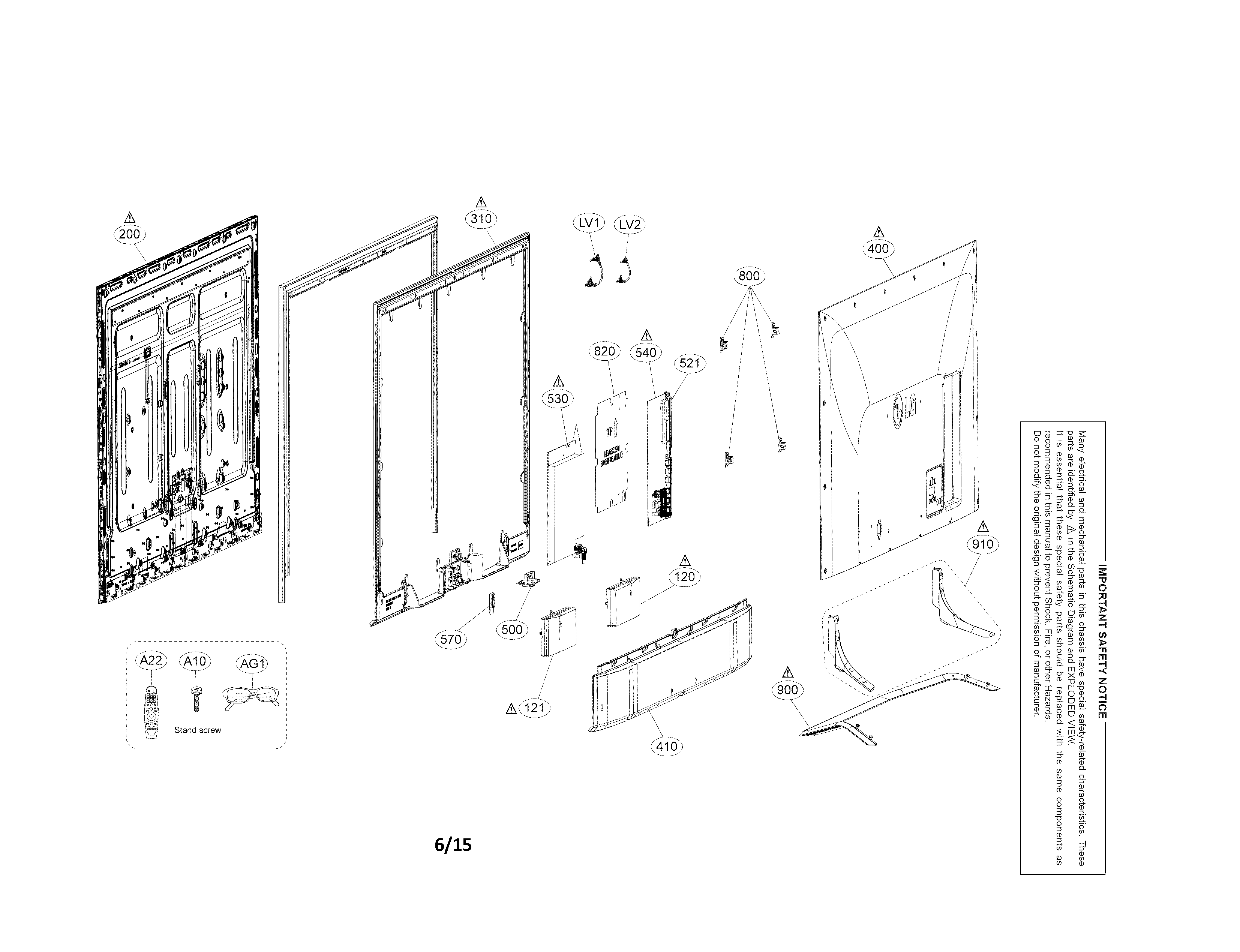

    Exploded view parts Diagram

    Television wi-fi module

    Part #EAT62093301
    $39.97

    In Stock

    Bracket

    #910

    Exploded view parts Diagram

    Bracket

    Part #ABA75309602
    $53.80

    In Stock

    Power Supply

    #530

    Exploded view parts Diagram

    Power supply

    Part #EAY63729201
    $140.14

    In Stock

    Television Screw

    #A10

    Exploded view parts Diagram

    Television screw

    Part #FAB30016124
    This item is not returnable
    $2.53

    In Stock

    LVDS Cable

    #LV1

    Exploded view parts Diagram

    Lvds cable

    Part #EAD63285701
    $12.99

    In Stock

    Cable

    #LV2

    Exploded view parts Diagram

    Cable

    Part #EAD63285601
    $13.49

    In Stock

    Television 3D Glasses

    #AG1

    Exploded view parts Diagram

    Television 3d glasses

    Part #EBX61668501
    $17.08

    In Stock

    Television Remote Control

    #A22

    Exploded view parts Diagram

    Television remote control

    Part #AKB75455602
    ?
    Manufacturer substitution
    This part replaces AGF77840201. Substitute parts can look different from the original.
    This part replaces AGF77840201
    $56.46

    In Stock

    Bracket

    #521

    Exploded view parts Diagram

    Bracket

    Part #MAZ64546107

    The manufacturer no longer makes this part, and there's no substitute part

    Supporter

    #800

    Exploded view parts Diagram

    Supporter

    Part #MJH63133501

    The manufacturer no longer makes this part, and there's no substitute part
