Dacor
Built-In Microwave

Model #DCM24B Dacor microwave

Here are the diagrams and repair parts for Dacor DCM24B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

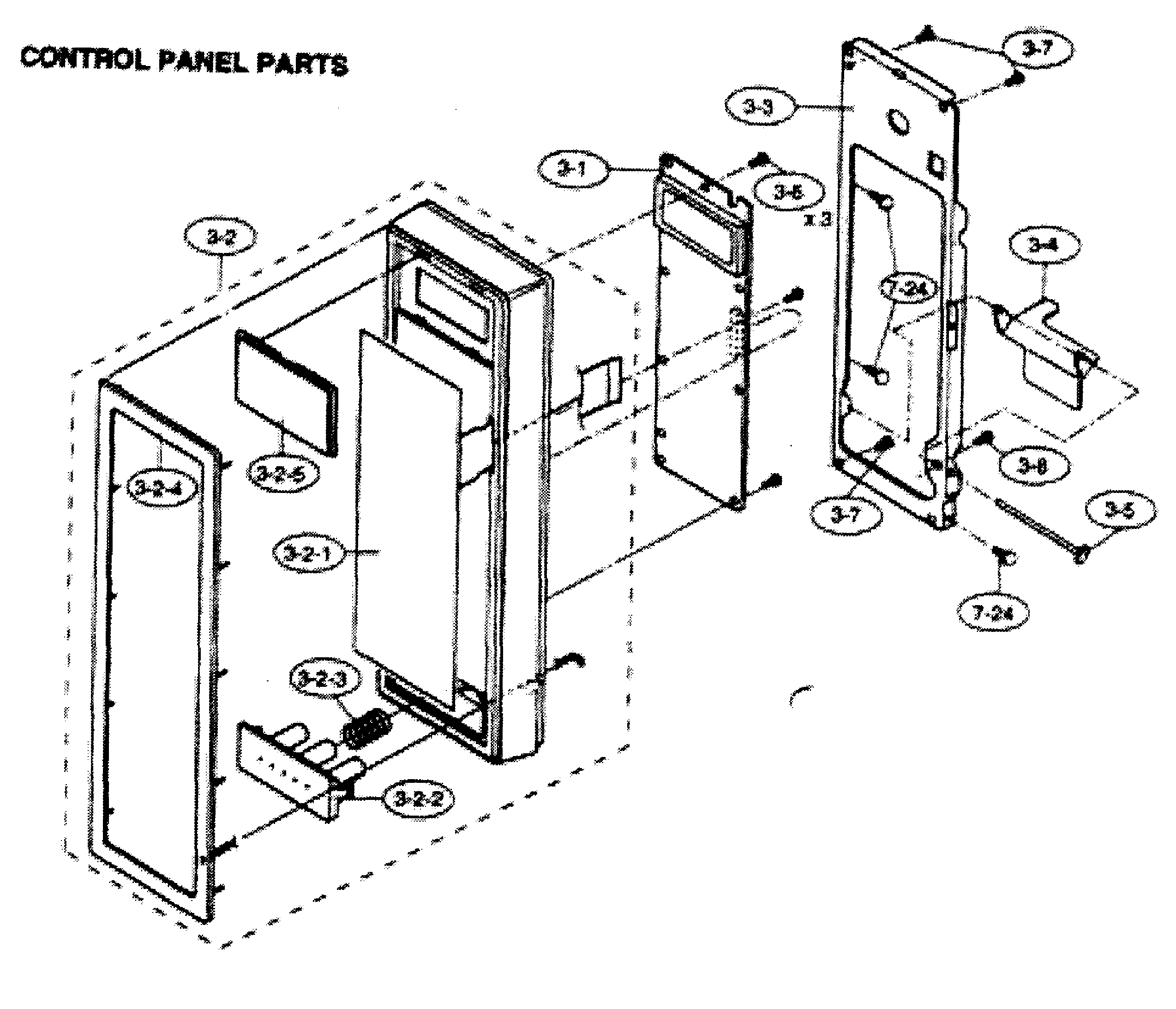

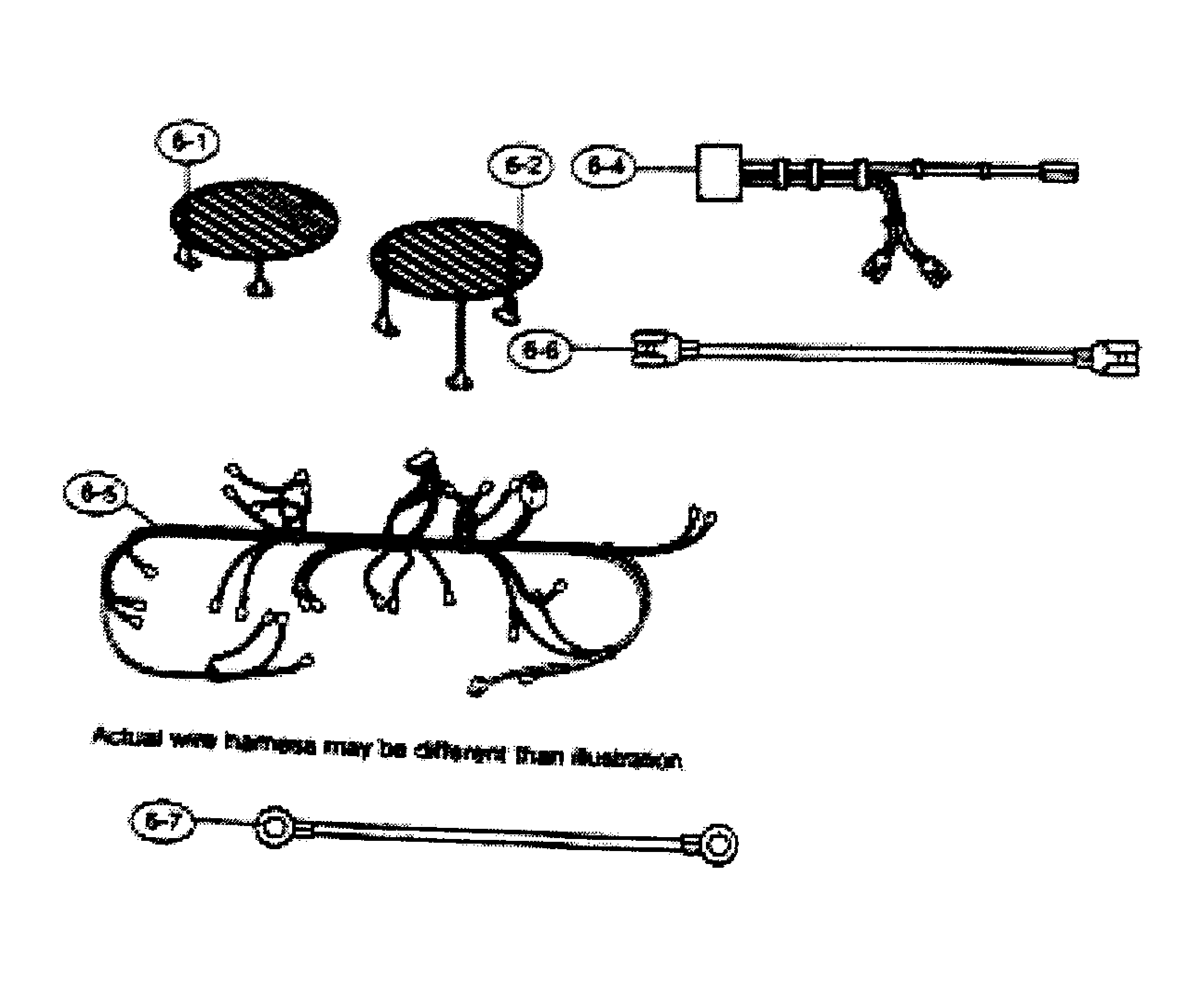

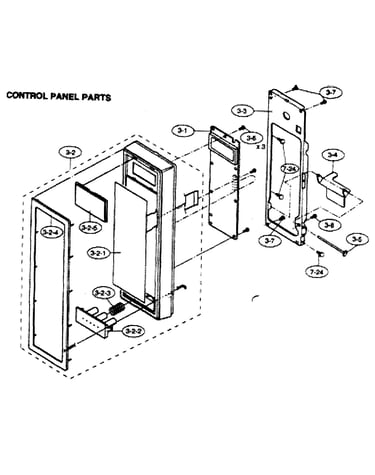

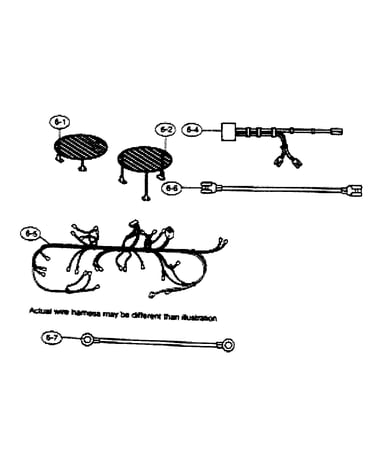

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 129 parts

    Microwave Humidity Sensor

    #121

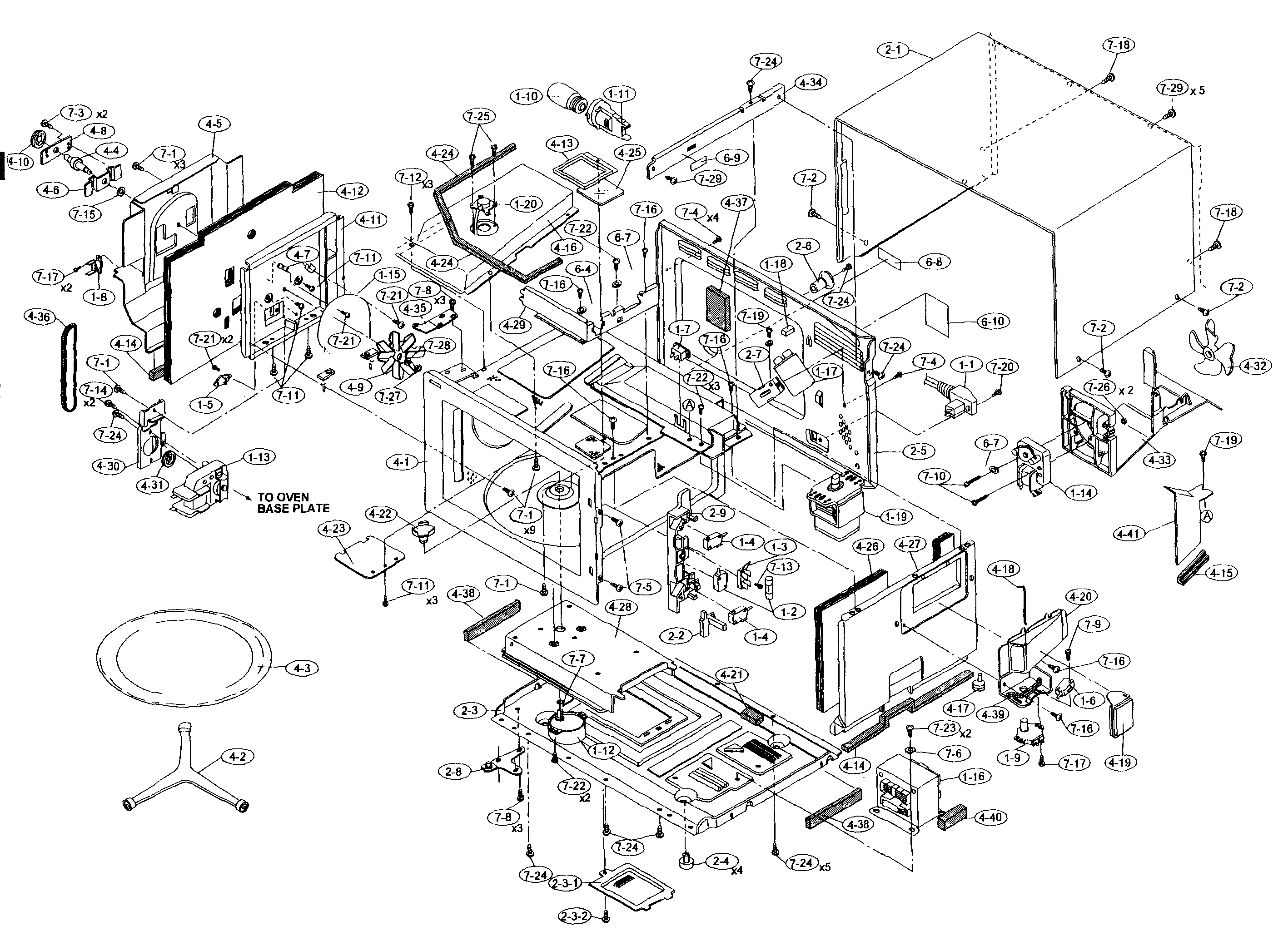

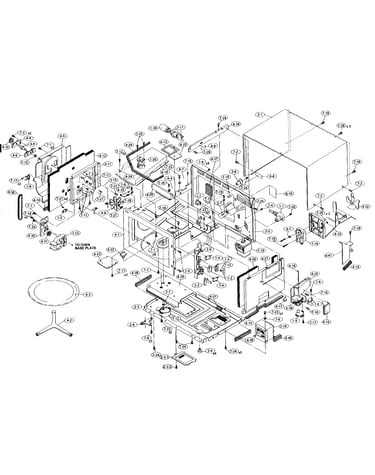

    Cabinet parts Diagram

    Microwave humidity sensor

    Part #66389

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #79

    Cabinet parts Diagram

    Screw

    Part #66428

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #714

    Cabinet parts Diagram

    Screw

    Part #66433

    The manufacturer no longer makes this part, and there's no substitute part

    Cushion

    #419

    Cabinet parts Diagram

    Cushion

    Part #66485

    The manufacturer no longer makes this part, and there's no substitute part

    C Angle

    #430

    Cabinet parts Diagram

    C angle

    Part #66497

    The manufacturer no longer makes this part, and there's no substitute part

    Fuse Holder

    #13

    Cabinet parts Diagram

    Fuse holder

    Part #66373

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #717

    Cabinet parts Diagram

    Screw

    Part #66436

    The manufacturer no longer makes this part, and there's no substitute part

    Duct Fan

    #433

    Cabinet parts Diagram

    Duct fan

    Part #66500

    The manufacturer no longer makes this part, and there's no substitute part

    Latch Angl

    #56

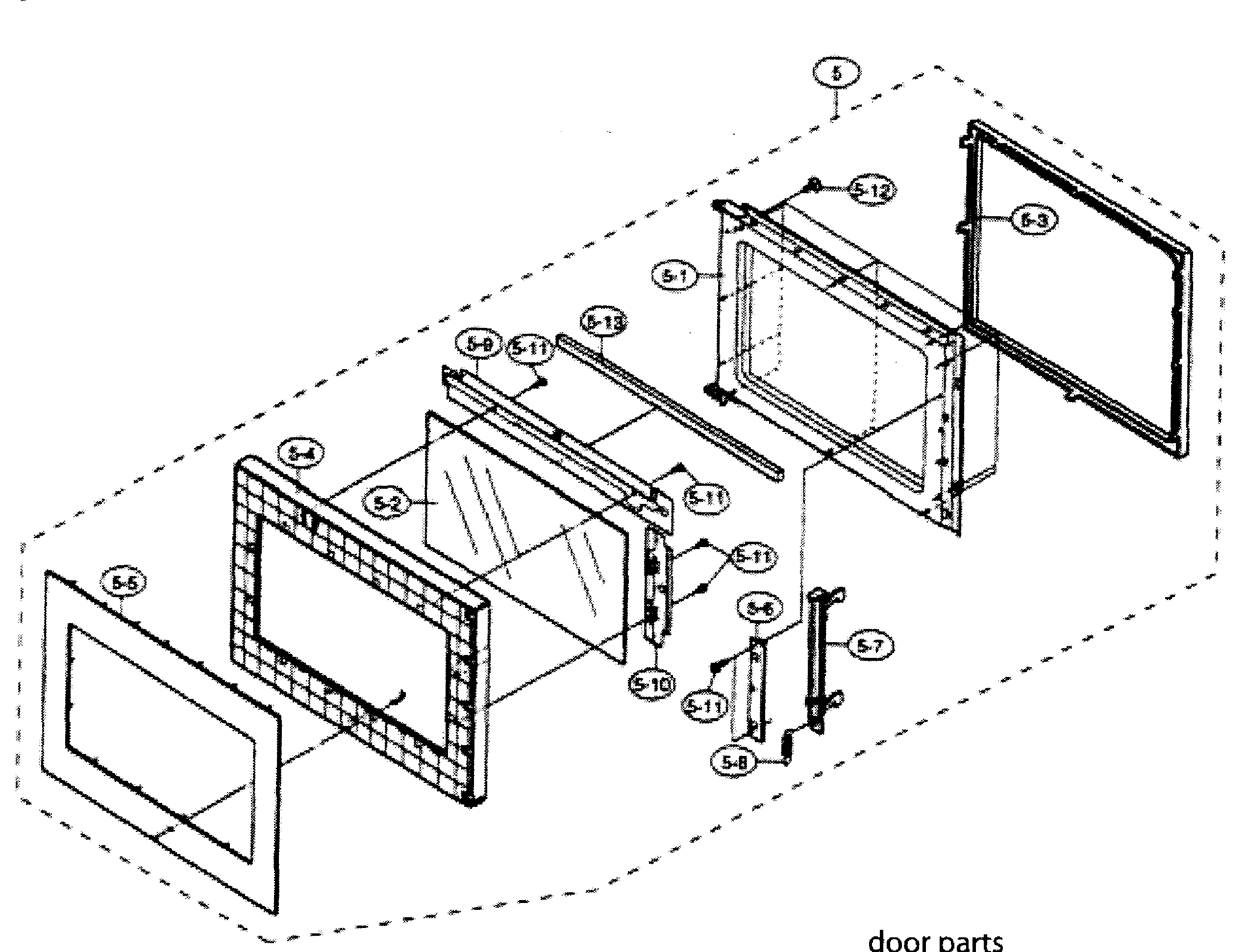

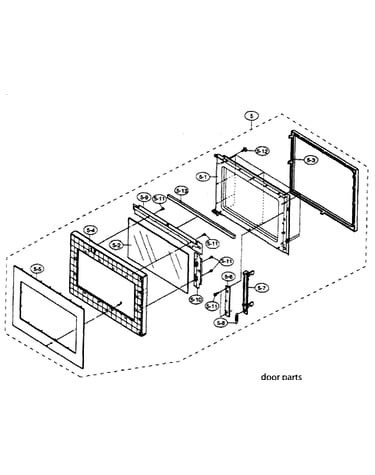

    Door assy Diagram

    Latch angl

    Part #66521

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #77

    Cabinet parts Diagram

    Washer

    Part #66539

    The manufacturer no longer makes this part, and there's no substitute part
