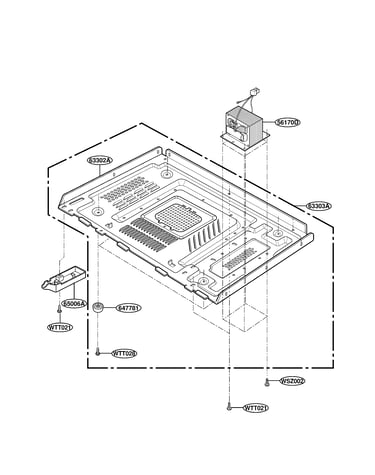

Model #LTM9020B01 LG microwave

Here are the diagrams and repair parts for LG LTM9020B01 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 81 parts

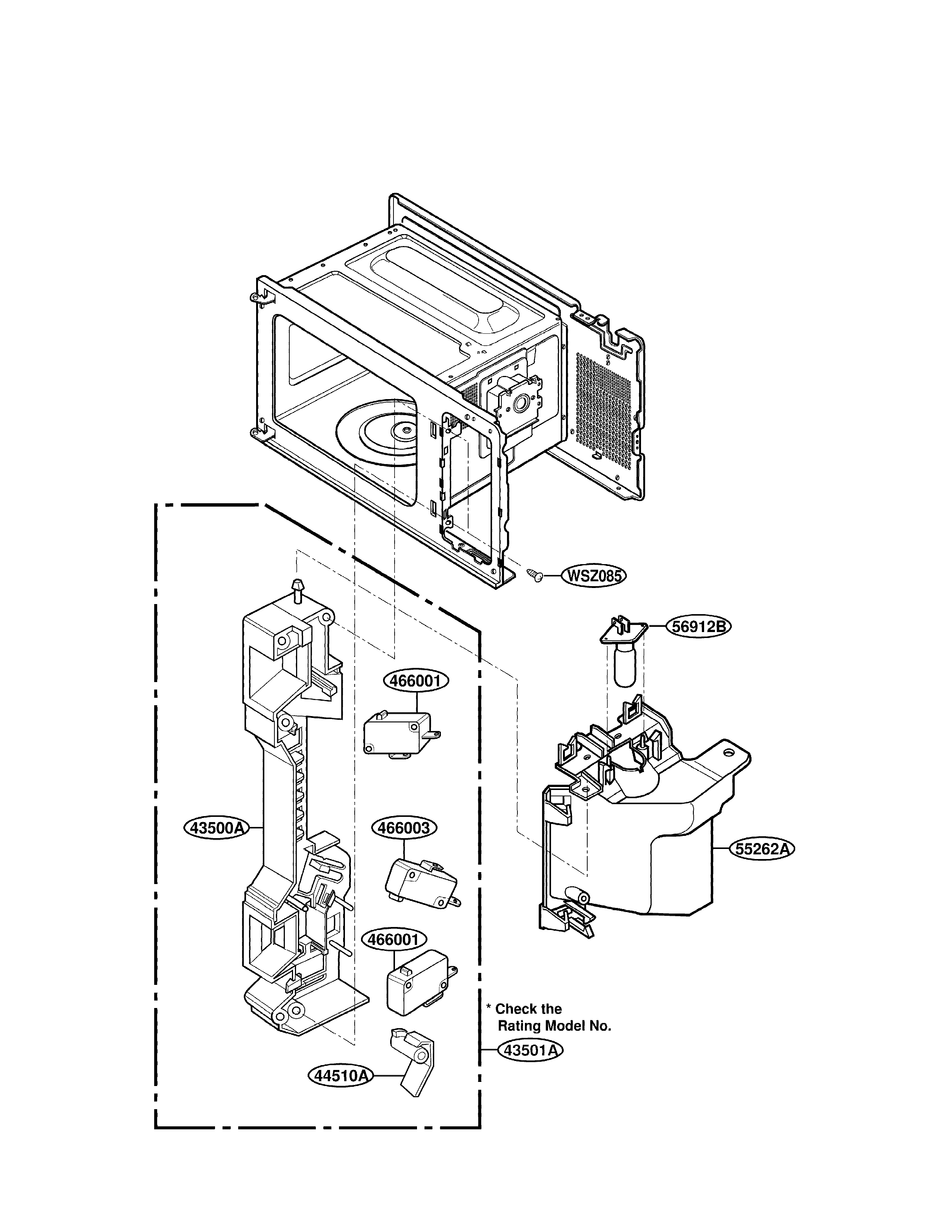

    Microwave Door Interlock Switch

    #7660

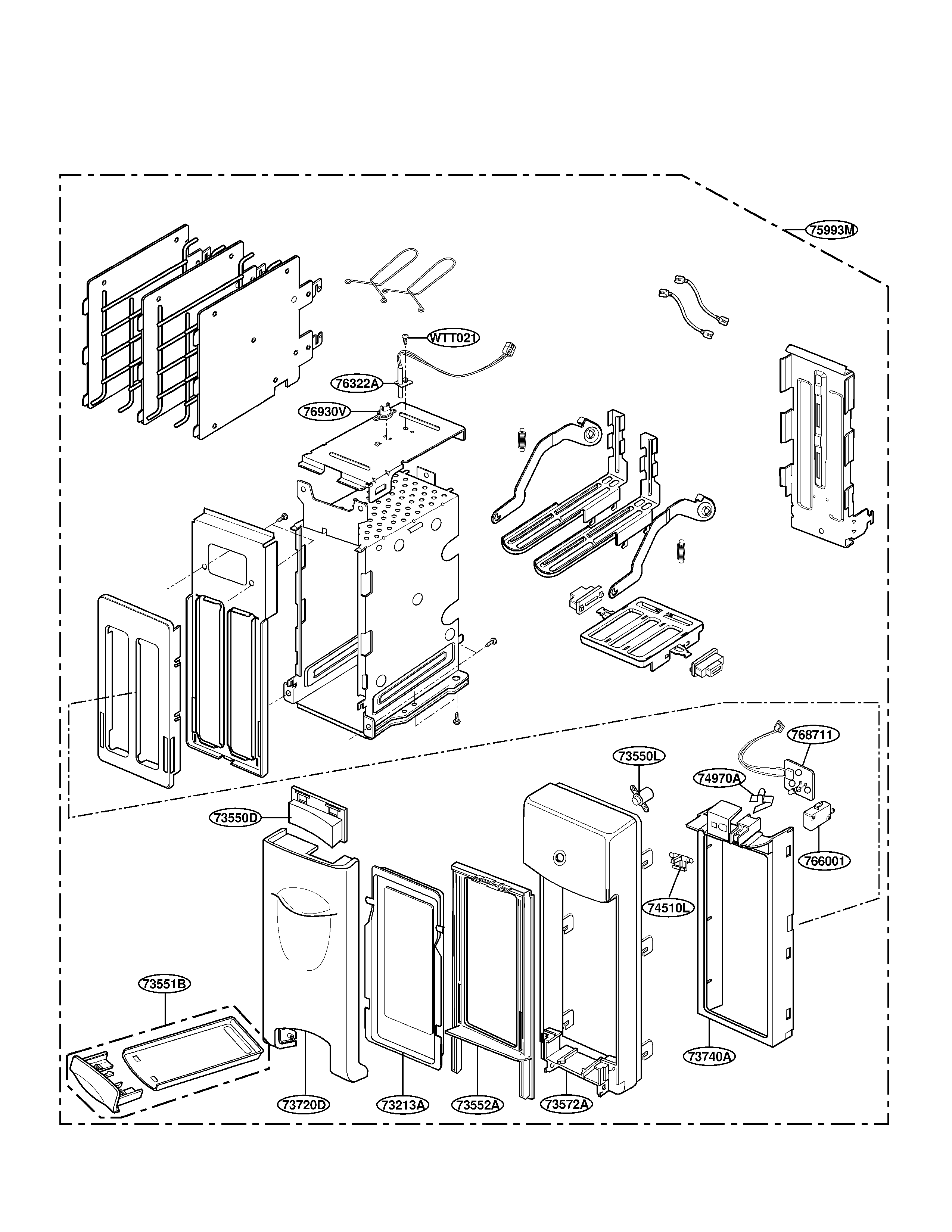

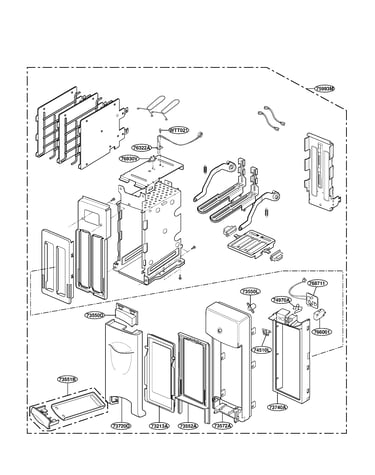

    Toaster parts Diagram

    Microwave door interlock switch

    Part #6600W1K001D
    This item is not returnable
    $7.05

    In Stock

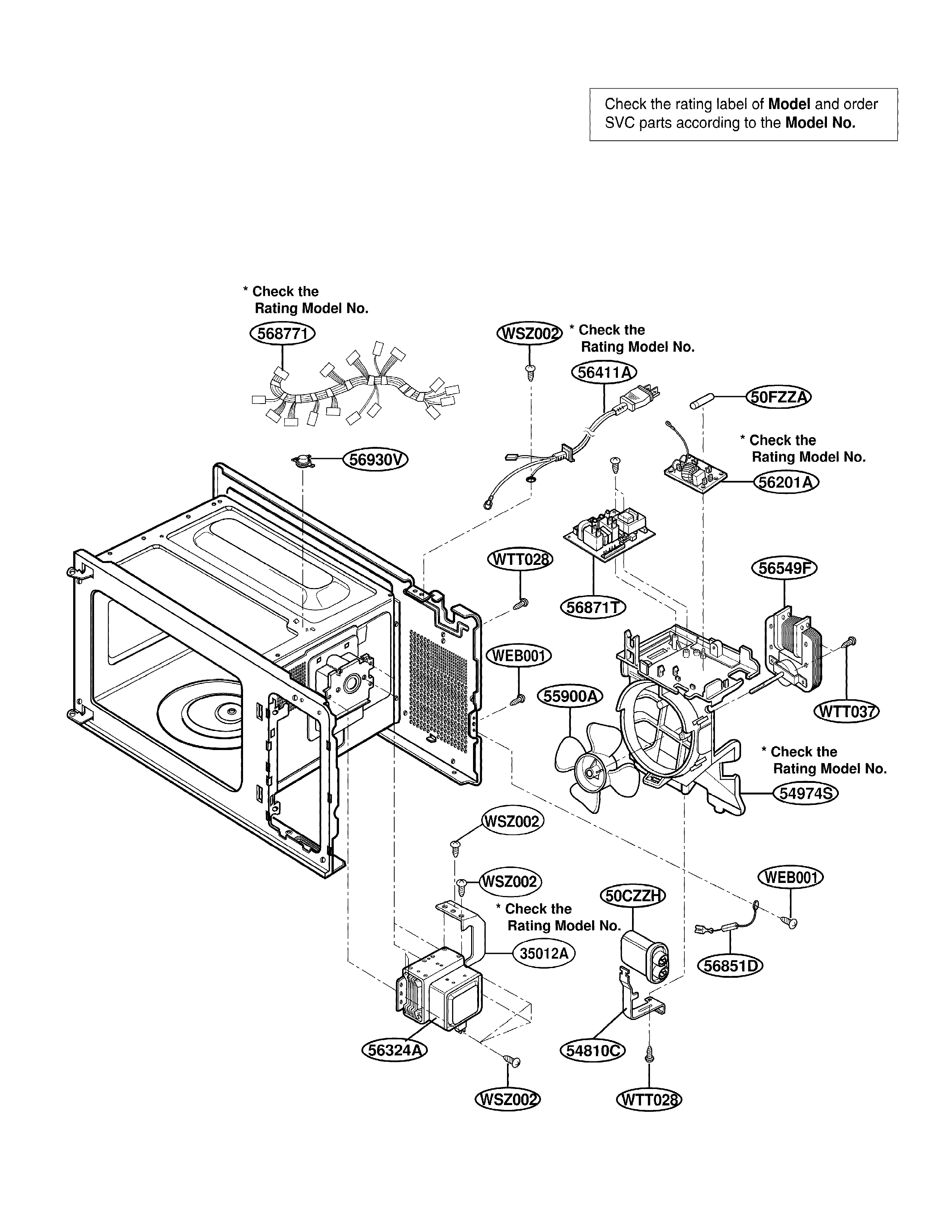

    Microwave Thermostat

    #5693

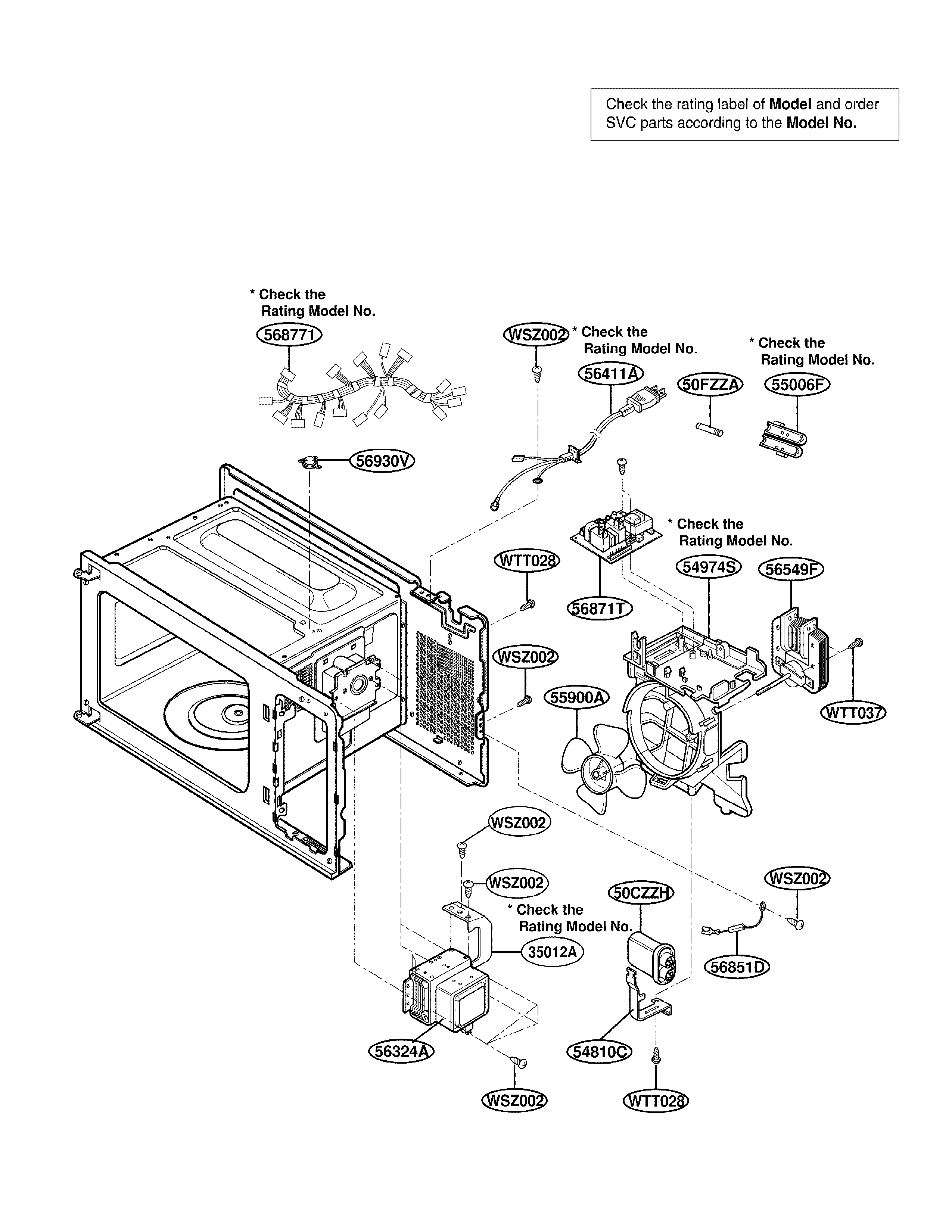

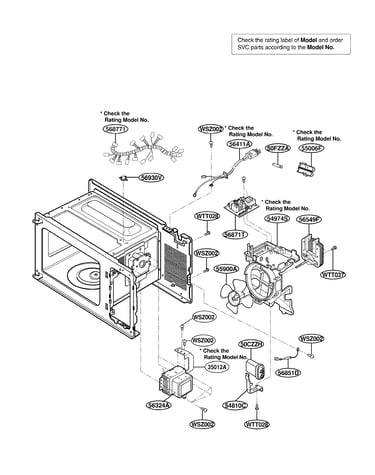

    Oven interior parts (i) Diagram

    Microwave thermostat

    Part #6930W1A003B
    This item is not returnable
    $5.04

    In Stock

    Canopy

    #3305

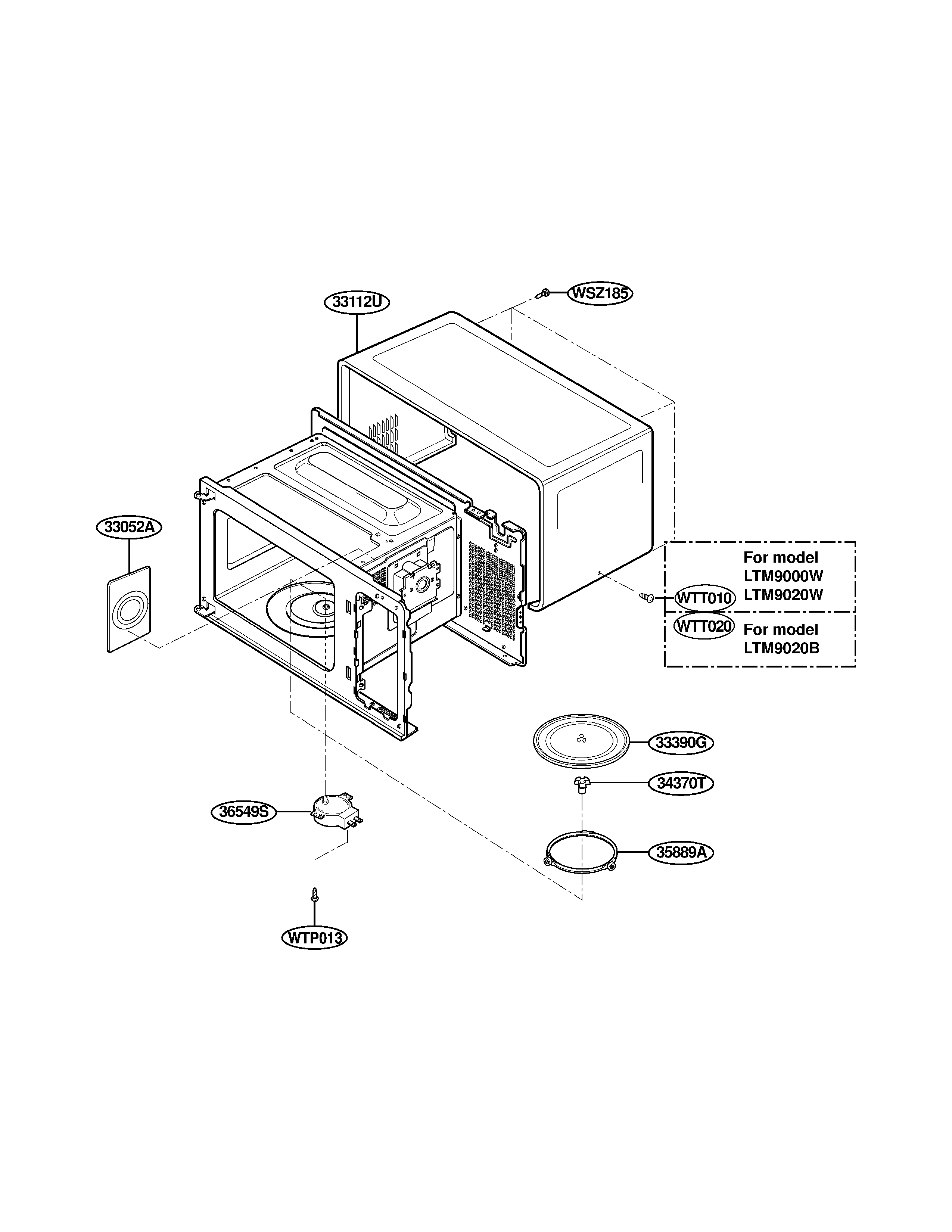

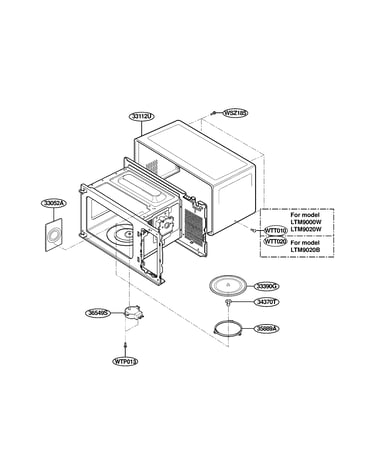

    Oven cavity parts Diagram

    Canopy

    Part #3052W2A021A
    This item is not returnable
    $3.26

    In Stock

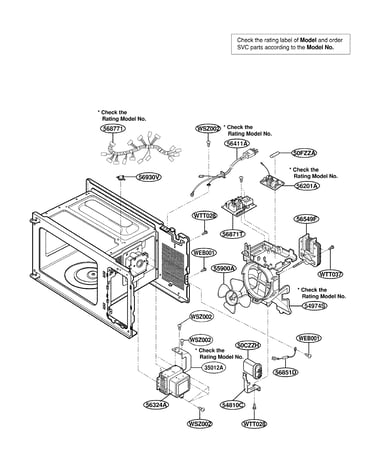

    Microwave High-Voltage Capacitor

    #50CZ

    Oven interior parts (i) Diagram

    $19.82

    In Stock

    Microwave Door Latch Spring

    #1497

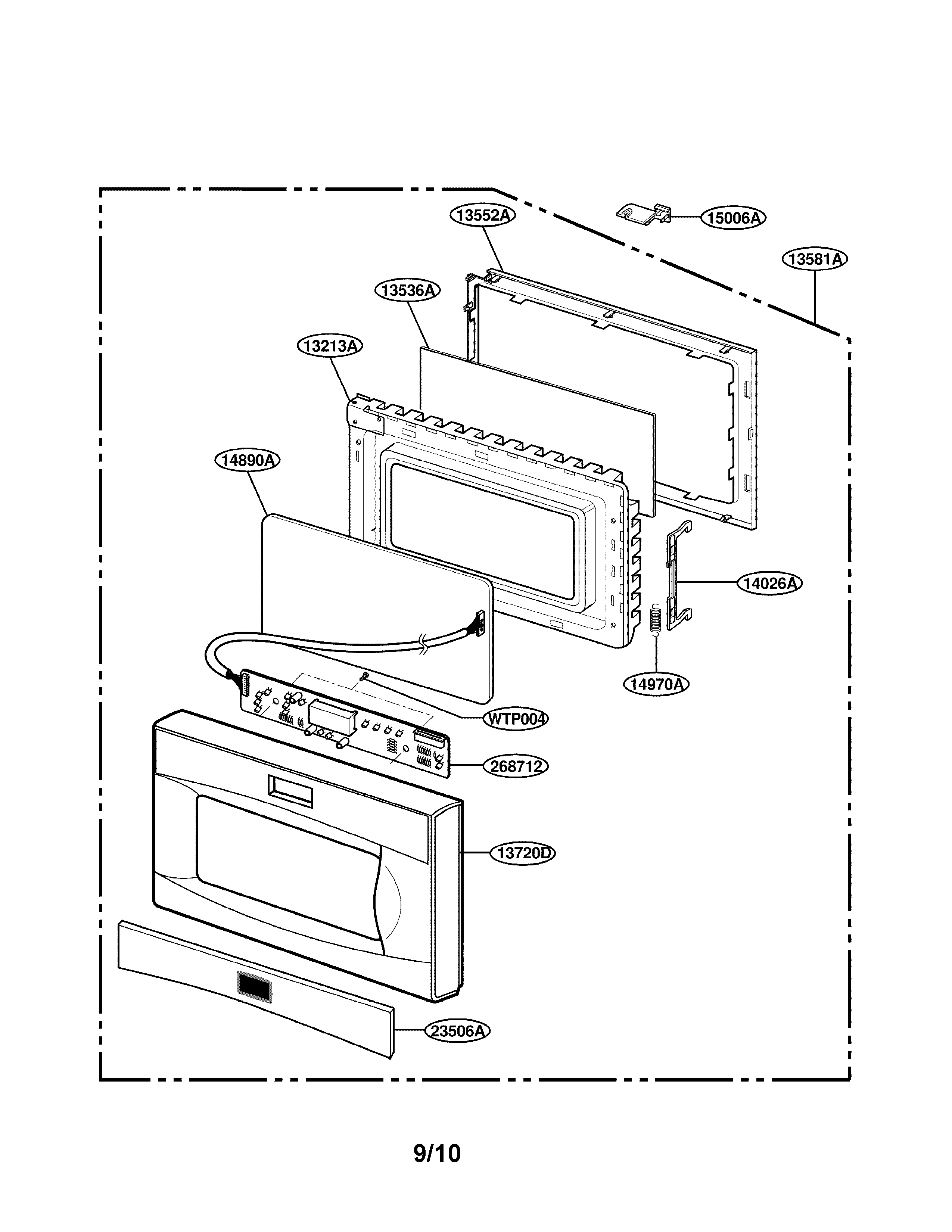

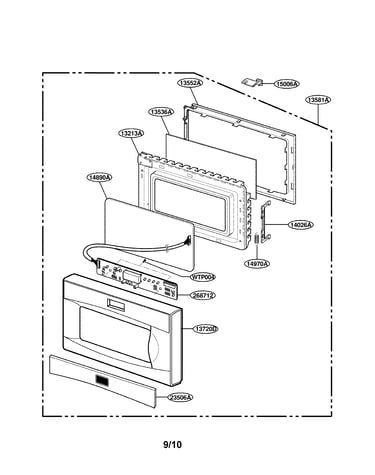

    Door parts Diagram

    Microwave door latch spring

    Part #4970WRA001E
    This item is not returnable
    $3.11

    In Stock

    Microwave Screw

    #WSZ0

    Oven interior parts (i) Diagram

    Microwave screw

    Part #1SBF0402418
    This item is not returnable
    $1.94

    In Stock

    Fuse

    #50FZ

    Oven interior parts (i) Diagram

    Fuse

    Part #3B74133P
    This item is not returnable
    $3.92

    In Stock

    Rotating Ring

    #3588

    Oven cavity parts Diagram

    Rotating ring

    Part #5889W2A015L
    $15.34

    In Stock

    Microwave Magnetron

    #5632

    Oven interior parts (i) Diagram

    Microwave magnetron

    Part #2B71732G
    $80.02

    In Stock

    Microwave Screw

    #WTP0

    Oven cavity parts Diagram

    Microwave screw

    Part #1TPL0402418
    This item is not returnable
    $5.20

    In Stock
