Model # TMS083U1W0 Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan TMS083U1W0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Control Panel 5303305427
#2

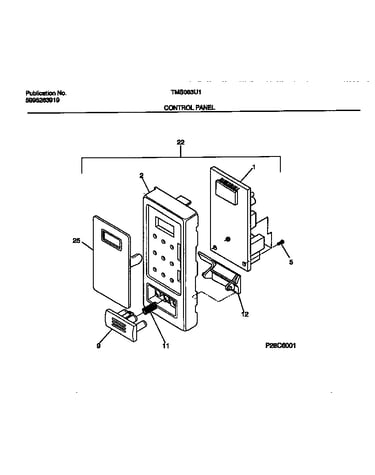

Control panel diagram

Control panel

Part #5303305427

In Stock
Shaft 5303305408
#42

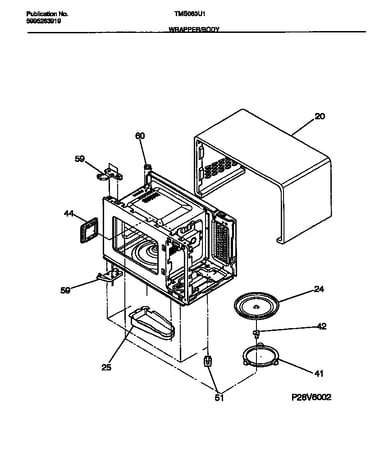

Wrapper/body diagram

Shaft

Part #5303305408

In Stock
Latch 5303305375
#46

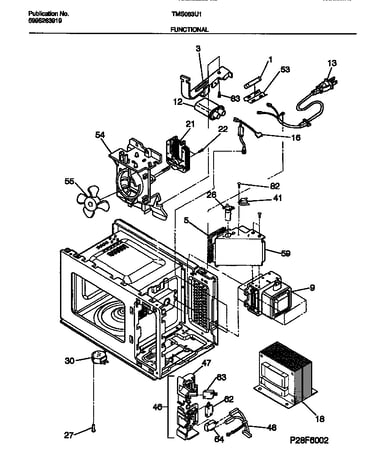

Functional diagram

Latch

Part #5303305375

In Stock
Cap 5303305391
#53

Functional diagram

Cap

Part #5303305391

This item is not returnable
In Stock
Spring 5303305355
#11

Control panel diagram

Spring

Part #5303305355

This item is not returnable
In Stock
Complete Door 5303307916
#19

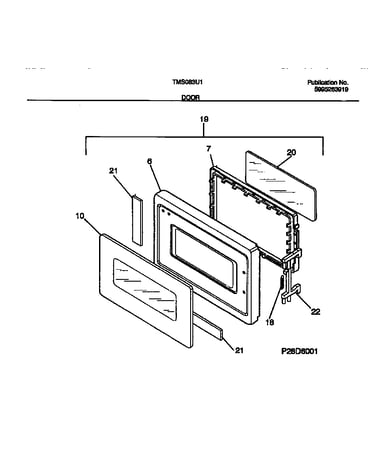

Door diagram

Complete door

Part #5303307916

In Stock
Thermostat 5303305363
#60

Wrapper/body diagram

Thermostat

Part #5303305363

In Stock
Button 5303305401
#9

Control panel diagram

Button

Part #5303305401

In Stock
Screw 5303305372

#NI

All parts diagram

Screw

Part #5303305372

This item is not returnable
In Stock
Cable 5303305383
#16

Functional diagram

Cable

Part #5303305383

In Stock
