Model #464430111 Official Char-Broil gas grill
Here are the diagrams and repair parts for Char-Broil 464430111 gas grill, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

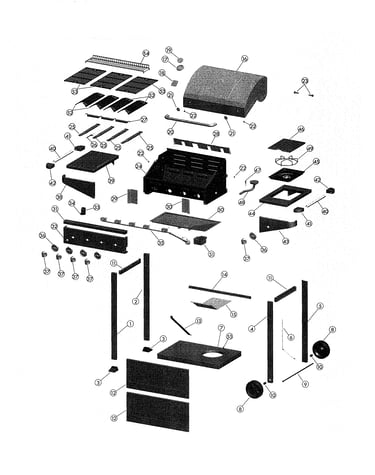

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 59 parts
Main burner
Part #SH302120014
Replaced by #SH1010007-104
?
Manufacturer substitution
This part replaces SH302120014. Substitute parts can look different from the original.
In Stock
$14.26 |
12% OFF
Phone Price: $16.26
Carrying burner
Part #SH202090002
Replaced by #01673
?
Manufacturer substitution
This part replaces SH202090002. Substitute parts can look different from the original.
This item is not returnable
In Stock
$24.19 |
17% OFF
Phone Price: $29.19
Button, f/ i
Part #302260011-1
Replaced by #G432-0026-W1
?
Manufacturer substitution
This part replaces 302260011-1. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.69 |
15% OFF
Phone Price: $6.69
Gas grill cooking grate (replaces 302110025)
Part #302110024
In Stock
$39.37 |
11% OFF
Phone Price: $44.37
In Stock
$2.89 |
26% OFF
Phone Price: $3.89
Side burner
Part #SH206040002
In Stock
$8.99
Hose valve
Part #30225002
Replaced by #30225001
?
Manufacturer substitution
This part replaces 30225002. Substitute parts can look different from the original.
In Stock
$110.41 |
8% OFF
Phone Price: $120.41
Match holder
Part #SH302340001
Replaced by #G508-0039-W1
?
Manufacturer substitution
This part replaces SH302340001. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.99
Recommended maintenance parts and accessories
Symptoms for gas grills
Main cause: worn wheel
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manifold failure
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tubes not aligned
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valves, manifold failure
Repair guides for gas grills
Replace a broken or damaged wheel in less than 15 minutes.
Repair difficulty
Time required
15 minutes or less
Replace the igniter electrode on your gas grill if it won’t light the burner.
Repair difficulty
Time required
15 minutes or less
Follow these steps to replace the ignition module if it doesn't produce a spark.
Repair difficulty
Time required
15 minutes or less
Articles and videos common to all outdoor grills
Learn about the main parts of gas grills and get DIY tips for replacing gas grill parts.
